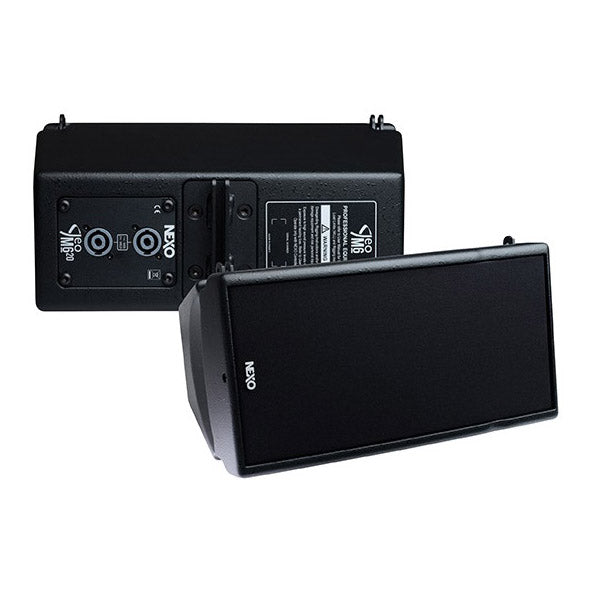

• NEXO GEO M620 Compact Full-Range Line Array Speaker

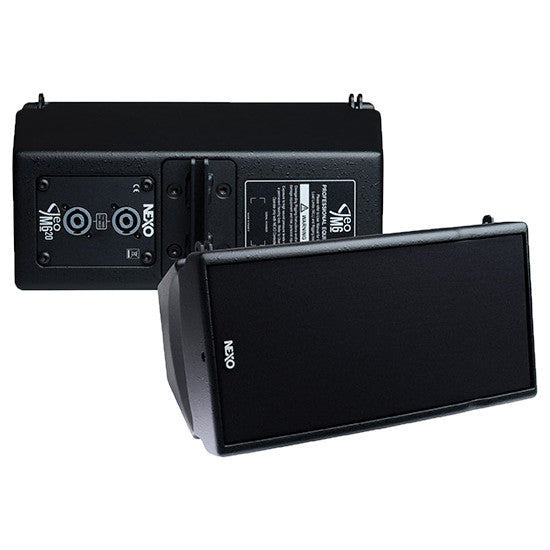

  • NEXO GEO M620 Compact Full-Range Line Array Speaker front and back
1 2

NEXO GEO M620 Line Array Speaker | Color: Black

NEXO GEO M620 Line Array Speaker | Color: Black

SoundPro Item: 85827 | Part Number: GEOM620

$2,499.00
$2,499.00 $2,499.00
Your Price Sold out
MSRP: $2,499.00 | MAP: $2,499.00

Usually ships in 5-7 business days

  • LF: 1x6.5" 8O long excursion driver
  • HF: 1x1" throat driver on a BEA/FEA optimised HR Wavesource
  • Dimensions (HxWxD): 191x373x260mm
  • Weight: 9.7kg
  • Connectors: 2 x NL4 Speakon 4 poles
  • Construction: Lightweight Polyurethane composite
  • Handles: Side Handles
  • Front Finish: Acoustic Fabric fitted front grille
Log in or register for YOUR best price

The GEO M620 from NEXO is a full-range unit for stand-alone, curved array or line array application. Extremely compact in size (191 x 373 x 260 mm), the M620 module punches well above its weight of less than 10 kgs. Using a NEXO-designed long-excursion high-efficiency 6.5" LF driver and a 1" throat driver on a BEA/FEA optimised HR Wavesource, the M620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of 127dB. HF dispersion is 80° or 120° horizontal, with 20° vertical coverage,0° to 20° splay when arrayed. Using NEXO's HRW patented waveguide for optimum HF coupling between elements, the M620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.

View full details
  • Frequency Response80Hz – 19kHz ±3dB
  • Usable Range @-6dB 75Hz – 20kHz
  • Sensitivity 1W @ 1m 95dB SPL Nominal
  • Nominal Peak SPL @ 1m 127dB
  • HF Dispersion 80°or 120°Horizontal (CCD)
  • Crossover Frequencies LF-HF: 2kHz Passive
  • Nominal Impedance 8Ω
  • Recommended Amplifiers 450W per box (3 boxes max in parallel on one channel amplifier)
