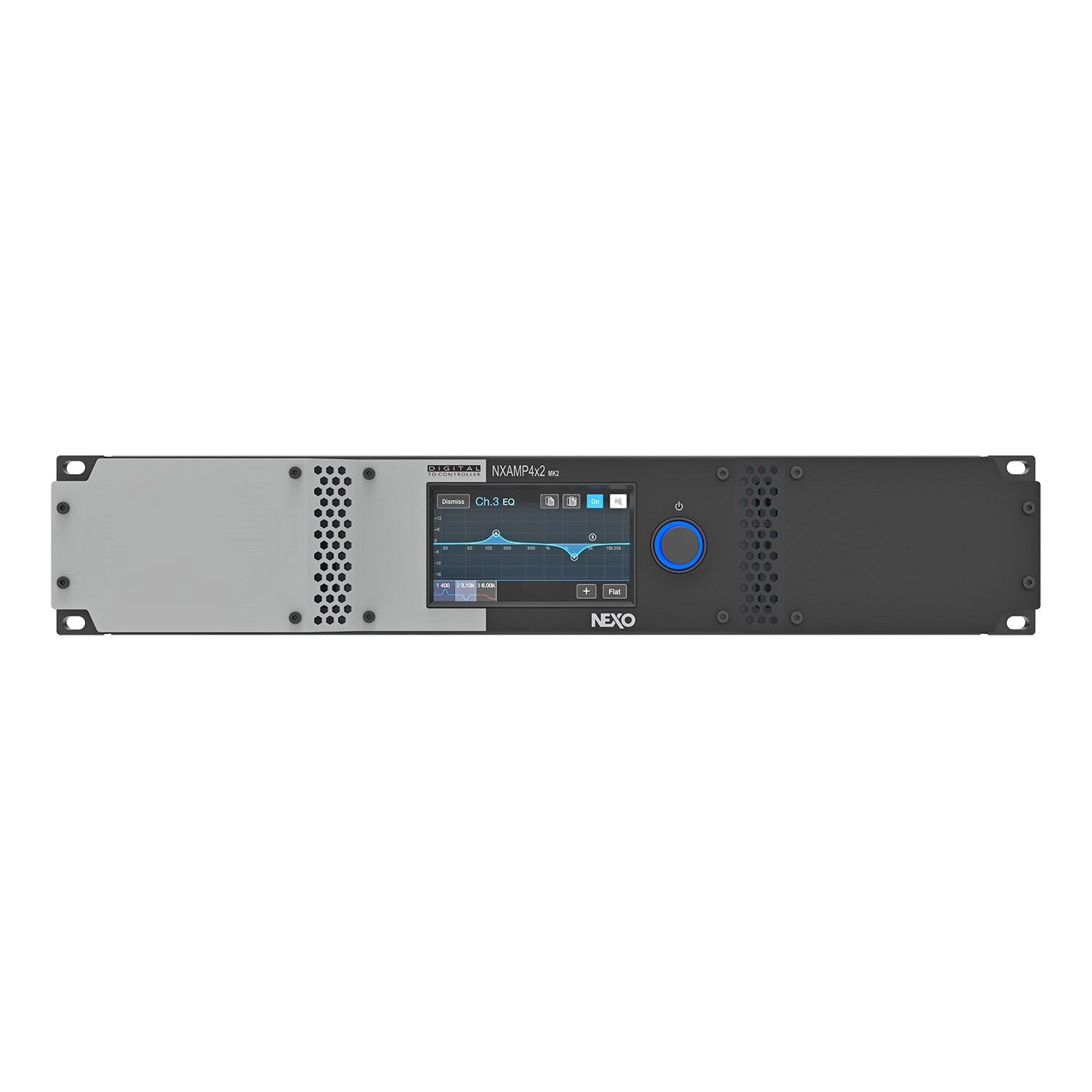

NEXO NXAMP4X2MK2 4-Channel 2500W Power Amplifier
NEXO NXAMP4X2MK2 4-Channel 2500W Power Amplifier
SoundPro Item: 31748 | Part Number: NXAMP4X2MK2
Usually ships in 5-7 business days
- NEXO and Yamaha collaborate to create the perfect, light weight power and control solution for NEXO loudspeaker systems
- Achieves significant advances in sound quality over previous generation NXAMPs
- 4 x ultra-low distortion Class D amplifiers
- 4 x 2500 Watts
- All essential parameters accessible via a large colour touchscreen on the front panel
- Universal 100 - 240 mains voltage range
- Uses PFC (Power Factor Correction) technology
- Remote control card fitted as standard
- Optional Dante, EtherSound and AES network cards available
The NXAMP4X2MK2 from NEXO is a 4-Channel 2500W Power Amplifier. NEXO's expertise in DSP control for high-performance loudspeakers is unparalleled in the sound reinforcement industry. And Yamaha has an unrivalled heritage in developing highly efficient and reliable power amplification devices. So when the two collaborate to create a new range of powered controllers, the result is sure to be something special.
- Channels4 x amplifier channels, 2 by 2 bridgeable
- Max. Output Voltage (no load)4x 140 Volts
- Max. Output Power
- 4 channels mode / 8 Ohms load per channel: 4 x 1200 W
- 4 channels mode / 4 Ohms load per channel: 4 x 1900 W
- 4 channels mode / 2 Ohms load per channel: 4 x 2500 W
- 2 channels mode / 8 Ohms load per channel: 2 x 3800 W
- 2 channels mode / 4 Ohms load per channel: 2 x 5000 W
- Power Consumption
- Standby: 10 Watts
- Idle: 200 Watts
- Frequency Response10 Hz - 20 KHz ±1 dB
- Input Impedance/Input Sensitivity20 K Ω / 16 dBu
- Dynamic Range / THD+N110 dB unweighted / typical 0.01 % on a flat setup
- Latency580 µs on a flat setup
- Audio AD and DA Converters24-bits @ 96 KHz
- Processing3x multicore 64-bits processing DSPs
- Back Panel Features
- Analogue Audio Inputs: 4x balanced analogue inputs on XLR3
- Power Outputs: 4x Neutrik Speakon NL-4 outputs
- RS232 Port: 1x DB-9 connector dedicated for DPU connection
- GPIO Port: 1x DB-25 connector with 5x Inputs and 8x Outputs for DMU connection
- Expansion Slot: for networking and digital audio cards, 4x digital audio inputs and remote control
- Mains Sockets: 1x Neutrik Powercon NAC3 (1x 20 A)
- User Interface & Controls
- Front Panel Buttons and Knobs: rotary encoder with push and backlight, tactile screen
- Display: 4.3" diagonal colour display, WQVGA, 480 x 272
- Mains Voltageuniversal power supply with active PFC 100-240 Volts (50/60 Hz)
- Power Consumption 1/4 Max 2 Ω3500 Watts
- Dimensions2U 19" rack, 20" depth
- Weight35.3 pounds
