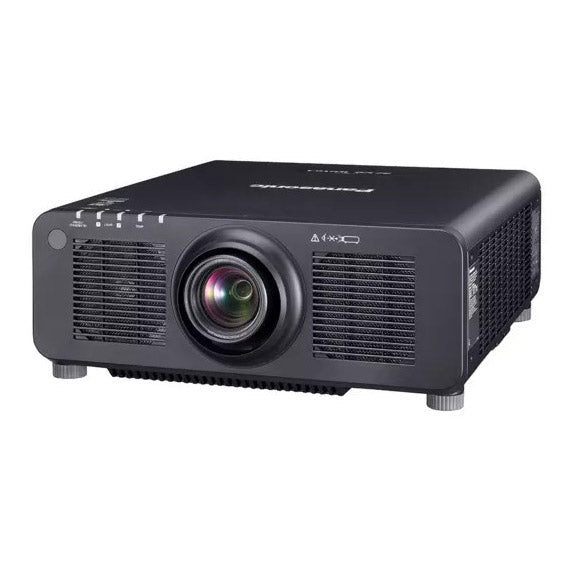

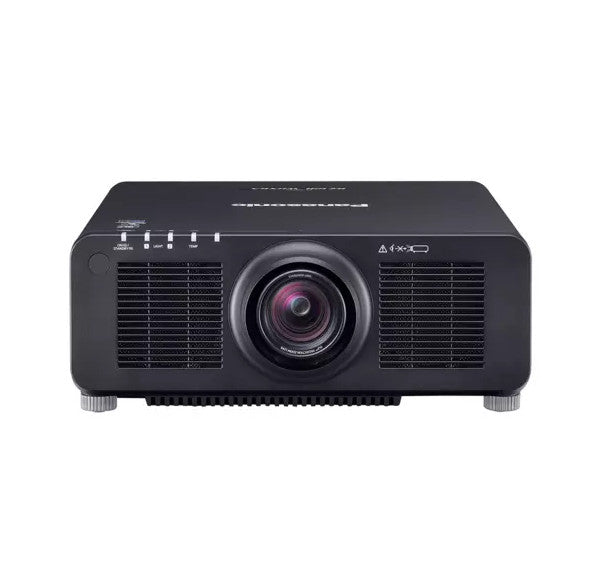

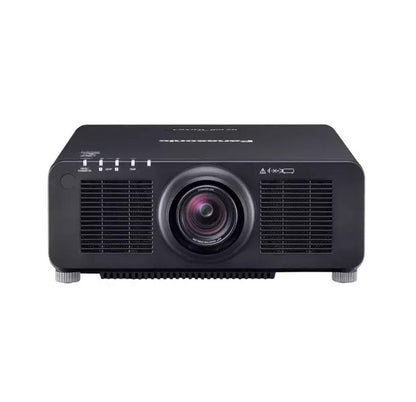

Panasonic PT-RCQ80U 8000 Lumen 1-Chip DLP Laser Projector

Panasonic PT-RCQ80U 8000 Lumen 1-Chip DLP Laser Projector

SoundPro Item: 109807 | Part Number: PT-RCQ80BU

$24,899.00
$24,899.00 $24,899.00
Your Price Sold out
MSRP: $24,899.00 | MAP: $24,899.00

Usually ships in 5-7 business days

  • Laser 1-Chip DLP, 8,000 lumens (ANSI), WUXGA, 4K Ready* laser projector
  • Rich Colour Harmonizer technology for improved and more accurate colour reproduction
  • Accepts 4K signal input
  • Projects a 2175x1697 high-resolution image by using pixel shift technology
  • Maintenance-free up to 20,000 hours maintenance-free operation with dust-resistant optical block and long lasting laser engine
Log in or register for YOUR best price

Create immersive environments with Panasonic's adaptable 1-Chip DLP™ laser projector with detailed images rich in natural color, seamless integration and excellent 24/7 reliability. The compact Panasonic PT-RCQ80U 8000 Lumen 1-Chip DLP Laser Projector is designed for long-lasting stable brightness in events and staging.

View full details
  • Projector Type1-Chip DLP™ projector
  • DLP™ chip
    • Display Method: DLP™ chip x 1, DLP™ projection system
    • Pixels: 2,304,000 (1920 × 1200) pixels, 4,608,000 (2,304,000 x 2) pixels when 4K Smooth Pixel Drive set to ON
    • Panel Size: 17.0 mm (0.67 in) diagonal, 16:10 aspect ratio
  • Light Sourcelaser diodes
  • Resolution4K-equivalent (4K Smooth Pixel Drive: ON)
  • Screen Size (diagonal)1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 16:10 aspect ratio
  • Keystone Correction Range
    • Vertical: ±40° (±16° with ET-DLE060, ±22° with ET-DLE105/ET-DLE085/DLE055, +5° with ET-DLE035)
    • Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035)
  • Installationceiling/floor, front/rear, free 360-degree installation
  • Terminals
    • SDI IN: BNC x 1: 3G/HD-SDI input
    • HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP 2.2)
    • DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • MULTI PROJECTOR SYNC IN: BNC x 1
    • MULTI PROJECTOR SYNC OUT: BNC x 1
    • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
    • SERIAL OUT: D-sub 9-pin (male) x 1 for link control
    • REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    • REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    • LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (Class 2), Art-Net
    • Expansion Slot: SLOT for interface boards, SLOT NX compatible
    • REMOTE 1 IN: M3 x 1 for wired remote control
    • USB: USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/500 mA)
    • DIGITAL LINK: RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input*5
  • Power SupplyAC 100-240 V, 50/60 Hz
  • Contrast Ratio *110,000:1 (Full On/Full Off) * With [Dynamic Contrast] set to [3]
  • Center-to-corner zone Ratio *190%
  • Light Output8,000 lm*1 / 8,400 lm (Center)*2
  • Time until light output declines to 50% *320,000 hours (normal), 24,000 hours (eco)
  • Lens Shift (from center of screen) *4
    • Vertical: +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
    • Horizontal: +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
  • Applicable SoftwareLogo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
  • Cabinet Materialsmolded plastic
  • Operating Humidity10-80% (no condensation)
  • Operating Temperature *632-113°F (0-45°C)
  • Weight *7approx. 52 pounds
  • Dimensions (WxHxD) *619.59" x 7.88" x 22.88"
  • Note
    • *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
    • *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcastcontents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
    • *3 Lens shift is not supported on theET-DLE055, and the optical axis is fixed with the ET-DLE035
    • *4 With legs at shortest position
    • *5 Average value. May differ depending on the actual unit
    • *6 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperaturebecomes 30 °C (86 °F) or higher, the light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 °C (77 °F) or higher, the light output may bereduced to protect the projector.
