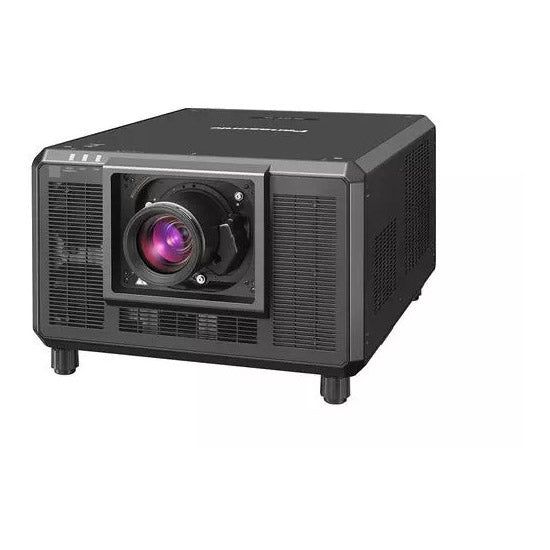

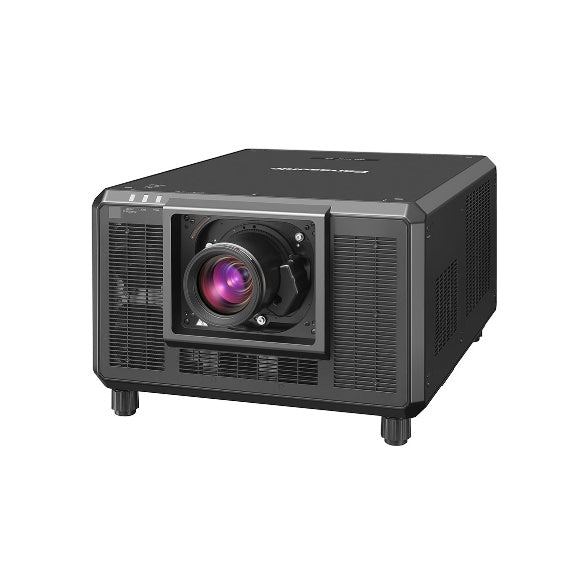

Panasonic PT-RQ35KU 31,000 Lumen 4K Large Venue Laser Projector
Panasonic PT-RQ35KU 31,000 Lumen 4K Large Venue Laser Projector
SoundPro Item: 121963 | Part Number: PT-RQ35KU
Usually ships in 5-7 business days
- Laser 3-chip DLP, 32,000 lumens (center), 4K (With Quad Pixel Drive On)
- Lamp-free laser projection with dust resistant liquid cooling system for 20,000 hours maintenance free operation
- Smart Projector Control with NFC for mobile access to network configuration such as IP address setup
- Preactivated Upgrade Kits for Geo Pro Software
- Two blue and one red laser module expands color-gamut reproduction
Lens not included with this projector
Despite its high brightness and jaw-dropping image quality, PT-RQ35K Series is the smallest and lightest 3-Chip DLP™ product in its class and can be transported and installed with just two people. Save on labor costs and enjoy greater convenience when backyard space is limited.A combination of two blue and one red laser expands colour-space reproduction by 114 %*3 over the PT-RQ32K. Vivid red and pure blue reproduction heightens realism for an immersive experience and takes high-resolution content to the next level. Redesigned airflow path, cooling system, and finless radiator reinforce reliability. Dynamic Digital Control regulates red laser output and cooling for consistent image quality. Expect 20,000 hours of maintenance-free projection with backup input and laser failover circuitry offering peace of mind when projection can’t be interrupted.
- Power Consumption2,550W (14W on standby)
- ResolutionOptional (no lens included with this model)
- Keystone Correction Range
- Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95)
- Horizontal: Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95)
- When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
- Contrast Ratio *120,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Power SupplyAC 200 V–240 V (Light output will decrease when using the projector with AC 100 V to AC 120 V)
- Light SourceLaser diodes (Blue LD, Red LD)
- Terminals
- DVI-D IN: -
- SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
- LAN: RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
- DC OUT: USB Type A x 2 (for power supply, DC 5 V total of 2 A)
- SDI IN: -
- HDMI IN: HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input*5 )
- SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
- USB: USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick
- DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input*5
- REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
- EXPANSION SLOT: SLOT 1/SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible
- MULTI PROJECTOR SYNC IN: BNC x 1
- MULTI PROJECTOR SYNC OUT: BNC x 1
- REMOTE 1 IN: M3 stereo mini-jack x 1 for wired remote control
- REMOTE 1 OUT: M3 stereo mini-jack x 1 for link control
- DLP™ chip
- Panel Size: 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
- Display Method: DLP™ chip x 3, DLP™ projection system
- Number of Pixels: 2,304,000 (1920 x 1200 pixels) x 3
- Light Output30,500 lm*1/32,000 lm (Center)*2
- Operation Noise *149 dB (Normal), 46 dB (Quiet)
- Projector Type3-Chip DLP™ projector
- Screen Size (diagonal)1.78–25.4 m (70–1,000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95
- Center-to-corner zone ratio *190%
- Time until light output declines to 50% *3
- Normal: 20,000 hours
- Eco: 24,000 hours
- Quiet: 26,000 hours
- Lens Shift (from the origin point of the lens mounter)
- Vertical: ±55 % (+78 %, +68 % with ET-D75LE95, ±48 % with ET-D3LEW200, ±44 % with ET-D75LE6/ET-D3LEW60) (powered)
- Horizontal: ±20 % (±15 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW200, ±12 % with ET-D75LE95, +25 %, 0 % with ET-D3LEU100) (powered)
- Applicable SoftwareLogo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android™
- Operating Temperature32 - 113°F (0 - 45°C)
- Operating Humidity10-80% (no condensation)
- Dimensions (WxHxD)approx. 23.53" x 13.91" x 30.72" (not including protruding parts)
- Weight *6153.9 pounds
- Note
- *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
- *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
- *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output decreases to 50 % will vary depending on environment.
- *4 Lens shift is not supported on the ET-D3LEW50
- *5 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ34K
- *6 Average value. May differ depending on the actual unit
- *7 When optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
