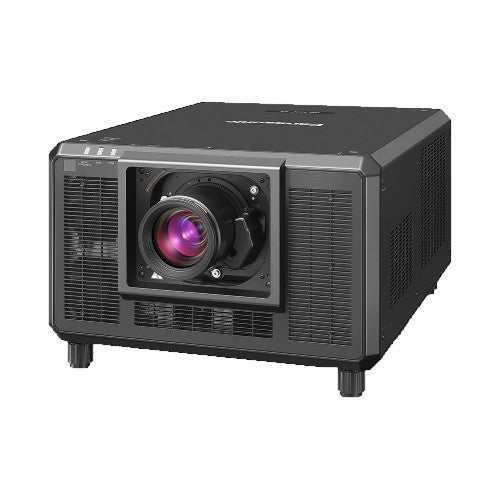

• Panasonic PT-RZ34KU 31,000 Lumen WUXGA Large Venue Laser Projector
1 1

Panasonic PT-RZ34KU 31,000 Lumen WUXGA Laser Projector

Panasonic PT-RZ34KU 31,000 Lumen WUXGA Laser Projector

SoundPro Item: 121964 | Part Number: PT-RZ34KU

$141,569.00
$141,569.00 $141,569.00
Your Price Sold out
MSRP: $141,569.00 | MAP: $141,569.00

Usually ships in 5-7 business days

  • Laser 3-chip DLP, 32.000 lumens (centre), WUXGA
  • Lamp-free laser projection with dust resistant liquid cooling system for 20000 hours maintenance free operation
  • Smart Projector Control with NFC for mobile access to network con­figuration such as IP address setup
  • Preactivated Upgrade Kits for Geo Pro Software
  • Two blue and one red laser module expands colour-gamut reproduction
Log in or register for YOUR best price

Despite its high brightness and jaw-dropping image quality, PT-RQ35K Series is the smallest and lightest 3-Chip DLP™ product in its class and can be transported and installed with just two people. Save on labor costs and enjoy greater convenience when backyard space is limited. A combination of two blue and one red laser expands colour-space reproduction by 114 %*3 over the PT-RQ32K. Vivid red and pure blue reproduction heightens realism for an immersive experience and takes high-resolution content to the next level. Redesigned airflow path, cooling system, and finless radiator reinforce reliability. Dynamic Digital Control regulates red laser output and cooling for consistent image quality. Expect 20,000 hours of maintenance-free projection with backup input and laser failover circuitry offering peace of mind when projection can’t be interrupted.

View full details
  • Dimensions (WxHxD) Approx. 598x353x780 mm (23 17/32” x 13 29/32” x 30 23/32” ), not including protruding parts
  • Power consumption 2,450 W (Standby: 13 W)
  • LENS Optional (no lens included with this model)
  • Resolution WUXGA (1920 x 1200 pixels)
  • Operating environment Operating temperature: 0–45 °C (32–113 °F*7), operating humidity: 10–80 % (no condensation)
  • Keystone correction range Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95), Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
  • Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android™
  • Contrast Ratio*1 20,000:1 (Full On/Full Off, Dynamic Contrast [3])
  • Power supplyAC 200 V–240 V (Light output will decrease when using the projector with AC 100 V to AC 120 V)
  • Light source Laser diodes (Blue LD, Red LD)
  • Terminals | DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP) (Single-link only)
  • Terminals | SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Terminals | LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
  • Terminals | DC OUT
    • USB Type A x 2 (for power supply, DC 5 V total of 2 A)
    • DLP™ chip | Panel size 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
    • DLP™ chip | Display method DLP™ chip x 3, DLP™ projection system
  • Terminals | SDI IN BNC x 1: 3G/HD-SDI input
  • Terminals | HDMI IN HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input*5 )
  • Terminals | SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
  • Terminals | USB USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick
  • Terminals | DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input*5
  • Terminals | REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
  • Terminals | Expansion Slot SLOT (one terminal, vacant) for interface boards, SLOT NX compatible
  • Light output 30,500 lm*1 /32,000 lm (Center)*2
  • Terminals | REMOTE 1 IN M3 stereo mini-jack x 1 for wired remote control
  • Terminals | REMOTE 1 OUT M3 stereo mini-jack x 1 for link control
  • Operation noise*1 49 dB (Normal), 46 dB (Quiet)
  • Projector type 3-Chip DLP™ projector
  • DLP™ chip | Number of Pixels 2,304,000 (1920 x 1200 pixels) x 3
  • Screen size [diagonal] 1.78–25.4 m (70–1,000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95
  • Center-to-corner zone ratio*1 90 %
  • Time until light output declines to 50 %*3 20,000 hours (NORMAL)
  • Lens shift*4 | Vertical (From the origin point of the lens mounter) ±55 % (+78 %, +68 % with ET-D75LE95, ±48 % with ET-D3LEW200, ±44 % with ET-D75LE6/ET-D3LEW60) (powered)
  • Lens shift*4 | Horizontal (From the origin point of the lens mounter) ±20 % (±15 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW200, ±12 % with ET-D75LE95, +25 %, 0 % with ET-D3LEU100) (powered)
  • Notes *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output decreases to 50 % will vary depending on environment. *4 Lens shift is not supported on the ET-D3LEW50. *5 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ34K. *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
  • Weight*6 68.6 kg (151.2 lbs)
  • Terminals | MULTI PROJECTOR SYNC IN terminal/ 3D SYNC 1 IN/OUT terminal (dual purpose) BNC x 1
  • Terminals | MULTI PROJECTOR SYNC OUT terminal/ 3D SYNC 2 OUT terminal (dual purpose)BNC x 1
