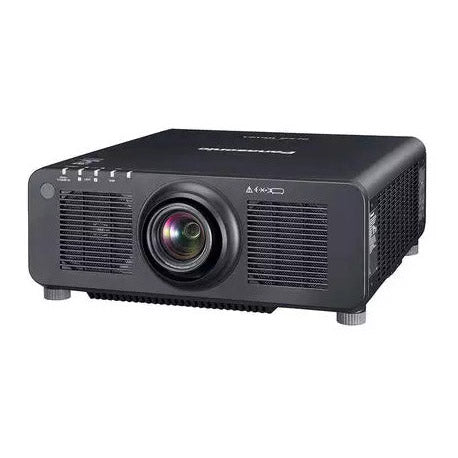

Panasonic PT-RZ790U 7000 Lumen 1-Chip DLP Laser Projector | Color: Black, Lens Included: Yes
Panasonic PT-RZ790U 7000 Lumen 1-Chip DLP Laser Projector | Color: Black, Lens Included: Yes
SoundPro Item: 130607 | Part Number: PT-RZ790BU7
Usually ships in 5-7 business days
- Laser 1-chip DLP, 7,200 lm (center)/ 7,000 lm (ANSI), WUXGA
- Quartet Colour Harmonizer technology for more accurate colour reproduction
- Maintenance free up to 20.000 hours with dust-resistant optical block and long lasting laser engine
- Supports 4K/60p Signal Input, separate DIGITAL LINK and LAN terminals
- Easy to install and integrate
- Reliable even in harsh conditions
- Ideal for museums, houses of worship and more
Available in different colors and with or without lens
With support for 4K/60p input signals, separate DIGITAL LINK and LAN terminals, and diverse optional lenses, the Panasonic PT-RZ790U 7000 Lumen 1-Chip DLP Laser Projector reduces installation hassles with convenient flexibility.
Deepen immersion in any environment with vivid, accurate colors backed by up to 10,000 lm*1 of brightness thanks to Quartet Colour Harmonizer and 1-Chip DLP™ imaging technology. Engineered for 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading dust-resistant optical engine.
- Power Consumption
- Normal: 545W
- Eco: 435W
- Long Life 1: 215W
- Long Life 2: 195W
- Long Life 3: 170W
- LensWith supplied lens: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm (Without lens: Optional powered zoom/focus lenses)
- Resolution1920 x 1200 pixels
- Keystone Correction Range
- Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035)
- Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)
- Contrast Ratio *110,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Power SupplyAC 100–240 V, 50/60 Hz
- Light Sourcelaser diodes
- Terminals
- DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
- LAN: RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
- SDI IN: BNC x 1: 3G/HD/SD-SDI input
- HDMI IN: HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5 )
- DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5
- REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
- REMOTE 1 IN: M3 x 1 for wired remote control
- REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
- SERIAL/MULTI PROJECTOR SYNC IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
- SERIAL/MULTI PROJECTOR SYNC OUT: D-sub 9-pin (male) x 1 for link control
- RGB 1 IN: RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
- RGB 2 IN: D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
- DLP™ chip
- Panel Size: 17.0 mm (0.67 in) diagonal ( Panel size 16:10 aspect ratio)
- Display Method: DLP™ chip x 1, DLP™ projection system
- Number of Pixels: 2,304,000 (1920 x 1200 pixels)
- Light Output
- Normal *1: 7,000 lumens
- Center *2: 7,200 lumens
- Eco *1: 5,600 lumens
- Long Life 1 *1: 2,800 lumens
- Long Life 2 *1: 2,300 lumens
- Long Life 3 *1: 1,900 lumens
- Operation Noise *136 dB (normal)
- Projector Type1-Chip DLP™ projector
- Screen Size (diagonal)1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio
- Center-to-corner zone ratio *190%
- Time until light output declines to 50% *3
- Normal: 20,000 hours
- Eco: 24,000 hours
- Lens Shift (from the origin point of the lens mounter) *4
- Vertical: +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
- Horizontal: +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
- Applicable SoftwareLogo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
- Operating Temperature *832 - 113°F (0 - 45°C)
- Operating Humidity10 - 80% (no condensation)
- Weight *7approx. 48.7 pounds
- Dimensions (WxHxD)19.59" x 7.88" x 22.88"
- Note
- *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
- *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
- *3 Around this time, light output will have decreased by approximately 50%. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment.
- *4 Lens shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE035.
- *5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI ®
- *6 Excluding legs
- *7 Average value. May differ depending on the actual unit.
