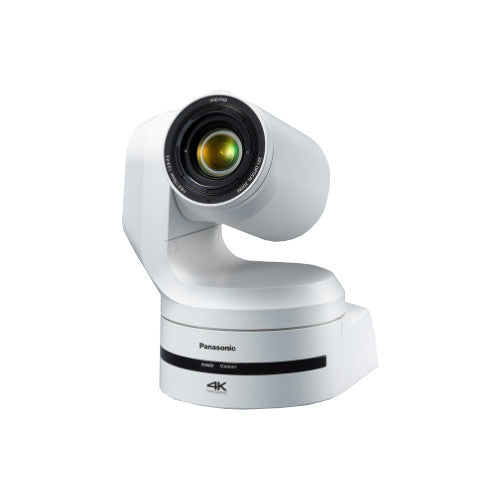

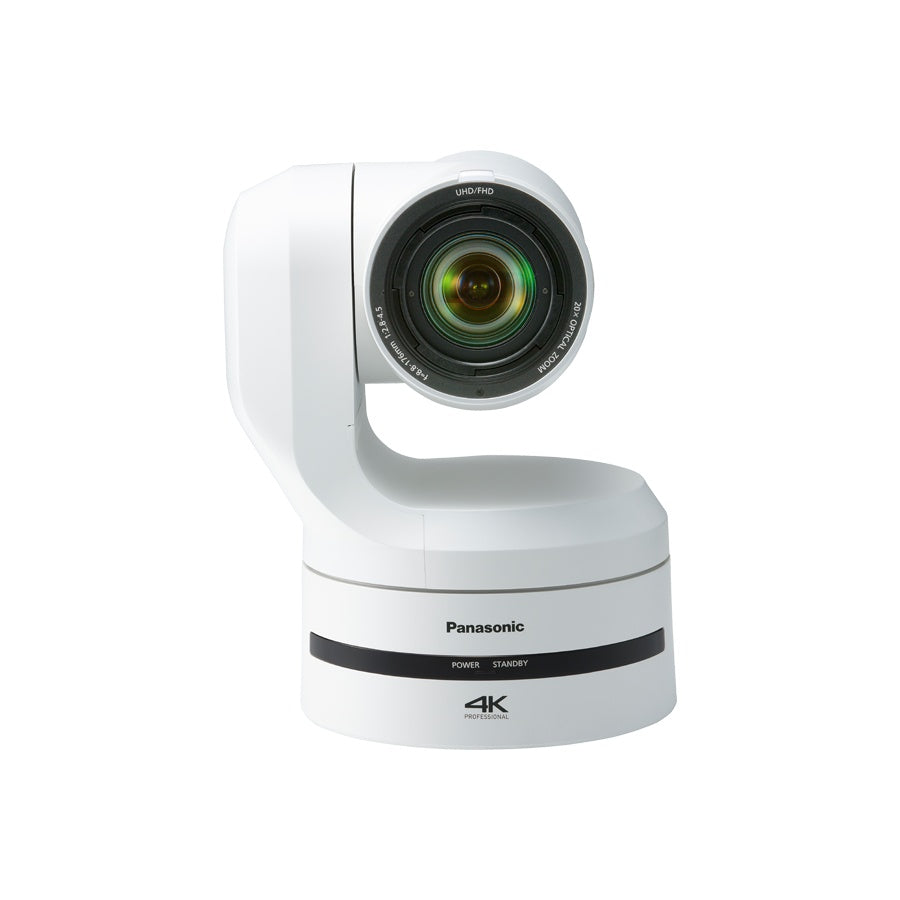

Panasonic AW-UE150 4K/60P Large Sensor PTZ Camera | Color: White
Panasonic AW-UE150 4K/60P Large Sensor PTZ Camera | Color: White
SoundPro Item: 128331 | Part Number: AW-UE150WPJ
Regular price
$9,995.00
Regular price
$11,400.00
Sale price
$9,995.00
Unit price
per
MSRP: $11,400.00
| MAP: $9,995.00
Usually ships in 5-7 business days
- Supports SRT Protocol for 4K/60p video streaming
- 20x Optical Zoom + Optical Image Stabilization
- 75.1° horizontal viewing angle (widest in its class)
- Various 4K video interfaces (12G-SDI, HDMI, Optical Fiber, IP) with 4K/HD simultaneous video output
- Advanced performance camera features including V-LOG output support, FreeD protocol for AR/VR camera tracking, PoE++ and more
The AW-UE150 is a key model in Panasonic's comprehensive professional PTZ camera lineup. Featuring a 1-type large MOS sensor, this next-generation PTZ camera supports high-quality 4K/UHD 60p video, features a 75.1-degree viewing angle, 20x optical zoom and supports versatile outputs, including 12G-SDI, HDMI, optical fiber, and IP. Simultaneous 4K/HD operation makes this PTZ camera powerhouse ideal for those looking to future-proof their system.
- Power RequirementsDue to increased PRO PTZ camera installations utilizing existing PoE++ infrastructure, the AW-UE150 unit does not include a standard power supply. If the AW-UE150 will be installed in an area without PoE++, please utilize an IA-70a power supply. XLR 4-PIN: 12 V DC (10.8 V to 13.2 V) PoE++: IEEE 802.3bt (Type 4) Standard DC 42 V to 57 V (Camera Input)
- PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
- Current consumption 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
- Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
- Ambient Operating Humidity 20 % to 90 % (no condensation)
- Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
- Mass Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
- Dimensions (WxHxD) 8-3/8 inches x 10-1/2 inches x 8-5/8 inches (213x267x219 mm), excluding protrusions, direct ceiling mount bracket
- Finish
- AW-UE150WP/AW-UE150WE: Pearl white
- AW-UE150KP/AW-UE150KE: Black
- Controller supported*1 AW-RP150GJ
- Imaging Sensors 1-type 4K MOS×1
- LENS *
- Motorized Optical 20x zoom, F2.8 to F4.5
- [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches)
- equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
- Zoom
- Optical zoom: 20x
- i.Zoom: UHD 24x, FHD 32x
- Digital zoom: 10x
- Conversion LensNot supported
- Angle of View Range
- Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
- Vertical angle of view: 46.7° (wide) to 2.3° (tele)
- Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
- Optical FilterThrough, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
- Focus Switching between auto and manual
- Focus Distance
- Entire zooming range: 1000 mm (3.3 ft)
- Wide end: 100 mm (0.33 ft)
- Color separation optical system 1MOS
- Standard Sensitivity F9, 2000 lx (When normal mode is selected)
- MINIMUM ILLUMINATION 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
- S/N 60 dB or more
- Horizontal Resolution 1600 TV lines Typ (Center area)
- Gain Selection Auto, 0 dB to 36 dB*2
- Super Gain function equipped +37 dB to 42 dB
- Frame mix*3 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
- Electronic Shutter Speed
- 59.94p/59.94i - 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 29.97p - 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p -1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i - 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p - 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- Syncro Scan
- 59.94p/59.94i : 60.00 Hz to 7200 Hz
- 29.97p : 30.00 Hz to 7200 Hz
- 23.98p/24p : 24.00 Hz to 7200 Hz
- 50p/50i : 50.00 Hz to 7200 Hz
- 25p : 25.00 Hz to 7200 Hz
- GammaHD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
- WHITE BALANCE
- ATW : 3200K, 5600K
- ATW Speed : Normal / Slow / Fast
- AWB : AWB-A / AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
- Chroma Amount VariabilityOFF, -99 % to 99 %
- Scene FileScene1, Scene2, Scene3, Scene4
- Output Format
- 4K - 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
- HD - 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
- Synchronization System Internal / External synchronization (BBS / Tri-level sync)
- Input Connector DC 12 V IN, G/L IN (BNC): BBS (Black Burst Sync), tri-level sync supported
- VIDEO OUTPUT
- HDMI
- HDMI 2.0 standard
- 4:2:2/10bit
- HDCP is not supported
- Viera Link is not supported
- 12G-SDI OUT - SMPTE 2082-1 standard / 75 Ω (BNC x 1)
- 3G-SDI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Level-A/Level-B supported
- MONI OUT - SMPTE292 / 75 Ω (BNC x 1)
- Optical Fiber
- SFP+ standard
- Single Fiber
- The signal sent is the same as 12G-SDI OUT.
- This unit does not support input by optical signals
- HDMI

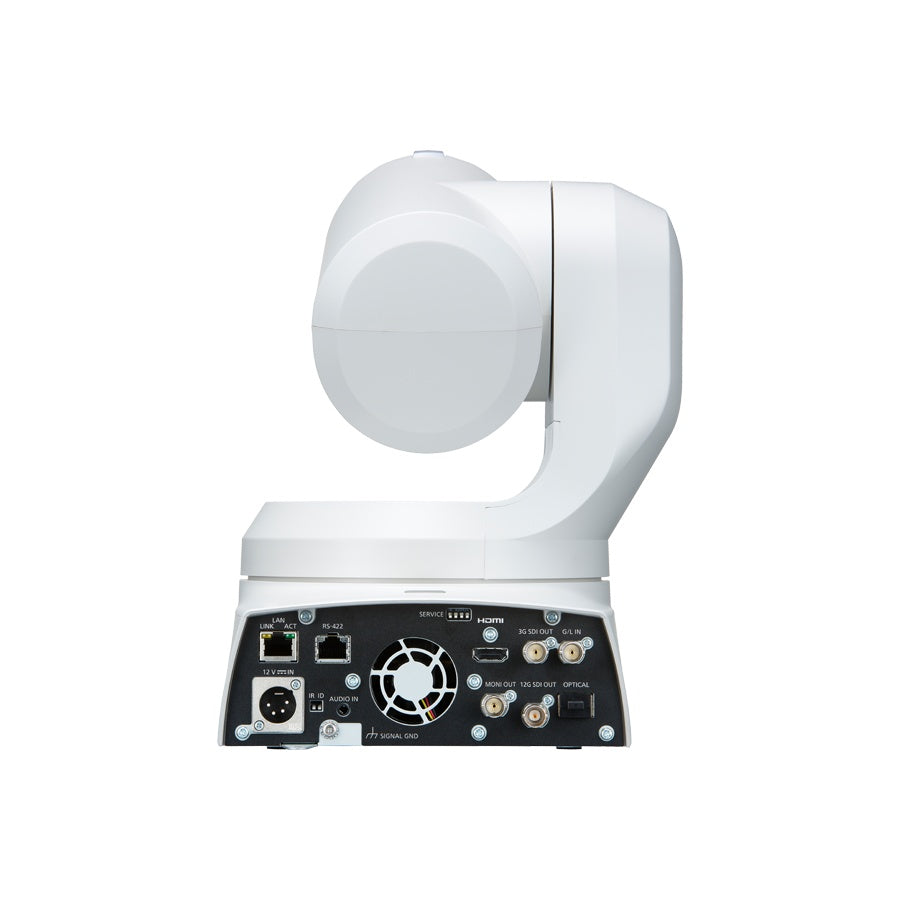

- Input / Output Connector
- LAN - LAN connector for IP control (RJ-45)
- RS-422 - CONTROL IN RS-422A (RJ-45)
- MIC/LINE input
- φ3.5 mm stereo mini jack
- Input impedance: High impedance - During MIC input
- Supported mic: Stereo mic (plug-in power, on/off switching via menu)
- Supply voltage: 2.5 V ± 0.5 V
- Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) - During LINE input
- Input level: Approx. -10 dBV ±3 dBV
- Camera/pan-tilt head control
- IP connecting cable - LAN cable*6*7 : (category 5e or above, straight cable / crossover cable); max. 100 m (328 ft)
- AW protocol connecting cable: LAN cable*6 (category 5e or above, straight cable); max. 1000 m (3280 ft)
- Installation MethodStand-alone (Desktop) or suspended (Hanging)*8
- Pan/Tilt Operation Speed
- Minimum speed: 0.08°/s
- Maximum speed: 60°/s or higher*9: Maximum speed is 180°/s in high-speed mode
- Panning range ±175°
- Tilting Range -30° to 210°*10
- Quietness NC35 or less
- Supported operating systems and web browsers
- Windows
- Microsoft(R) Windows(R) 7, 10
- Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
- Microsoft Edge
- Google Chrome
- Mac - Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome
- iPhone / iPad iOS 11.4.1 - Google Chrome
- Windows
- Image Streaming ModeJPEG (MJPEG), H.264, H.265
- Image Resolution3840×2160, 1920×1080, 1280×720, 640×360, 320×180
- Image Transmission setting (JPEG)
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
- Image Transmission Setting (H.264)
- Frame Rate
- [60Hz] - 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)
- [50Hz] - 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
- Max. Bit Rate
- HD: 512kbps/768kbps/ 1024kbps/1536kbps/ 2048kbps/ 3072kbps/ 4096kbps/ 6144kbps/ 8192kbps/ 10240kbps/12288kbps/14336kbps/16384kbps/ 20480kbps/24576kbps/ 32768kbps/ 40960kbps/ 51200kbps/ 76800kbps
- UHD: 12800kbps/25600kbps/51700kbps/76800kbps
- Image Transmission Setting (H.265)
- Image Transmission Type
- Unicast port (AUTO)
- Unicast port (MANUAL)
- Multicast port
- Frame Rate
- [60Hz] 30fps
- [50Hz] 25fps
- Max Bit Rate - 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
- Image Transmission Type
- Audio Compression TypeAAC-LC, 48 kHz / 16 bit / 2ch
- Supported protocol
- IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP
- IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP
- NDI support*12 NDI | HX
- Tally LED display color red / green
- Notes
- *1: AW-RP50, AW-RP120G, AK-HRP1000GJ and AK-HRP1005GJ connection with the AW-UE150W/K is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: 1 dB step increments can be set. *3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. *4: Native output. *5: It denotes “1080/23.98p over 59.94i”. *6: Use of an STP (shielded twisted pair) cable is recommended. *7: Category 6 or more is used when sending 4K images. *8: To ensure safety, the unit must be secured using the mount bracket supplied. *9: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *10: Depending on the pan or tilt position, the camera may be reflected in the image. *11: Supported OS indicated are for browsers current as of October 2018. See Service and Support on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support. *12: Contact your local Panasonic vendor for further information.
- *Native output. ** Specifications are subject to change without notice.
