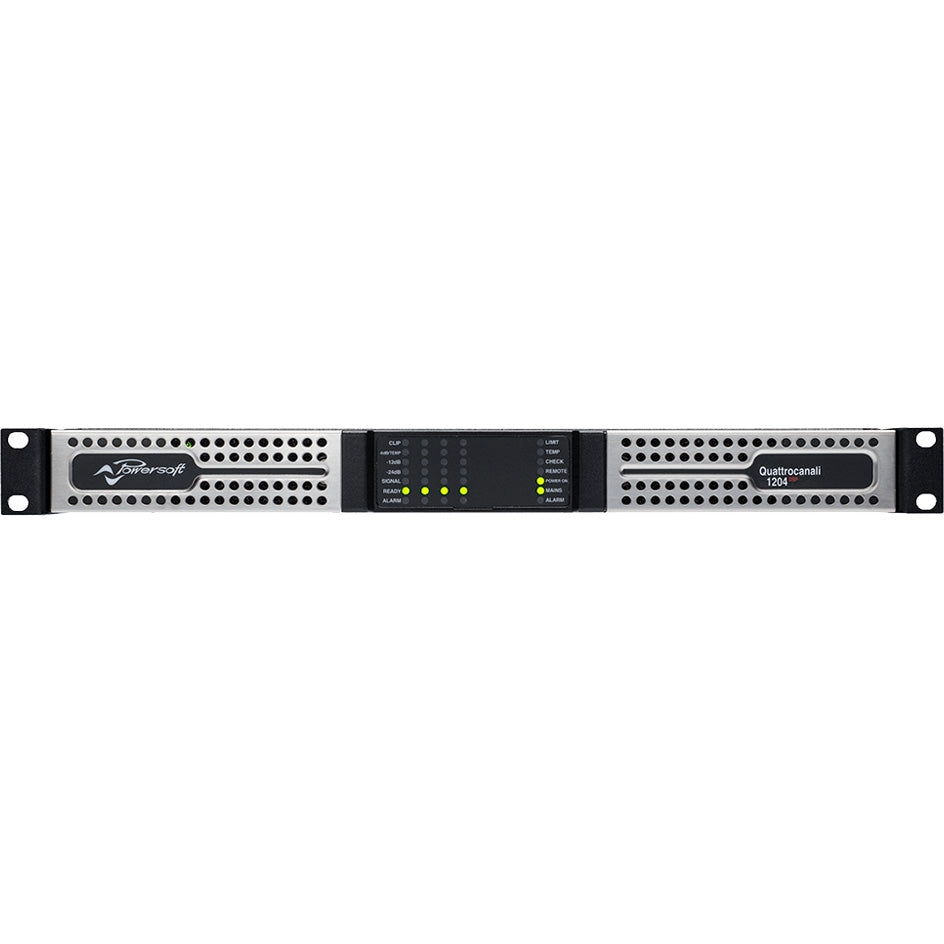

Powersoft QUATTROCANALI 1204 1200W/4-channel Flexible Amplifier with DSP

Powersoft QUATTROCANALI 1204 1200W/4-channel Flexible Amplifier with DSP

SoundPro Item: 132496 | Part Number: Quattrocanali 1204 DSP

$2,775.90
$2,922.00 $2,775.90
Your Price Sold out
MSRP: $2,922.00 | MAP: $2,775.90

Usually ships in 5-7 business days

  • Fixed frequency switch-mode output stage for high grade sound accuracy
  • Compact size – all models only 1 RU for reduced rack cost and space
  • Light weight – for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
  • Remotely switchable double input (main and aux) per channel
Log in or register for YOUR best price

Quattrocanali 1204 DSP offers the traditionally amazing sound quality and reliability of all Powersoft products.

The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.

Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two. DSP versions of the Quattrocanali grant in-depth control and monitoring via ArmoniaPlus, tailoring the sound and managing the system can be done by a remote, decentralized location.

This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.

View full details

Specifications

Output power per Channel
Output power per Channel
400 W @ 2 Ω, 300 W @ 4 Ω, 300 W @ 8 Ω
Bridge mode
800 W @ 4 Ω, 600 W @ 8 Ω
Max output voltage / current
Max unclipped voltage @8
70 Vpeak
Current
33 Apeak
Power supply
Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement
100-240 V ±10%, 50-60 Hz
Operating voltage
90 V - 264 V
Power consumption/current draw
Idle
115 V: 31.1 W - 0.45 A, 230 V: 31.5 W - 0.25 A
1/8 of max output power @ 4 Ω
115 V: 227 W - 2.1 A, 230 V: 251 W - 1.4 A
