• PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface
1 1

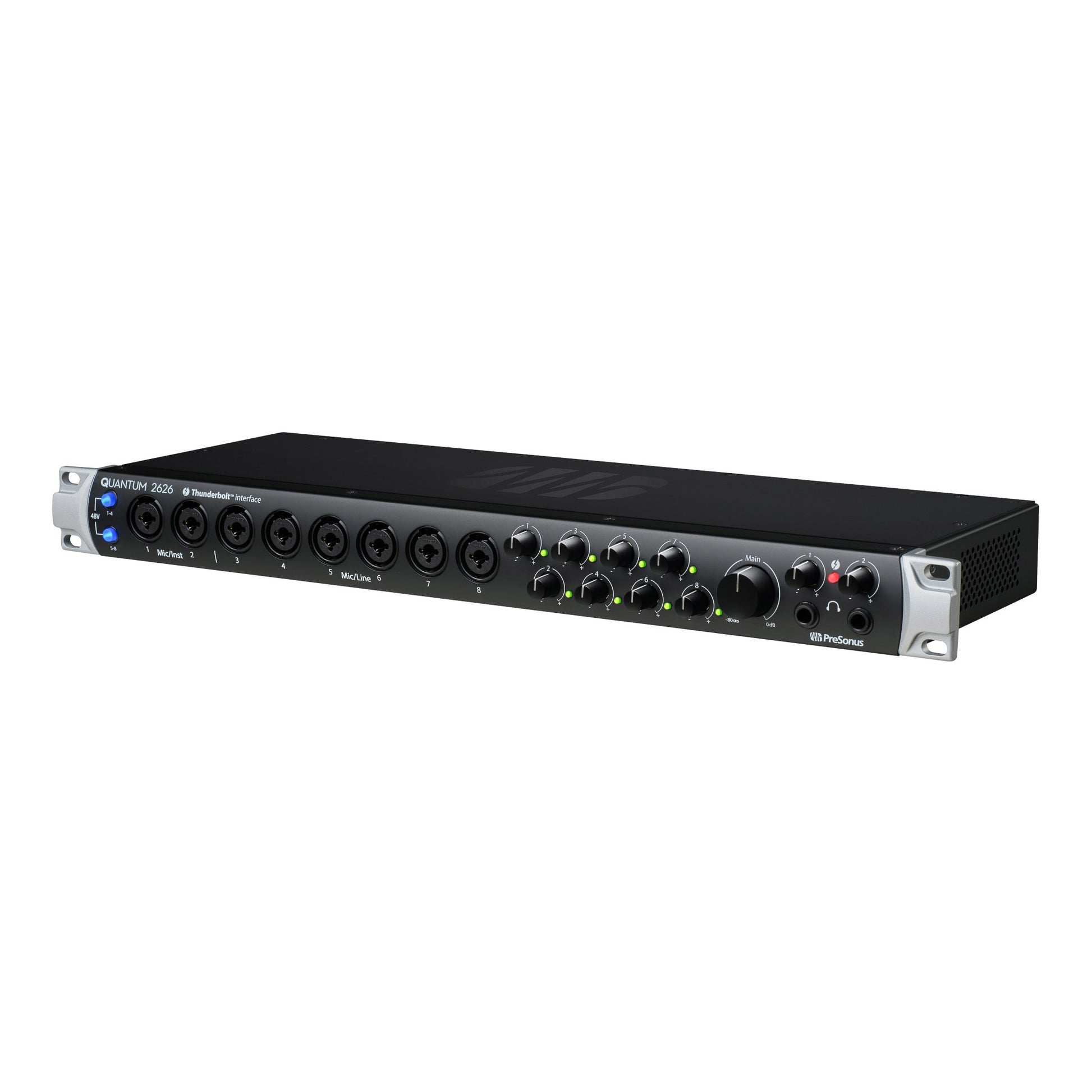

PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface

PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface

Soundpro Item: 46098 | Part Number: QUANTUM 2626

$682.99
$829.49 $682.99
Your Price Sold out
MSRP: $829.49 | MAP: $682.99
  • 26x26 Thunderbolt 3 ultra-low-latency audio interface
  • <1 ms roundtrip latency; record direct to DAW with your favorite plug-ins engaged
  • 24-bit/192kHz operation with high-quality 115 dB A/D/A converters
  • Compatible with most macOS or Windows recording application
  • Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
  • 8 pristine XMAX preamps
  • 2 instrument inputs
  • 8 balanced line inputs
  • Dual headphone outputs with independent level control
  • Balanced stereo main outputs with independent level control
  • 8 DC coupled balanced line outputs
  • 2 preamp direct outputs with returns to insert outboard gear
  • Main output level control
  • Balanced stereo main output (TRS)
  • 8 balanced line outputs (TRS (outs 1 & 2 share a DAC with the main output))
  • 2 preamp outputs (channels 1 & 2)
  • 2 line returns (channels 1 & 2)
  • ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
  • Stereo S/PDIF coaxial input and output
  • Thunderbolt 3 high-speed bus
  • 24-bit resolution and up to 192 kHz sampling rate
  • BNC word clock input and output with low-jitter clocking
  • MIDI I/O
  • Road-rugged construction with all-metal chassis and metal knobs
  • 1U rack-mountable
Log in or register for YOUR best price

Every design decision with the Quantum 2626 audio interface from PreSonus was to engineer it for blazing-fast speed and pristine audio quality. The Quantum-series proprietary Thunderbolt driver was written from the ground up to deliver ultra-low-latency performance while maximizing efficiency. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion.

Audiophile-grade digital converters, low-jitter clocking, and transparent preamps add up to a superior recording and listening experience. Record and monitor from your favorite DAW with any plug-in engaged. Insert your favorite outboard analog gear with ease. Impressive speed combined with stunning sound quality means that the Quantum Thunderbolt audio interface is an ideal recording solution for any size of studio.

View full details

Specifications

  • Microphone preamp
    • Type: XLR female (via combo), balanced
    • Max input level: +10dBu (balanced, min gain)
    • Gain control range: 60dB
    • Frequency response: 20Hz to 20kHz (+/-0.15 dB, unity gain, 48 kHz)
    • Dynamic range: >110dB (A-wtd, min gain)
    • THD: < 0.005% (1 kHz, min. gain)
    • EIN: < -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
    • Input impedance: 1.6 kΩ
    • Phantom power: +48V, > 8 mA per input
  • Instrument inputs
    • Type: 1/4" TS female (via combo), unbalanced
    • Max input level: +15dBu (unbalanced, min gain)
    • Gain control range: 60dB
    • Frequency response: 20Hz to 20kHz (±0.2 dB, unity gain, 48 kHz)
    • Dynamic range: >106 dB (A-wtd, min. gain)
    • THD: < 0.005% (1kHz, min. gain)
    • Input impedance: > 1 MΩ
  • Line inputs
    • Type: 1/4" TRS female (via combo), balanced
    • Max input level: +18dBu (balanced, min gain)
    • Frequency response: 20Hz to 20kHz (+/-0.05 dB, unity gain, 48 kHz)
    • Dynamic range: >118 dB (A-wtd, min. gain)
    • THD: < 0.005% (1 kHz, min. gain)
    • Input impedance: 10 kΩ
  • Main and line outputs
    • Type: 1/4" TRS female, impedance balanced, DC coupled (line outputs only)
    • Max output level: +18dBu (balanced)
    • Frequency response: 20Hz to 20kHz (+/-0.05dB, unity gain, 48kHz)
    • Dynamic range: >118dB (A-wtd)
    • THD: < 0.0035% (1 kHz, +4 dBu)
    • Output impedance: 51Ω
  • Headphone outputs
    • Type: 1/4" TRS female, stereo, unbalanced, x2
    • Max output level: 175mW/channel (56Ω load)
    • Frequency response: 20Hz to 20kHz (+/-0.5 dB, 48 kHz)
    • Dynamic range: >110 dB (A-wtd)
    • THD: < 0.03% (1 kHz)
    • Headphone impedance: 16Ω to 300Ω (working range)
  • Crosstalk
    • Input to input: < -110 dB
    • Output to output: < -115 dB
    • Input to output: < -120 dB
  • Signal level LEDs
    • Clip: -0.5dBFS
    • Signal: -50dBFS
  • Digital audio connection typeThunderbolt 3 (Thunderbolt 1 and 2 compatible)
  • ADC dynamic range115 dB (A-wtd)
  • DAC dynamic range115 dB (A-wtd)
  • Bit depth24 bits
  • Internally supported sample rates44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Clock jitter< 70 ps RMS (20 Hz – 20 kHz)
  • Clock jitter attenuation> 60 dB (1 ns in => 1 ps out)
  • Power12VDC, 5A, external power supply
  • Dimensions (HxDxW)1.75" x 7" x 19"
  • Weight6 pounds (2.72 kg)
