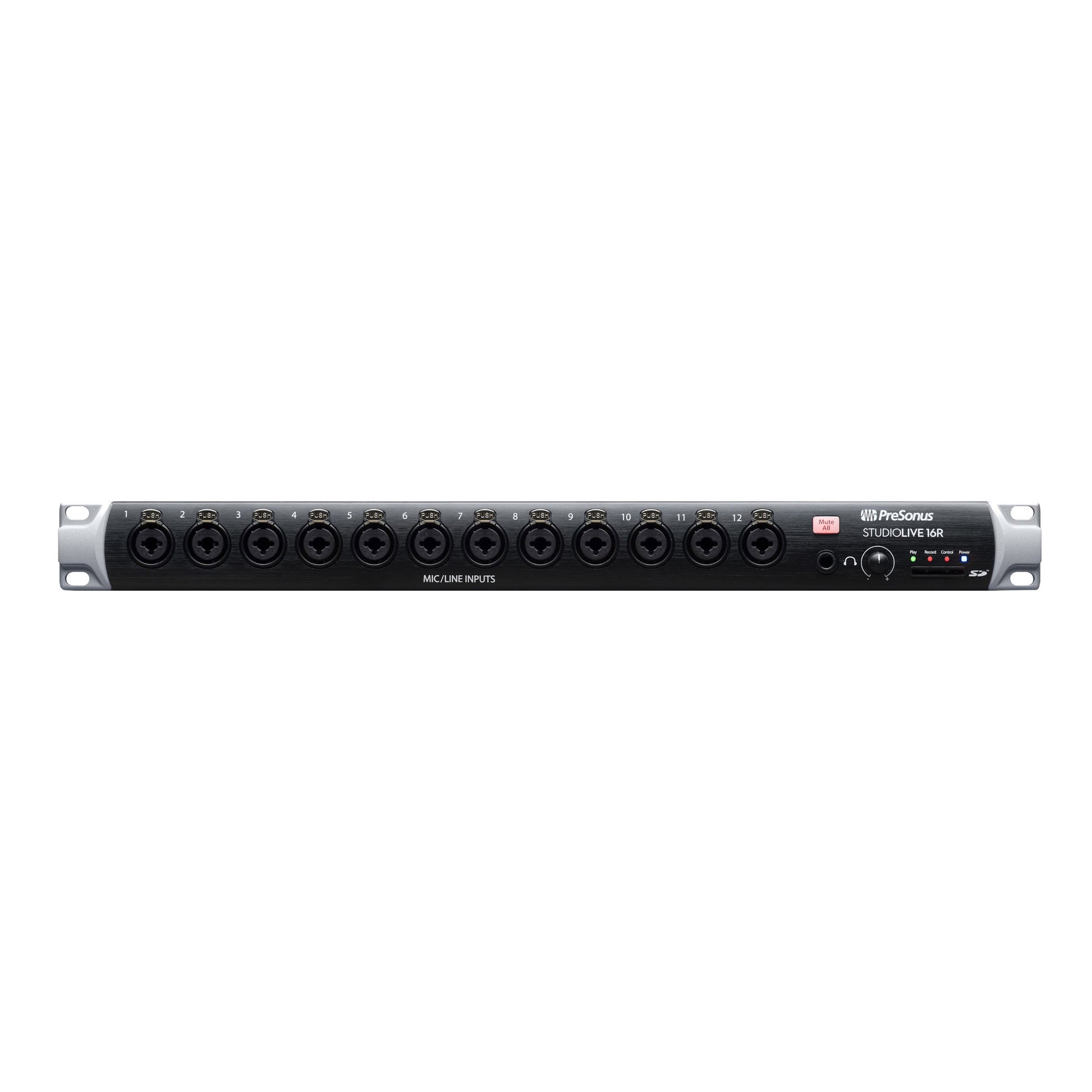

PreSonus StudioLive 16R 16-Channel Digital Mixer

PreSonus StudioLive 16R 16-Channel Digital Mixer

SoundPro Item: 18408 | Part Number: STUDIOLIVE 16R

$949.99
$1,165.49 $949.99
Your Price Sold out
MSRP: $1,165.49 | MAP: $949.99

Usually ships in 5-7 business days

Log in or register for YOUR best price

The StudioLive 16R digital mixer from PreSonus is four audio tools in a single rackspace. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.

The StudioLive 16R is a true 16-channel digital mixer that can comfortably fit in any size rig. Its single-core PreSonus FLEX DSP Engine powers 18 mixing channels, 10 mix buses, and 130 simultaneous processors—including 2 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. The outputs of the StudioLive 16R automatically mirror the mixes available on your console mixer, making routing fast and easy.

View full details
  • Computer System Requirements
    • macOS®
      • macOS version 10.13 or later
      • 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates)
      • Available USB port
    • Windows®
      • Windows 10 or later (64-Bit Only)
      • 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
      • Available USB port
  • Microphone Preamplifier
    • Input Type: Combo locking XLR mic-¼” TRS line
    • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
    • Input Impedance: 1kΩ
    • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
    • CMRR (1kHz at unity gain): 65 dB
    • Gain Control Range (±1 dB): 0 dB to +60 dB
    • Max. Input Level (unity gain): +12 dBu
    • Phantom Power (±2 VDC): 48VDC, switchable per channel
  • Unbalanced Inputs (Ch. 15-16)
    • Type: RCA Female, unbalanced (stereo pair)
    • Max. Input Level: +12 dBu, ±0.5 dBu
  • Main Outputs
    • Type: XLR Male, balanced
    • Max. Output Level: +24 dBu, ±0.5 dBu
    • Output Impedance: 100Ω
  • Headphone Output
    • Type: 1/4" TRS Female, active stereo
    • Max. Output: 100 mW/ch. @ 60Ω load
    • Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)
    • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
    • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
  • System Crosstalk
    • Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
    • Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
  • Digital Audio and Control
    • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
    • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
    • USB Recording Port: USB 2.0, Type-B
    • Network Control Port: RJ-45
    • AVB Audio Network Port: locking XLR Ethernet
    • Internal Processing: 32-bit, floating point
    • Sampling Rate: 48 kHz, 44.1 kHz
    • A/D/A Bit Depth: 24
    • Reference Level for 0 dBFS: +18 dBu
    • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
  • Clock
    • Jitter: <20 ps RMS (20 Hz - 20 kHz)
    • Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
  • Power / Environmental
    • Connector: IEC
    • Input-Voltage Range: 90 to 230 VAC (±10%)
    • Power Requirements (continuous): 85W
    • Recommended Ambient Operating Temperature: 32° to 104°F (0° to 40° C)
  • Dimensions (HxWxD)1.75" x 19" x 12"
  • Weight8.6 pounds
