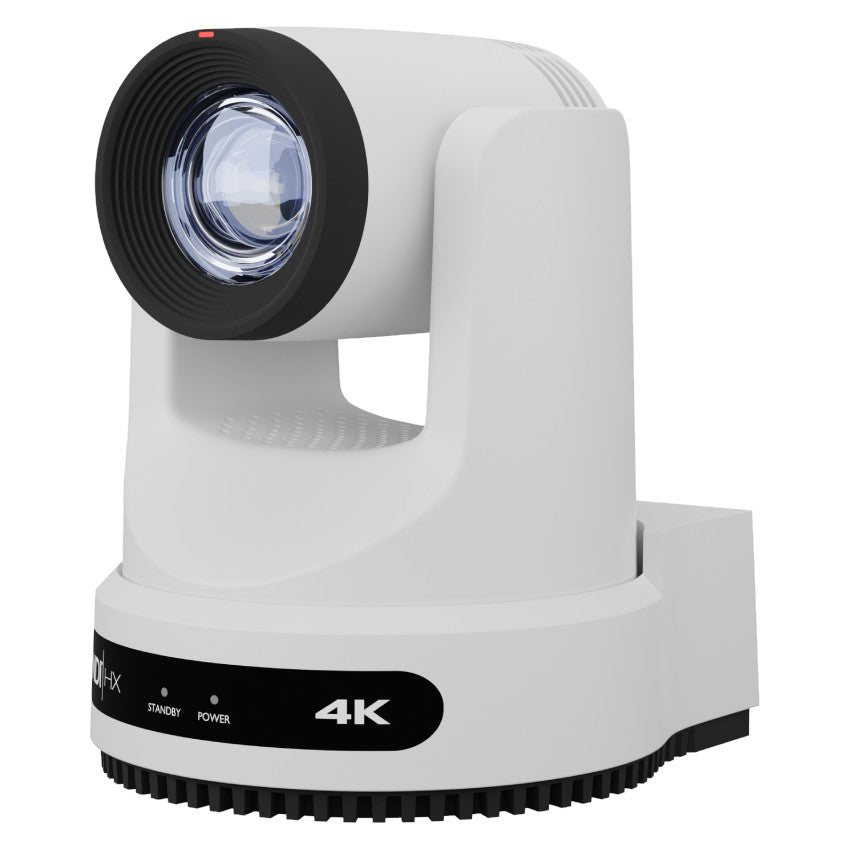

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera | Color: White, Zoom: 20x

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera | Color: White, Zoom: 20x

SoundPro Item: 137205 | Part Number: PT20X-4K-WH-G3

Regular price $2,349.00
Regular price $2,589.00 Sale price $2,349.00
Your Price Sold out
MSRP: $2,589.00 | MAP: $2,349.00

Usually ships in 5-7 business days

  • Built-In Auto-Tracking
  • Advanced White Balance Modes
  • Wide Dynamic Range
  • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
  • 3D Noise Reduction
  • SRT Support
  • Up to 4K Resolution @ 60fps
  • Blackmagic Switcher Integration
  • Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
  • 5 Year Parts & Labor Manufacturer Warranty

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Control your production from behind the scenes – or right in front of them. The Move 4K’s auto-tracking can lock into a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Move 4K can track subjects up to 300 feet away. In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

View full details

Specifications

Dimensions
Dimensions (WxDxH) 12x and 20x
5.57x5.94x7.91" (168.4x141.5x164.5mm)30x: 6.69x7.12x8.98" (170x181x228mm)
Weight
Weight 12x and 20x
3.25 lbs (1.47 kg)30x: 4.41 lbs (2.0 kg)
Audio
Audio Interface
1x 3.5mm Line level Input
Optics
Zoom
Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Min. Lux
0.5 Lux @ (F1.8, AGC ON)
Connectivity
Frame Rate HDMI
3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94Digital
Input Power
18W (Max)
Ethernet Port424M standard1x HDMI
version 2.01x USB 2.0: type A1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Rear Board Connectors
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface
RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack
JEITA type (DC IN 12V)
Construction
Material
Aluminum, Plastic
Color
White and Gray
Environmental
Operating Temperature
14°F ~ 104°F (-10°C to 40°C)
Storage Temperature
-40°F ~ 140°F (-40°C to 60°C)
General
Video Sensor 12x
1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
F2.620x
f = 6.25mm ~ 125mm, F1.58 ~
F3.9530x
f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Horizontal
6.9° (tele) ~ 72.5° (wide)
Vertical
3.9° (tele) ~ 44.8° (wide)20x:
Shutter
1/30s ~ 1/10000s
Pan Speed
1.7° ~ 100°/s
Tilt Movement
+90° to -30
Tilt Speed
1.7° ~ 69.9°
Presets
255 Presets
Video Tracking
Supported
Image Flip, Mirror and Freeze
Supported
Power Supply
DC 12V / PoE+ (802.3at)
Working Environment
Indoor
RJ45
10/100/1000M Adaptive
