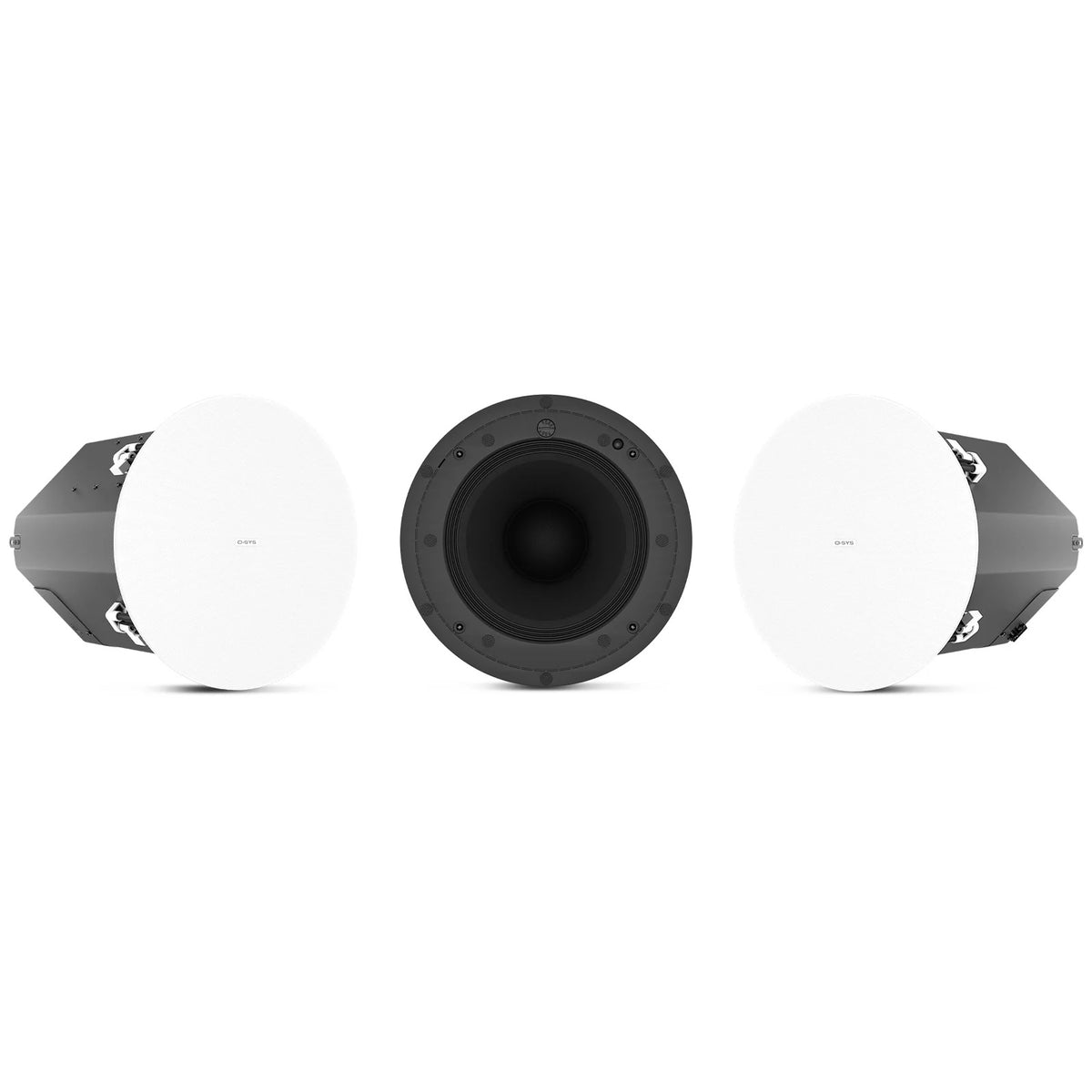

• AD-C10T-HPZB-WH 10-inch ceiling speaker shown in three views with white round grille and exposed black woofer and coaxial driver, Q-SYS

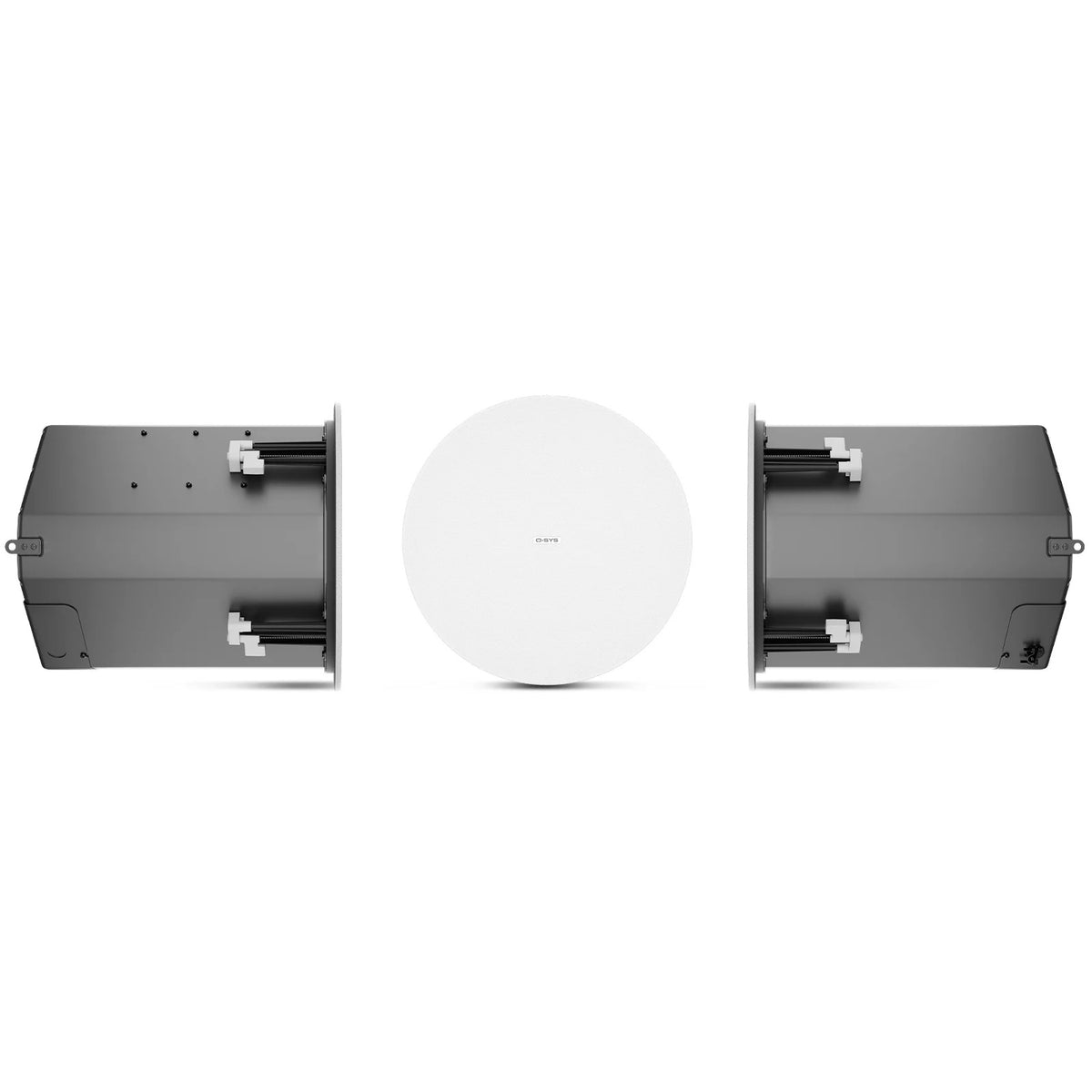

  • AD-C10T-HPZB-WH side profiles showing steel back can with tile-rail mounting hardware beside white grille face, Q-SYS
1 2

Q-SYS AD-C10T-HPZB-WH AcousticDesign 10" Two-Way High Power Ceiling Speaker | White

Q-SYS AD-C10T-HPZB-WH AcousticDesign 10" Two-Way High Power Ceiling Speaker | White

SoundPro Item: 151932 | Part Number: AD-C10T-HPZB-WH

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 70/100V Transformer With 8-Ohm Bypass Supports Distributed And Direct Amp Connections
  • Blind Mount Design Allows Front-Face Installation Without Above-Ceiling Access
  • Includes C-Ring And Rails For Complete Blind Mount Installation Out Of The Box
  • 90-Degree Conical Coverage Pattern Enables Predictable Wide-Area Room Fill
  • Two-Way Driver Configuration Delivers Full-Range Audio Performance
Log in or register for YOUR best price

The Q-SYS AD-C10T-HPZB-WH is a 10-inch two-way ceiling speaker engineered for installed sound environments where high-output distributed audio is required. Its onboard 70/100V transformer with 8-ohm bypass gives system designers the flexibility to integrate it into constant-voltage distributed systems or standard low-impedance amplifier outputs without additional hardware, making it a practical choice for large commercial installs, hospitality venues, houses of worship, and corporate AV deployments.

The blind mount design is a key operational advantage for integrators working in finished ceilings. The included C-ring and mounting rails allow the speaker to be secured from the front face without above-ceiling access, significantly reducing install time and labor cost on projects where ceiling plenum access is restricted or unavailable. The 90-degree conical coverage pattern enables predictable SPL distribution across a wide footprint, supporting room coverage planning with fewer speaker positions.

Sold only in pairs, the AD-C10T-HPZB-WH ships in white finish and is suited for symmetrical zone deployments where matching aesthetics and consistent performance across both channels are required. For AV integrators specifying distributed speaker systems that balance installation efficiency with high-power output capability, this unit addresses the core requirements of modern commercial audio design.

Downloads

View full details

Specifications

General
Color
White
Configuration
Sold in pairs
Audio
Woofer Size
10"
System Type
Two-way
Coverage Pattern
90-degree conical
Electrical
Transformer Voltages
70V / 100V
Impedance Bypass
8 ohm
Connectivity
Mount Type
Blind mount (ceiling)
Included Items
Included Hardware
C-ring, mounting rails
