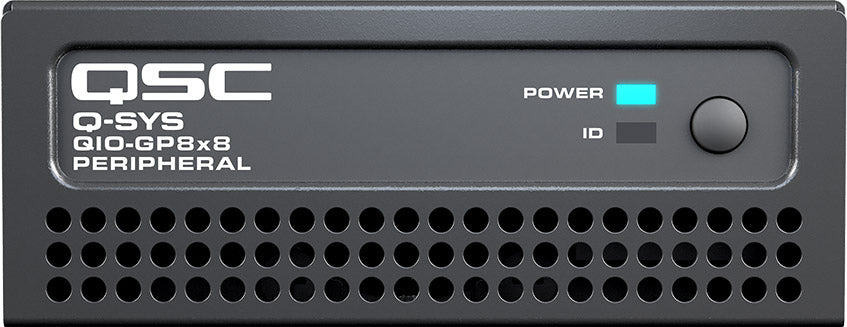

Q-SYS QIO-GP8x8 Network I/O Expander

Q-SYS QIO-GP8x8 Network I/O Expander

SoundPro Item: 132982

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • Native network GPIO connectivity solution for Q-SYS
  • Eight (8) logic inputs and eight (8) logic outputs
  • Power over Ethernet (PoE) capable
  • Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
  • Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
  • Surface- or rack-mountable (1RU, quarter width)
  • Includes surface mounting hardware
Log in or register for YOUR best price

The Q-SYS QIO-GP8x8 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked control devices via GPIO connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

The QIO-GP8x8 allows you to provide your Q-SYS system with greater flexibility to deploy GPIO control connectivity where it's most convenient. The QIO-GP8x8 provides eight (8) logic inputs and eight (8) logic outputs to provide further GPIO expansion to systems needing to interface with occupancy sensors, push buttons, LED indicators, buzzers and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.

View full details

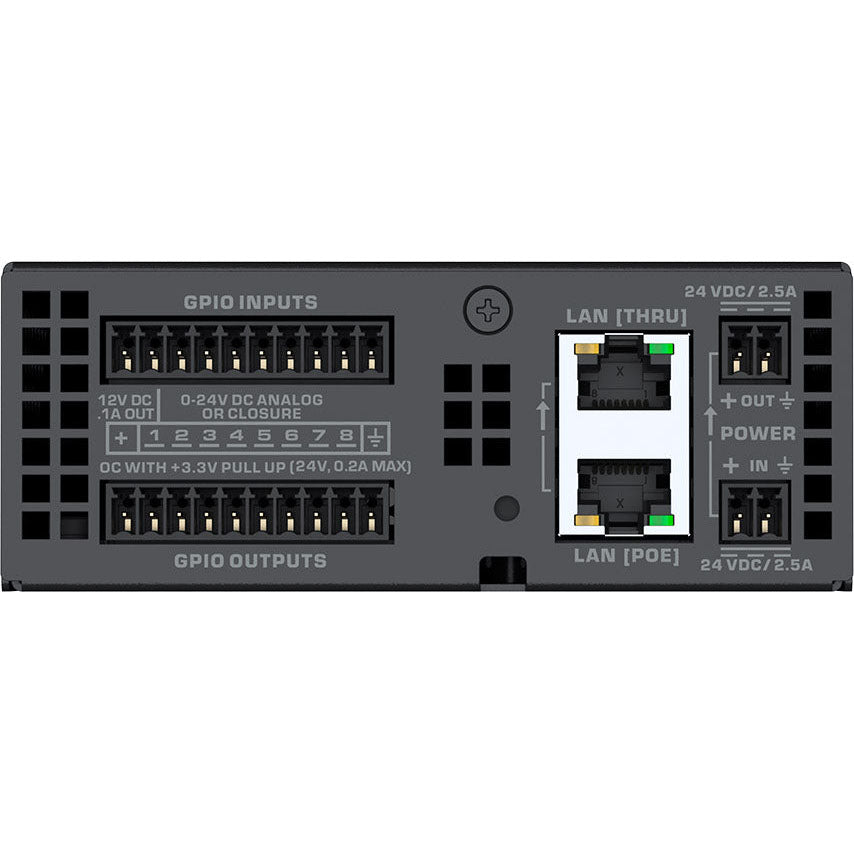

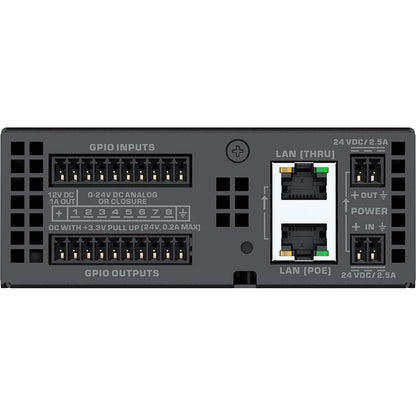

  • General purpose inputs0-24 VDC analog input, digital, or contact closure; configurable pull-up to +12 V
  • General purpose outputsOpen collector, 24 VDC @ 200 mA sink max; internal pullup to 3.3.V
  • GPIO 12 VDC power pins12 VDC out at 100 mA max per pin, with resettable fuse
  • External power supply24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
  • LAN (PoE)Gigabit LAN connection for Q-LAN, PoE
  • PoE specificationConforms to IEEE 802.3af Type 1
  • LAN (Thru)Ethernet daisy-chaining
  • Dimensions5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
  • Weight1.18 lb (0.54 kg)
  • Mounting optionsSurface- and wall-mountable (hardware included)

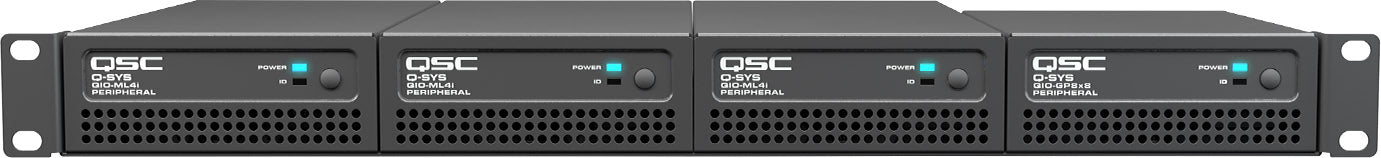

    Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)
  • Ambient operating temperature range0°C to +50°C *If installing a GP8x8 in a multi-unit rack assembly with units on all sides, the maximum operating temperature should not exceed 40°C when devices are placed above or below.
  • Humidity0%-85% through 30°C non-condensing
  • Storage temperature-20°C to +70°C
