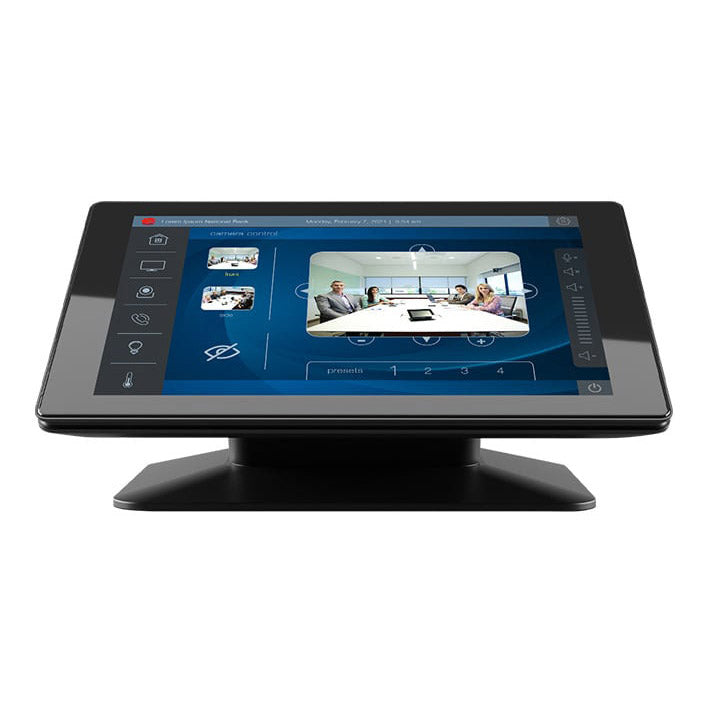

Q-SYS TSC-70-G3 High Definition Touch Screen Controller
Q-SYS TSC-70-G3 High Definition Touch Screen Controller
SoundPro Item: 129383 | Part Number: TSC-70-G3
Pricing available upon request
Pricing available upon request
In stock and ready to ship
- Robust Responsiveness: Projective Capacitive (PCAP) Multi-Touch Surface with 24-bit Color Display
- High Resolution Display: 1280 x 800 px with 400 Nits (brightness)
- Power Over Ethernet: Allows for simplified single cable installation
- Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
- Versatile: Ability to operate in portrait or landscape orientation
- AV Bridging: Connect a device to the TSC Series Gen 3 USB-C connector to integrate Q-SYS audio and camera feeds for remote meetings.
- DescriptionProjective capacitive (PCAP) multi-touch, Power over Ethernet, 24-bit color display.
- Panel Dimensions (HxWxD)4.5 x 7.3 x 1.54 inch
185 x 115 x 39.1 mm - Viewable Screen Dimensions (diagonal)7 inch / 177.8 mm
- Resolution1280 x 800
- Wallmount OptionYes
- Table Top OptionYes, TSC-710t-G3 accessory sold separately
- Panel OrientationVertical / horizontal on wall;
horizontal only on stand - Brightness400 Nits
- PoE (Power over Ethernet)PoE Class 3
- Product Weight (net)1.2 lb (0.53 kg)
- Operating Temperature0°C - 50°C (32°F - 122°F)
- BTUs26 typical
- Humidity5% to 85% RH, non-condensing
- Rear PanelLAN (1x RJ45) 1 Gbps
FAQs
Q: What is the Q-SYS TSC-70-G3 used for?
A: The TSC-70-G3 is a wall-mountable touch screen controller designed for controlling Q-SYS AV systems in conference rooms, classrooms, and commercial installations. It provides a user-friendly interface for AV control, room management, and web conferencing integration.
Q: Does the Q-SYS TSC-70-G3 require a separate power supply?
A: No. The TSC-70-G3 is powered via Power over Ethernet (PoE Class 3), allowing a single Ethernet cable to handle both data and power, simplifying installation significantly.
Q: What is the display resolution and size of the TSC-70-G3?
A: It features a 7-inch viewable display with a 1280x800 resolution and 400 Nits brightness, making it clear and readable even in well-lit environments.
Q: Can the TSC-70-G3 be mounted in portrait or landscape orientation?
A: Yes. It supports both portrait and landscape orientation for wall mounting, and horizontal tabletop use with the separately sold TSC-710t-G3 accessory.
Q: Does the TSC-70-G3 support AV bridging for video conferencing?
A: Yes. The USB-C connector on the TSC-70-G3 allows you to connect a device and integrate Q-SYS audio and camera feeds directly into remote meeting platforms.
Q: What mounting options are available for the TSC-70-G3?
A: It includes accessories for mounting to US standard and European wall and junction boxes. A tabletop stand option is also available as a separate accessory (TSC-710t-G3).
