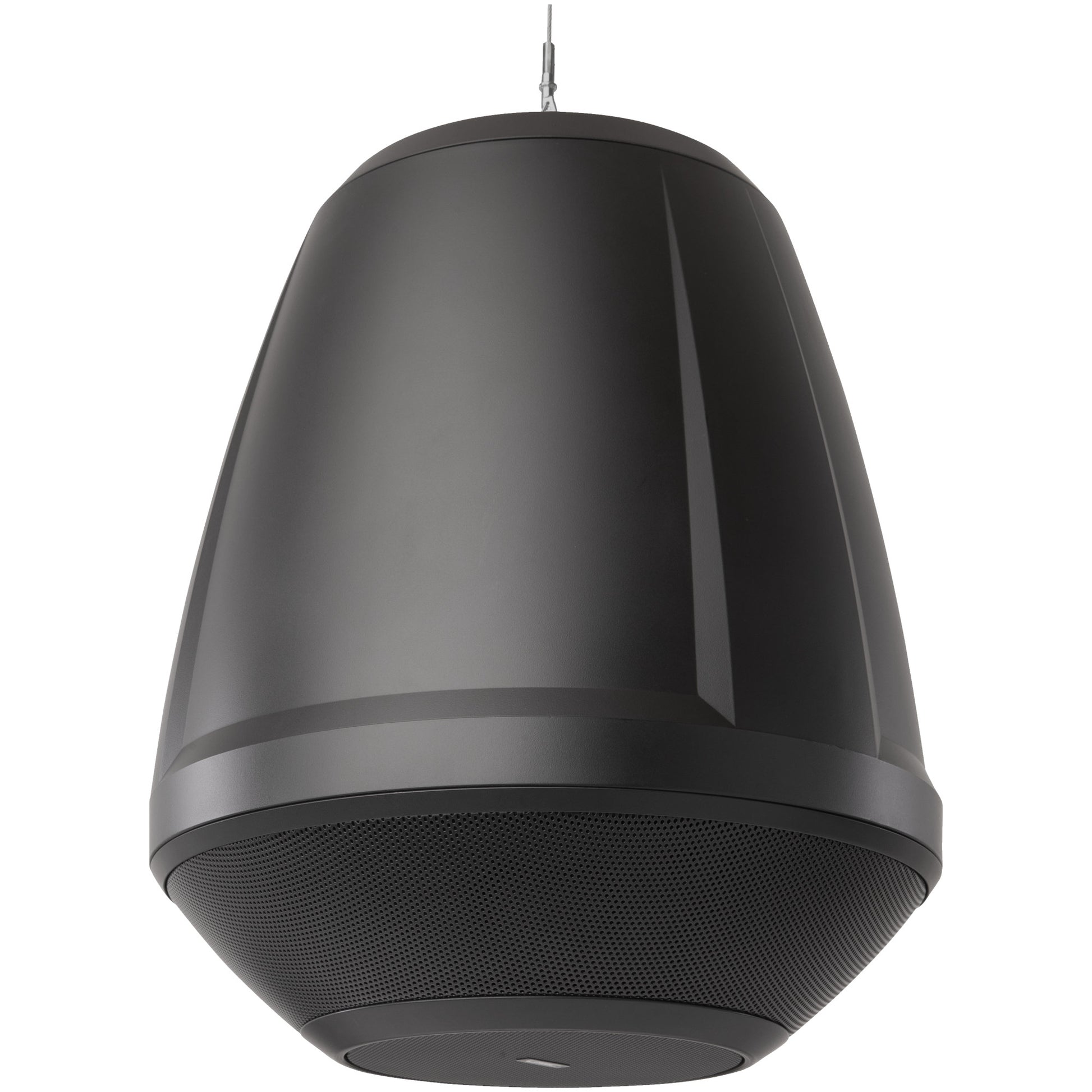

QSC AD-P.HALO AcousticDesign Integrated SUB/SAT Pendant Speaker System | Color: Black
QSC AD-P.HALO AcousticDesign Integrated SUB/SAT Pendant Speaker System | Color: Black
SoundPro Item: 54822 | Part Number: AD-P.HALO-BK
Usually ships in 5-7 business days
- Sleek aesthetic design
- High-quality sound
- No assembly required
- Fully integrated in single-enclosure pendant
- 6.5" subwoofer and four 2.75" transducers
- Bring high-performance and musicality to high-end retail and hospitality applications
- 200 W RMS power rating
- Dynamic headroom surpasses background music performance of traditional 2-way pendant-mount loudspeakers
Create an atmosphere unique to your space with the AD-P.HALO Integrated SUB/SAT Pendant Speaker System from QSC. Ideal for business music installations, this system brings premium performance and musicality to high-end retail and hospitality applications.
The AD-P.HALO features one 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure. It offers a power rating of 200W RMS, allowing optimized dynamic headroom. Among its many features, Intrinsic Correction™ voicings can be deployed to optimize installation and performance.

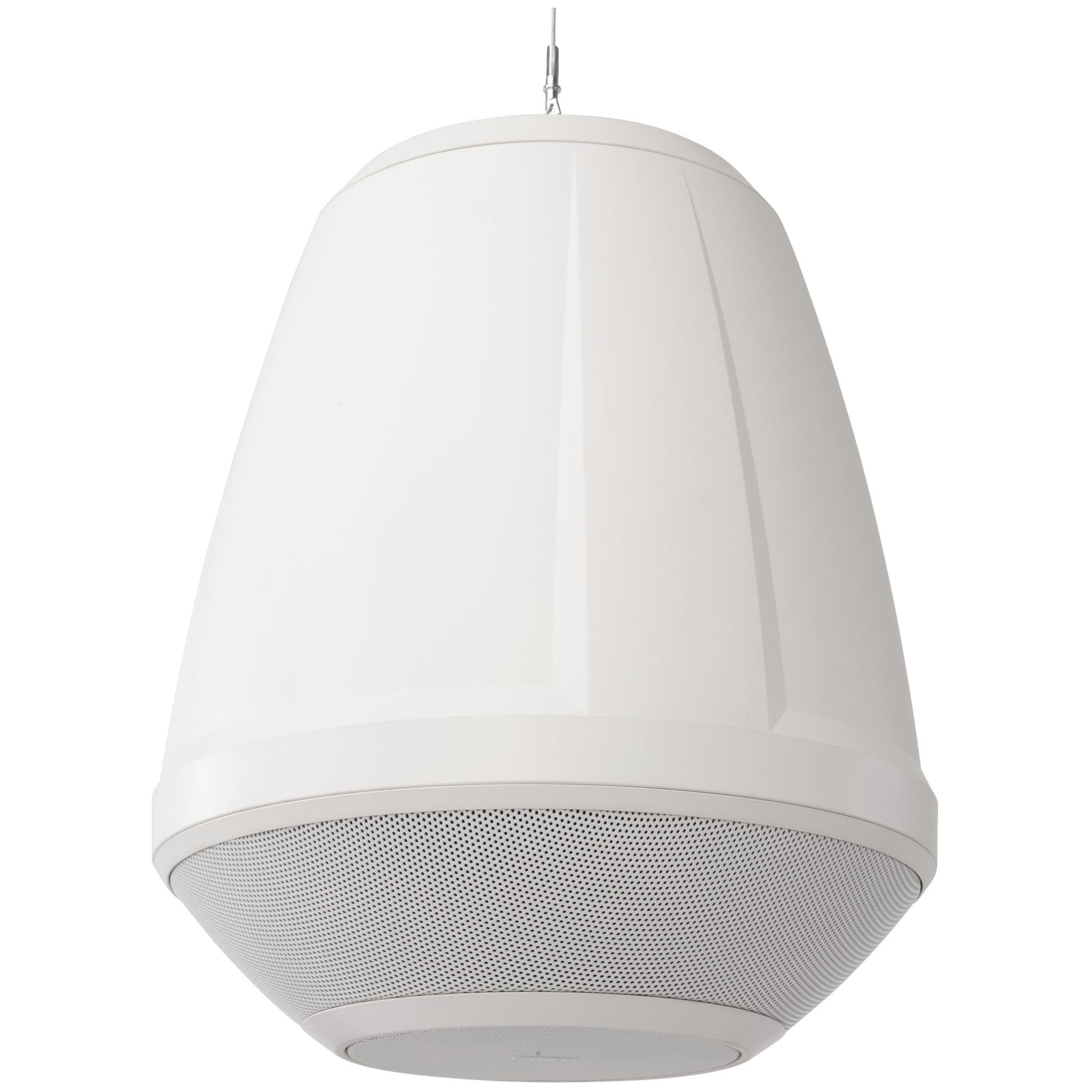

Ready to hang right from the box. The AD-P.HALO’s installer-friendly design comes with a “dog-ear” mounting system. Its conduit cover plate can be removed to access its locking 4-pole Euro-block connector; this connector accepts up to four 18AWG pairs, eliminating the hassles of star topology wiring designs. Available in black or white model options.
More about QSC’s AcousticDesign Series
Easy installation, flexible mounting options, and rugged, high-weather resistance are just three of the features that set QSC’s AcousticDesign™ series apart. These premium loudspeakers are designed to give contractors and integrators versatile, reliable solutions for permanent sound installations. Unified by premium audio quality and consistent tonal characteristics this series is comprised of ceiling, surface, and pendant alternatives ideal for environments where you need the perfect combination of performance, coverage, and aesthetic appeal.
- Systems typeIntegrated SUB/SAT
- LF Transducer6.5" (165.1 mm)
- HF Transducer4x 2.75 in (69.85 mm)
- Frequency range40 Hz - 20 kHz
- Sensitivity86 dB
- Rated noise power100W
- Max noise voltage 24.5V RMS
- Coverage 110° conical
- Directivity index 8 dB
- Directivity Factor 6
- Maximum SPL (continuous/peak) 105 / 111 dB
- Nominal impedance6Ω
- Crossover frequency250 Hz (2nd order low-pass + 3rd order high-pass filters)
- Transformer Taps
- 70V : 12.5, 25, 50, 100
- 100V : 25, 50, 100
- Port Tuning50 Hz
- Input connectors4-pin male/female Euroblock with pass-thru and locking screws
- Enclosure materialInjection-molded ABS baffle and enclosure
- Grille materialStamped steel, perforated and powder-coated
- Product dimensionsDiameter: 339.8 (mm) (13.37 in)
- Height17.04" (433mm)
- Shipping Dimensions (WxDxH)21.06x17.52x17.13" (535x445x435mm)
- Net weight10.2 kg (22.5 lbs)
- Shipping Weight12.5 kg (27.6 lbs)
