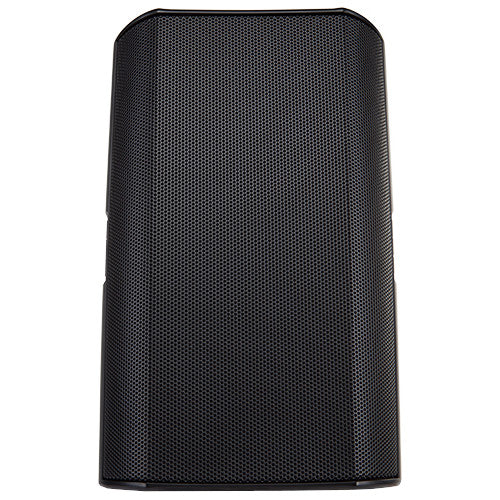

QSC AD-S6 AcousticDesign 6.5-Inch Surface Mount Speaker | Color: Black
QSC AD-S6 AcousticDesign 6.5-Inch Surface Mount Speaker | Color: Black
SoundPro Item: 41278 | Part Number: AD-S6-BK
Usually ships in 5-7 business days
- Priced individually, sold in quantities of 2
- DMT (Directivity Matched Transition™) ensures smooth, uniform frequency response over the coverage area
- X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles without slipping over time
- Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
- Non-transformer 16 ohm operation
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
The AD-S6 from QSC’s AcousticDesign series is a two-way surface-mounted loudspeaker. It’s ideal in foreground and background sound reinforcement situations utilizing 70/100V or 16Ω bypass configurations. The AD-S6 includes a 6.5” weather-treated paper cone woofer with a 1.5" voice coil and a 1" silk dome tweeter that perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction. Among its many features, Intrinsic Correction™ voicings can be deployed to optimize installation and performance. Ideal for distributed systems, its 16-ohm impedance equips you for optimal sonic performance without needing a transformer.
Achieve coherent transition between transducers with Directivity Matched Transition™ (DMT), QSC’s design philosophy where the high-frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. DMT’s improved off-axis power response results in consistent 105° conical coverage.
Install your AD-S6 safely, securely, and swiftly. Each AcousticDesign model comes with the award-winning X-Mount™ system for simple and easy wall or ceiling installation in either horizontal or vertical orientations. The pivot planes feature knurled surfaces to prevent drifting or sagging over time, while articulation marks allow you to preconfigure the mounting system on the ground—without requiring special tools. In addition to rugged ABS enclosures characteristic of AcousticDesign speakers, surface-mount models boast sealed input panel covers and weather-resistant powder-coated aluminum grilles, allowing them to exceed IEC60529 IP-54 ratings for dust and splash resistance.
AcousticDesign speakers are free of obtrusive branding. They’re available in black or white, as well as paintable to match any décor.
More about QSC’s AcousticDesign Series
Easy installation, flexible mounting options, and rugged, high-weather resistance are just three of the features that set QSC’s AcousticDesign™ series apart. These premium loudspeakers are designed to give contractors and integrators versatile, reliable solutions for permanent sound installations. Unified by premium audio quality and consistent tonal characteristics this series is comprised of ceiling, surface, and pendant alternatives ideal for environments where you need the perfect combination of performance, coverage, and aesthetic appeal.
- HF transducer1" silk dome tweeter / 1" voice coil, horn loaded
- LF transducer6.5" weather treated paper cone woofer, 1.5" / 38 mm voice coil
- Effective frequency range [1,2,3,8]58 Hz - 20k Hz
- Rated noise power / voltage [6]150 W / 49 V (rms)
- Broadband sensitivity [2,3,4,8]89 dB SPL
- Coverage angle (-6 dB) [2,5,8]105° conical DMT™
- Directivity factor (Q)[2,5,8]5
- Directivity Index 7 dB
- Maximum continuous SPL[7]110 dB
- Maximum peak SPL[7]116 dB
- Rated impedance 16Ω
- Recommended amplifier power 300W
- Input connector typeEuroblock connector with parallel output
- Enclosure materialPainted ABS polymer
- Grille materialPowder coated aluminum
- Enclosure Details
- Ingress protection: IP-54
- Operating environment: Designed for indoor and outdoor use
- Testing
- The AD-S6 Series loudspeakers qualified for outdoor use using the following tests
- Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
- Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
- High and low temperature: tested to QSC internal standards between -20° and 50° C
- The AD-S6 Series loudspeakers qualified for outdoor use using the following tests
- Operarating temperature range: -20 to 50°C / -4 to 122°F
- Net weight: 11.6 lbs (5.26 kg)
- Product dimensions (HxWxD): 14.4 × 8.5 × 8.5" (365 × 215 × 215mm)
- Shipping weight (pair packed): 28.7 lbs (13.02 kg)
- Shipping dimensions, pair packed (HxWxD): 20×12×23" (510×305×585)
- Notes
- 1 -10 dB from rated sensitivity
- 2 Full-space, 4 m
- 3 Reference axis
- 4 70-20 kHz average
- 5 1k-10 k Hz average
- 6 IEC, 2hrs, based on 16 Ω nominal impedance
- 7 Calculated from rated noise power and sensitivity
- 8 Reference plane is the plane with the loudspeaker baffle plane. Reference axis is the axis perpendicularto the reference plane and passing through the center of the baffle. Vertical plane is the plane intersecting the reference plane at a right angle, including the reference axis. Horizontal plane is the plane intersecting the reference plane and the vertical plane at a right angle, including the reference axis.
