• QSC AD-S8T Surface Mount Speaker
  • QSC AD-S8T Surface Mount Speaker without cover
  • QSC AD-S8T Surface Mount Speaker Rear View
  • QSC AD-S8T Surface Mount Speaker right angle no cover
  • QSC AD-S8T Surface Mount Speaker left angle

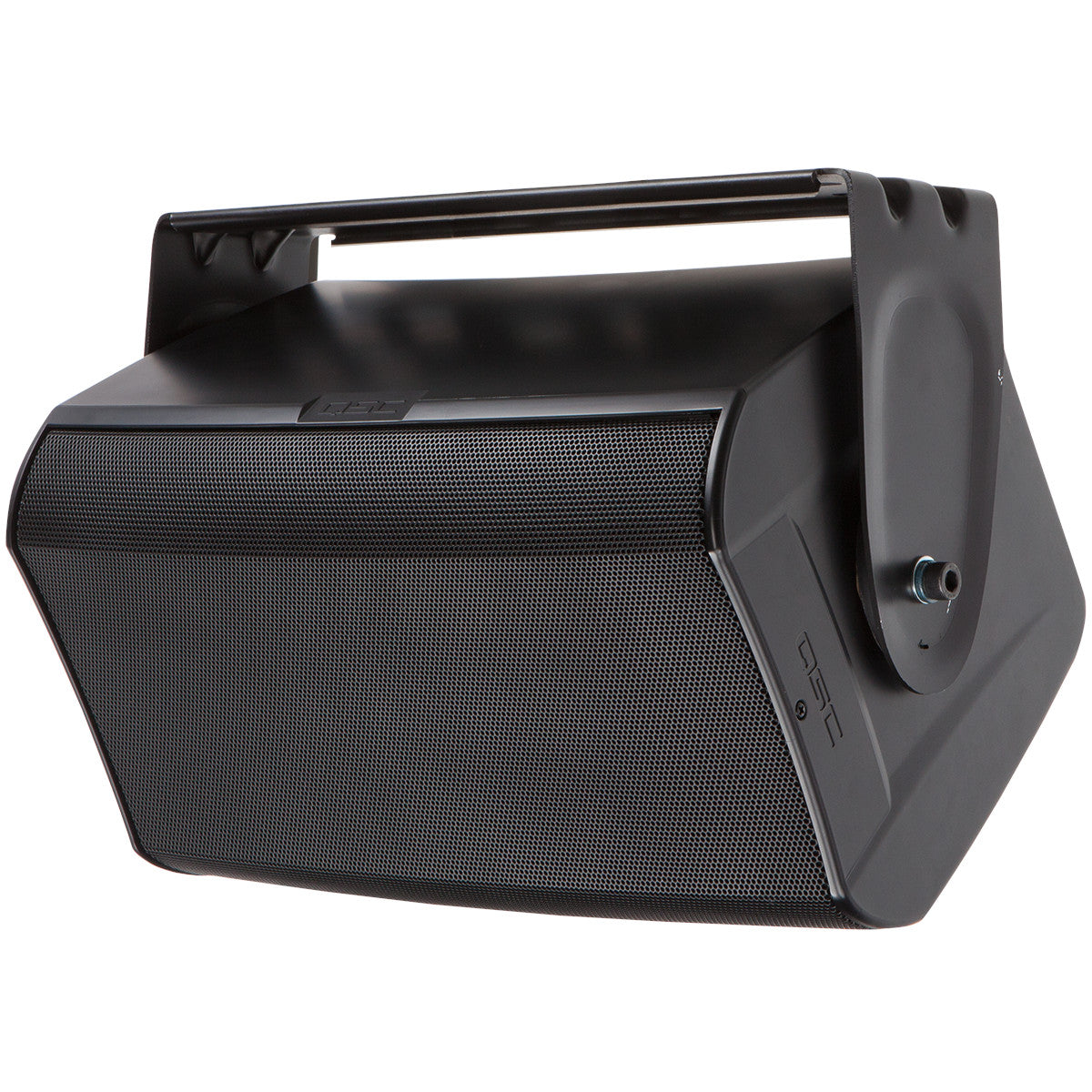

  • QSC AD-S8T Surface Mount Speaker, black with bracket
1 7

QSC AD-S8T AcousticDesign 8-Inch Surface Mount Speaker | Color: Black

QSC AD-S8T AcousticDesign 8-Inch Surface Mount Speaker | Color: Black

SoundPro Item: 13284 | Part Number: AD-S8T-BK

$800.00
$800.00 $800.00
Your Price Sold out
MSRP: $800.00 | MAP: $800.00

In stock and ready to ship

  • Compact, two-way loudspeakers
  • Install in ceilings, walls, or other flat surfaces to save space in your venue
  • Black or white finish is paintable so these speakers blend seamlessly into your space
  • Ideal in foreground and background sound reinforcement situations
  • 8" weather treated woofer; 1.4" compression driver
  • 105° Axisymmetric (conical) coverage
  • 60W low-saturation and low-loss 70/100V transformers with 8O bypass
  • Maximum peak SPL 119 dB (8O bypass)
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-Sys processing or CXD amplifier platforms
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
Log in or register for YOUR best price

The AD-S8T from QSC’s AcousticDesign series is a small-format, two-way surface-mount loudspeaker.

It’s ideal in foreground and background sound reinforcement situations utilizing 70/100V or 16Ω bypass configurations.

The AD-C4T features a high-quality 8" weather-treated paper cone woofer with a 2" voice coil, while a 1” exit, 1.4” compression driver perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction.

Among its many features, Intrinsic Correction™ voicings can be deployed to optimize installation and performance.

View full details
  • General
    • Effective frequency range: 55 Hz - 20 kHz
    • Rated noise power / voltage: 200 watts / 40 volts (rms)
    • Broadband sensitivity: 90 dB SPL
    • Coverage angle (-6 dB): 105° conical DMT™
    • Directivity factor (Q): 7
    • Directivity Index: 9 dB
    • Maximum continuous SPL: 113 dB
    • Maximum peak SPL: 119 dB
    • Rated impedance: 8 ohms
    • Recommended amplifier power (loudspeaker "program" power): 400 watts
  • Transformer taps
    • 70 V: 60, 30, 15, 7.5 W and 8Ω bypass
    • 100V: 60, 30, 15 W and 8Ω bypass
  • Transducers
    • HF transducer: 1-inch exit / 1.4-inch voice coil compression driver
    • LF transducer:
      • 8-inch weather resistant paper cone woofer
      • 2-inch / 51 mm voice coil
  • Input connector typeEuroblock connector with parallel output terminals
  • Enclosure Details
    • Enclosure material: Painted ABS polymer
    • Grille material: Powder-coated aluminum
    • X-Mount material: Powder-coated aluminum
    • Ingress protection: IP-54
    • Operating environment: Designed for indoor and outdoor use
    • Net weight: 24.1 lbs (11 kg)
    • Product dimensions (H x W x D): 17.3 × 10 × 9.9 inches (440 × 254 × 251 mm)
    • Shipping weight: 32.1 lbs (14.5 kg)
    • Shipping dimensions (H x W x D): 24.3 × 13.8 × 13.8 inches (729 × 351 × 351 mm)
    • Testing:
      • The AD Series loudspeakers qualified for outdoor use using the following tests:
      • Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
      • Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
      • High and low temperature: tested to QSC internal standards between -20° and 50° C
