Quam SYSTEM 5 Ceiling Tile Speaker System
Quam SYSTEM 5 Ceiling Tile Speaker System
SoundPro Item: 99332 | Part Number: SYSTEM5
Usually ships in 5-7 business days
- Average Sensitivity - 92 dB SPL, 1W/1M
- Loudspeaker Power Rating - 12W RMS EIA 426A Standard
- Maximum Output - 15W @ 8 Ohms
- Calculated Output - 99 dB-SPL 5W/1M
- Magnet Type & Weight - BeFe Ceramic, 5 oz. Nominal
- Frequency Response - 65 Hz - 17 kHz EIA 426A Standard
- Nominal Coverage Angle - 100° Included Angle -6 dB / 2 kHz, Half space
- Audio Connection - 4" Color-Coded Leads
- Unit Weight - 3.85 lbs

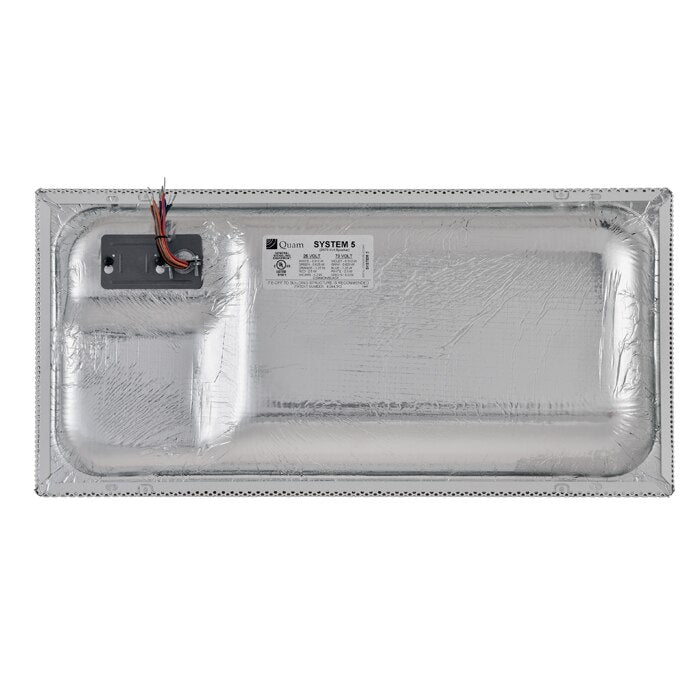

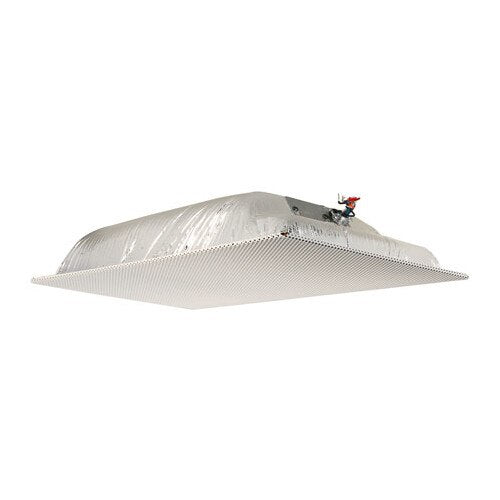

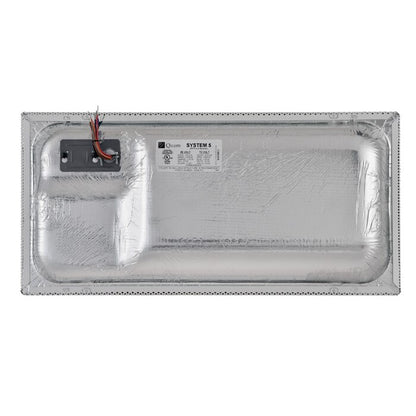

The SYSTEM 5 is a complete, UL Listed, shallow depth, lightweight, 1' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W-25/70V transformer. Molded fiber enclosure is 617 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp and one (1) 24" "T" rail for finishing the edge are included. No assembly required.
- Application
- Intended Use: Lay-in ceiling tile replacement
- Program Material: Signal tones, voice, and music
- Installation: Mounted parallel to floor plane in a 24" wide suspended ceiling tile grid
- City of Chicago Approved: Material and construction permits use where ceiling plenum is part of the air handling system.
- Audio Performance
- Average Sensitivity: 92dB SPL, 1W/1M
- Loudspeaker Power Rating: 12W RMS, EIA 426A Standard
- Maximum Power Rating: 15W @ 8 Ohms
- Calculated Output: 99dB SPL, 5W/1M
- Magnet Type & Weight: BeFe Ceramic, 5 oz. Nominal
- Frequency Response: 65Hz-17kHz, EIA 426A Standard
- Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half Space
- Audio Connection: 4", Color-coded, Pre-tinned Leads
- Component
- Dimension: 3 1/2" (H) x 23 13⁄16" (W) x 11 13⁄16" (D)
- Weight: 3.85 lbs
- Loudspeaker Model: 8C5PAX
- Loudspeaker Specs: 8" O.D. loudspeaker, 5 oz. magnet
- Transformer: TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W
- Integral Enclosure: 617 CID molded fiber
- Grille: Standard perforated steel with four (4) seismic tie-off points
- Finish: White powder coat finish
- Certification
- UL Listed 1480When installed with supplied installation instructions and requirements of NEC /AHJ. (UEAY, UEAY7- Canada)
- UL Listed 2043Suitable for use in air-handling spaces
