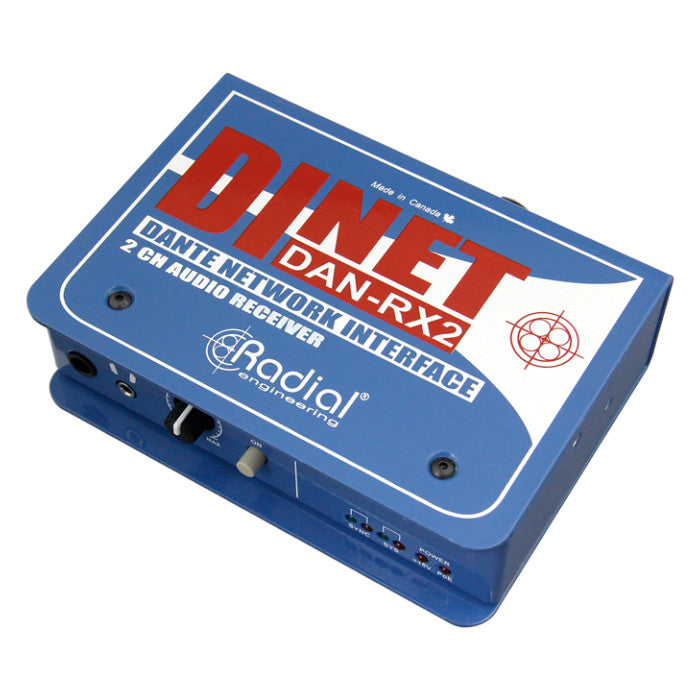

Radial DiNET DAN-RX2 2 Channel Dante Network Receiver
Radial DiNET DAN-RX2 2 Channel Dante Network Receiver
SoundPro Item: 39141 | Part Number: DINET DAN-RX2
Usually ships in 5-7 business days
- Stereo analog output device for Dante networks
- Balanced XLR outputs for connection at mic or line level
- Built-in headphone amplifier for personal monitoring
- 24bit/96kHz digital to analog conversion
- Compliant to AES67 specifications
The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location from a Dante or AES-67 compliant network. Balanced XLR outputs include a ground lift and a separate headphone amp with its own level control is included for local testing or personal monitoring. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and the DAN-RX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.
- Audio Circuit TypeHigh current balanced active output device
- Number of Channels2
- Sample Rate44.1kHz, 48kHz, 88.2kHz, and 96kHz
- Bit Depth24 bit
- Frequency Response20Hz-20kHz
- Idle Channel Noise-108dB
- Dynamic Range>100dB
- Channel Separation>75dB
- Gain+18dBu max @ 0dBFS
- Total Harmonic Distortion + Noise0.007% @ -6dBFS
- Output Impedance150Ω
- Power Consumption1.25W
- Input ConnectionsRJ45 Ethernet with locking etherCON
- Output Connectors2x XLR male, 1x 3.5mm & 2x 1/4" headphone out
- LED IndicatorsSYNC, SYS, +15V, and PoE
- ExtrasHeadphone amplifier with level control
- Power15VDC 400mA (included) or PoE
- Power over Ethernet (PoE)Class 1 IEEE 802.3af
- FCC ApprovalMeets FCC Part 15B Class A
- Construction14-gauge steel
- FinishDurable powder coat
- Dimensions (LxWxD)4.5x26” (121x6x147mm)
- WarrantyRadial 3-year, transferable
