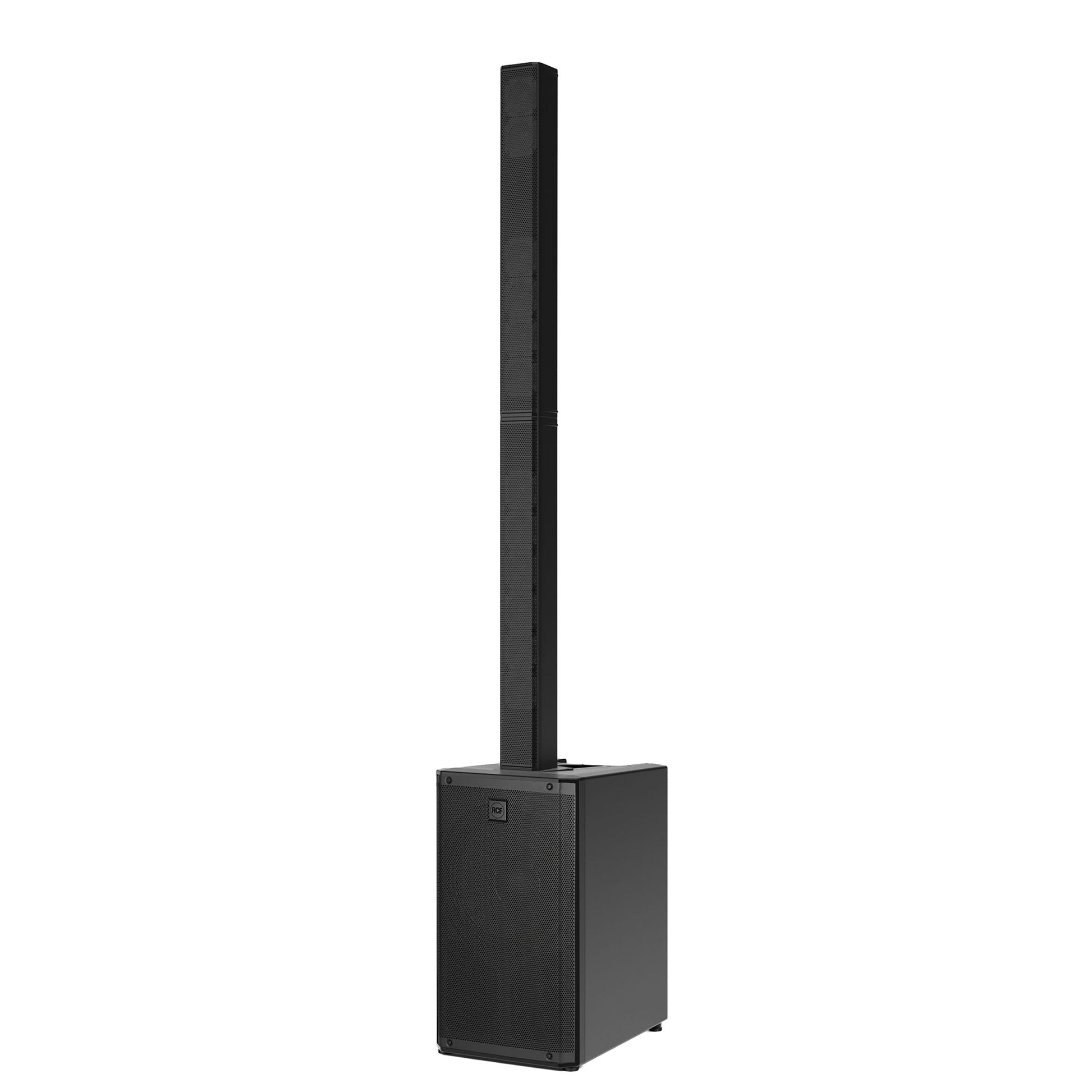

• Evox J11 black left

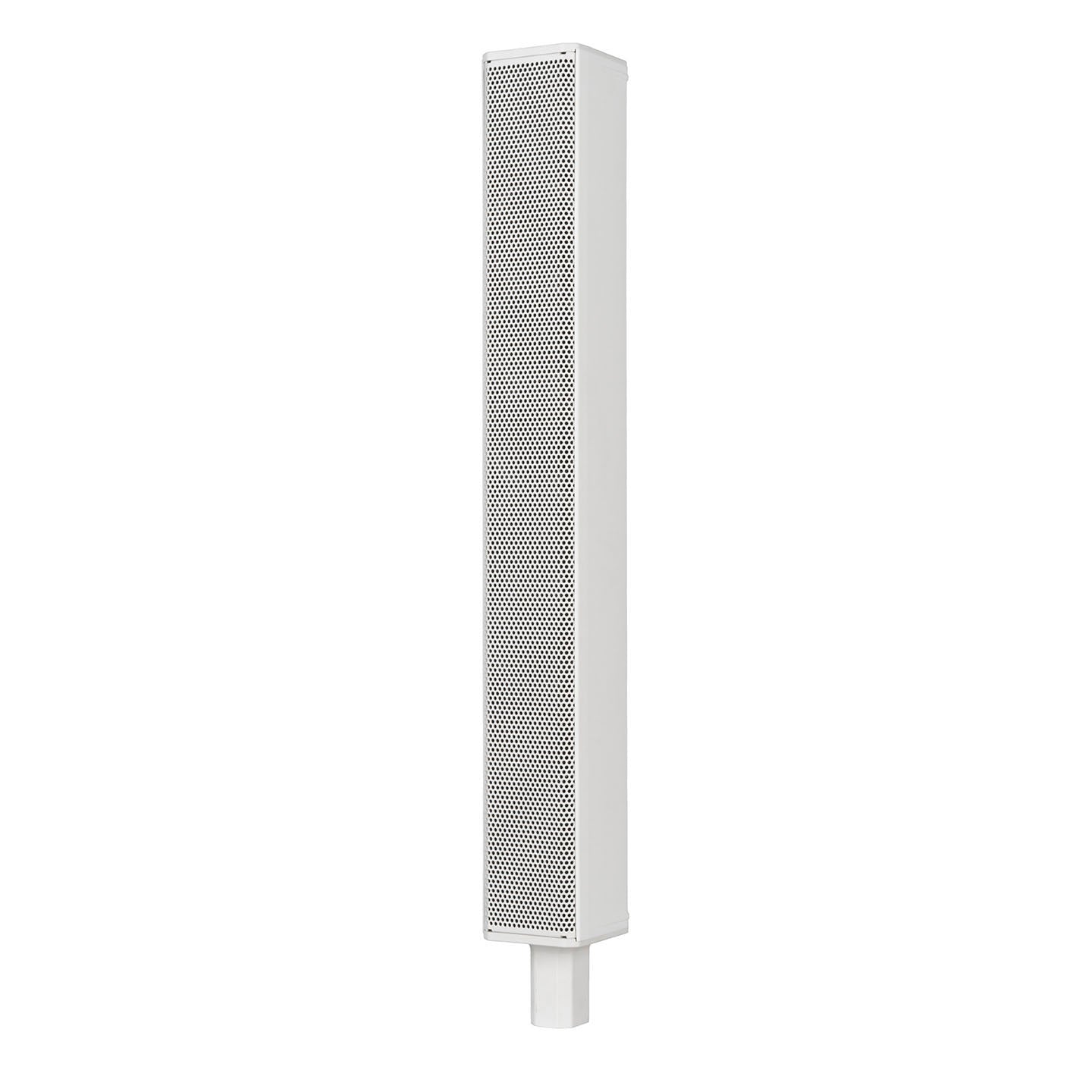

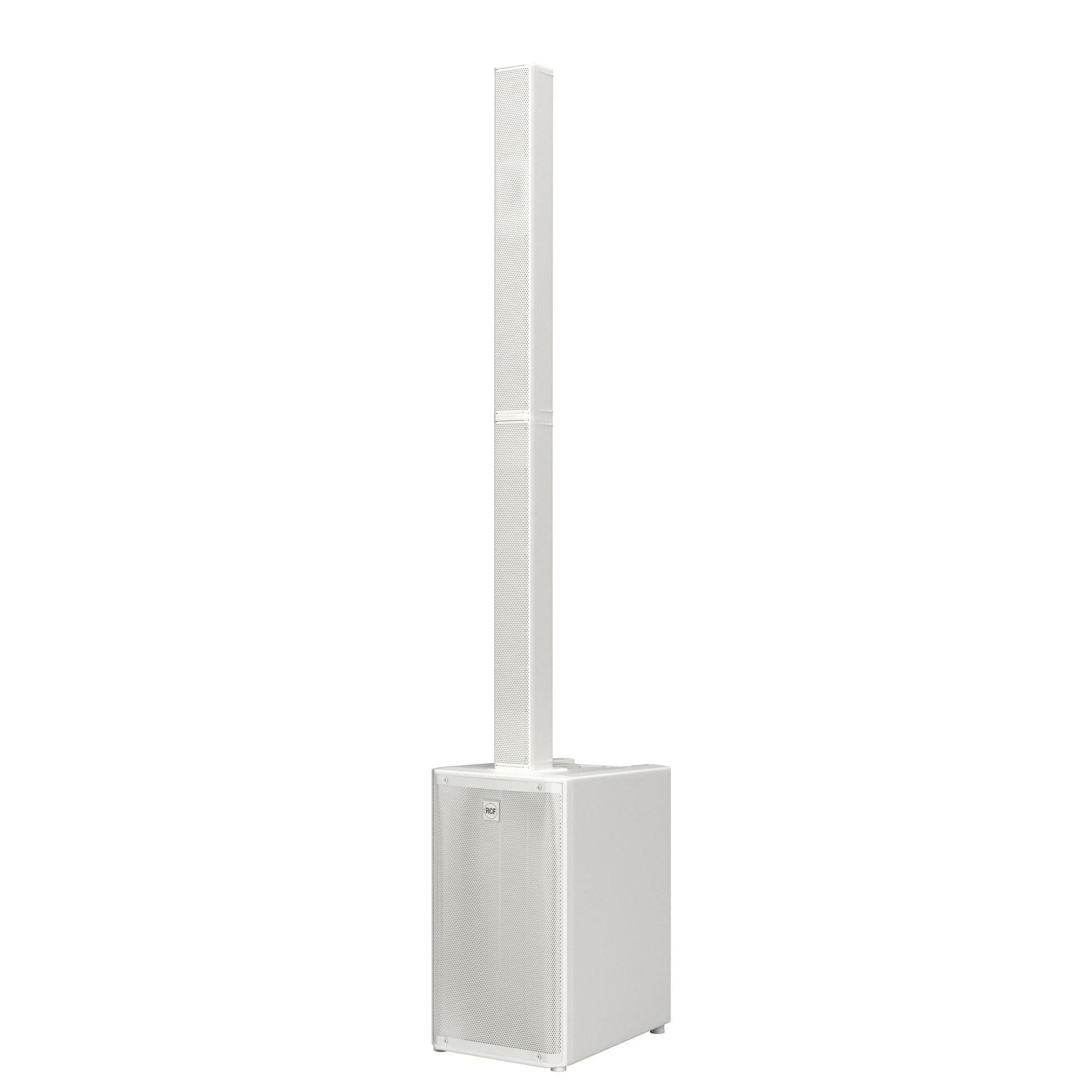

  • Evox J11 white left

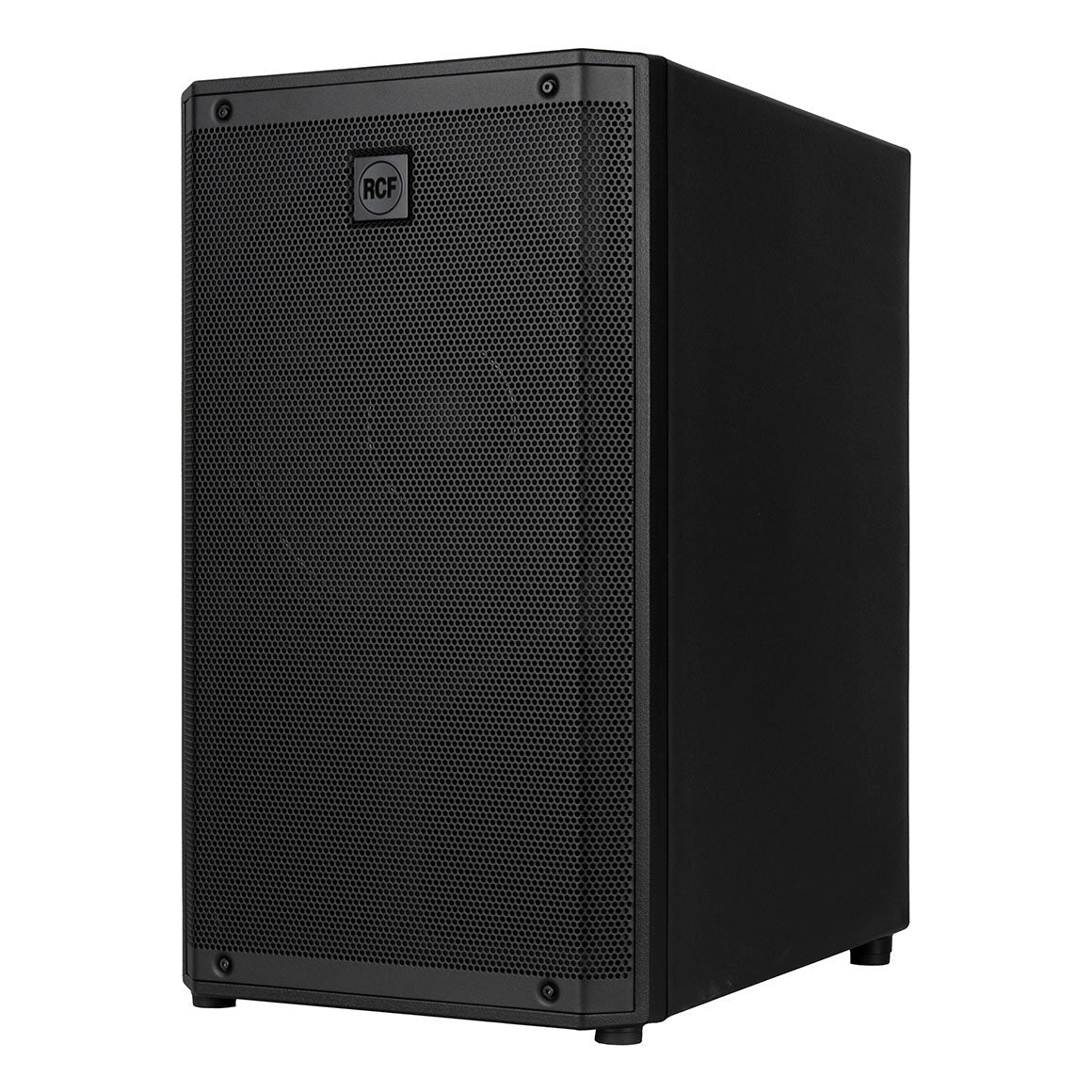

  • Evox J11 black sub right

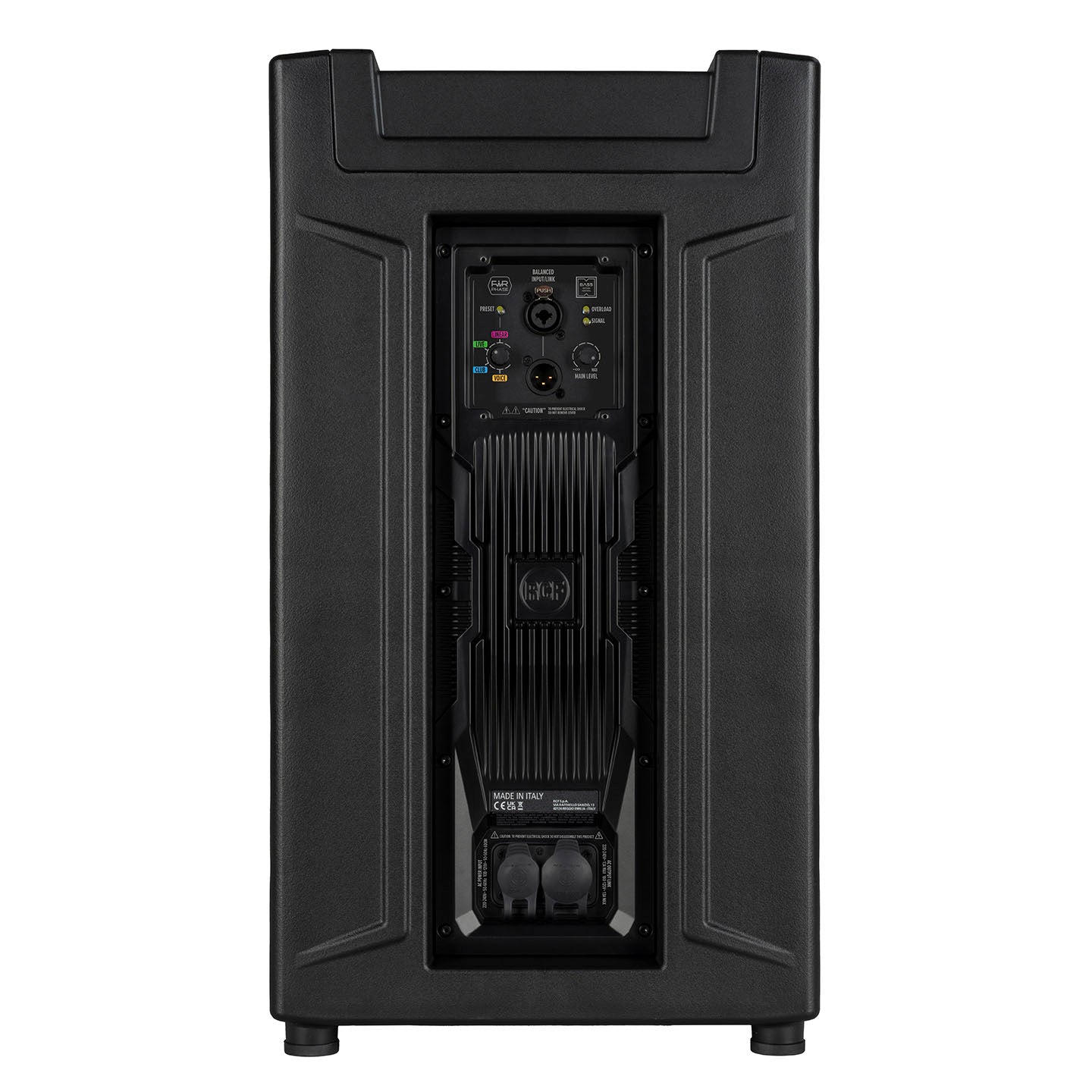

  • Evox J11 black sub rear

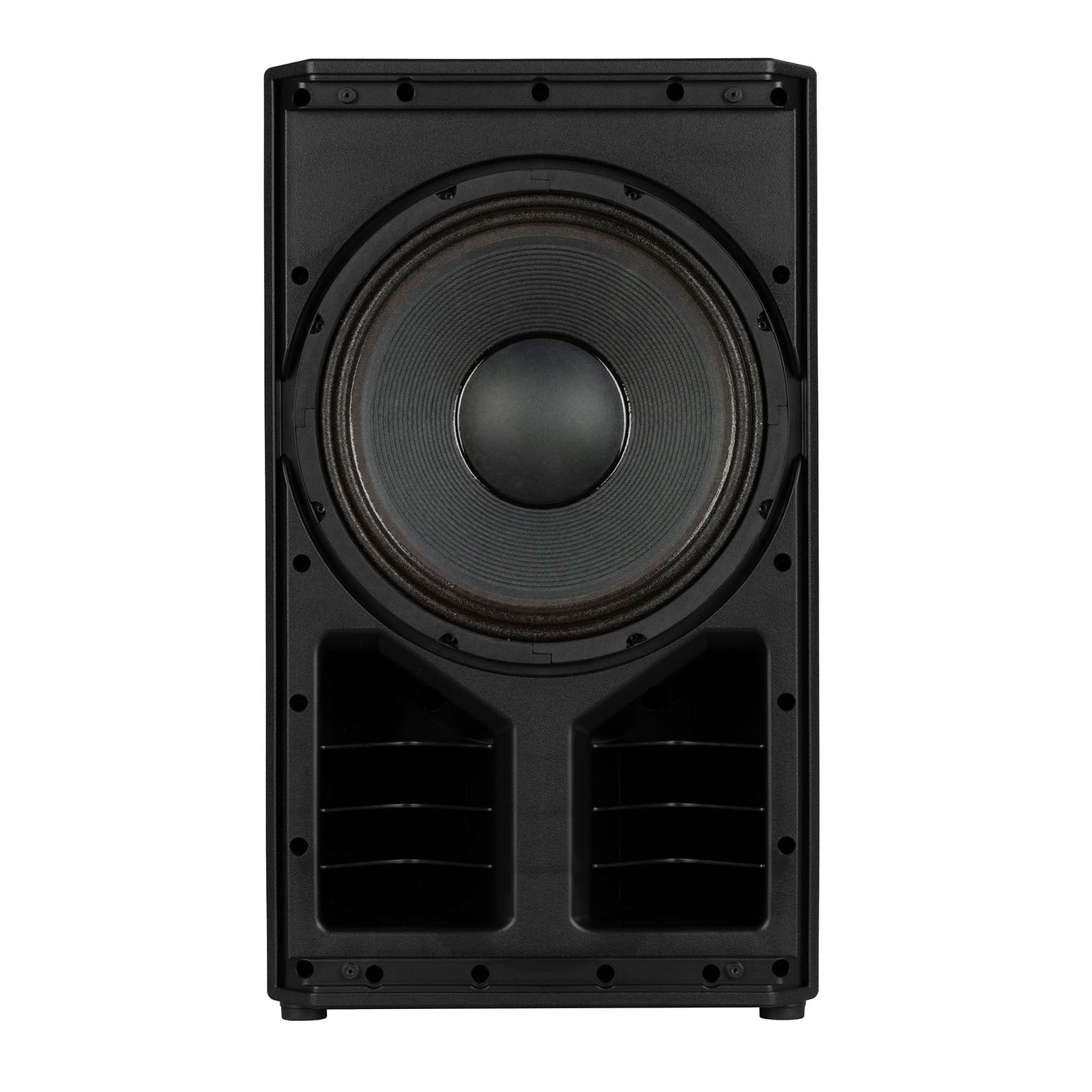

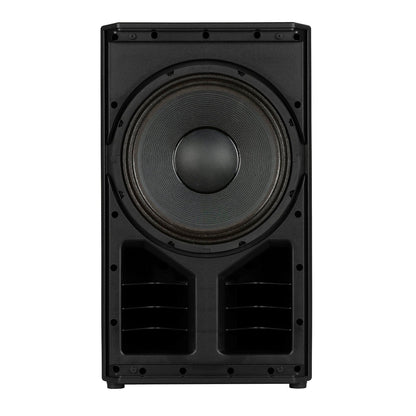

  • Evox J11 black sub open

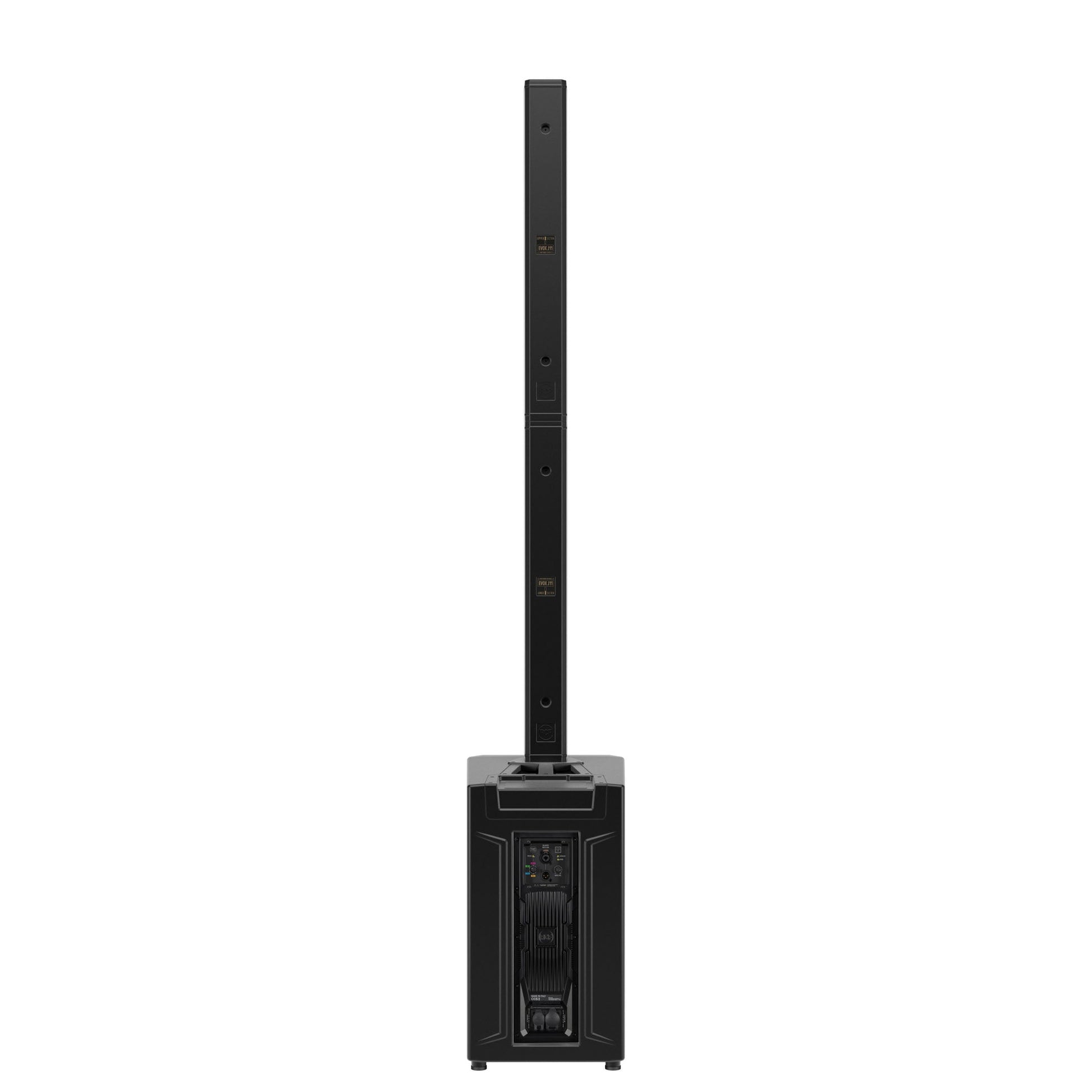

  • Evox J11 black rear

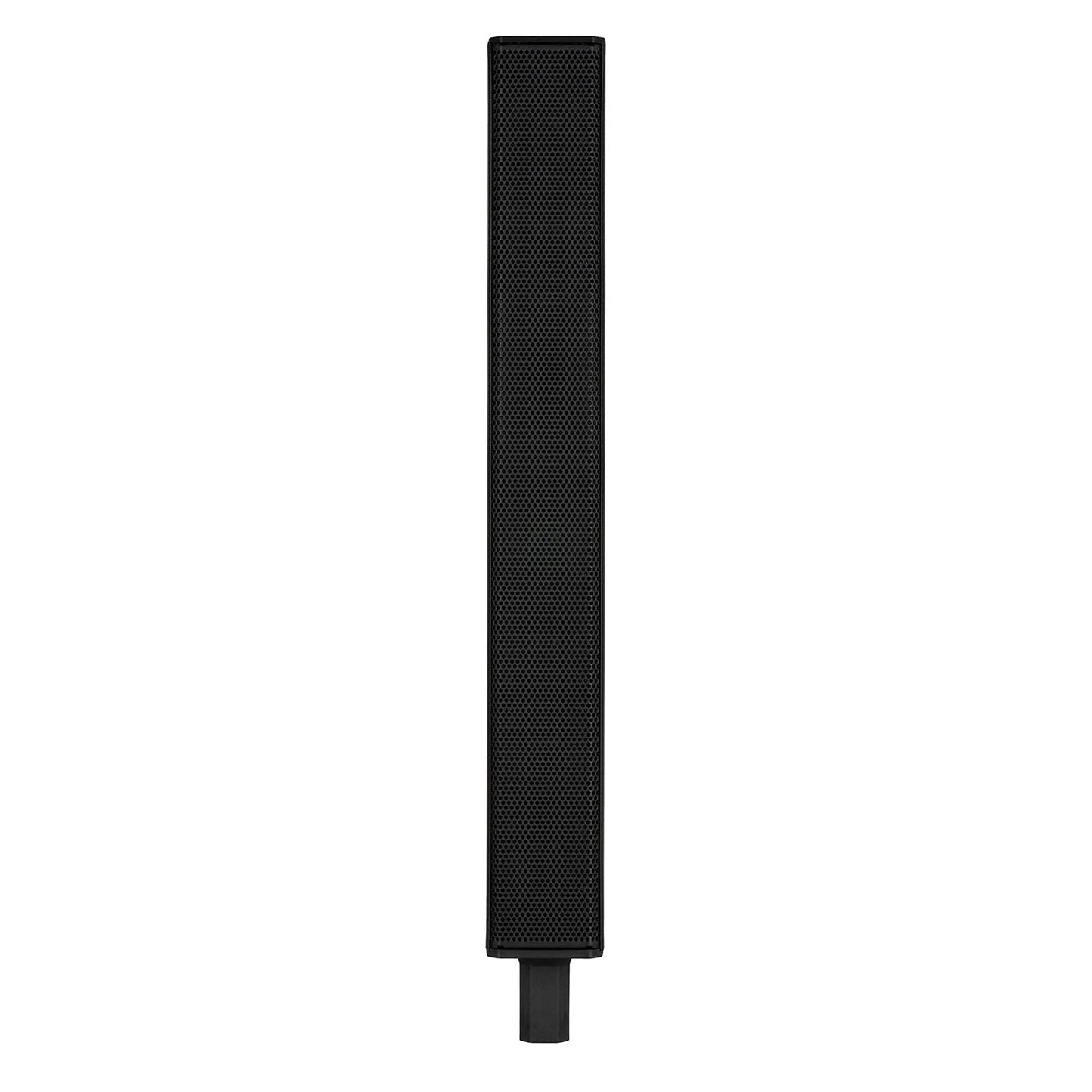

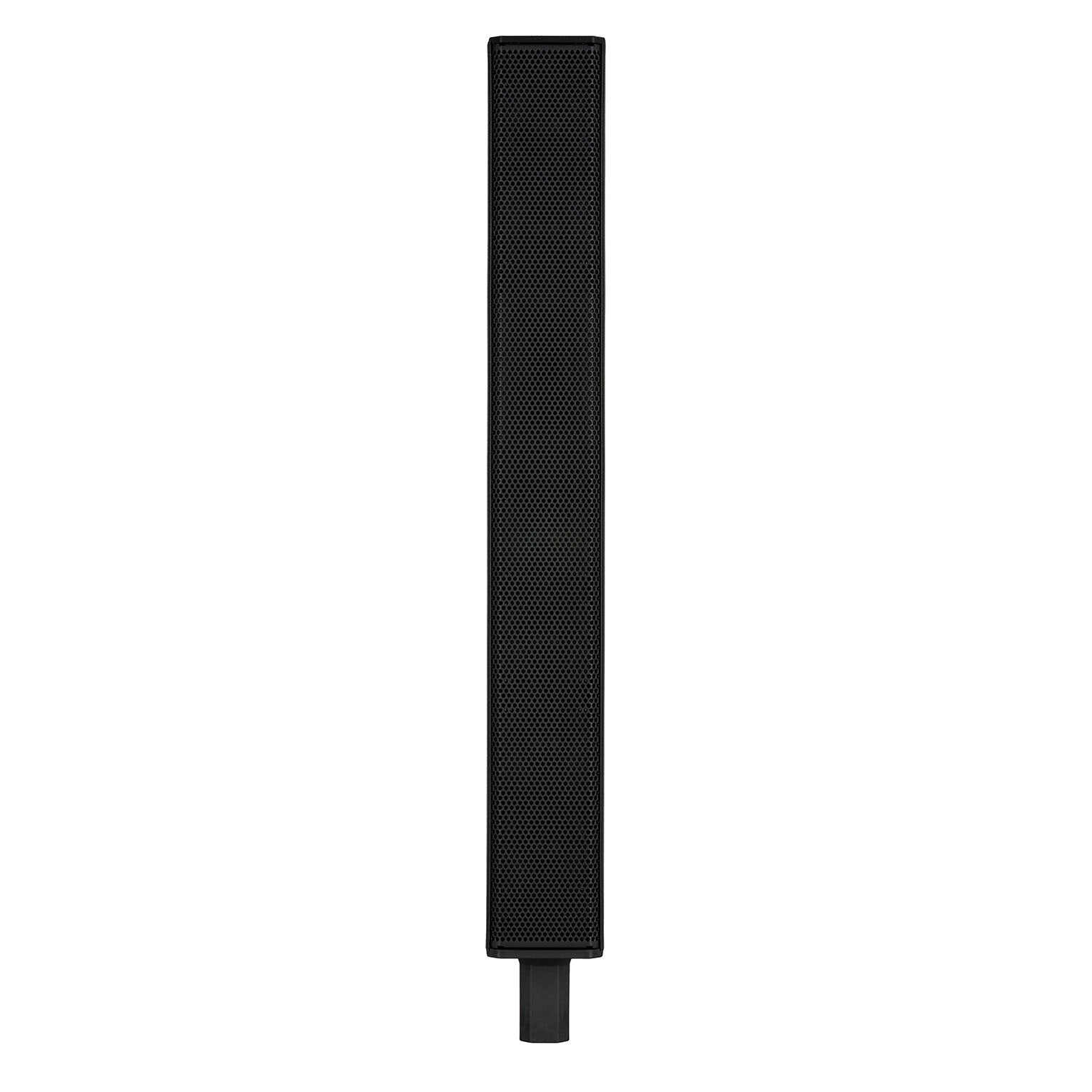

  • Evox J11 top front

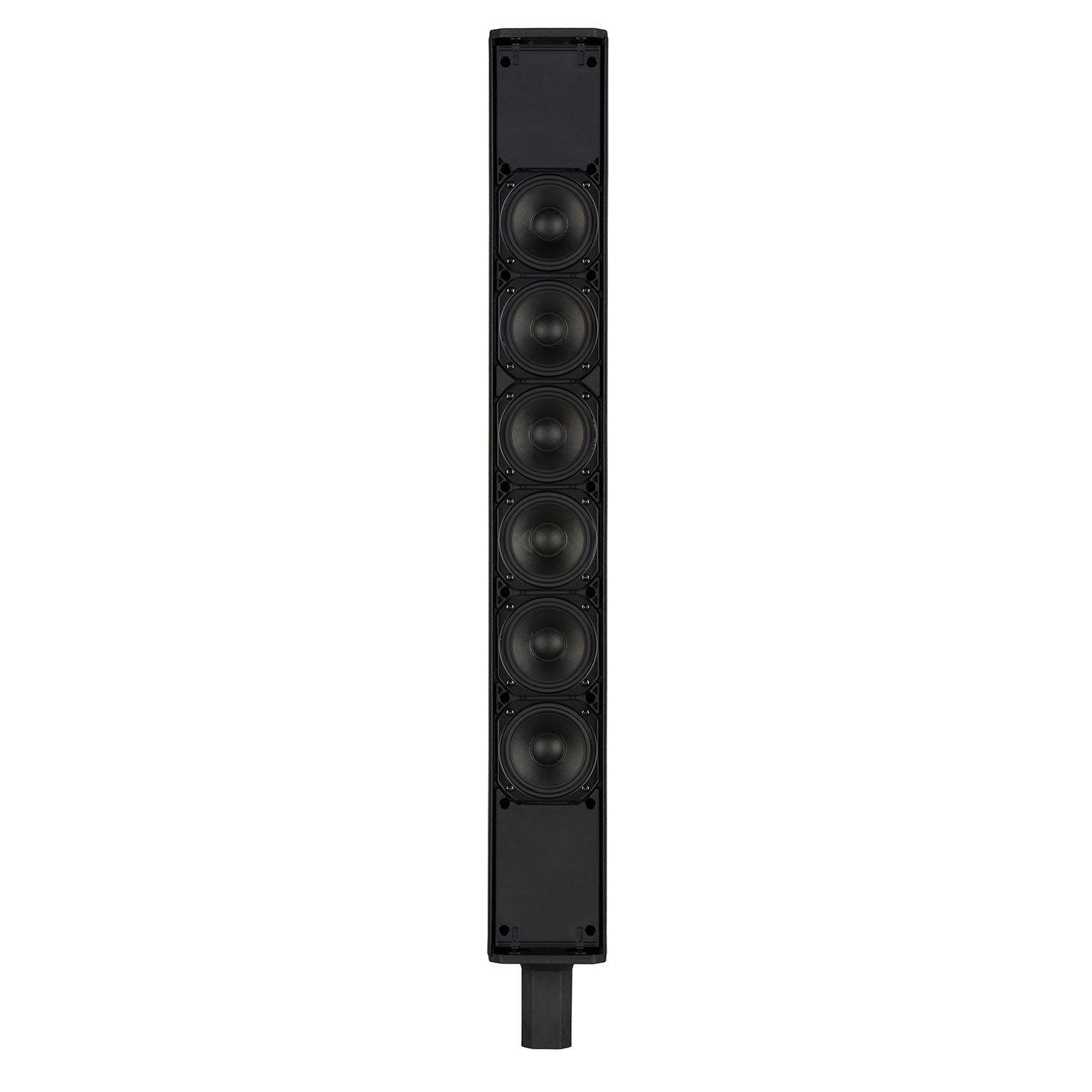

  • Evox J11 top open
1 8

RCF EVOX-J11 Active 3500w 12inch Three-way Column Array

RCF EVOX-J11 Active 3500w 12inch Three-way Column Array

SoundPro Item: 202790 | Part Number: 23021686

$580.00
$841.00 $580.00
Your Price Sold out
MSRP: $841.00 | MAP: $580.00

  • 132 dB Max SPL
  • 3500 W Class-D Amplifier - Built-In DSP
  • 1.75" Neo Compression Driver - 120° x 40° True Resistive Waveguide
  • 12 x 3" Full-Range Neo Transducers
  • 12" RCF Precision Low-Frequency Woofer
  • Enhanced Coverage And Clarity
  • Composite Cabinet With Aluminum Stand Mount
  • Sleek, Road-Ready Design
  • Top Speaker Padded Carrying Bag Included
  • PowerCON TRUE1-TOP Mains Connector
Log in or register for YOUR best price
The RCF J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75" compression driver on a 120° x 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3" full-range transducers and a high-power 12" woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, the J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF's touring-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and a straightforward setup for bands, DJs, and live performers.
View full details

Specifications

Acoustical specifications
Frequency Response
37 Hz-20000 Hz
Max SPL @ 1m
132 dB
Horizontal coverage angle
120°
Vertical coverage angle
40°
Transducers
Compression Driver
1 *0.75^ prime prime neo, 1.75" v.c
Fullrange
12 *3.0^ prime prime neo, 1.0" v.c
Woofer
1 *12^ prime prime , 2.5" V.C
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
160 Hz/1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power
3500 W Peak
High frequencies
1500 W Peak
Low frequencies
2000 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specification
Cabinet/Case Material
PP Composite
Handles
1 Top
Pole mount/Cap
Quick-fit socket
Grille
Steel
Size / Weight
Assembled Height
2285 mm/89.96 inches
Assembled Width
400 mm/15.75 inches
Assembled Depth
460 mm/18.11 inches
Sub Dimensions
18 x 13.78 x 24 inches
Top Dimensions
4 x 4 x 29.13 inches
Weight
20.2 kg/44.53 lb
