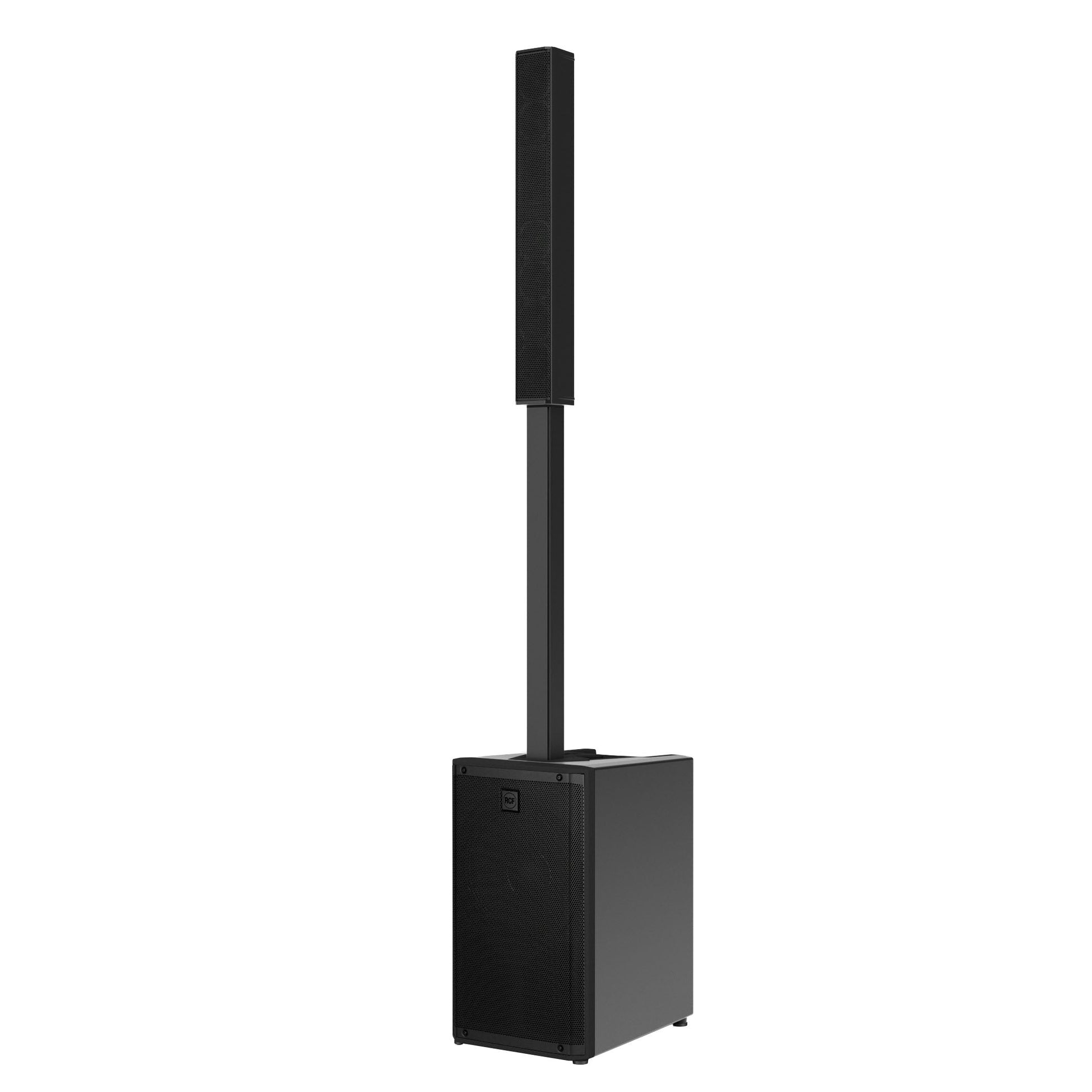

RCF EVOX-JMIX-9 Active 2100w 12inch Three-way Column Array with 8 Channel Mixer and Bluetooth
RCF EVOX-JMIX-9 Active 2100w 12inch Three-way Column Array with 8 Channel Mixer and Bluetooth
SoundPro Item: 202786 | Part Number: 23021660
Regular price
$580.00
Regular price
$841.00
Sale price
$580.00
Unit price
per
MSRP: $841.00
| MAP: $580.00

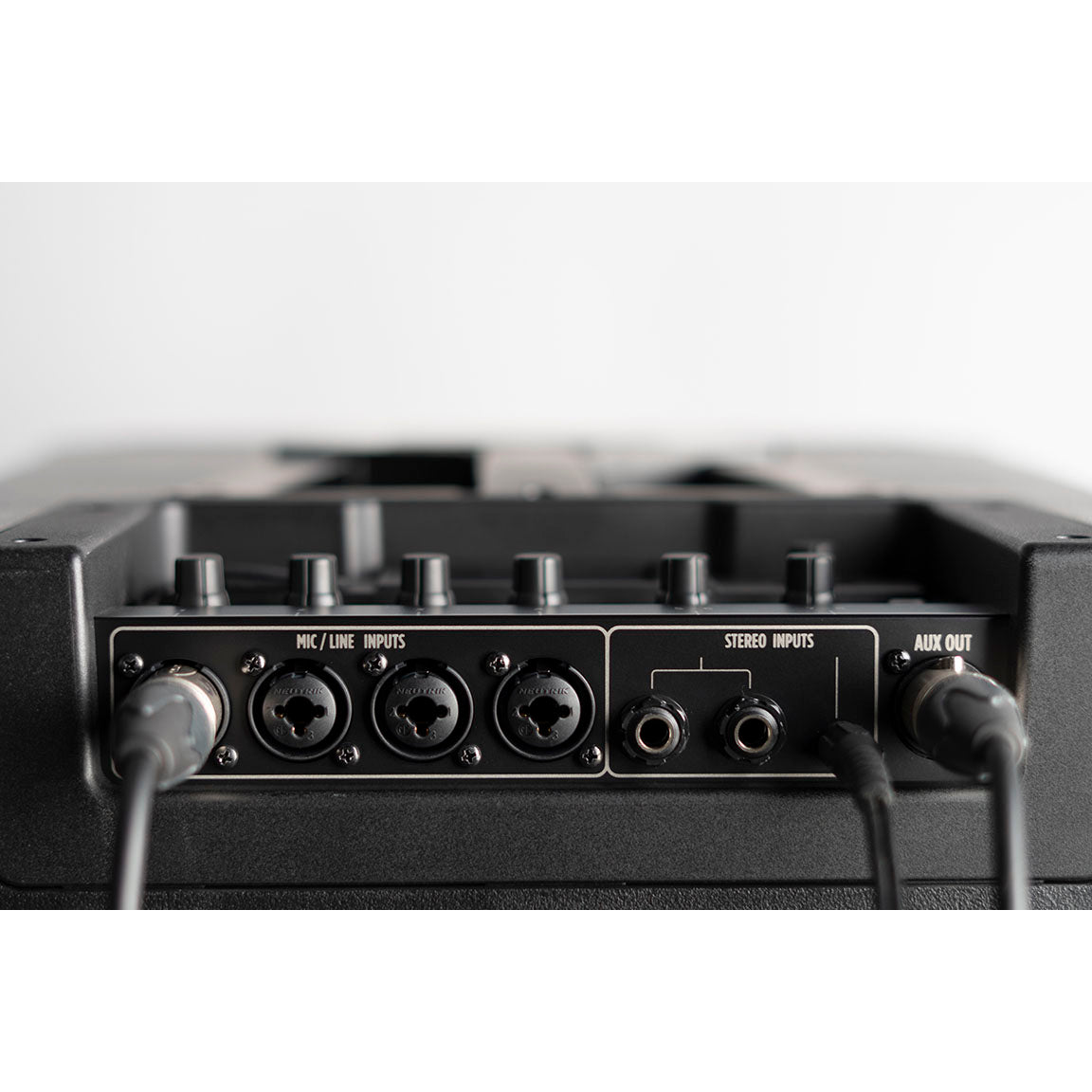

- 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75" Neo Compression Driver - 120° x 40° True Resistive Waveguide
- 6 x 3" Full-Range Neo Transducers

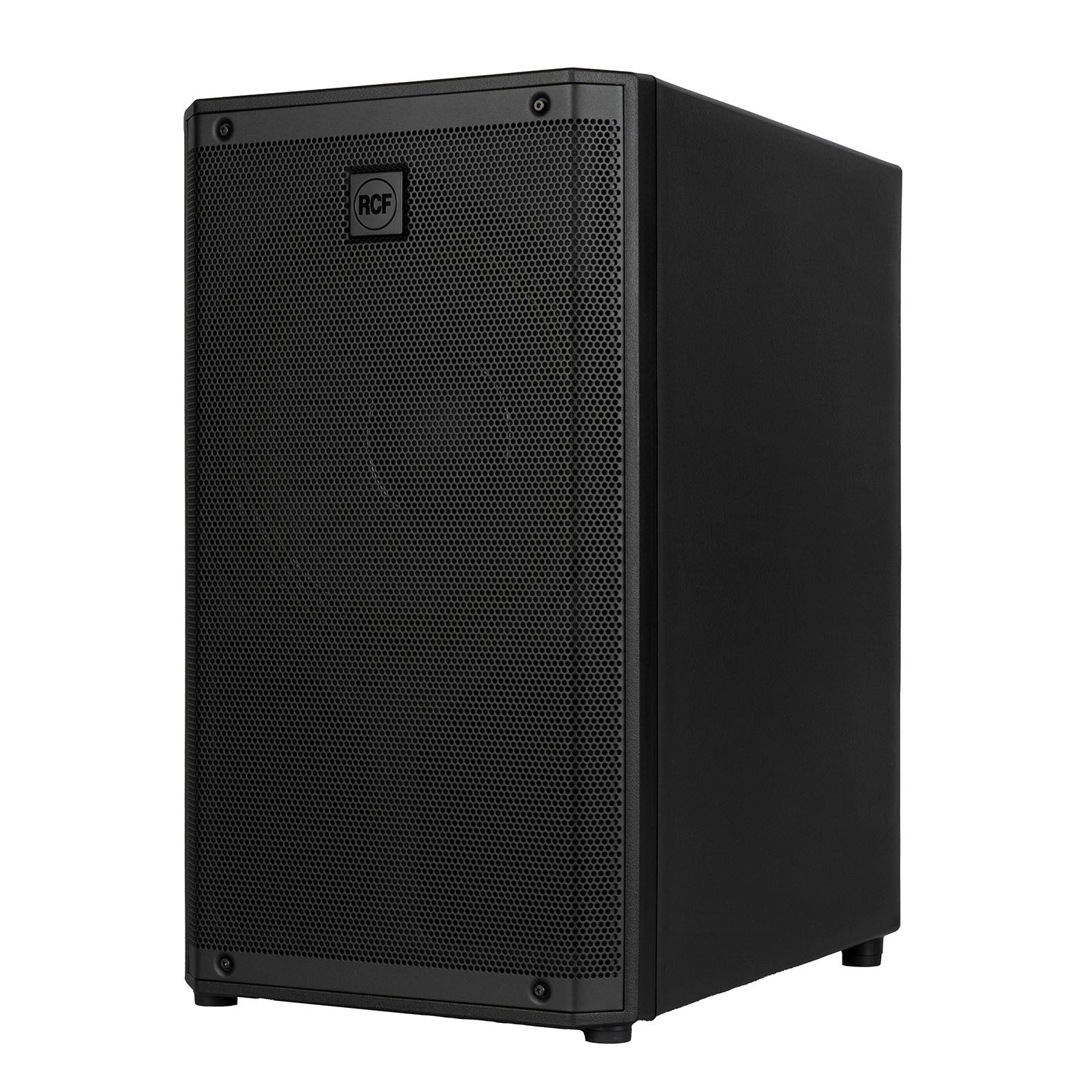

- 12" RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity

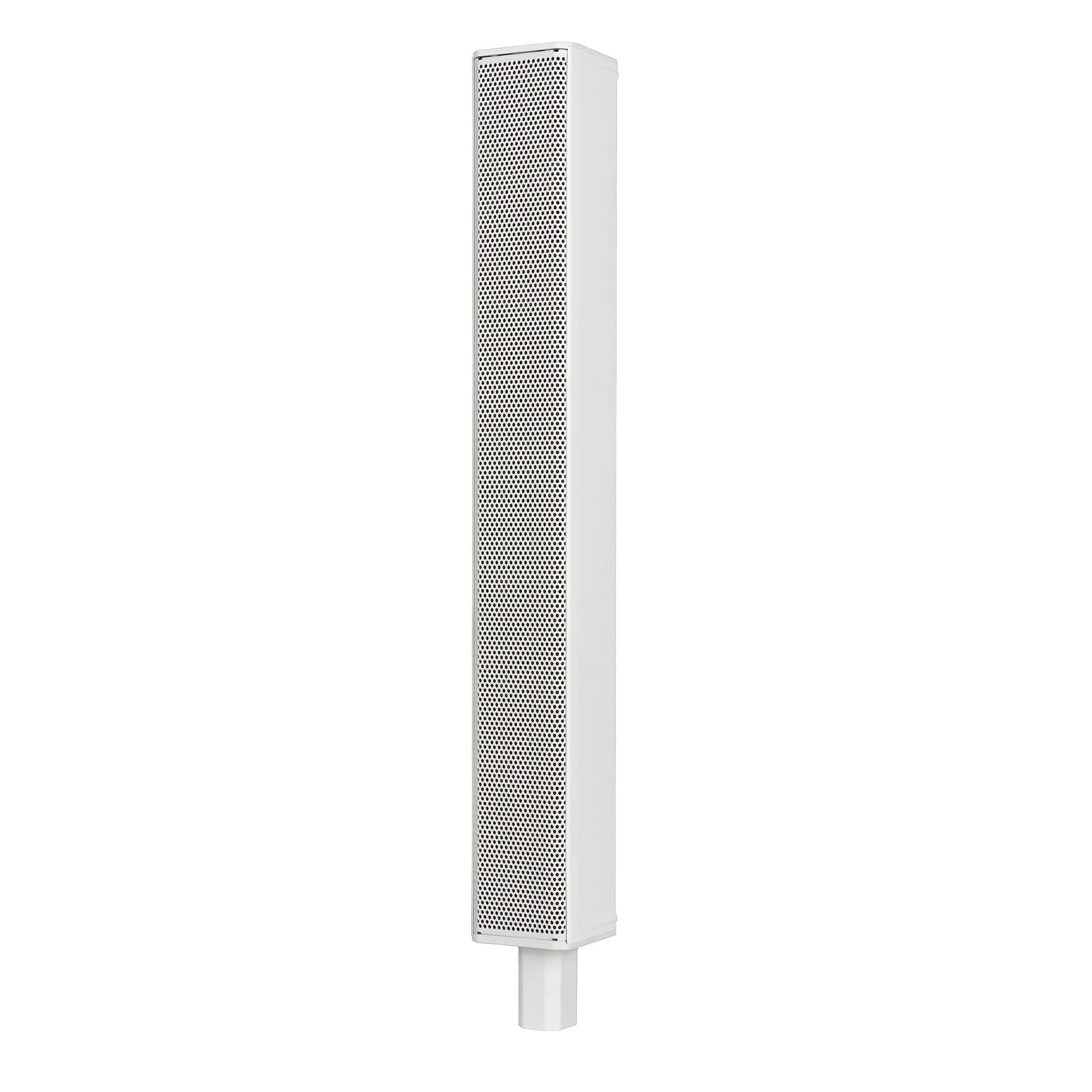

- Sleek Composite Cabinet With Aluminum Stand Mount
- Top Speaker Padded Carrying Bag Included
- VDE Mains Connector

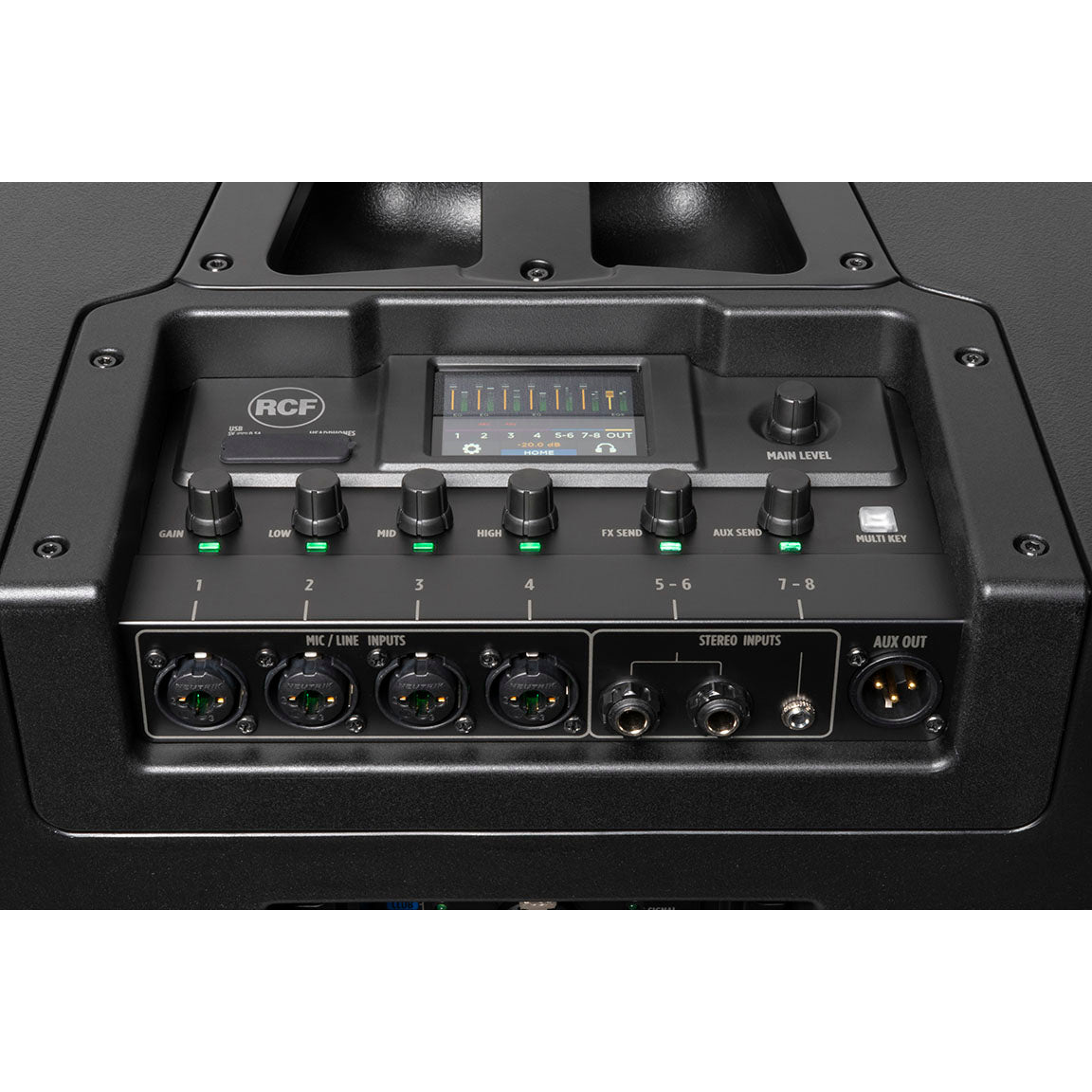

The RCF JMIX9 is an active, three-way portable music system featuring a digital 8-channel mixer and Bluetooth® streaming and control. A 1.75" compression driver on a 120° x 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3" full-range transducers and a high-power 12" woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplification, the JMIX9 delivers an impressive 130dB Max SPL output. Part of the EVOX J Series, it incorporates RCF's touring-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and a straightforward setup for bands, DJs, and live performers. The built-in multi-channel mixer features EQ, reverb, phantom power, and Bluetooth streaming, while the intuitive JMixRemote app provides complete control from your smartphone.
Specifications
Acoustical specifications
Frequency Response
40 Hz-20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
120°
Vertical coverage angle
40°
Transducers
Compression Driver
1 x 0.75" neo, 1.75" v.c
Fullrange
6 x 3.0" neo, 1.0" v.c
Woofer
1 x 12", 2.5" v.C

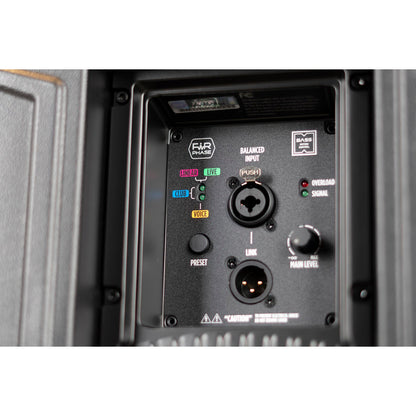

Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
200 Hz/1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Digital mixer controlled by touch screen and encoders
Power section
Total Power
2100 W Peak
High frequencies
700 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
VDE
Electronic specifications
Frequency Response
20 Hz - 20 Hz
THD+N, 20dB gain, OdBu out
0.003% A-Weighted
Processing
Processing Channels
8
Signal Processing
32 Bit
A/D-D/A conversion
24 Bit @ 48.0 kHz
Dynamic Range
114
Inputs
Mic
4
Remote Controlled Storable Gain
Yes
Gain Range
0 dB-36 dB
Input Noise Level
-114 dBu A-Weighted
Mic Inputs Impedance
3 kohm
Low Cut
20 Hz-400 Hz
Phantom Power +48V
Yes
Mono Line
4
Gain Selection
0 dB-36 dB
Line Input Impedance
10 kohm
A/D Dynamic range
120 dB
Stereo Line
2
Gain Selection
0 dB-0 dB
Stereo Line Input Impedence
24 kohm
Outputs
Main MIX
1
FX Send
1
AUX Send
1
AUX Output
1
Phones
1
Outputs specifications
Main Out Impedance
150 ohm
Main Out Level
20 dBu
Aux Out Impedance
150 ohm
Aux Out Level
20 dBu
Phones Out impedance (ohm)
100 ohm
Phones Out Level
20 dBm
D/A Dynamic Range
118 dB
Compressors
RCF Compressors
Compressors on MIC/LINE CHI to CH4 Inputs
EQ
Input Channels EQ
1 Semi Parametric/2 Shelving
3 Band EQ
High and Low band shelving, MID band peak on INPUT
8 Band EQ
6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.
Auxiliary sends
AUX
1 PRE/POST
FX POST
1
Internal Effects
Send Effects
1
Mastering processors
Main OUT processors
1
Main OUT type
MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
Electrical specifications
Power supply
Internal
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Handles
1 Top

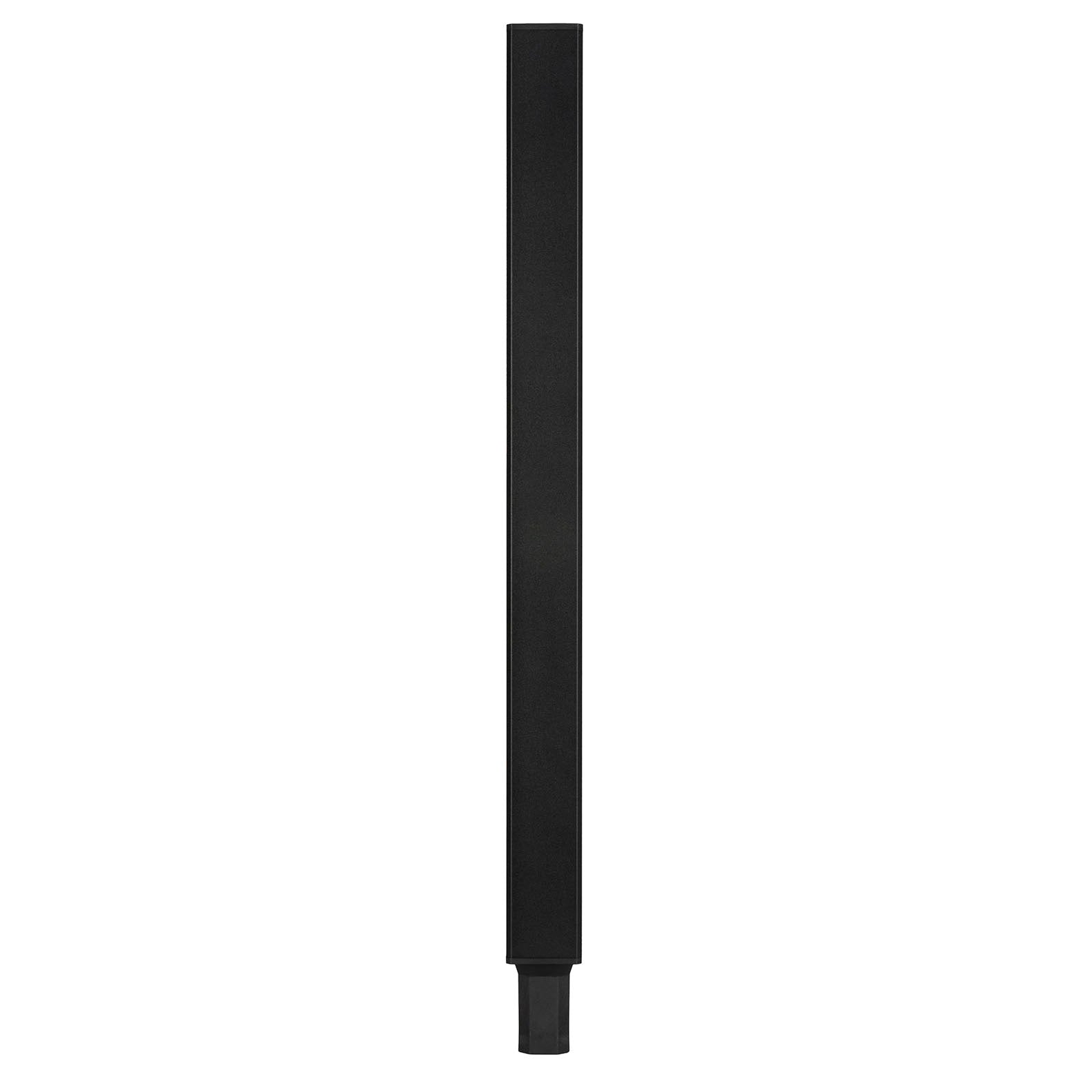

Pole mount/Cap
Quick-fit socket
Grille
Steel
Size / Weight
Assembled Height
2080 mm/81.89 inches
Assembled Width
350 mm/13.78 inches
Assembled Depth
460 mm/18.11 inches
Sub Dimensions
18 x 13.78 x 24 inches
Top Dimensions
4 x 4 x 29.13 inches
Weight
28.8 kg/63.49 lb
