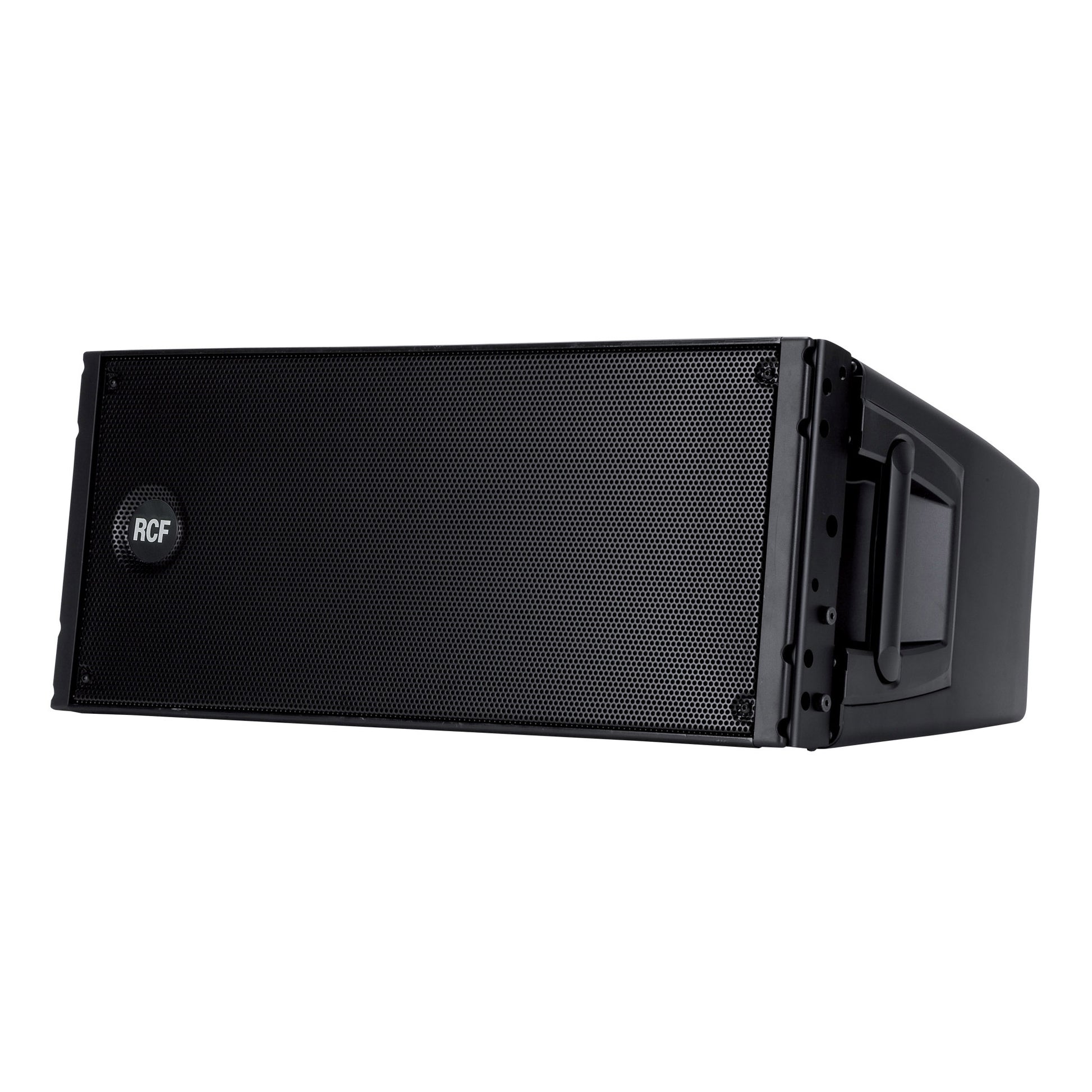

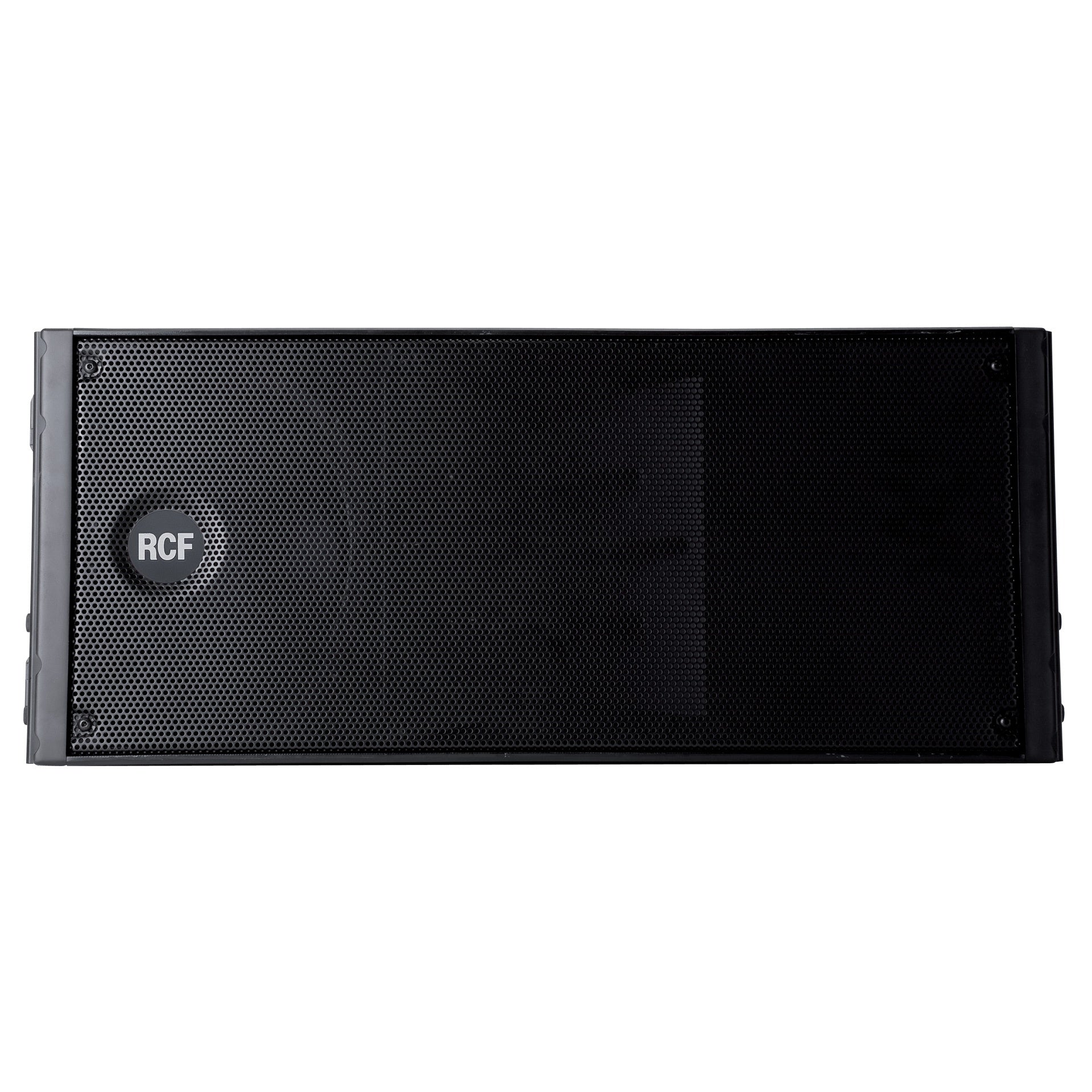

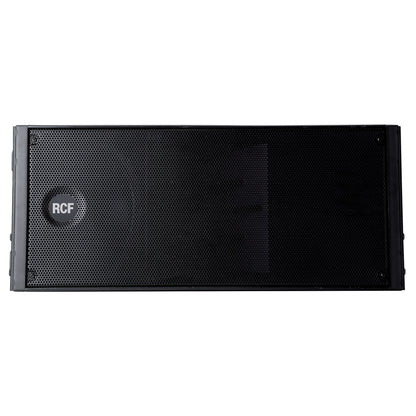

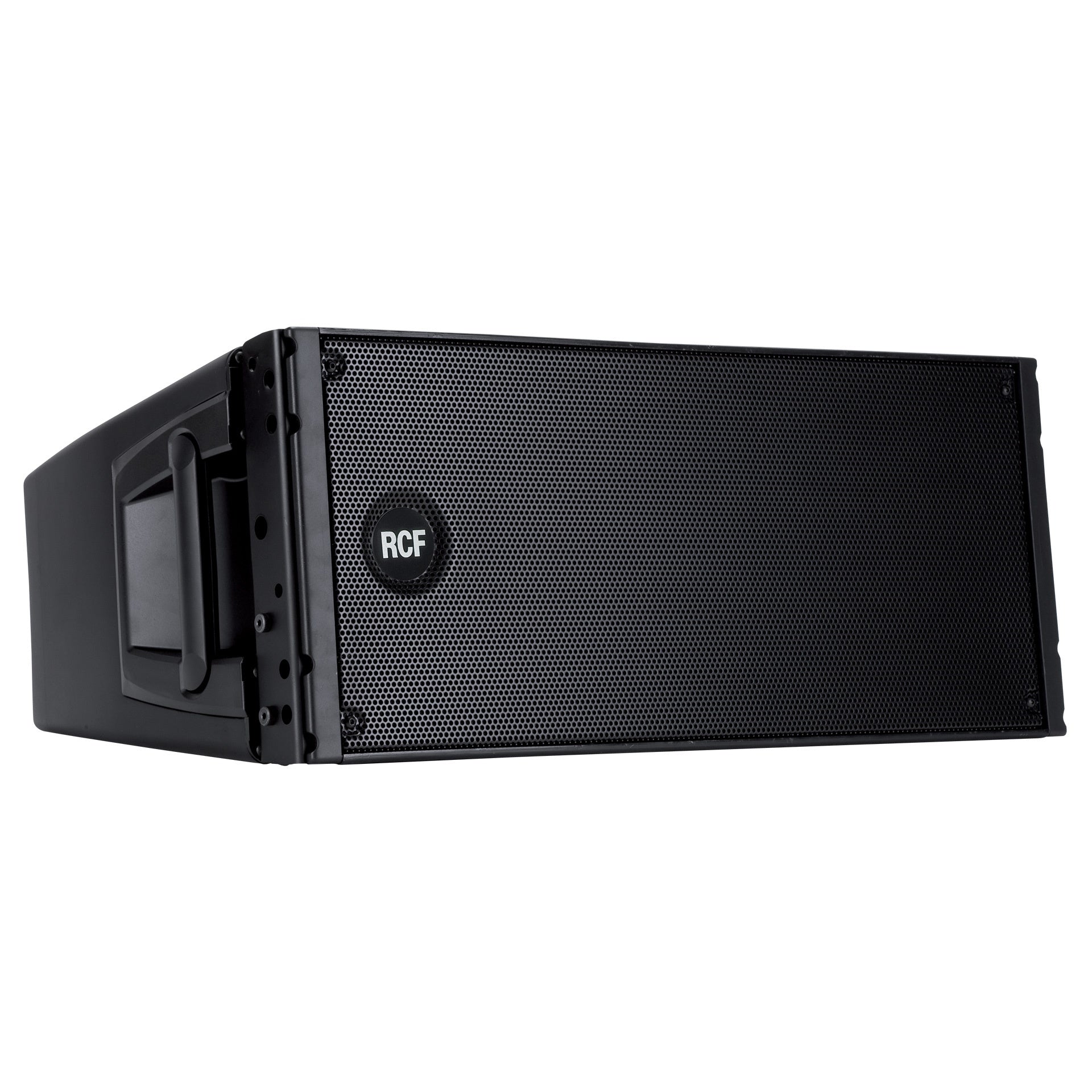

RCF HDL 20-A Dual 10-Inch Powered Line Array Speaker
RCF HDL 20-A Dual 10-Inch Powered Line Array Speaker
SoundPro Item: 31800 | Part Number: HDL20-A
Usually ships in 5-7 business days
- Dual 10-Inch Powered Line Array Speaker

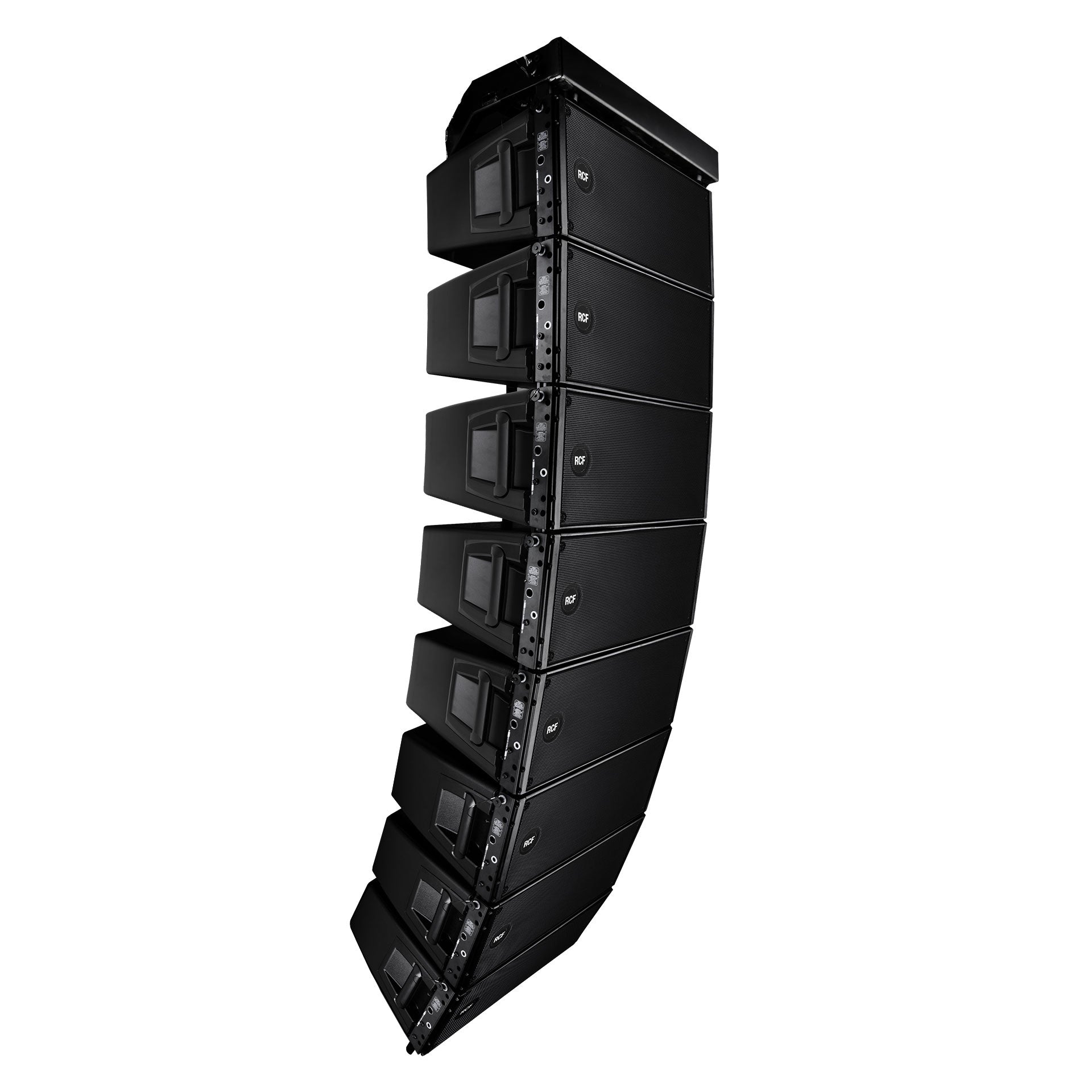

- Perfectly scalable and equipped for professional applications including live sound rental companies
- 1400W peak power - 700W RMS
- 135 dB max SPL
- 55 Hz 20 kHz frequency response
- 2 x 10" woofers
- 1 x 3" compression driver
- DSP controlled input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Perfect for live sound reinforcement and installation applications, the HDL 20-A from RCF is a dual 10” powered line array speaker that offers fast, easy setup. It is powered from 1400W Peak Power 2-way digital amplifier while a powerful DSP processes the sound utilizing cluster and HF projection correction and special new presets for indoor and high curving situations.
Boasting optimized acoustics, state-of-the-art transducers, and a unique composite cabinet, the HDL 20-A features a large format 3” voice coil compression driver to deliver vocal clarity and high definition with incredible dynamics.
- ACOUSTICAL
- Frequency Response: 55 Hz ÷ 20000 Hz
- Max SPL @ 1m: 135 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 15°
- TRANSDUCERS
- Compression Driver: 1 x 2.0'', 3.0'' v.c
- Woofer: 2 x 10'', 2.5'' v.c

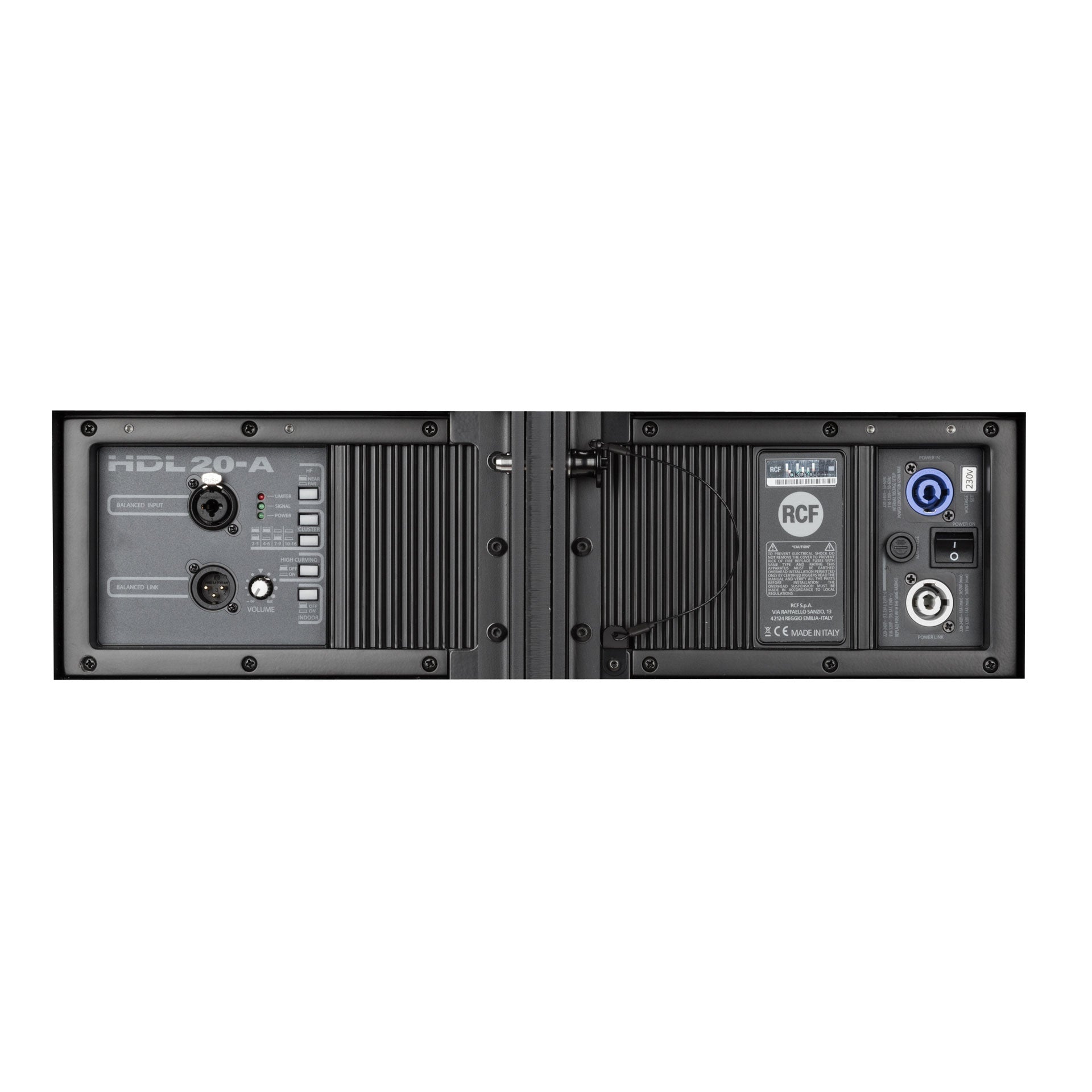

- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- PROCESSOR SECTION
- Crossover Frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Cluster, HF, High curving, Indoor
- POWER SECTION
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection

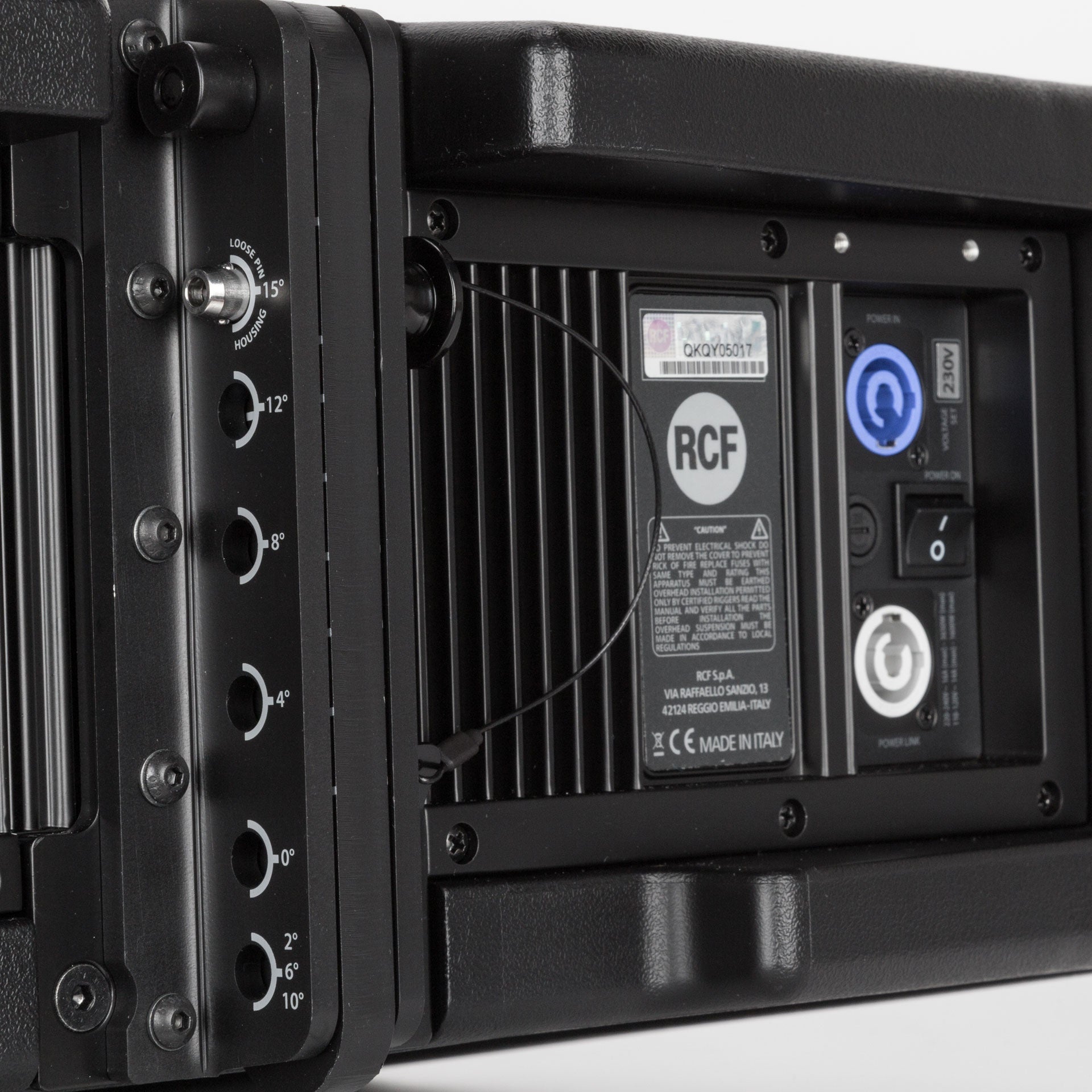

- Connections: Powercon IN/OUT
- PHYSICAL
- Cabinet/Case Material: PP Composite

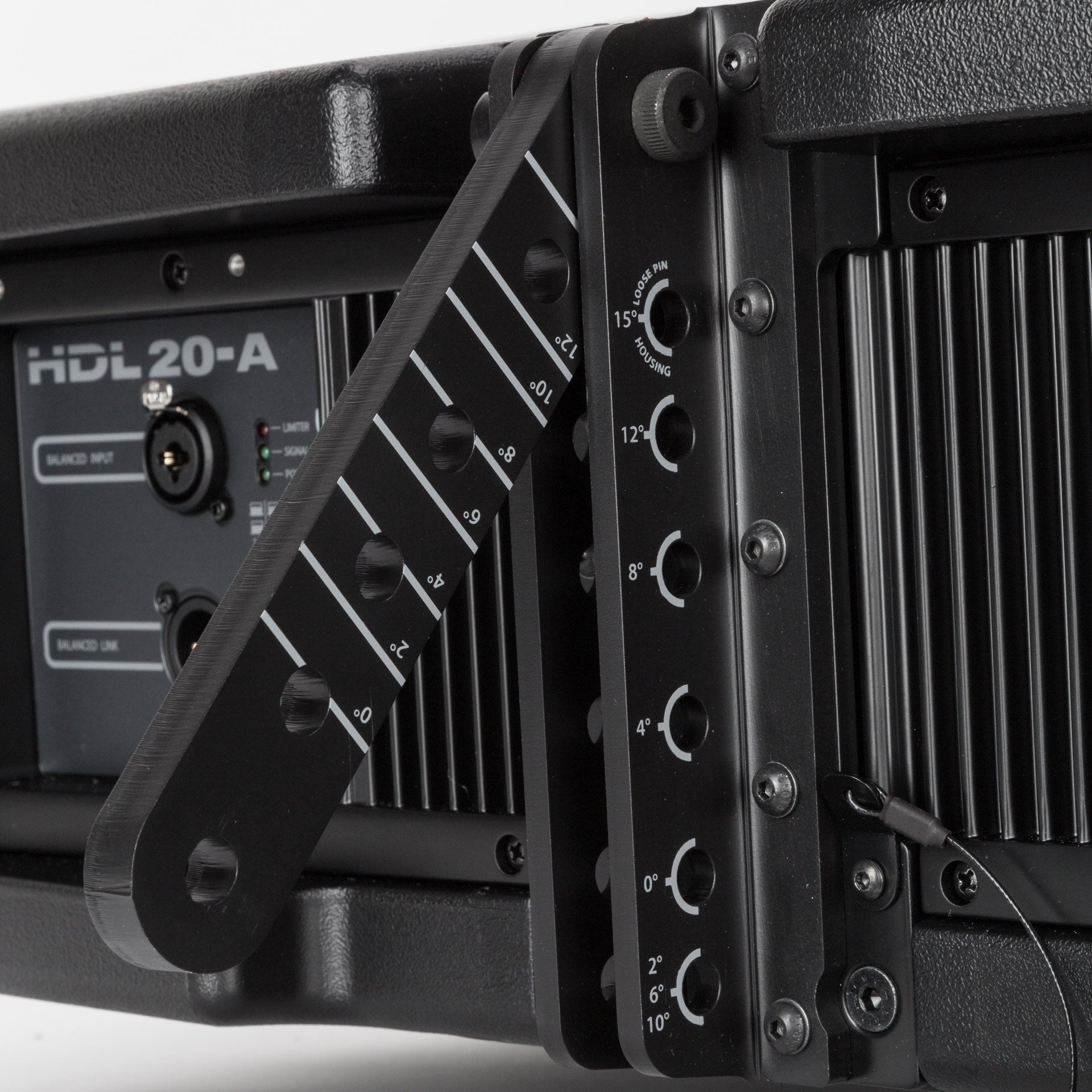

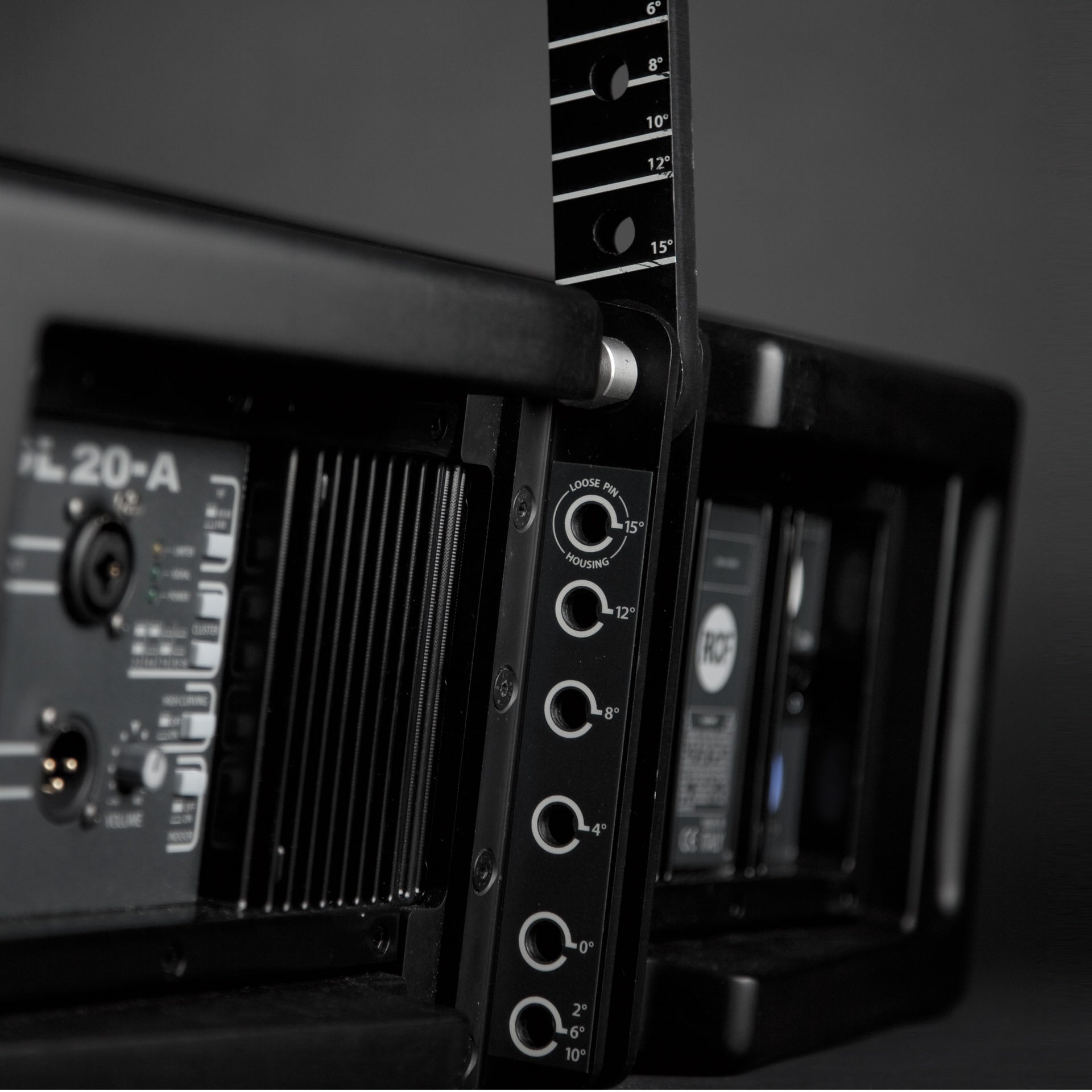

- Hardware: Rigging flyware

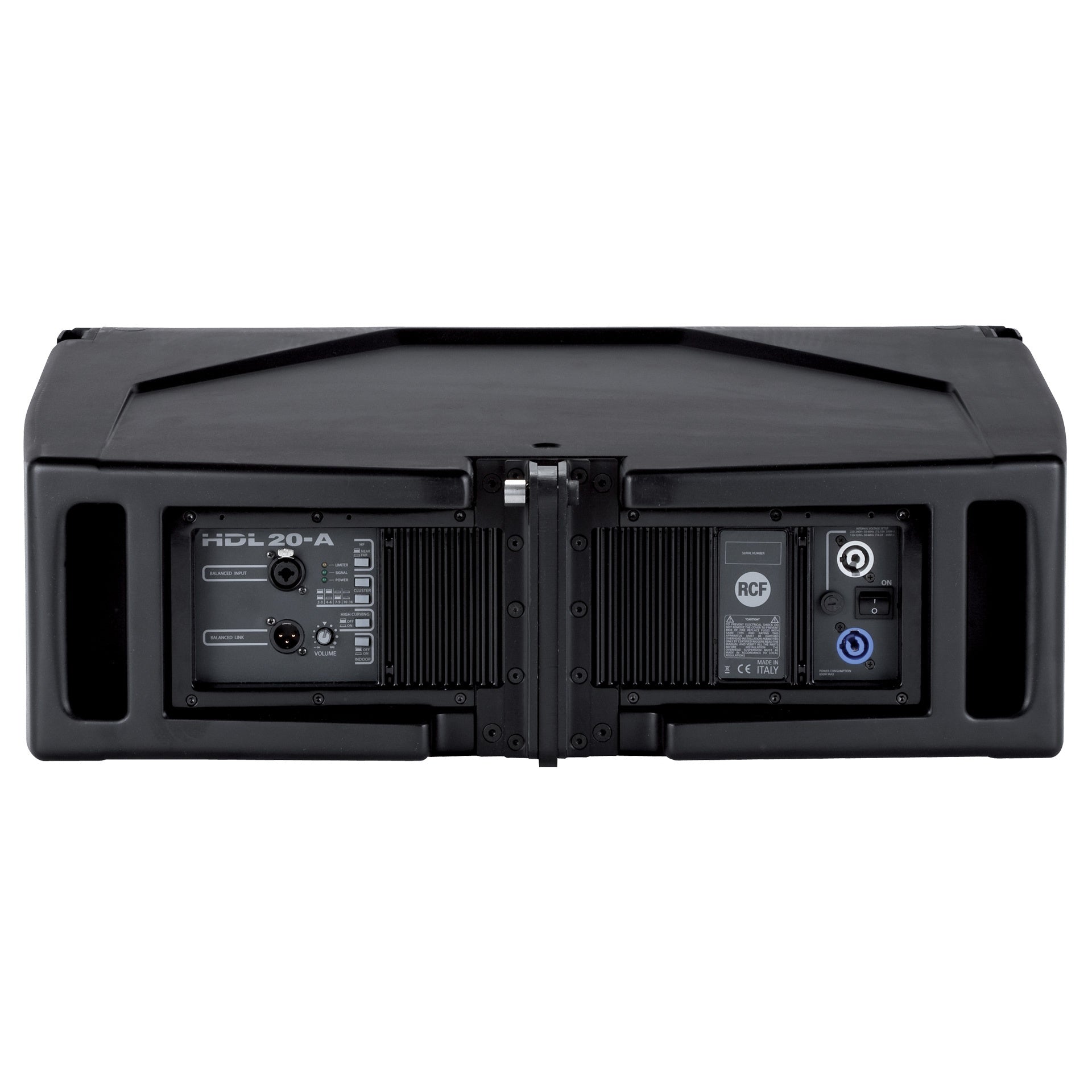

- Handles: 2 side, 2 back
- Grille: Steel
- Color: Black
- Dimensions (HxWxD): 11.57x27.76x17.52" (294x705x445mm)
- Weight: 66.58 lbs (30.2 kg)
- SHIPPING
- Package Dimensions (HxWxD): 14.76x31.5x19.69" (375x800x500mm)
- Package Weight: 73.19 lbs (33.2 kg)
