RCF HDL 10-A Dual 8-Inch Powered Line Array Speaker | Color: White
RCF HDL 10-A Dual 8-Inch Powered Line Array Speaker | Color: White
SoundPro Item: 23513 | Part Number: HDL10-A-W
Usually ships in 5-7 business days

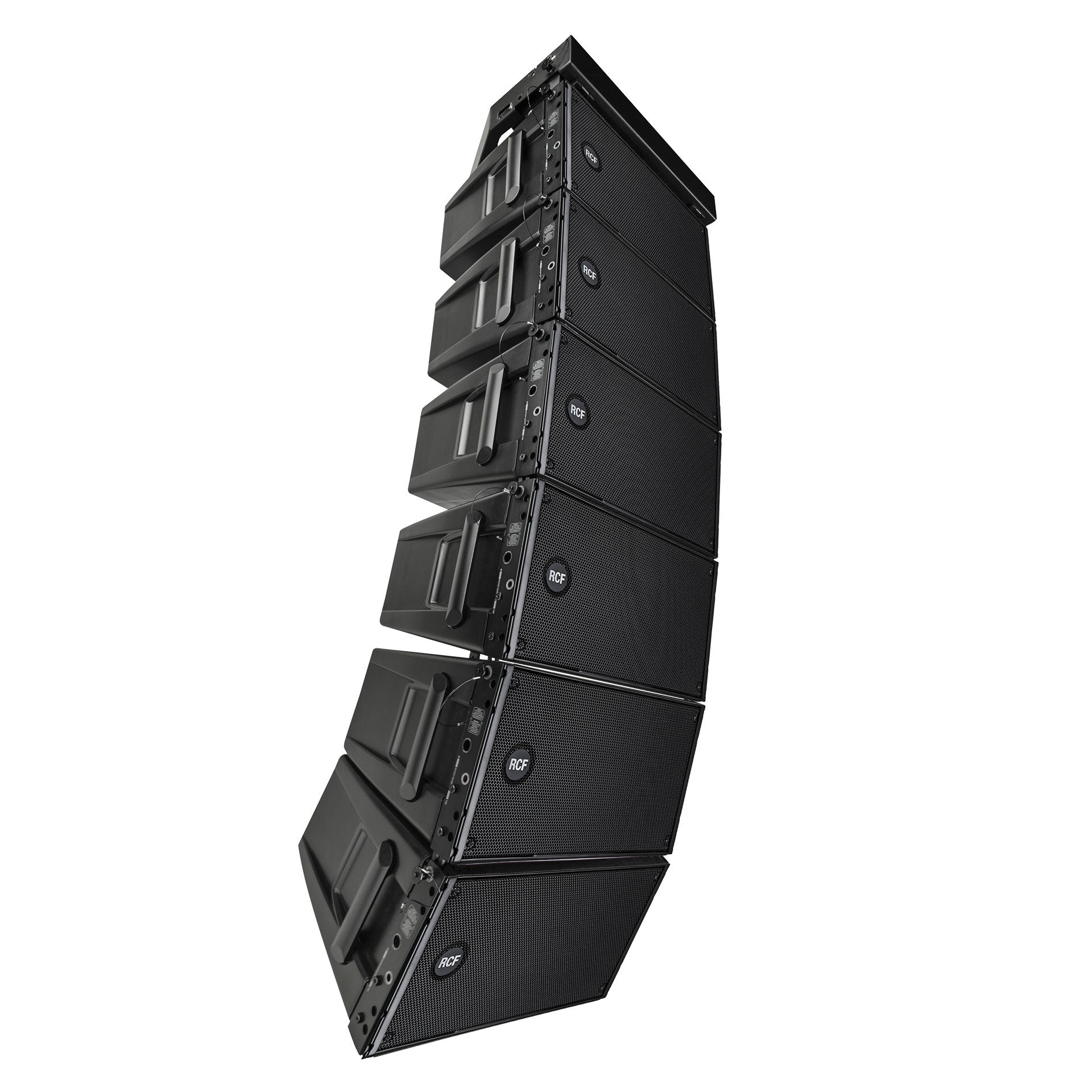

- Dual 8-Inch Powered Line Array Speaker
- Great for live sound reinforcement and permanent installations
- Perfectly scalable and equipped for professional applications
- 1400W Peak power - 700W RMS
- 133 dB max SPL
- 65 Hz 20 kHz frequency response
- 2 x 8" Woofers
- 1 x 2" Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Compact and no-compromise, the HDL 10-A from RCF is a dual 8” powered line array speaker that’s great for live sound reinforcement and permanent installations. Offering fast, easy setup and housed in a cabinet composed of unique composite materials, this innovative system incorporates a 1400W Peak Power 2-way digital amplifier and powerful DSP processing.
- ACOUSTICAL
- Frequency Response: 65 Hz ÷ 20000 Hz
- Max SPL @ 1m: 133 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 15°

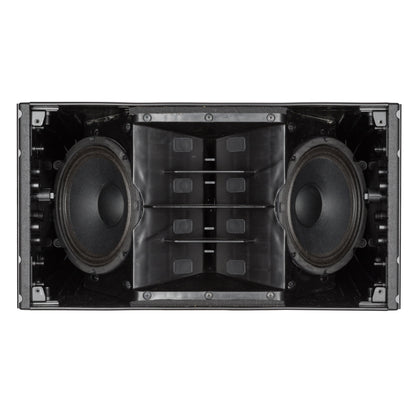

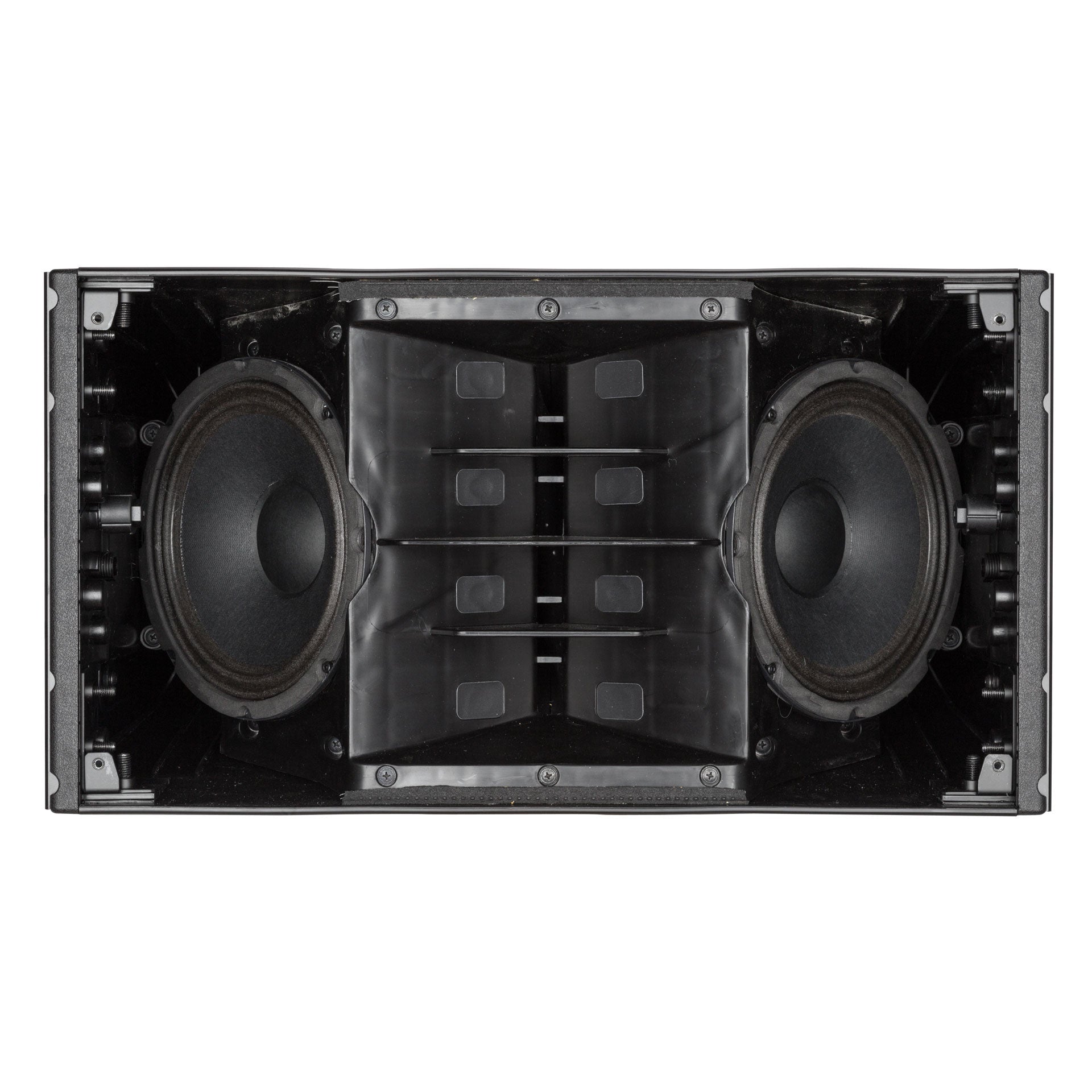

- TRANSDUCERS
- Compression Driver: 1 x 2.0'', 2.5'' v.c
- Woofer: 2 x 8'', 2.0'' v.c

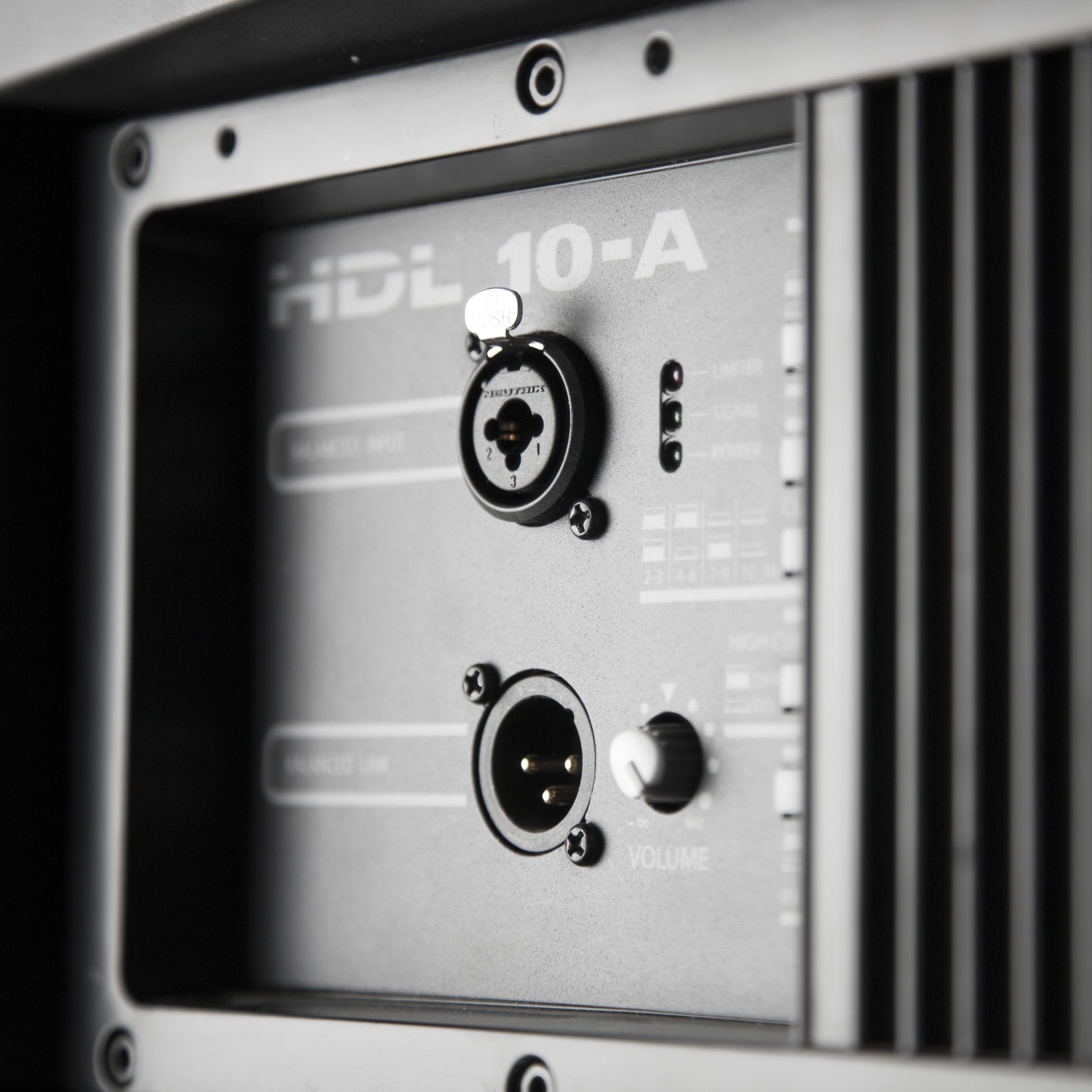

- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- PROCESSOR SECTION
- Crossover Frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter

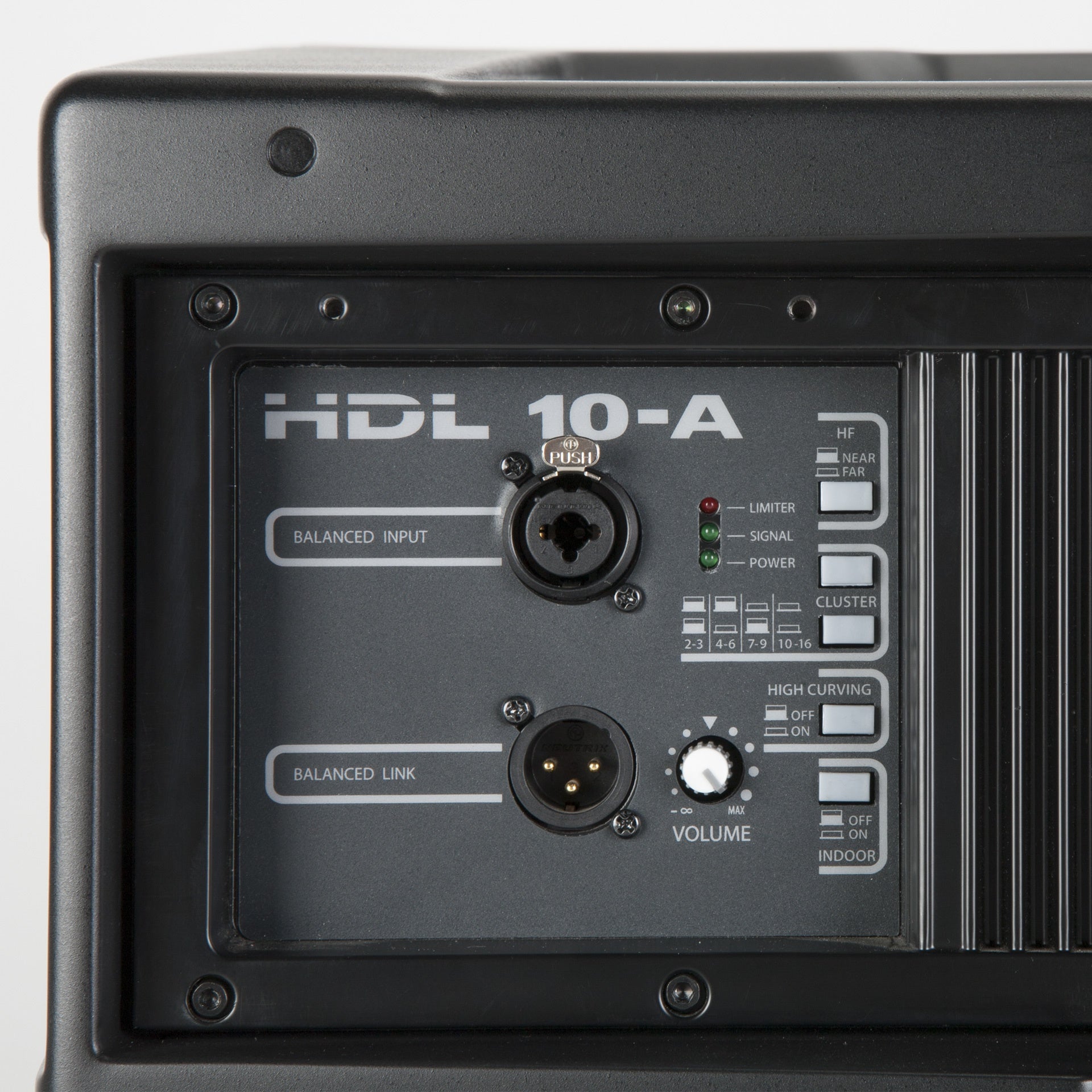

- Controls: Cluster, HF, High curving, Indoor
- POWER SECTION
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection

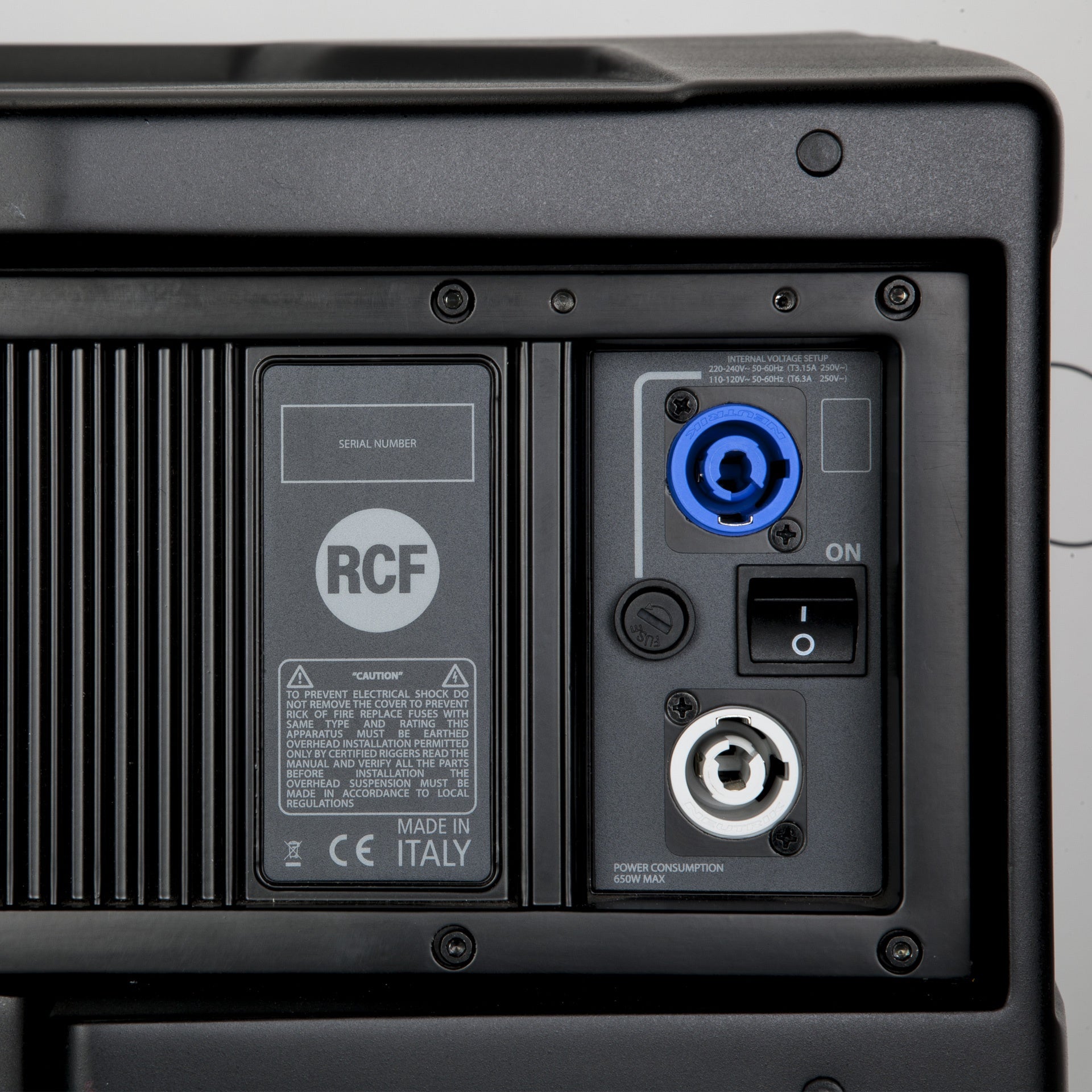

- Connections: Powercon IN/OUT
- PHYSICAL
- Cabinet/Case Material: PP Composite

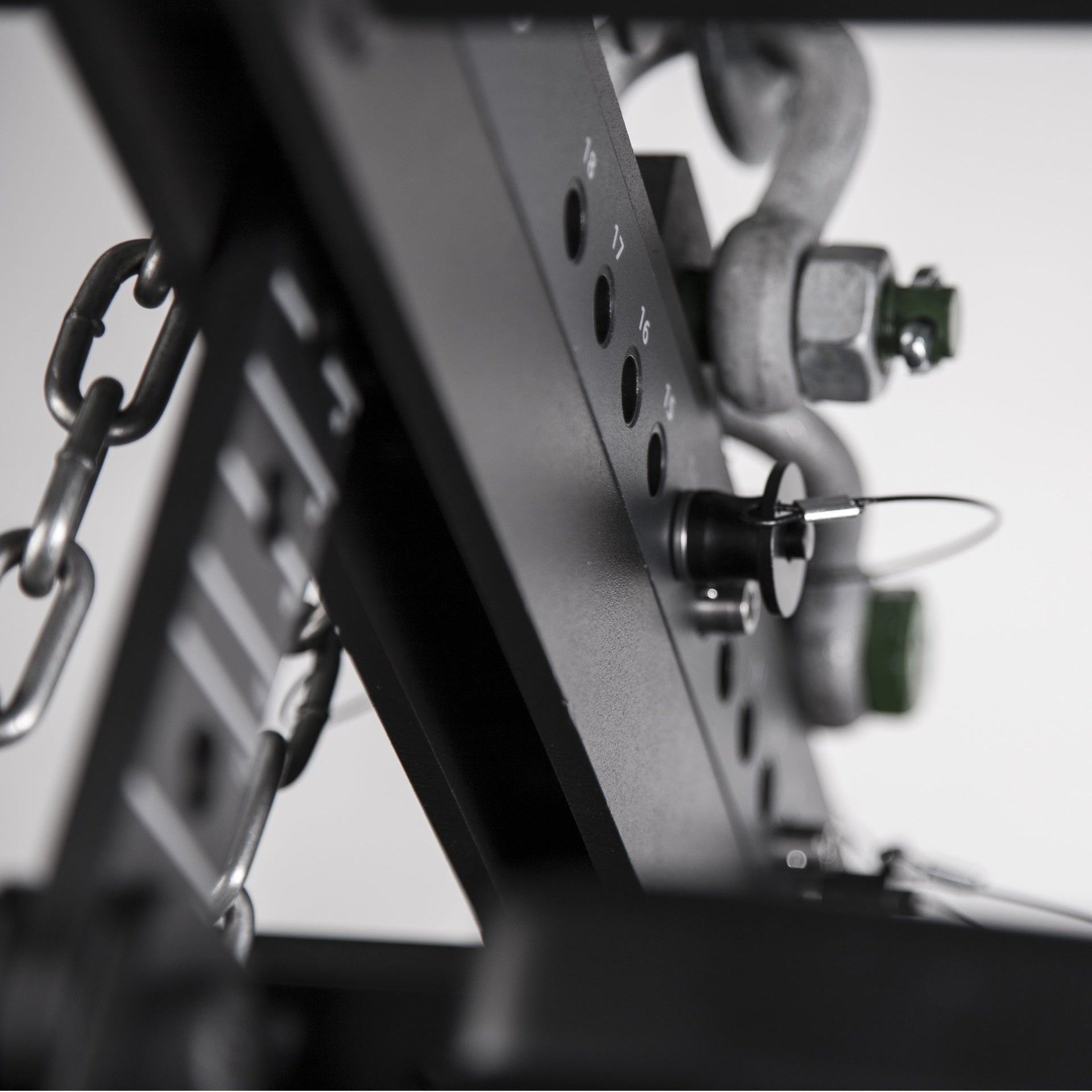

- Hardware: Rigging flyware

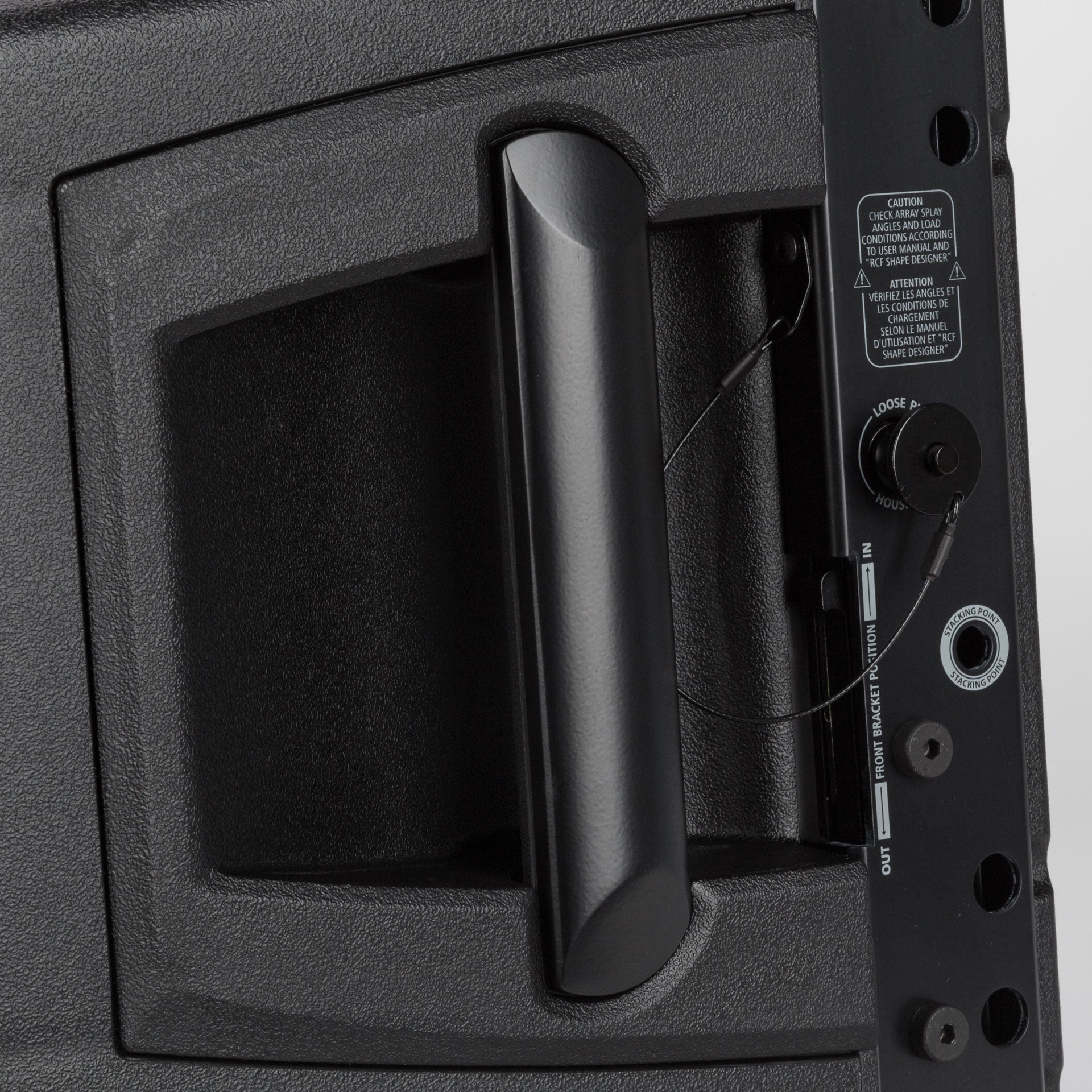

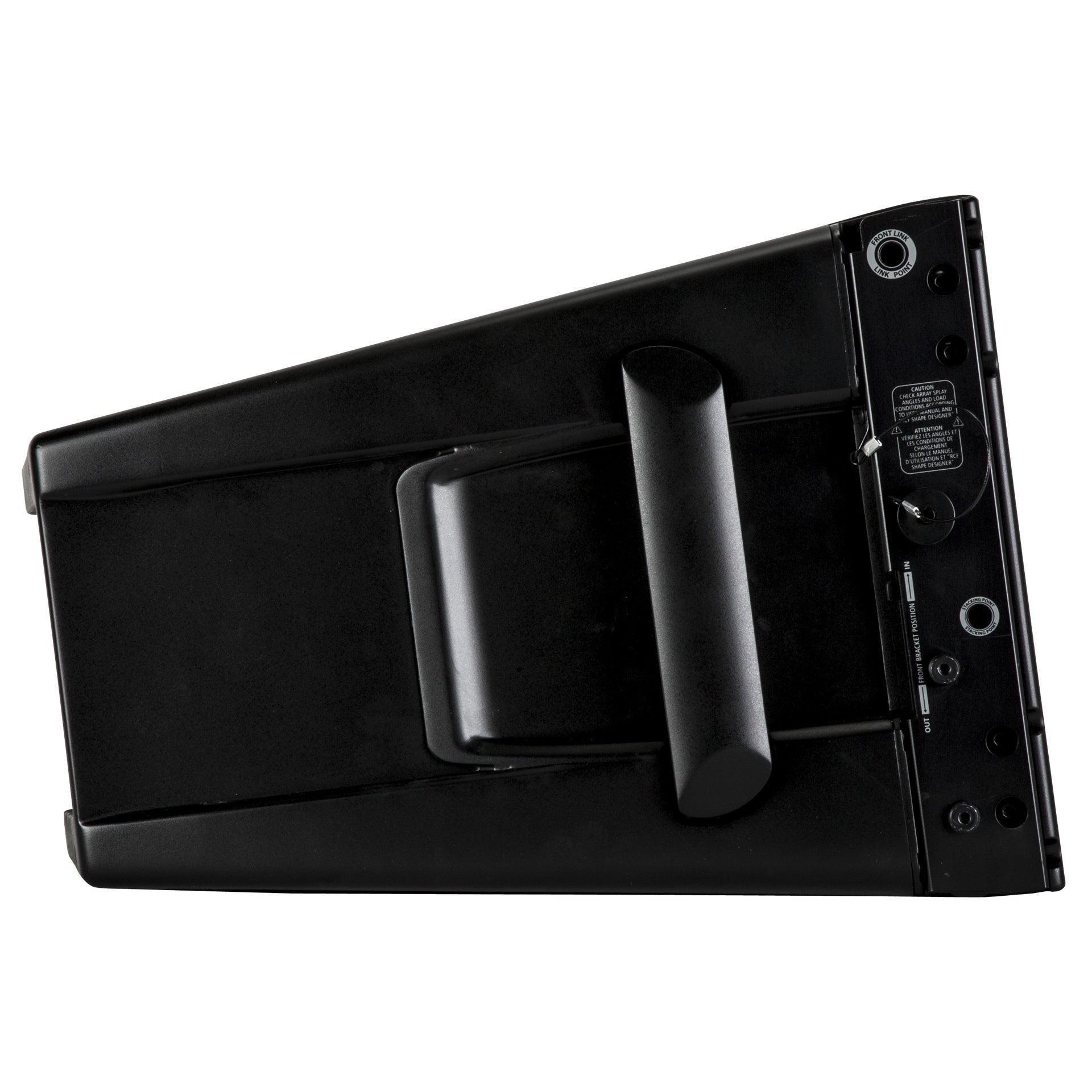

- Handles: 2 side
- Grille: Steel
- Color: Black, White
- Dimensions (HxWxD): 11.57x22.4x17.09" (294x569x434mm)
- Weight: 44.97 lbs (20.4 kg)
- SHIPPING
- Package Dimensions (HxWxD): 14.76x25.59x19.69" (375x650x500mm)
- Package Weight: 50.71 lbs (23 kg)
