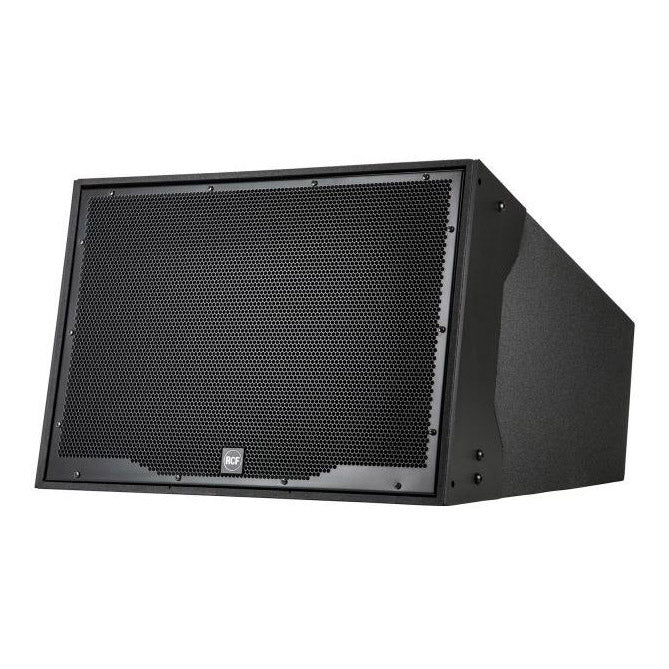

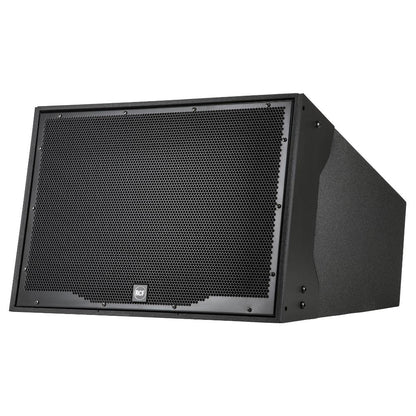

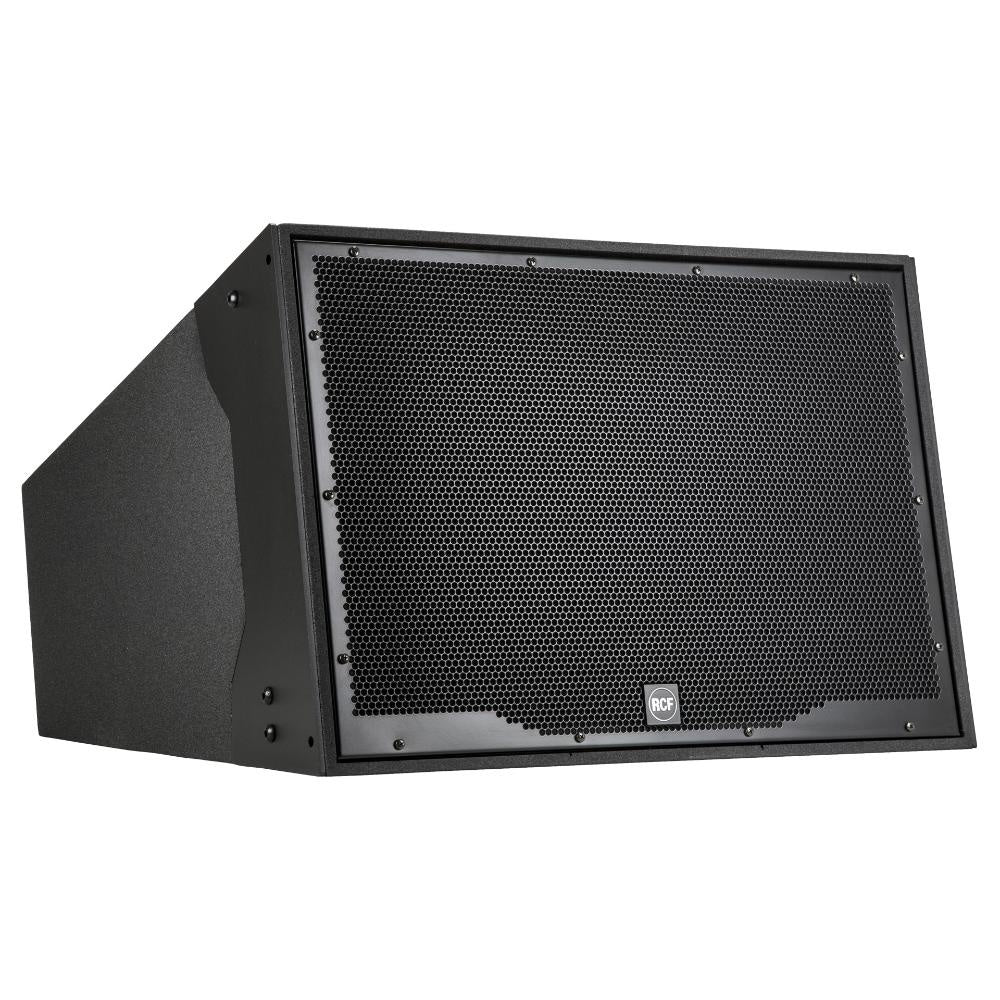

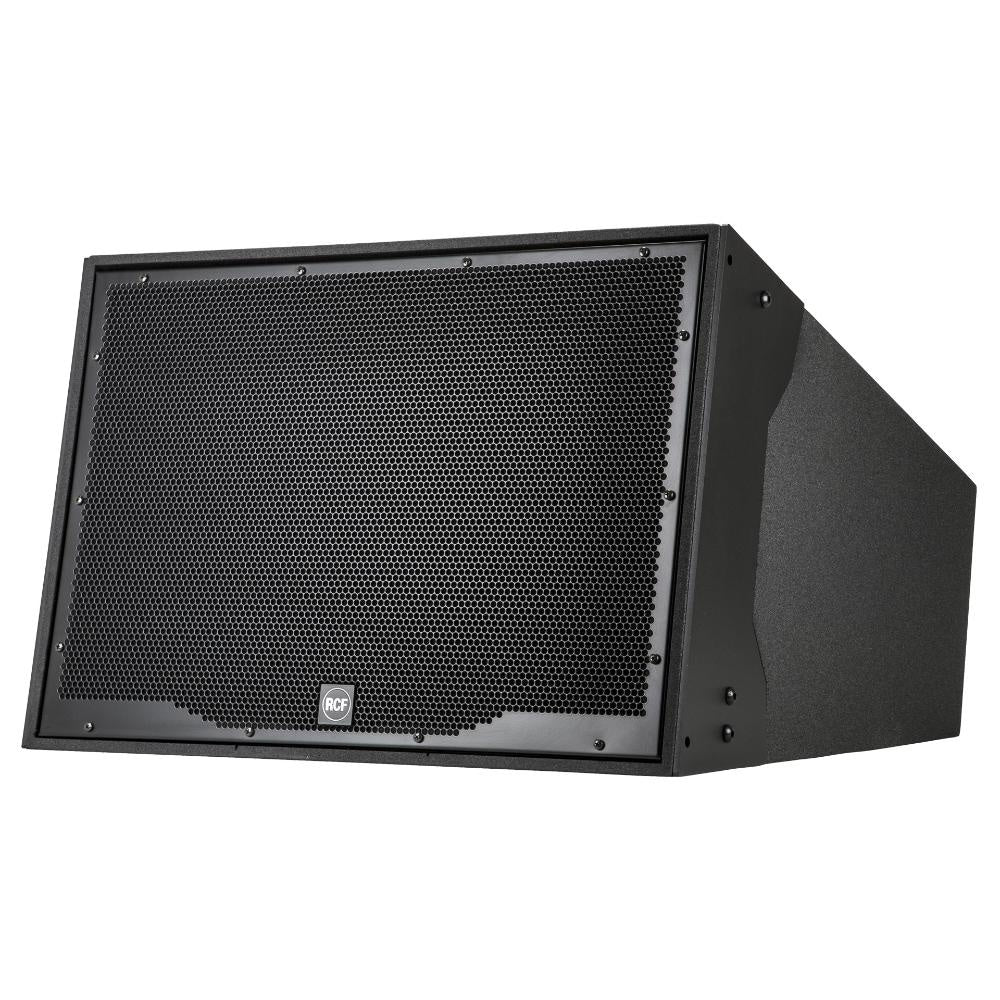

RCF HL2290 Dual 12-Inch Passive Line Array Speaker
RCF HL2290 Dual 12-Inch Passive Line Array Speaker
Soundpro Item: 11517 | Part Number: HL2290
Usually ships in 5-7 business days
- Fully Horn-loaded, 90° x 22.5° directivity
- 2 x 12" RCF Precision woofers with 3.5" voice coil
- RCF Precision 4.0" voice coli compression driver, titanium dome
- Horn loading on RCF waveguide
- 141 dB Max SPL
- System Power rating 1500 Watt RMS (1350 Watt LF, 150 Watt HF)
- Safe and solid variable array mechanics
- Baltic Birch Plywood enclosure with internal structural metal bracings
Couldn't load pickup availability

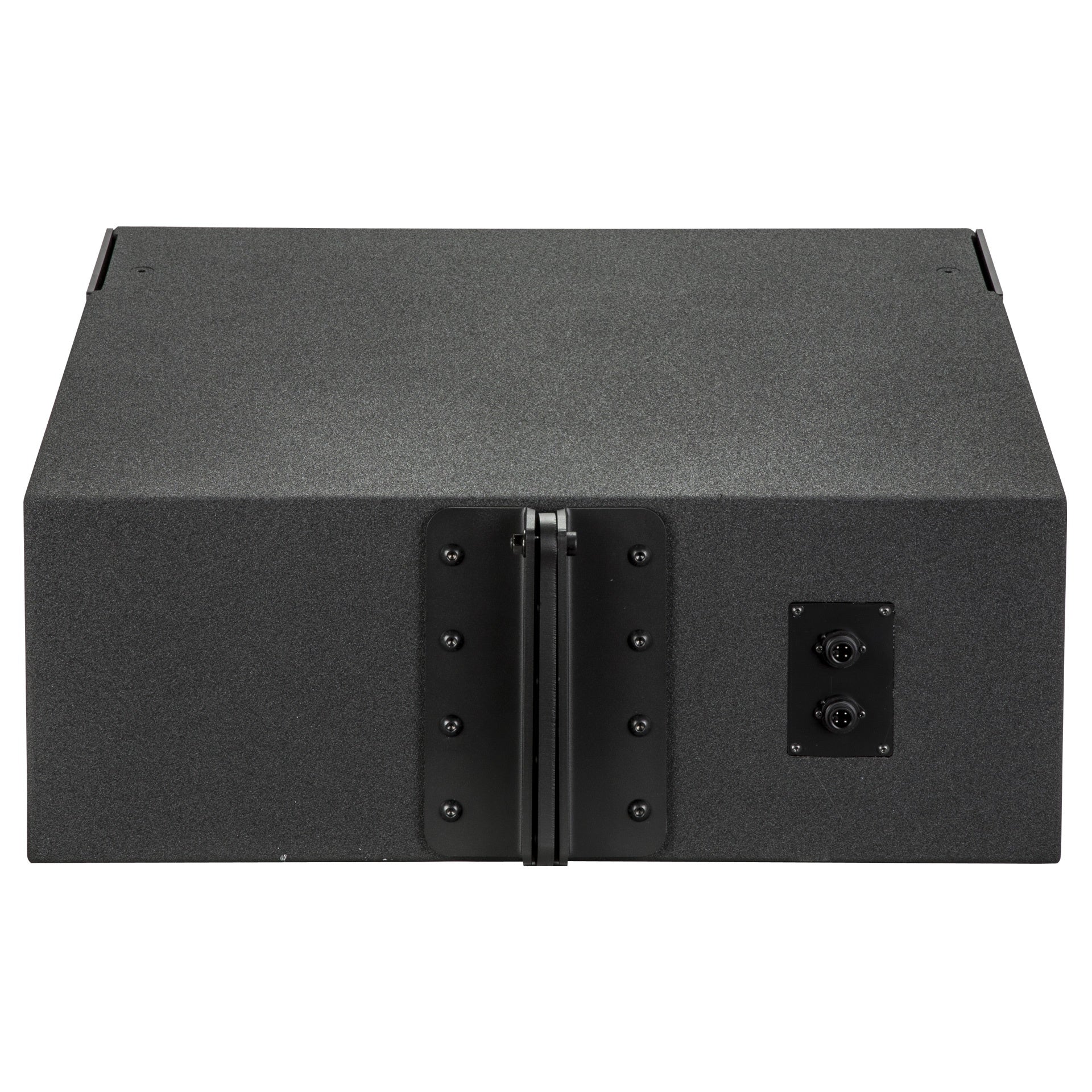

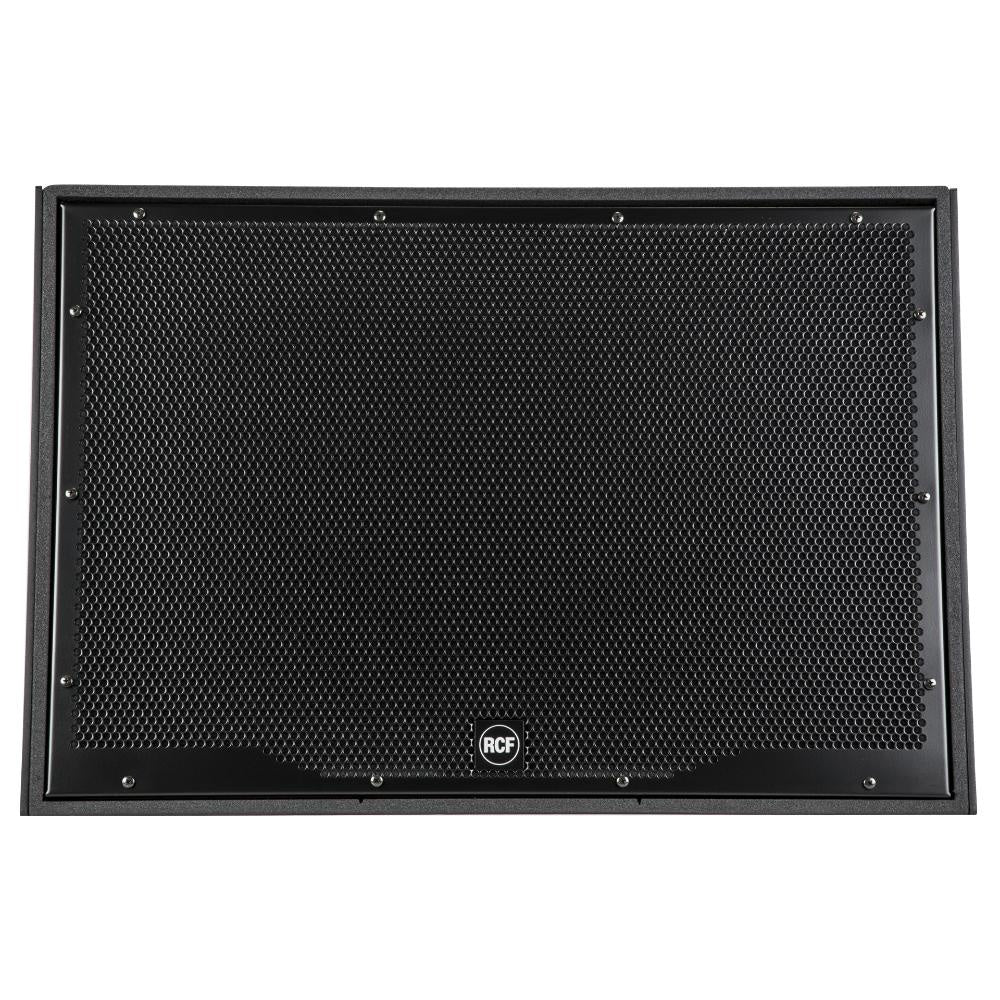

The HL 2290 is a horn loaded two-way full range array system that incorporates a 2 x 12” woofer and a 2.0” exit 4.0” voice coil titanium compression driver for mid distance and long throw applications. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. The system has a vertical dispersion of 22.5° and is ideally used in point source configuration for mid distance applications or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibres and water repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a very resistant, textured, polyurea black paint.
Specifications
- ACOUSTICAL
- Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
- Frequency Response (-3dB): 80 Hz ÷ 20000 Hz
- Max SPL @ 1m: 141 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 23°
- Directivity index Q: 16
- POWER SECTION
- Amplification: Bi-Amp
- Crossover Frequencies: 600 Hz
- Nominal Impedance LF: 8 ohm
- Power Handling LF: 1350 W
- Peak Power Handling LF: 5400 W
- Recommended Amplifier LF: 2700 W
- Sensitivity LF: 104 dB
- Nominal Impedance HF: 8 ohm
- Power Handling HF: 150W
- Peak Power Handling HF: 600W
- Recommended Amplifier HF: 300W
- Sensitivity HF: 113 dB
- TRANSDUCERS
- Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
- Woofer: 2 x 12'', 3.5'' v.c
- INPUT/OUTPUT SECTION
- Input connectors: Amphenol eco/mat IP 67
- Output connectors: Amphenol eco/mat IP 67
- STANDARD COMPLIANCE
- IP protection grade: IP 55
- Safety agency: CE compliant
- PHYSICAL
- Cabinet/Case Material: Baltic birch plywood
- Hardware: Side and rear array rigging point
- Grille: Steel
- Color: Black
- Dimensions (HxWxD): 20.87x30.35x25" (530x771x635mm)
- Weight: 152.12 lbs (69 kg)
- SHIPPING
- Package Dimensions (HxWxD): 31.46x33.82x24.37" (799x859x619mm)
- Package Weight: 155.43 lbs (70.5 kg)
