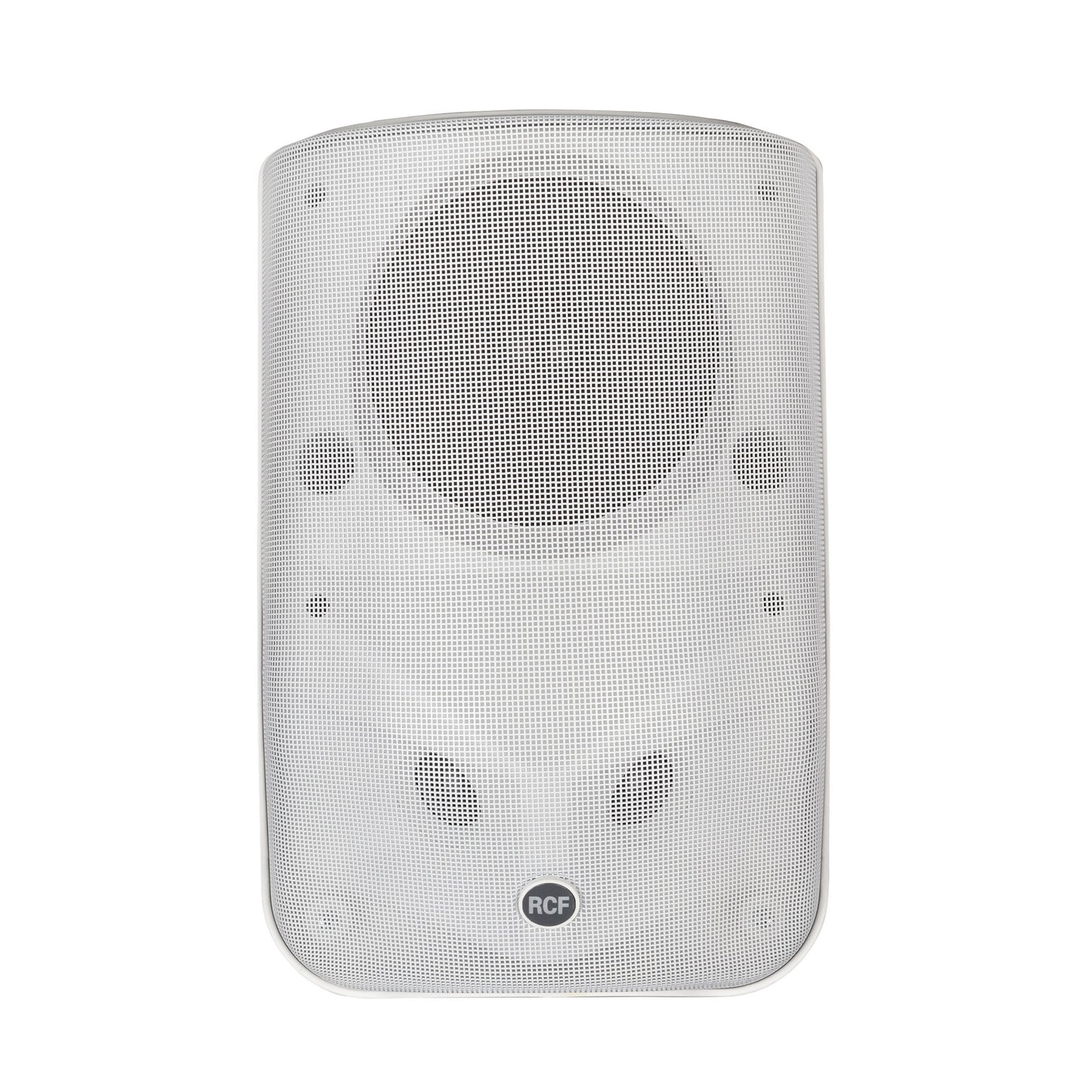

RCF MQ-60H 5-Inch Wall Mount Install Speaker | Color: White
RCF MQ-60H 5-Inch Wall Mount Install Speaker | Color: White
SoundPro Item: 23224 | Part Number: MQ-60H-W
Usually ships in 5-7 business days
- Two way Bass reflex speaker for music reproduction
- Speaker composed by 5" woofer 5" and 2 x 1" dome tweeter
- Max output power 120 W
- Bypass configuration input 16 O, output power 60 W RMS
- 30W - 20W - 10W - 5W output power for 100 V line
- 15W - 10W - 5W - 2,5W output power for 70 V line
- 2600 Hz crossover frequencies with attenuation 12/12 dB/oct
- Dynamic Protection on woofer and tweeter

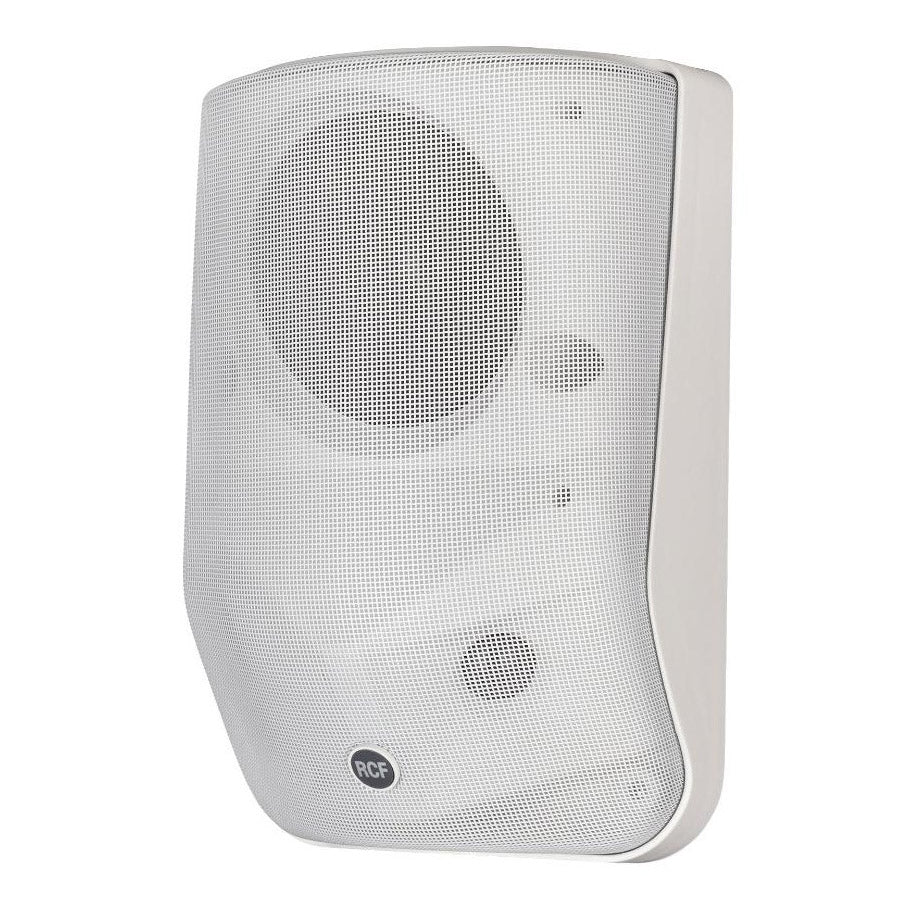

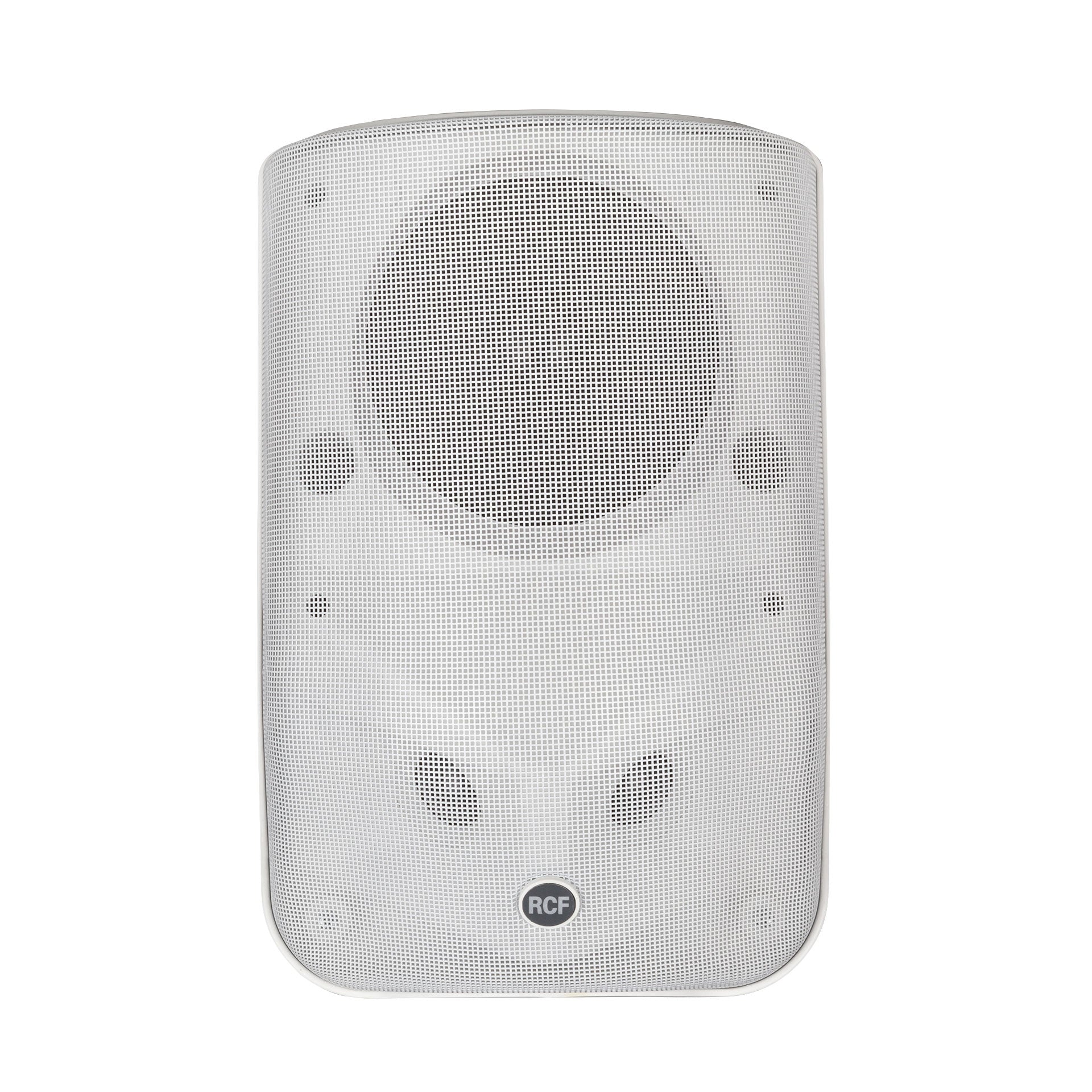

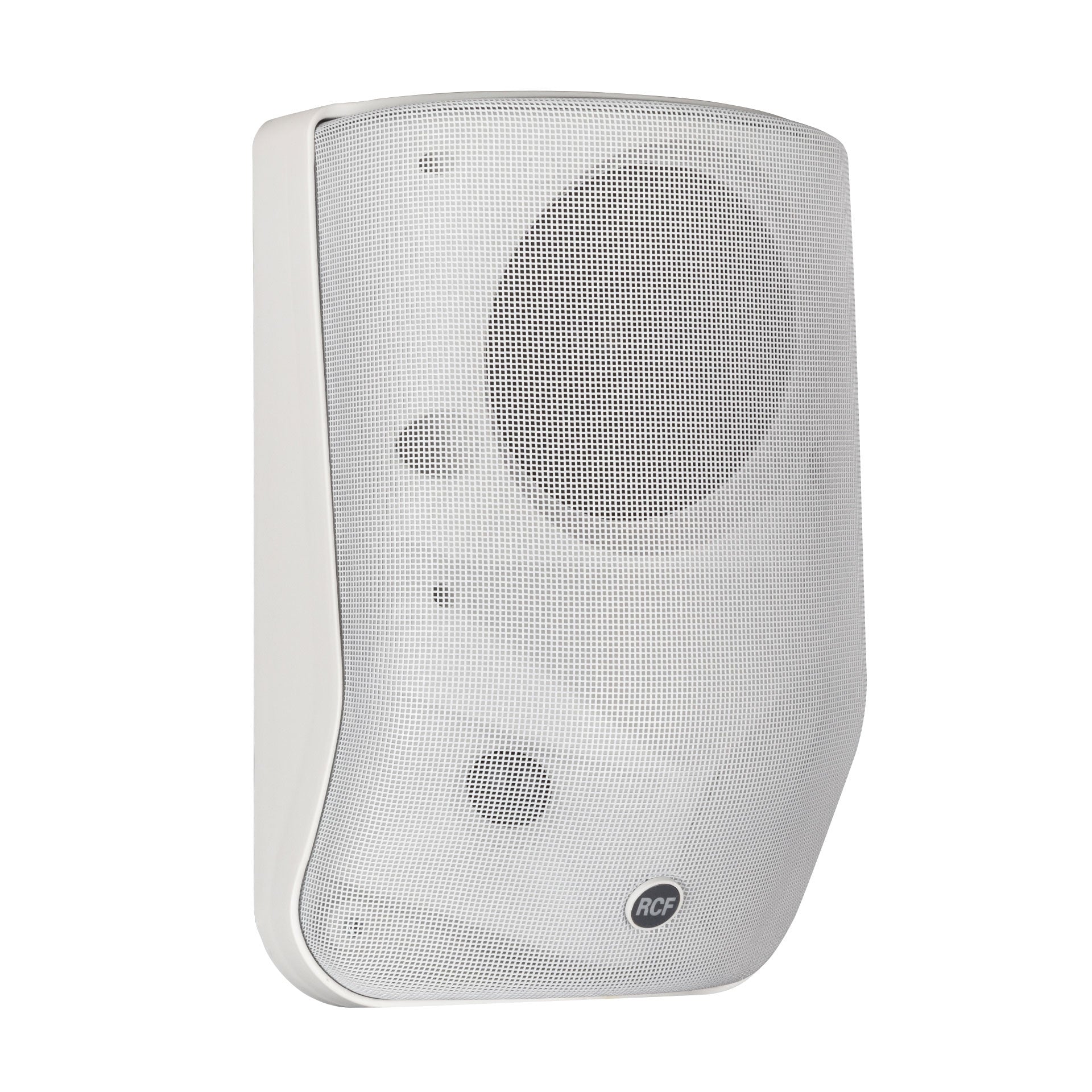

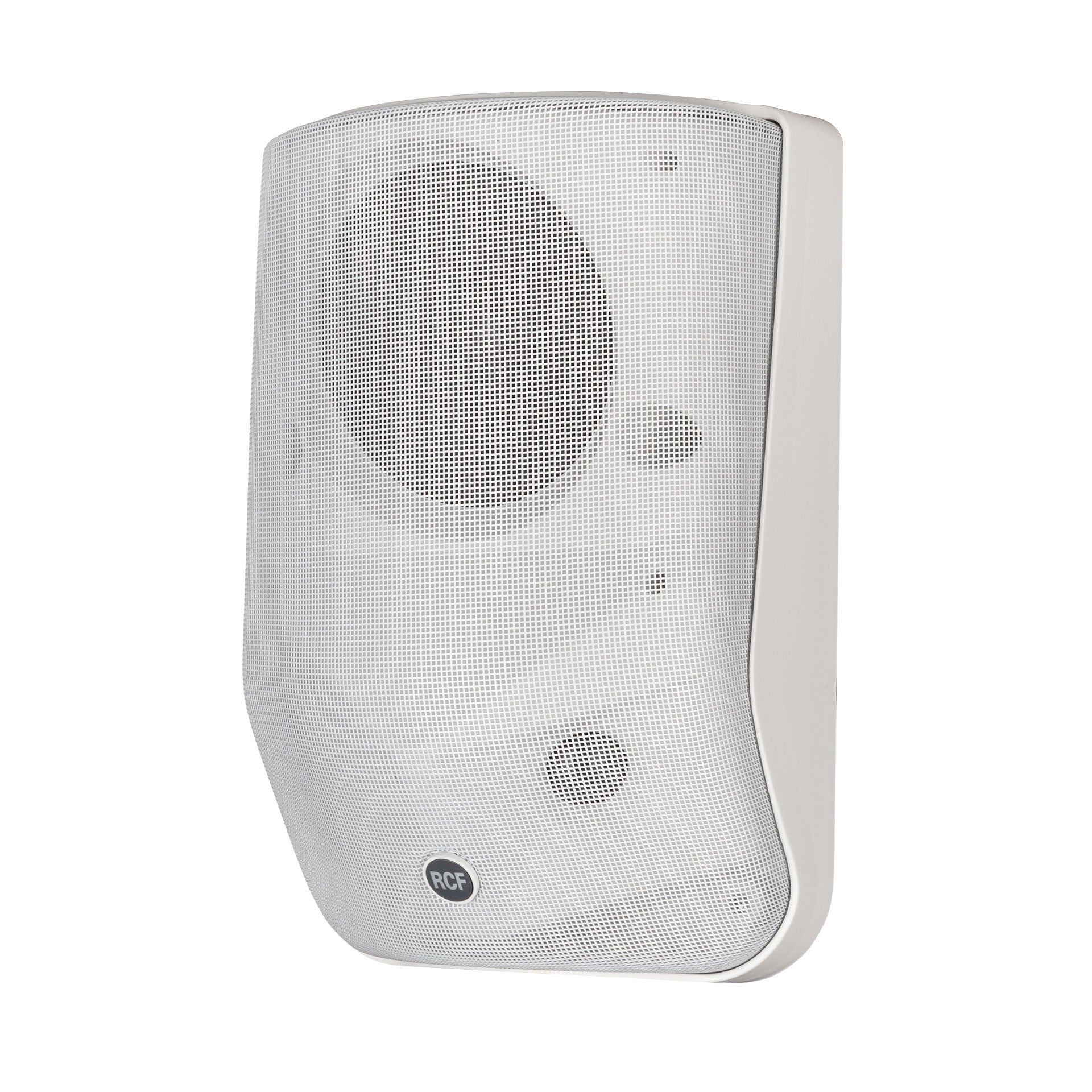

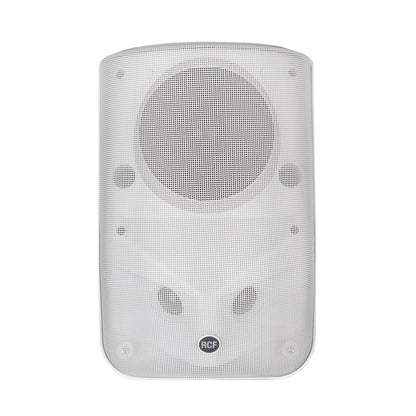

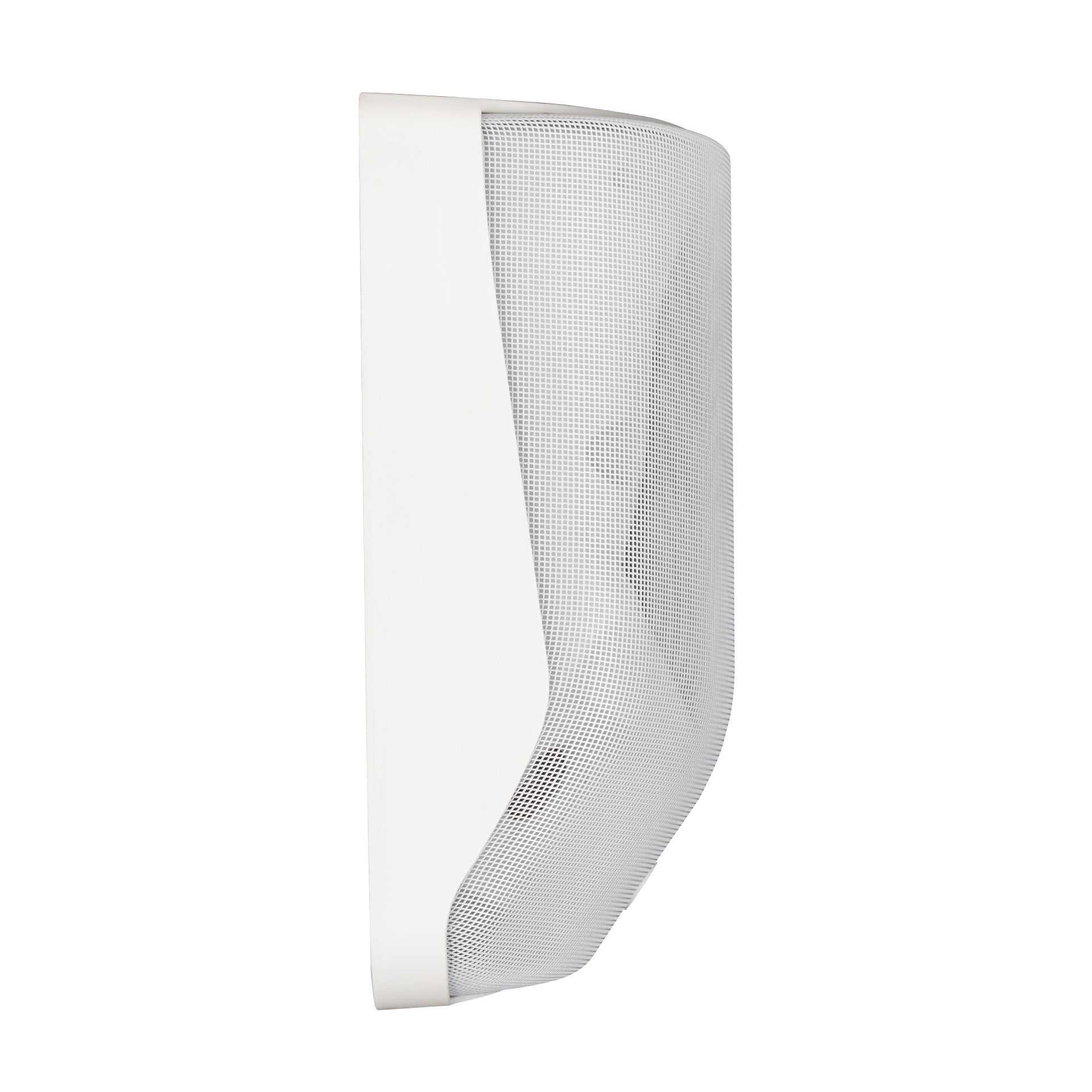

The MQ60H is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points.

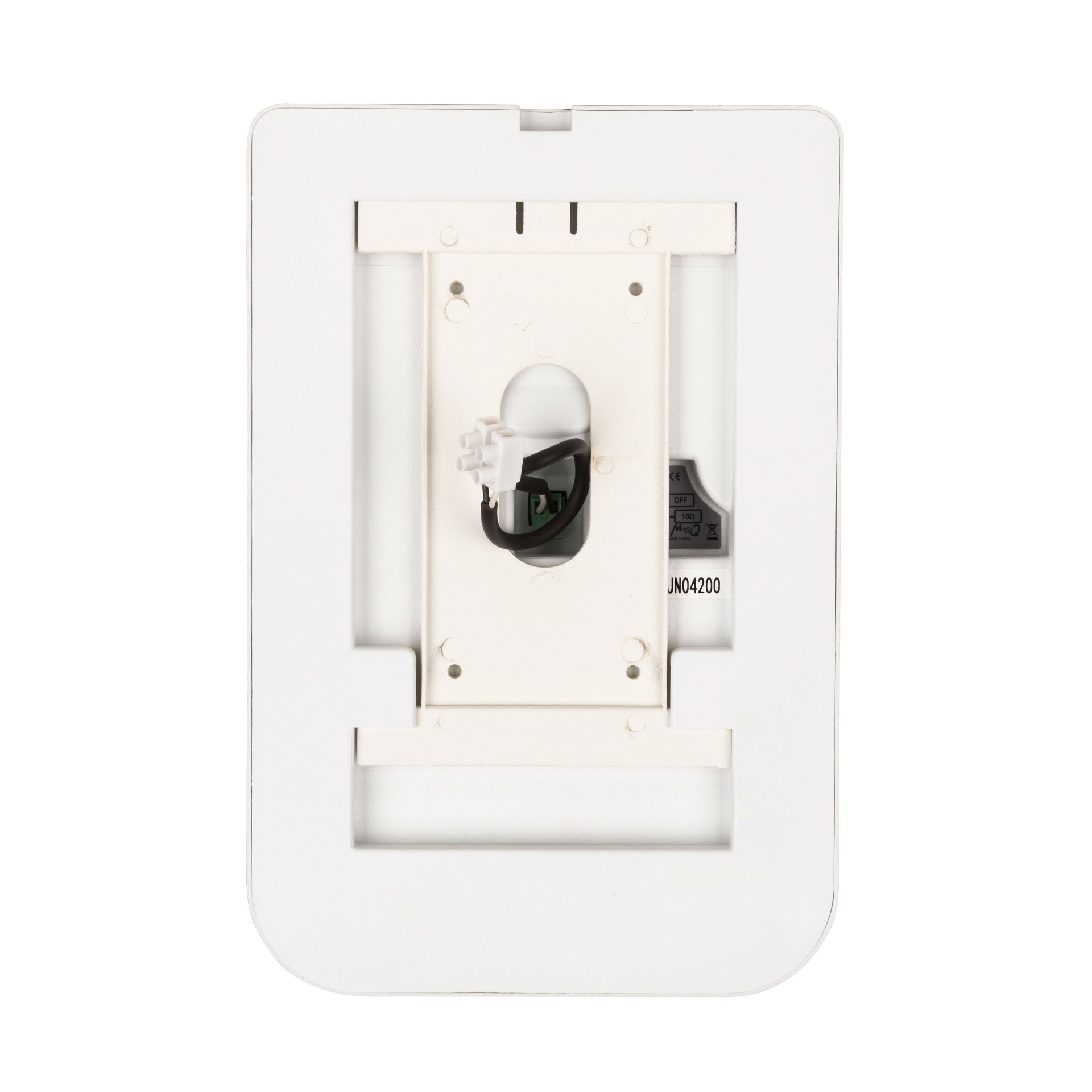

It is a two-way speaker with three transducers: the 5“ woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered. Installation is carried out in two phases: first, you mount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.
- ACOUSTICAL
- Frequency Response (-10dB): 100 Hz ÷ 19000 Hz
- Max SPL @ 1m: 109 dB
- Horizontal coverage angle: 180°
- Vertical coverage angle: 100°
- System Sensitivity: 88 dB
- POWER SECTION
- Nominal Impedance: 16 ohm
- Power Handling: 60 W RMS
- Peak Power Handling: 240 W PEAK
- Recommended Amplifier: 120W
- Crossover Frequencies: 2000 Hz
- TRANSDUCERS
- Dome Tweeter: 2 x 1.0''
- Woofer: 5.0''
- INPUT/OUTPUT SECTION
- Input connectors: Euroblock
- Output connectors: Euroblock
- Constant Voltage Transformer: 100V
- Power selection 1: 30W - 333 ohm
- Power selection 2: 20W - 500 ohm
- Power selection 3: 10W - 1000 ohm
- Power selection 4: 5W - 2000 ohm
- PHYSICAL
- Cabinet/Case Material: Plastic

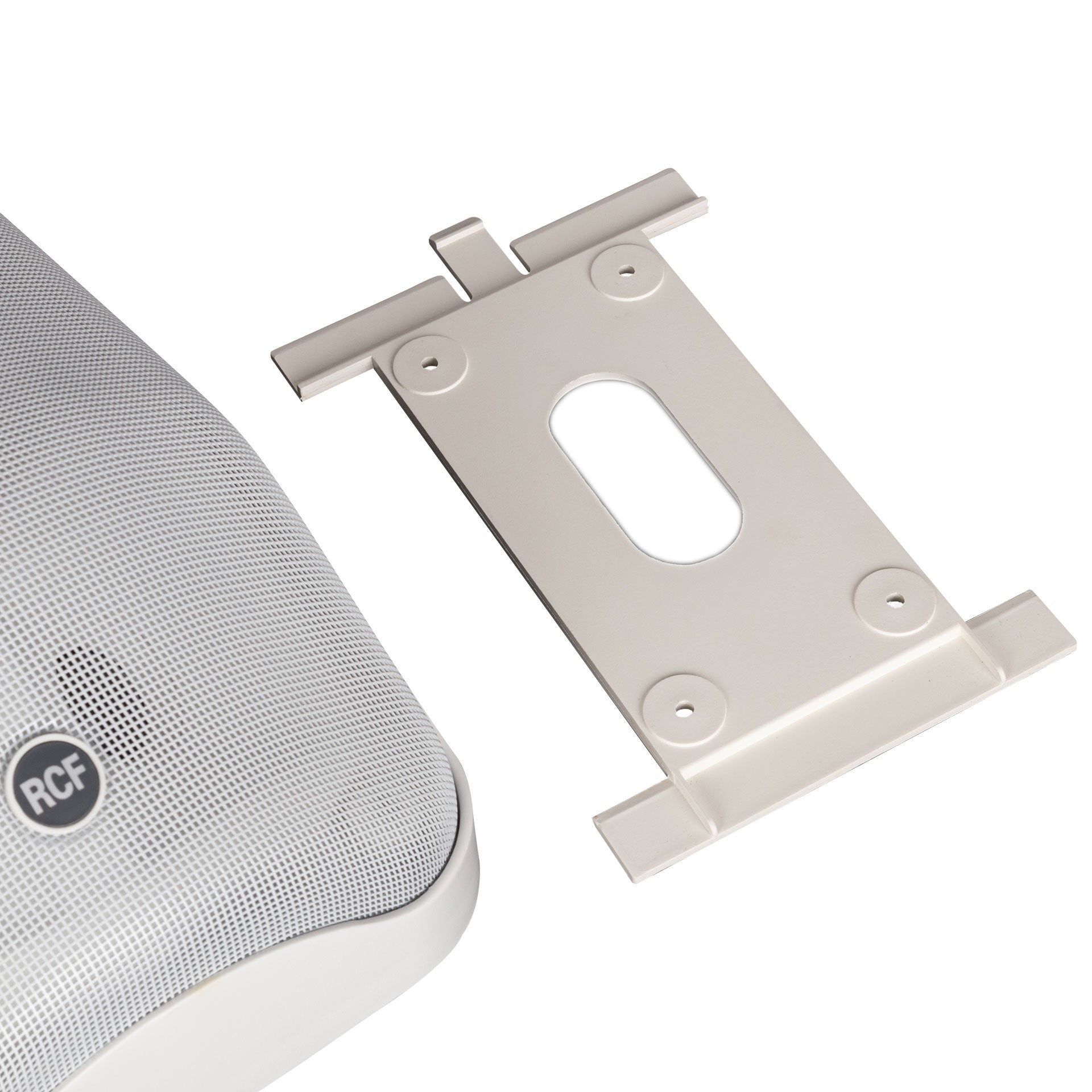

- Hardware: Wall mount bracket
- Grille: Steel
- Color: White - RAL 9016, Black - RAL 9005
- Dimensions (HxWxD): 11.69x7.8x4.8" (297x198x122mm)
- Weight: 6.28 lbs (2.85 kg)
- SHIPPING
- Package Dimensions (HxWxD): 13.39x10.43x7.09" (340x265x180mm)
- Package Weight: 7.47 lbs (3.39 kg)
