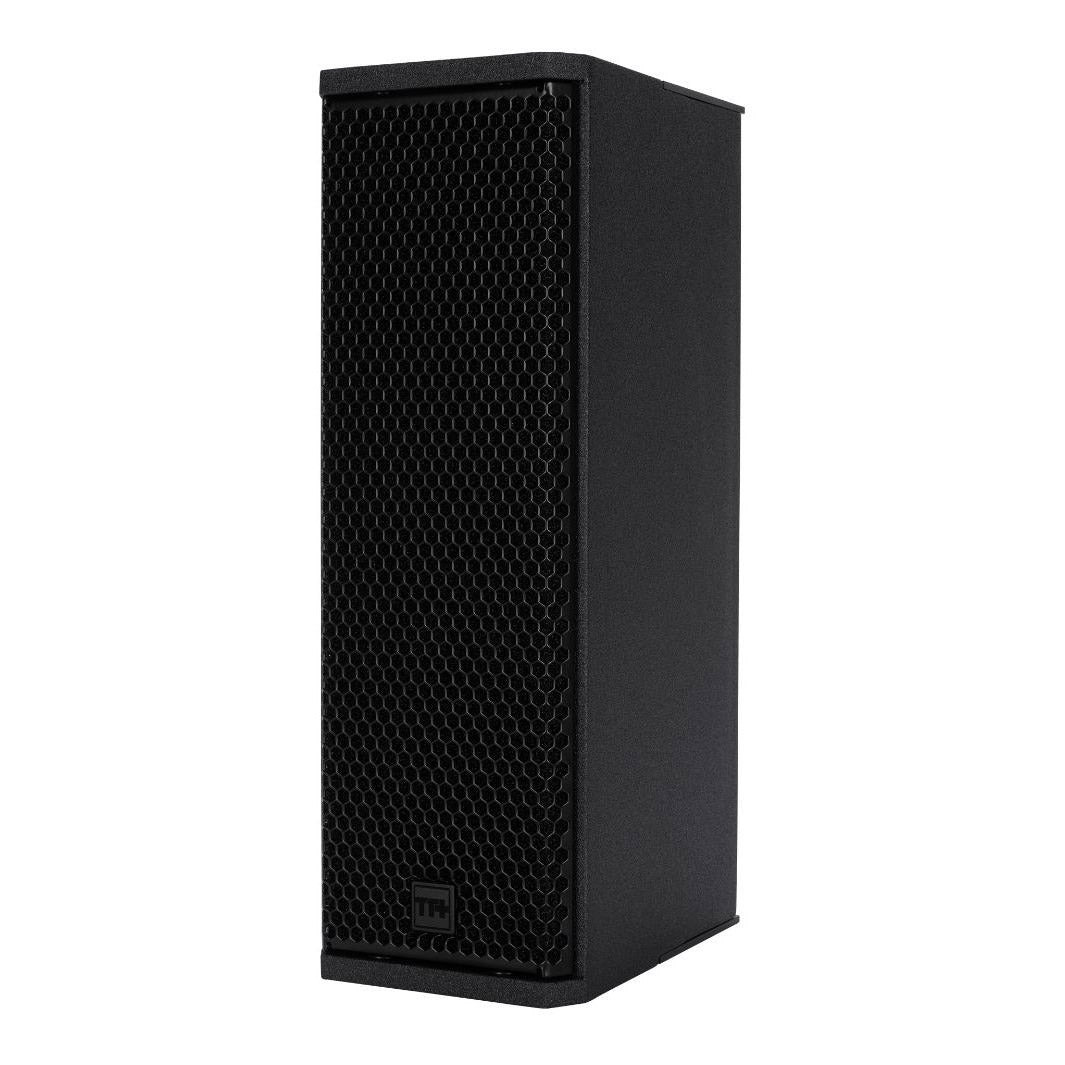

• RCF TT 515-A Dual 5-Inch Powered Speaker

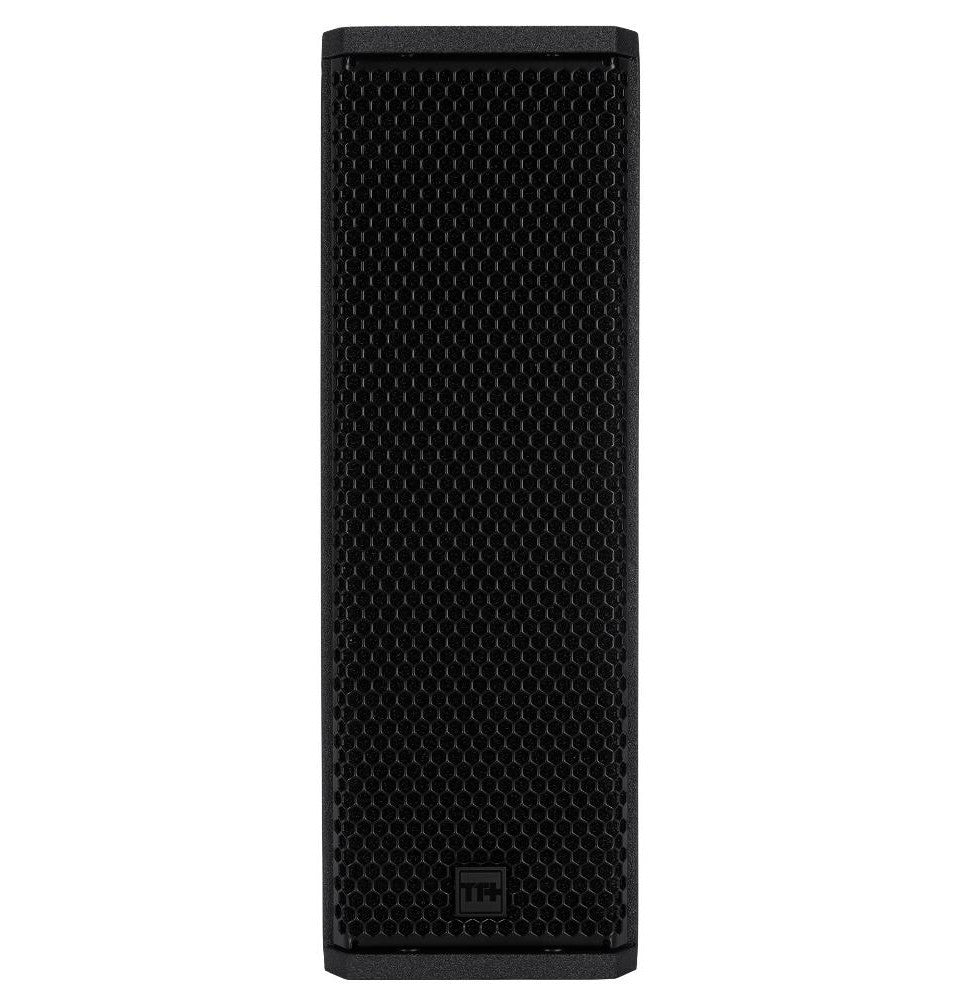

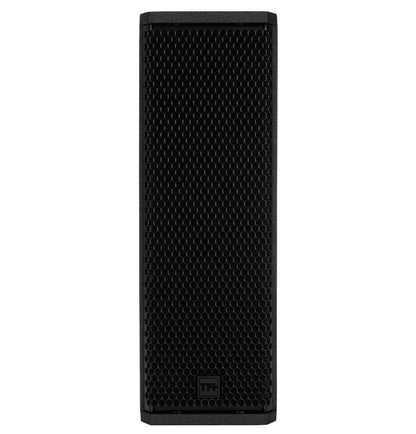

  • RCF TT 515-A Dual 5-Inch Powered Speaker front

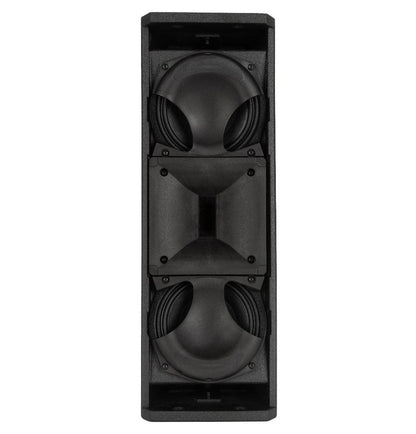

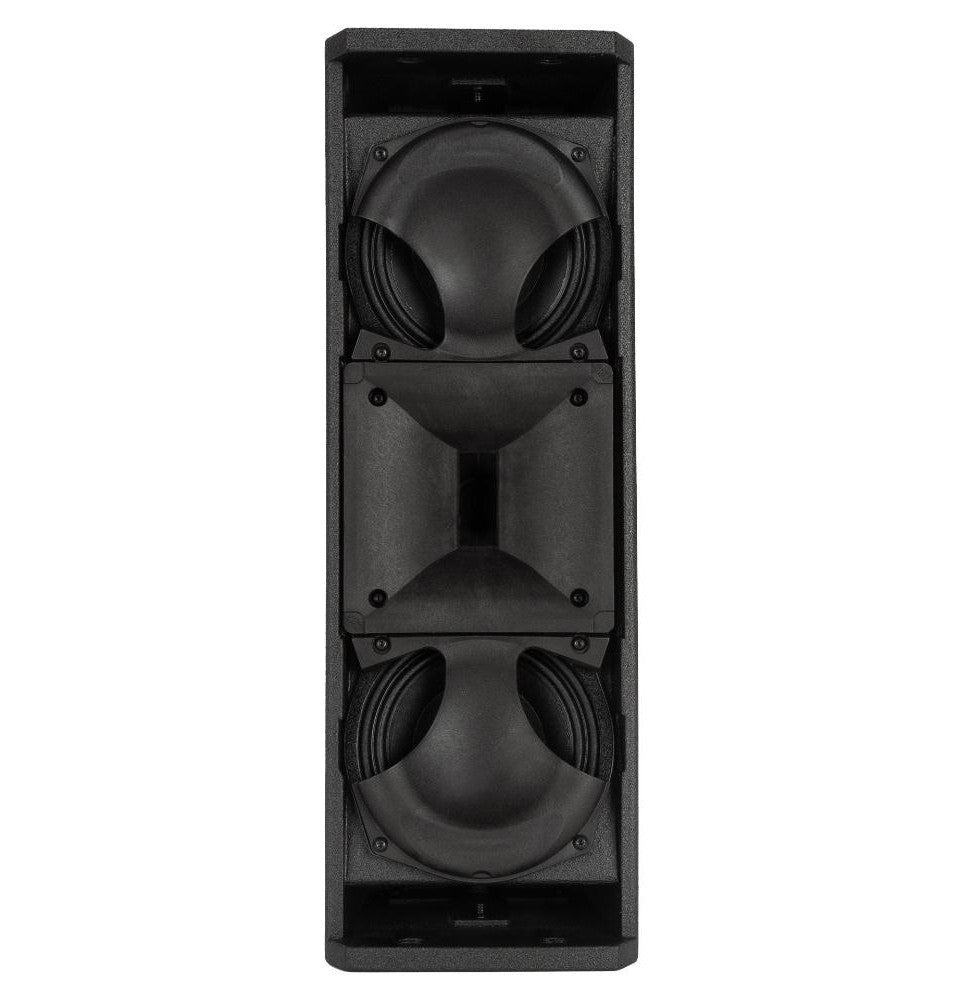

  • RCF TT 515-A Dual 5-Inch Powered Speaker inside

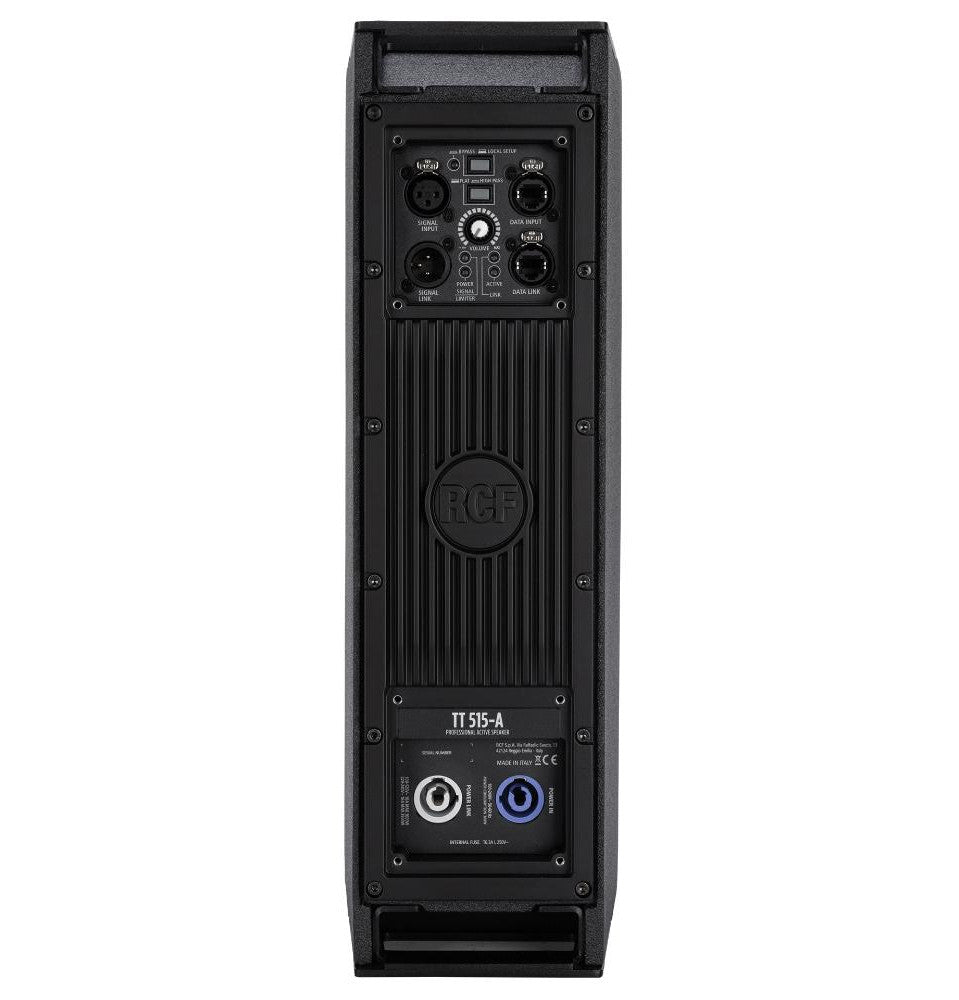

  • RCF TT 515-A Dual 5-Inch Powered Speaker back
1 4

RCF TT 515-A Dual 5-Inch Powered Speaker

RCF TT 515-A Dual 5-Inch Powered Speaker

SoundPro Item: 121812 | Part Number: TT 515-A

$1,999.00
$2,799.00 $1,999.00
Your Price Sold out
MSRP: $2,799.00 | MAP: $1,999.00

Usually ships in 5-7 business days

  • 127 dB max SPL
  • 100° x 70° coverage
  • LF 2 x 5" neodymium woofer, 2” voice coil
  • HF 1.75” titanium comp. driver
  • 2 x Class-D amplifiers, 1000 Watts RMS total power
  • 70 – 20.000 Hz frequency range
  • RDNet on board
  • FiRPHASE and Bass Motion Control
Log in or register for YOUR best price

Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, TT 515-A is quick to deploy and fast to tune.

View full details
  • Frequency Response70Hz - 20,000Hz
  • Max. SPL (@ 1m)127 dB
  • Coverage Angle (HxV)100° x 70°
  • Transducers
    • Compression Driver: 1x1.0'' neo, 1.75'' v.c
    • Woofer: 2x5.0'' neo, 2.0'' v.c
  • Input/Output Section
    • Input Signal: bal/unbal
    • Input Connectors: XLR, RDNet Ethercon
    • Output Connectors: XLR, RDNet Ethercon
    • Input Sensitivity: -2dBu/+4dBu
  • Processor Section
    • Crossover Frequencies: 1200
    • Protections: Excurs.
    • Limiter: Fast Limiter
    • Controls: Bypass, Linear/High Pass, Volume, RDnet on board
    • RDNet: yes
  • Power Section
    • Total Power: 2000W Peak, 1000W RMS
    • High Frequencies: 600W peak, 300W RMS
    • Low Frequencies: 1400W Peak, 700W RMS
    • Cooling: convection
    • Connections: Powercon IN/OUT
  • Physical Specifications
    • Cabinet/Case Material: Baltic birch plywood
    • Hardware: 2X M10 TOP AND BOTTOM 2X PIN D.10
    • Handles: 2 top and bottom
    • Grille: steel
  • Dimensions (HxWxD)17.95x6.06x9.35"
  • Weight21.61 pounds
