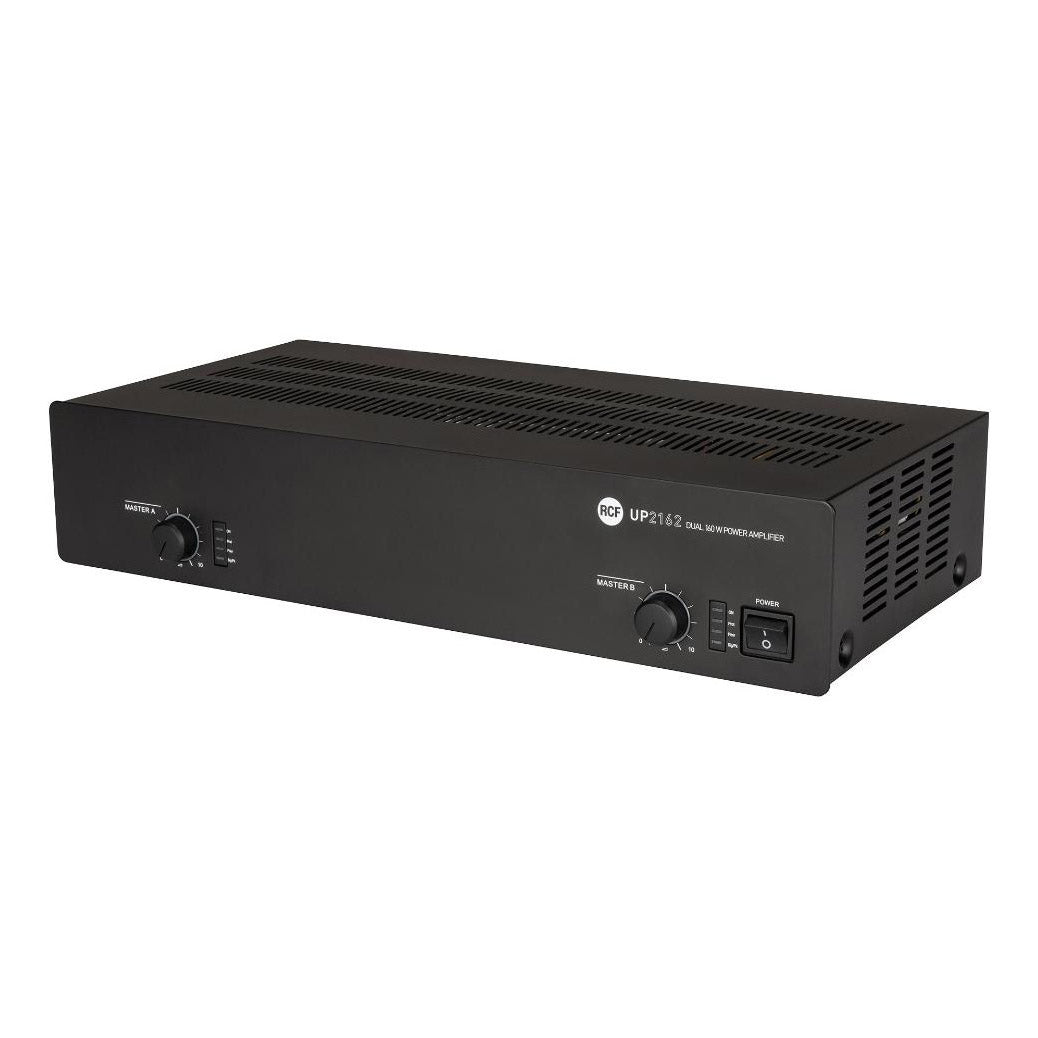

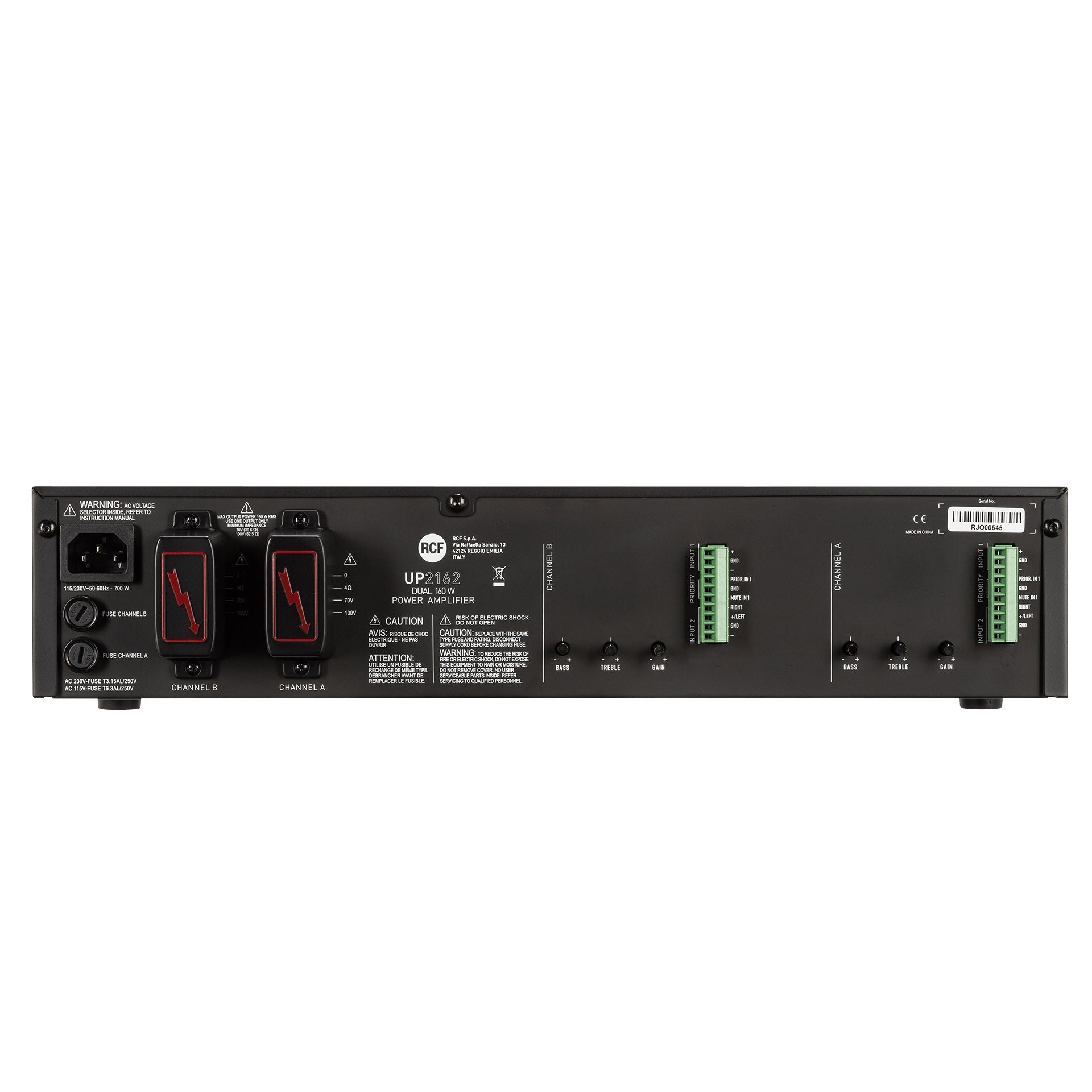

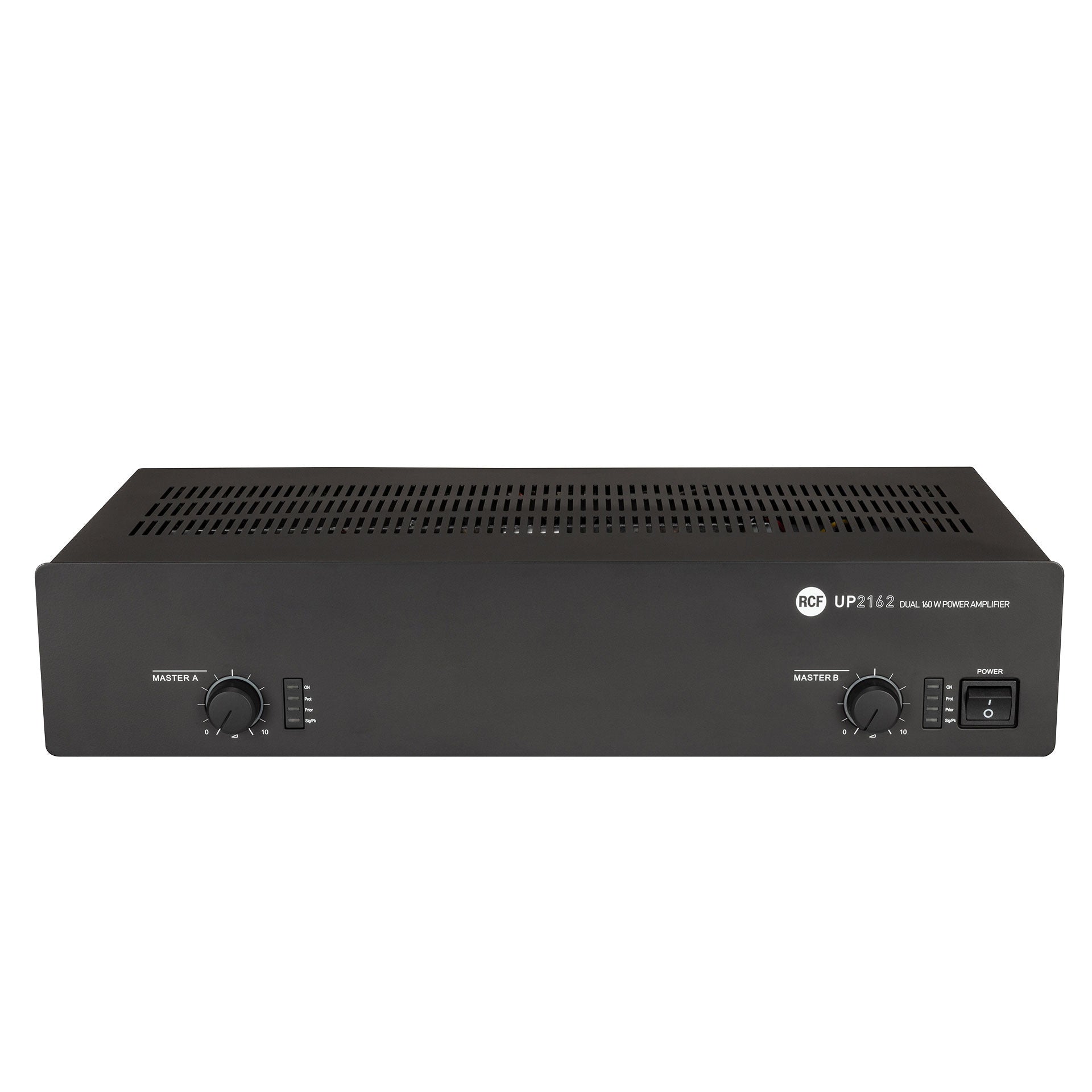

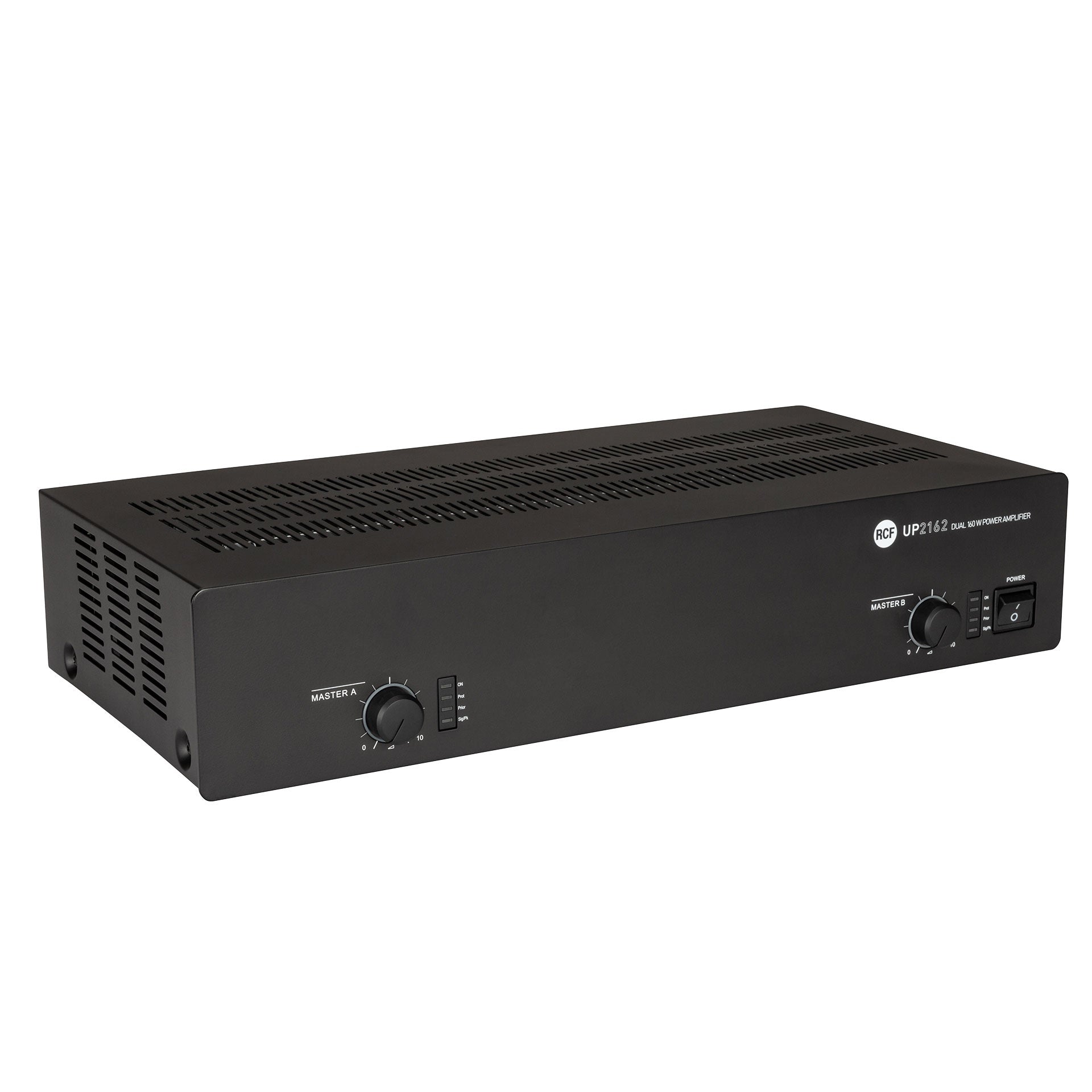

• RCF UP-2162 Power Amplifier
1 1

RCF UP-2162 Power Amplifier

RCF UP-2162 Power Amplifier

SoundPro Item: 23521 | Part Number: UP-2162

$1,579.00
$2,199.00 $1,579.00
Your Price Sold out
MSRP: $2,199.00 | MAP: $1,579.00

Usually ships in 5-7 business days

  • Power Amplifier designed for the transmission of announcements and / or musical programs
  • Main input on removable connector
  • AUX Input for music sources removable connector
  • Controls for treble, bass and Gain on the AUX Input
  • Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
  • Output speaker available either for low impedance loudspeakers (min. 4 O) or 100 – 70V constant voltage line
  • Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
Log in or register for YOUR best price

UP 2162 is a device with 2 separated and independent 160W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact. Both the audio inputs are at ‘line’ level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.

View full details
  • Frequency Response (-3dB)50Hz - 16,000Hz
  • Distortion (THD+N) @ 1kHz nominal power<0.3%
  • Input Section
    • Total Number of Inputs: 4
    • Balanced: 4
    • Mono: 2
    • Stereo: 2
    • Line Inputs: 4
    • Line Connectors: Euroblock
    • GPI: 4
  • Output Section
    • Power Output Connectors: Euroblock
  • Processing
    • Tone Controls: yes
  • Configuration and Control
    • Configuration: front panel
    • Priority: yes
  • Protections
    • Cooling: convection
    • Short Circuit: yes
    • Thermal: yes
    • DC: yes
    • Fuses: yes
  • Power Requirement
    • Operating Voltage: 220-240/115V~ 50/60Hz
    • Voltage Selection: internal
    • Power Consumption (max): 700W
  • Physical Specifications
    • Cabinet / Case Material: metal
    • Rack Mounting: 19", 2U
    • Dimensions (HxWxD): 3.46x17.4x9.06"
    • Weight: 15.92 pounds
