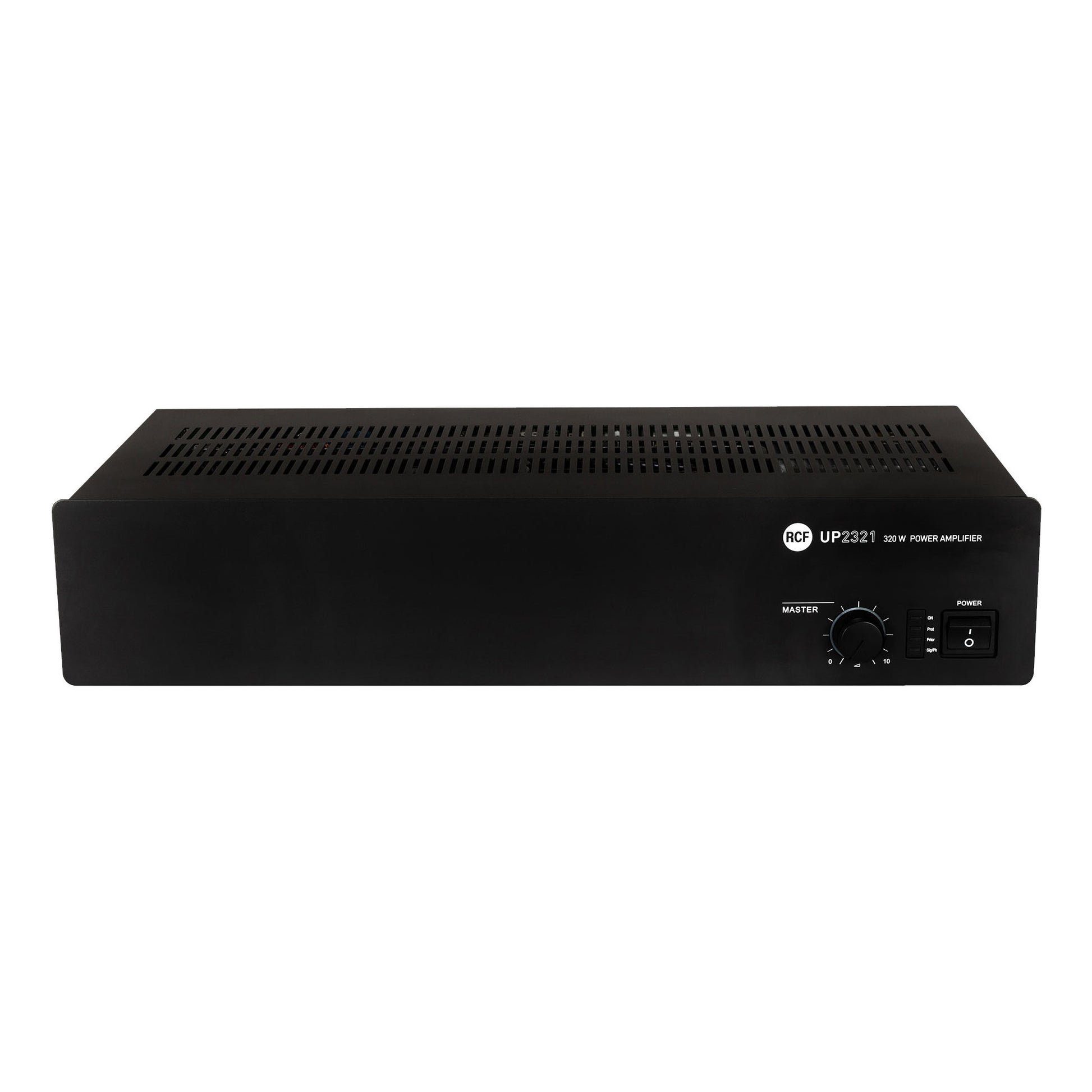

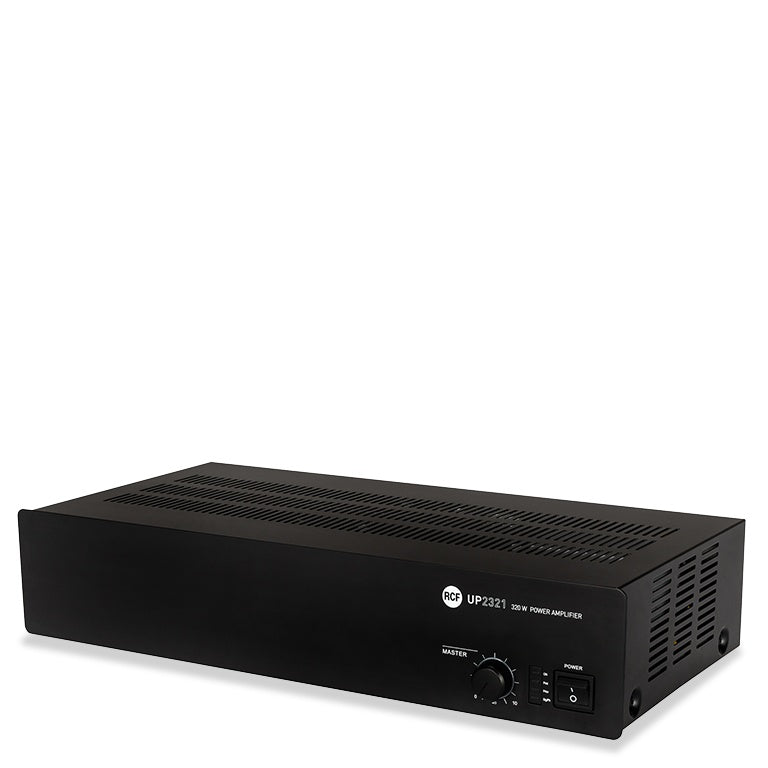

RCF UP2321 Power Amplifier

RCF UP2321 Power Amplifier

SoundPro Item: 34587 | Part Number: UP-2321

$1,439.00
$1,999.00 $1,439.00
Your Price Sold out
MSRP: $1,999.00 | MAP: $1,439.00

Usually ships in 5-7 business days

  • Full digital technology Power Amplifier 320 W RMS
  • Main input on either removable connector or XLR or RJ 45
  • Main Input can have priority over the Aux Input
  • Main Input has a presence control command
  • Main Input has a high-pass filter useful for improving speech intelligibility
  • Aux Input for music sources on RCA type connector
  • Aux input with volume and tone controls
  • 100V - 70V and 4 Ohm outputs
  • Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
Log in or register for YOUR best price

The UP2321 Power Amplifier is equipped with a (mic / line) Main Input on either removable connector or XLR or RJ 45 and an Auxiliary Input for music sources (e.g. CD players, tuners, etc.). The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line. The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.

View full details
  • Amplifier specifications
    • Number of Channels: 1
    • Power Output per Channel (@ 4 OHM): 320W RMS
    • Power Output (HI-Z): 320W RMS
    • Frequency Response (-3DB): 50Hz ÷ 14kHz
    • Distortion (THD+N) @ 1kHz Nominal Power: <0.3 %
  • Input section
    • Balanced: 3
    • General Purpose Inputs (GPI): 1
    • Line Connectors: RCA
    • Line Inputs: 1
    • Mic+Line Connectors: Euroblock, XLR
    • Mic+Line Inputs: 1
    • Mic + Line Phantom: 32 V DC
    • VOX: (MIC+LINE): Yes
    • Mono: 3
    • Paging Command: Contact
    • Paging Connectors: RJ45
    • Paging Inputs: 1
    • Total Number of Inputs: 3
    • Unbalanced: 2
  • Output section
    • Power Output Connectors: EuroblockM
  • Processing
    • Tone Controls: Yes
    • High-Pass Filter: 150Hz
  • Controls
    • Configuration: DIP switch, Front panel
    • Priority: Yes
  • Protections
    • Cooling: Convection
    • Short Circuit: Yes
    • Thermal: Yes
    • DC Delay: Yes
    • Fuses: Yes
  • Power requirement
    • Operating Voltage: 220-240/115V~ 50/60Hz
    • Voltage Selection: Internal
    • Power Consumption: 600W
  • Standard compliance
    • CE Marking: Yes
  • Physical specifications
    • Cabinet/Case Material: Metal
    • Color: Black
    • Rack Mounting 19", 2U
    • Dimensions (DxHxW): 9.06x3.46x17.4" (230x88x442mm)
    • Weight: 14.9 lbs (6.76kg)
  • Shipping information
    • Package Dimensions (DxHxW): 19.69x7.87x12.99" (500x200x330mm)
    • Package Weight: 17.2 lbs (7.8 kg)
