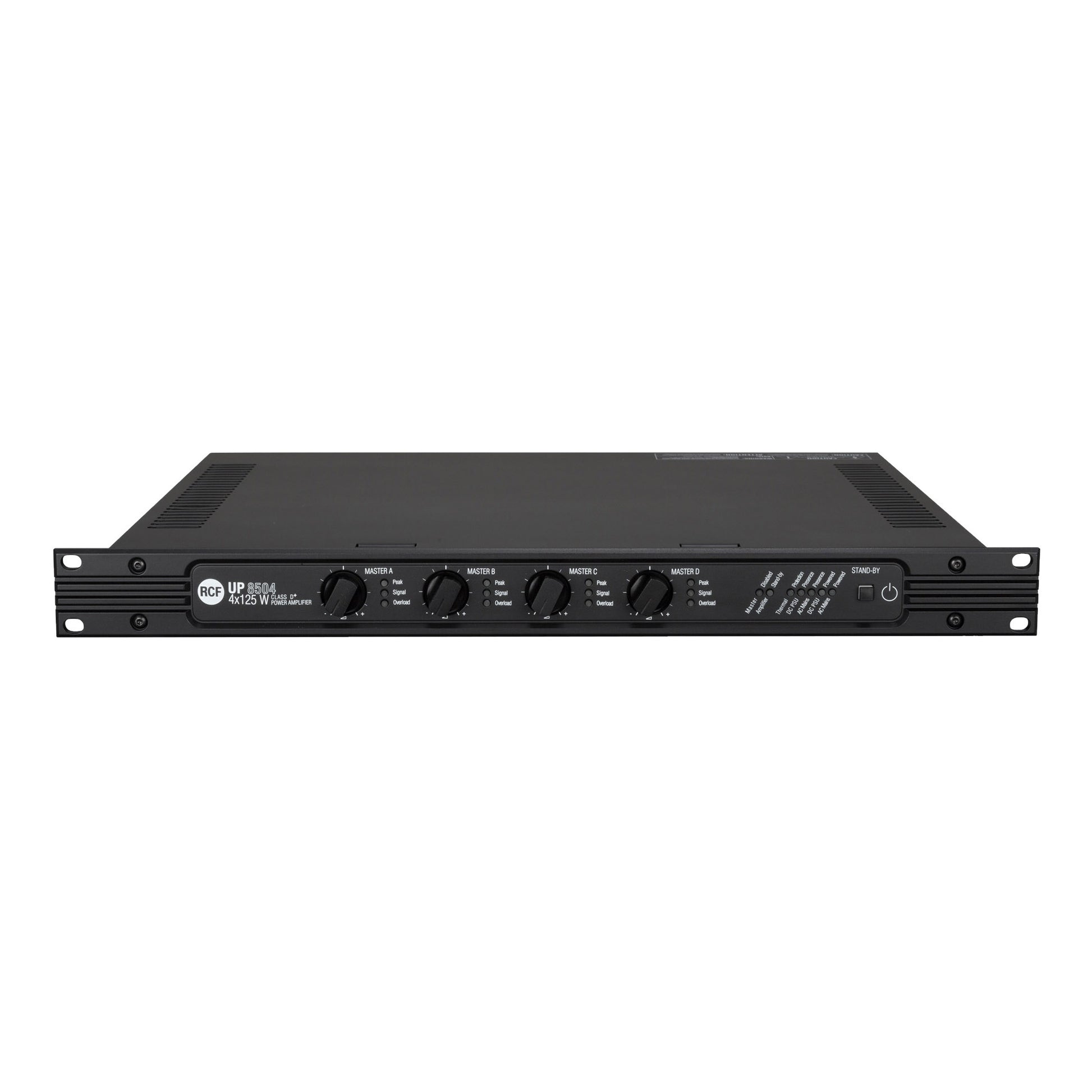

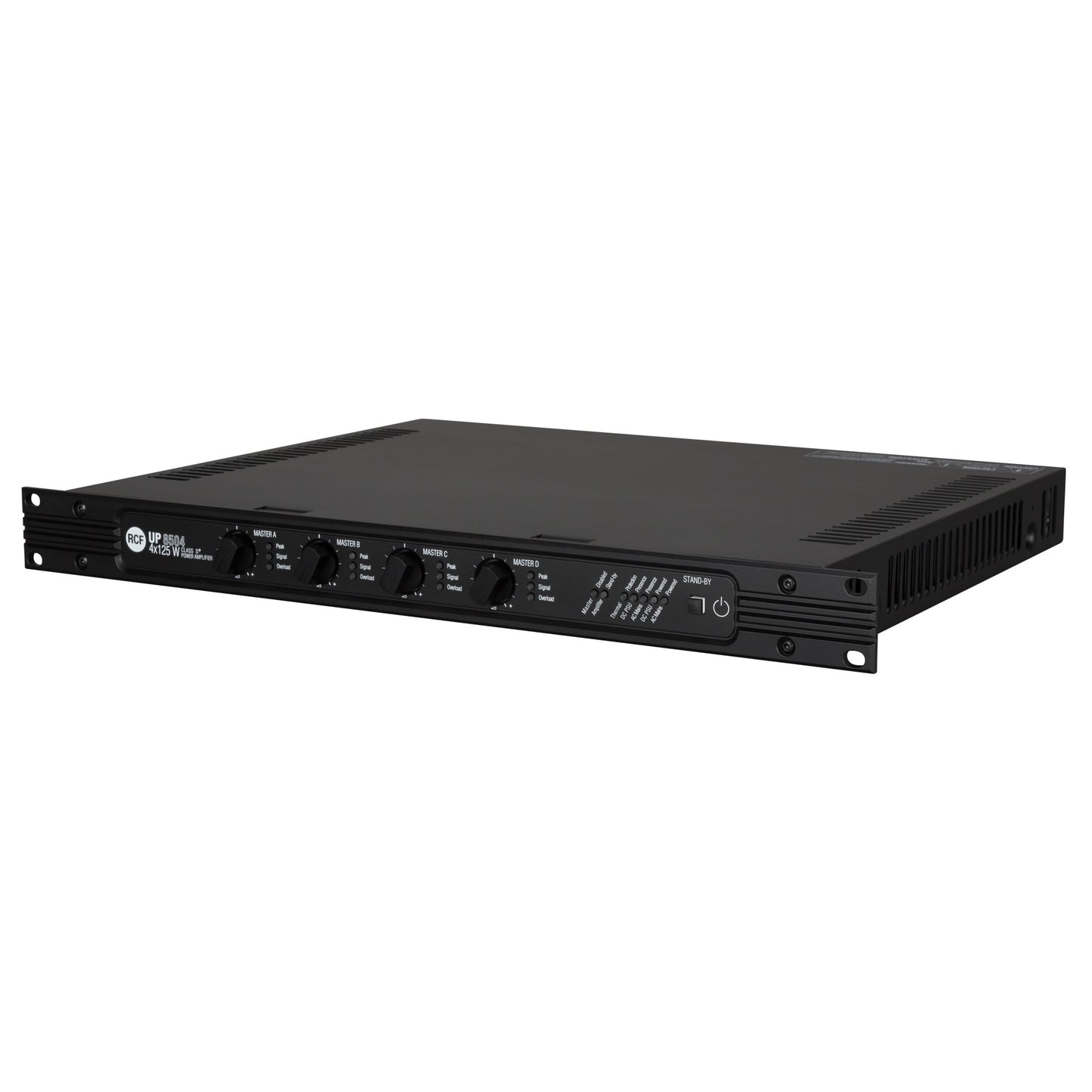

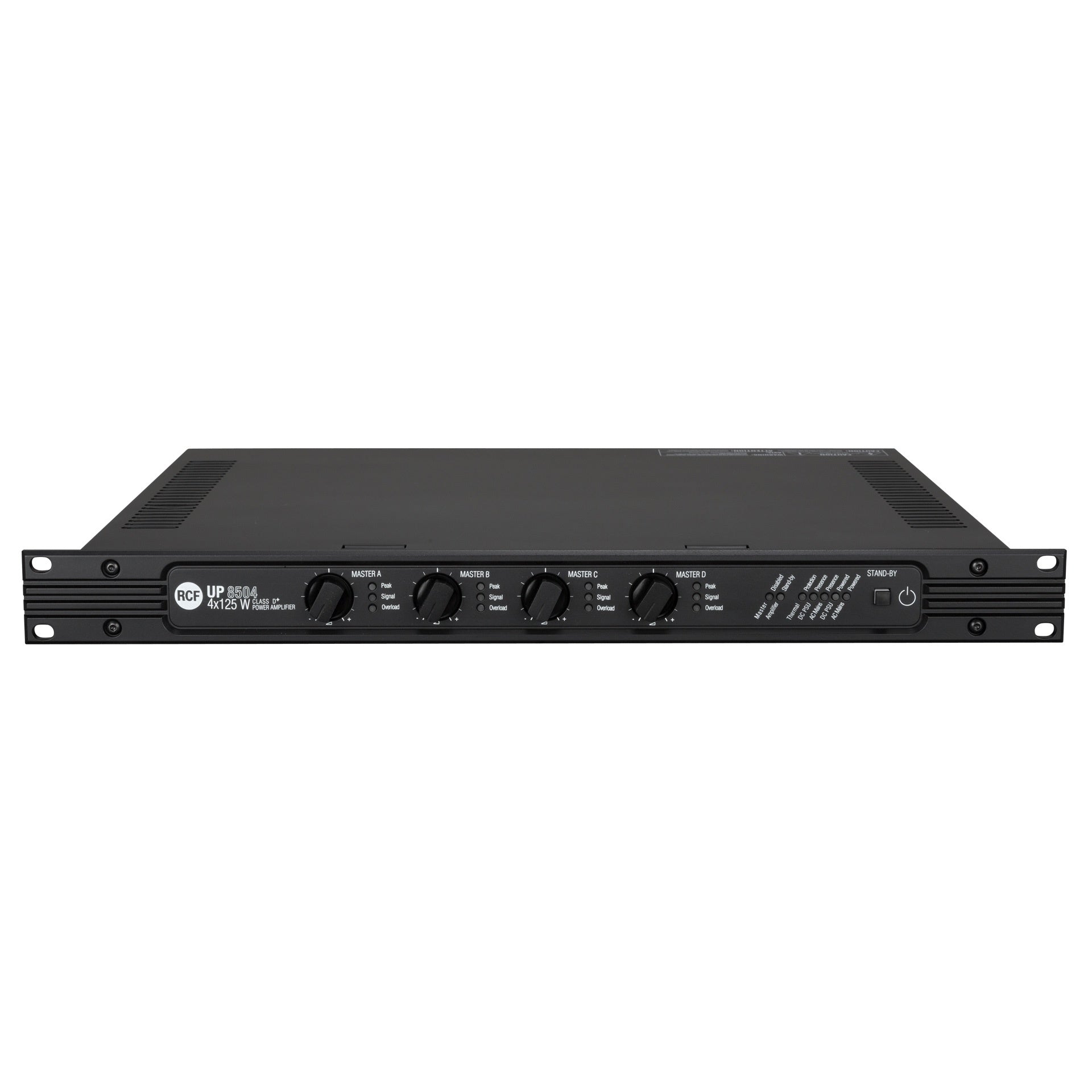

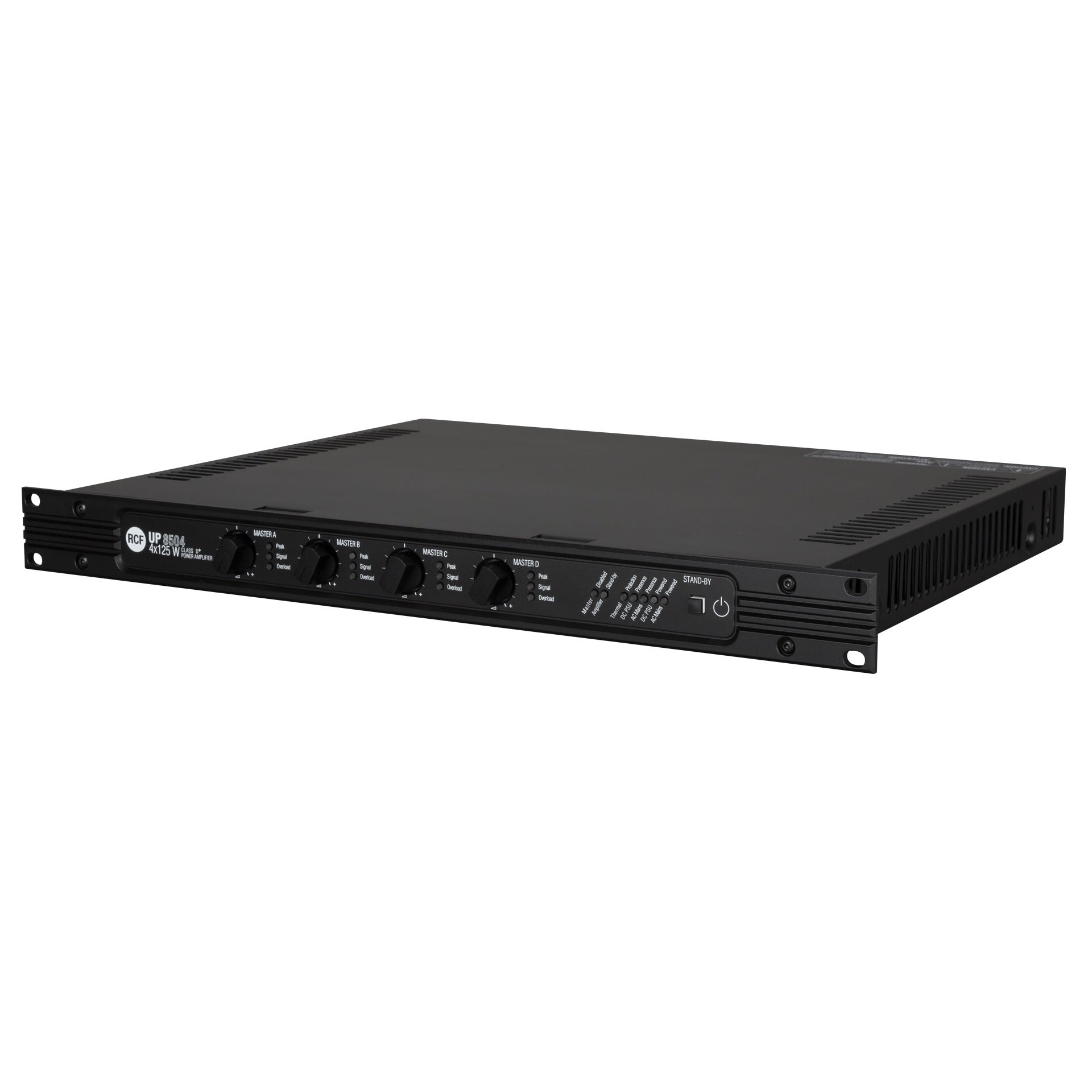

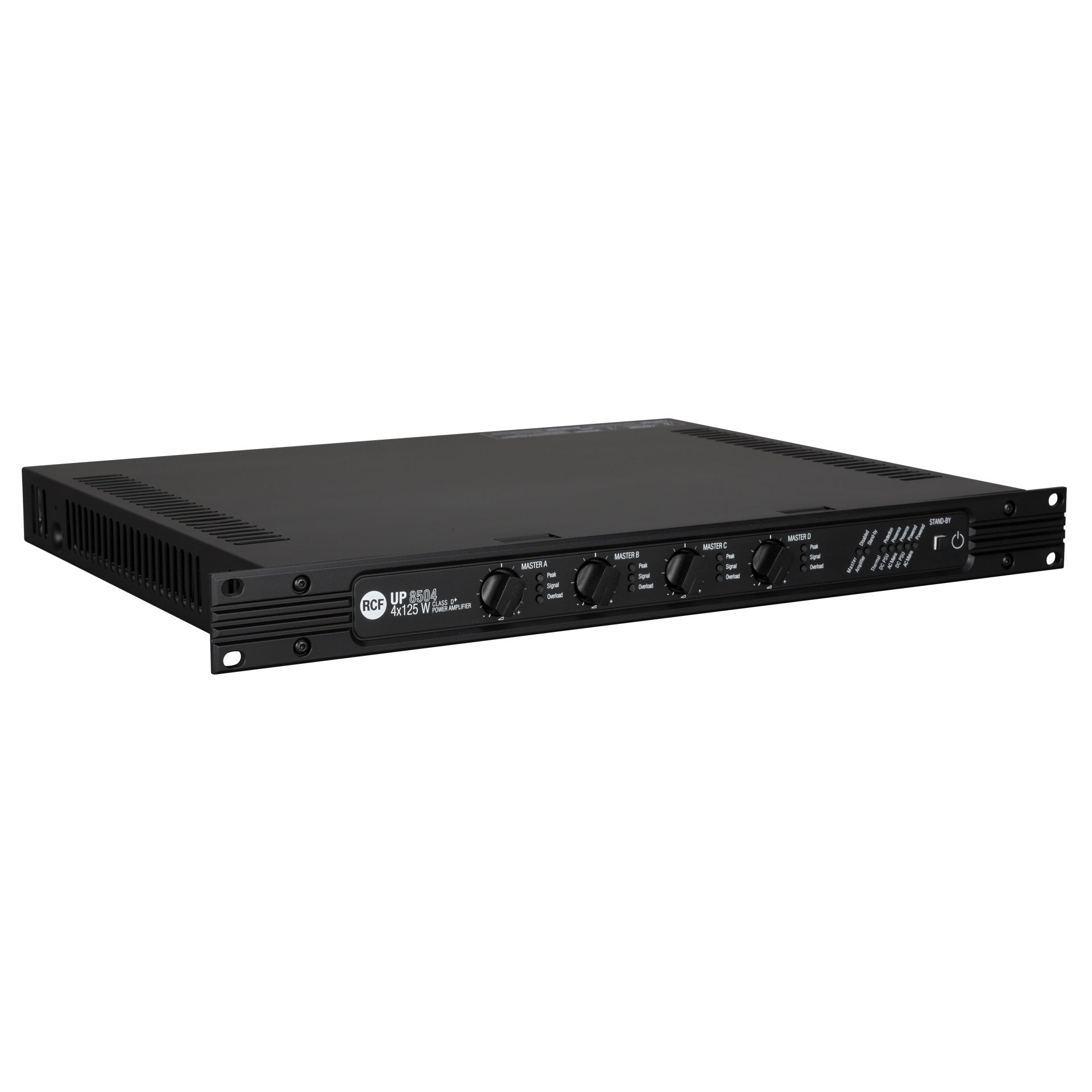

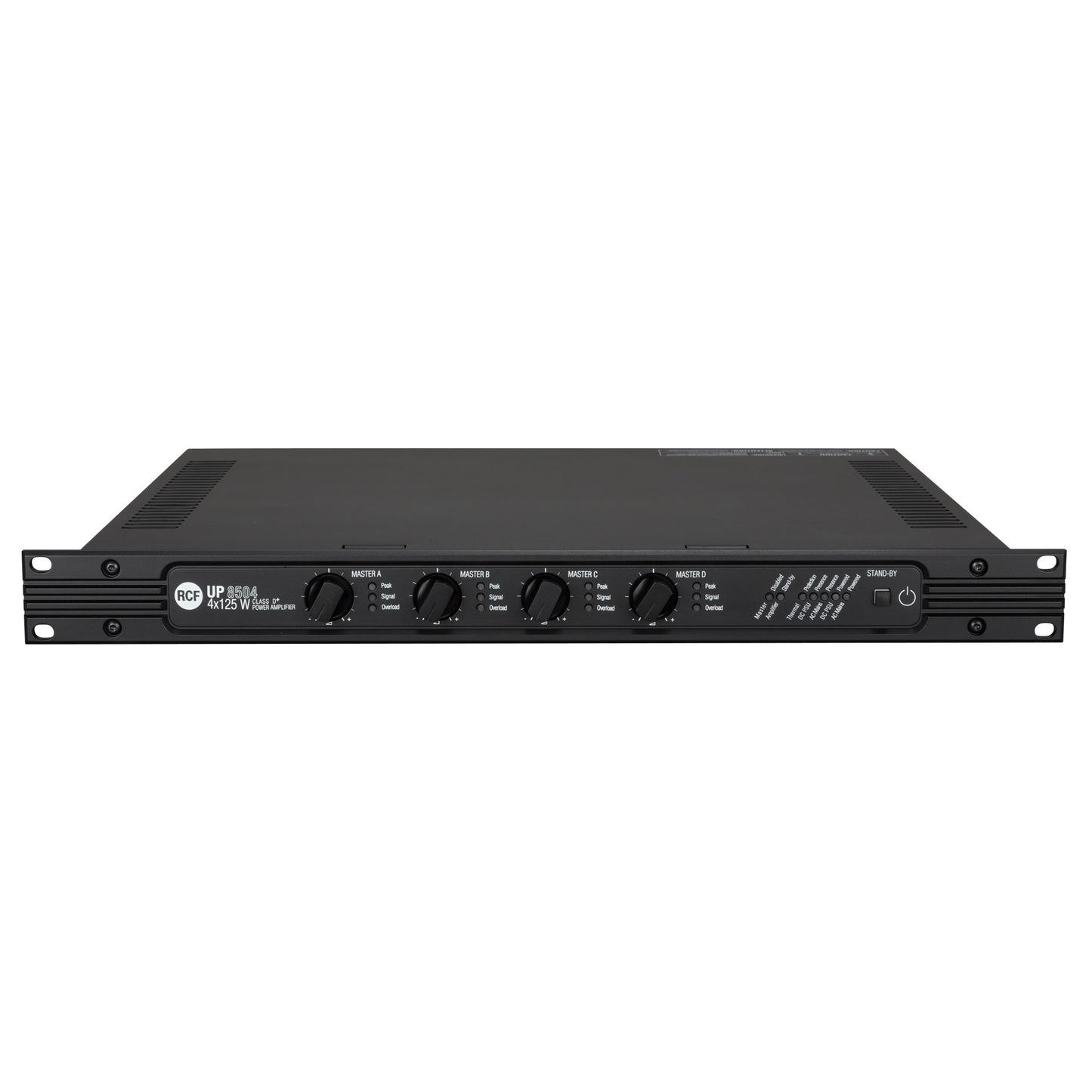

RCF UP8504 Power Amplifier
RCF UP8504 Power Amplifier
SoundPro Item: 34590 | Part Number: UP-8504
Usually ships in 5-7 business days
- Class D amplifier and double switching AC-DC power supply, transformer-less galvanic insulated speaker output
- Pro audio performance
- Selectable 70 – 100V output per channel
- Double input per channel
- Active full protections on amplifier and power supply
- Stand-by, priority and fault remote commands
- Activity and status indicators
- Volume knobs on front panel with disablement facility
- Lightweight 1U 19" rack enclosure
RCF's UP8504 is a 4 x 125 W power amplifier featuring 2 inputs per channel, dual AC/DC power supply, a priority circuit, no output lines on the transformers, and status LEDS on the front panel.
The UP 8500 series power amplifiers are designed with an innovative RCF power supply and amplification technology. All UP 8500 series power amplifiers are certified according to EN 54-16 standard in combination with DXT 7000 Voice Alarm system.
The full digital technology used in these new products allows extremely high efficiency both with AC and DC power supply operation, Pro-Quality audio reproduction and compactness: all the three models are built-in a single 19” Unit.

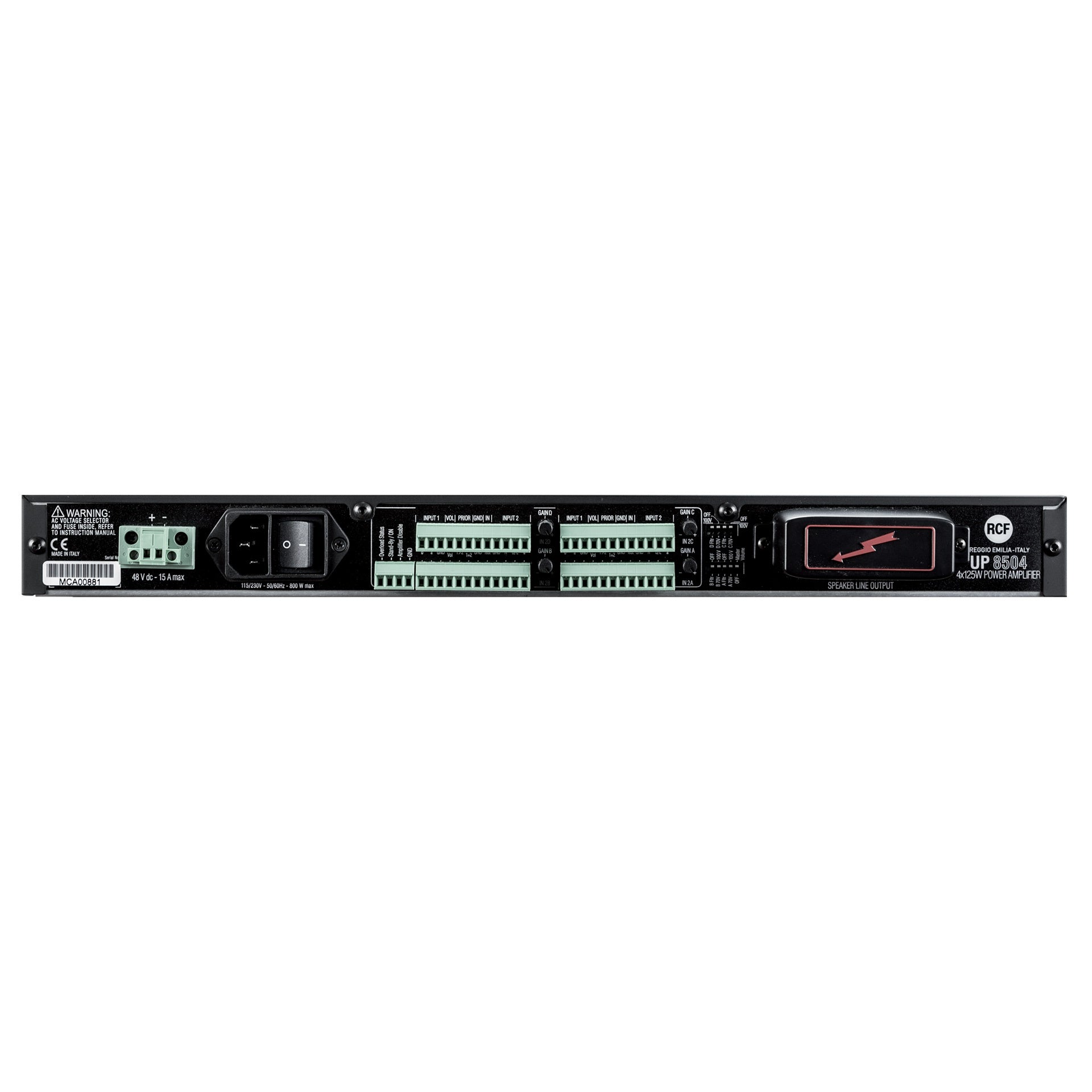

The switching mode power supplies include an independent DC 48V section that guarantees extra redundancy to the possible failure of the units. Each channel is provided with two inputs and dedicated priority circuit to get mix/mute and exclusive priority operation. The amplifiers are suitable for 70/100V applications, using a unique RCF technology that allows to eliminate the line output transformer. Several status LEDs on front panel give a complete feedback on amplifier status, a DIP switch on rear panel allows to disable the frontal volume controls in order to avoid misuses. All connectors are removable screw terminals.
- Amplifier specifications
- Amplifier Class: D
- Number of Channels: 4
- Power Output (HI-Z): 500W RMS
- Frequency Response (-3DB): 40Hz ÷ 16Hz
- Signal/Noise Rate (”A” Weighted): >86 dB
- Crosstalk (@ 1 KHZ): <60 dB
- Distortion (THD+N) @ 1kHz Nominal Power: <0.3%
- Input section
- Balanced: 8
- General Purpose Inputs (GPI): 6
- Line Connectors: Euroblock
- Line Inputs: 8
- Mono: 4
- Stereo: 4
- Total Number of Inputs: 8
- Output section
- Power Output Connectors: Euroblock
- General Purpose Outputs (GPO): 1
- Controls
- Configuration: DIP switch, Front panel
- Priority: Yes
- Protections
- Cooling: Forced
- Short Circuit: Yes
- Thermal: Yes
- DC Delay: Yes
- Fuses: Yes
- Power requirement
- Operating Voltage: 220-240/115V~ 50/60HzV ~ Hz
- Voltage Selection: Internal
- DC Power: Yes
- DC Power Value: 48V
- Power Consumption: 800W
- Standard compliance
- CE Marking: Yes
- EN54-16 Certified: Yes
- CPR Number: 1438-CPR-0241
- Physical specifications
- Cabinet/Case Material: Metal
- Color: Black
- Rack Mounting: 19", 1U
- Dimensions (DxHxW): 14.76x1.73x18.98" (375x44x482mm)
- Weight: 11.9 lbs (5.4kg)
- Shipping informations
- Package Dimensions (DxHxW): 18.9 x 6.69 x 22.64 inches (480 x 170 x 575mm)
- Package Weight: 16.31 lbs (7.4 kg)
