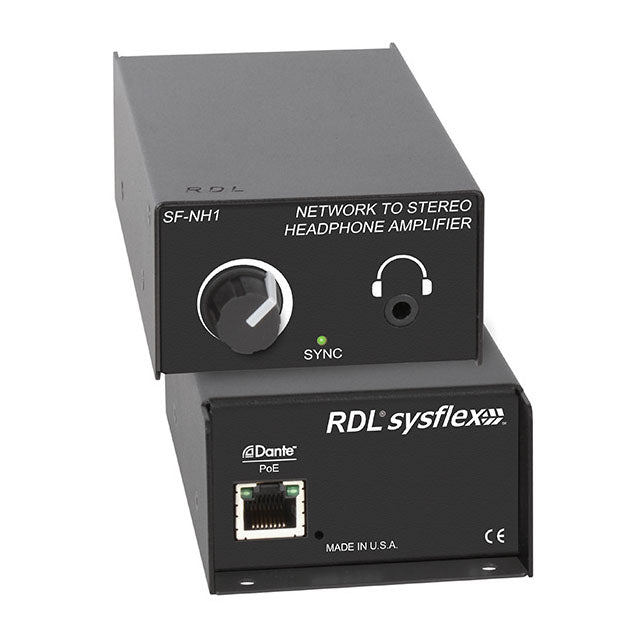

RDL SF-NH1 Dante to Stereo Headphone Amplifier

RDL SF-NH1 Dante to Stereo Headphone Amplifier

SoundPro Item: 28126 | Part Number: SF-NH1

$574.76
$766.35 $574.76
Your Price Sold out
MSRP: $766.35 | MAP: $574.76

Usually ships in 5-7 business days

  • Converts Two Dante Network Audio Signals to a Stereo Headphone
  • Output on Professional Quality 3.5 mm stereo Mini-Jack
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Front-Panel Output Level Control
  • Special Software Not Required for Module Setup
  • Exceptional Low-Noise and Low-Distortion Performance
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex® Rack Mounting or Surface Mounting
Log in or register for YOUR best price
View full details

Specifications

Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported:
24 bits
Reference Level:
0 dBFS = 150 mW into 100 Ω
Outputs (2):
Mini-jack Stereo (L and R)
Output Level (maximum):
0 dBFS = 150 mW into 100 Ω
Output Impedance:
< 50 Ω
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.05% (20 Hz to 20 kHz, -20 dBFS); 0.015% at 1 kHz (typ)
Noise:
< -75 dB (below -20 dBFS); < -95 (below 0 dBFS)
Crosstalk:
< -80 dB (1 kHz, -20 dBFS)
Headroom above -20 dBFS:
20 dB
Indicators (3):
Ethernet Link and Speed (2, rear panel); Sync (front panel)
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
PoE Class 0, IEEE 802.3af
Specification Conditions:
Gain/Level: ± 1 dB
Dimensions:
2.79" (7.09 cm) W; 1.68" (4.27 cm) H; 5.77" (14.66 cm) D
Package Type:
Cardboard Box
Package Dimensions:
7 x 4.375 x 2.25 in.
Shipping Weight:
1.09 lbs.
WEEE weight:
0.88 lbs.
Tariff code:
8543.70.9100
