• RDL TX-A2 Balanced to Unbalanced Audio Converter
1 1

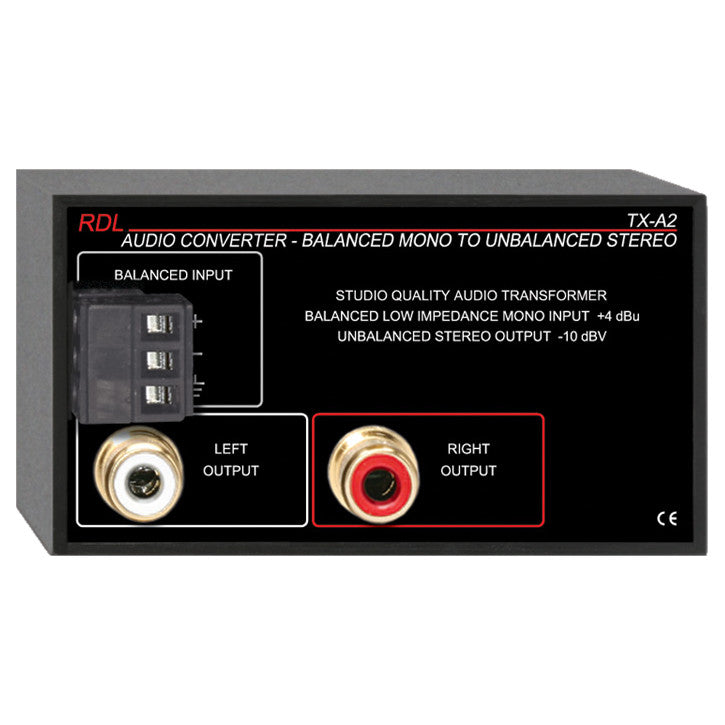

RDL TX-A2 Balanced to Unbalanced Audio Converter

RDL TX-A2 Balanced to Unbalanced Audio Converter

SoundPro Item: 72611 | Part Number: TX-A2

$126.32
$168.42 $126.32
Your Price Sold out
MSRP: $168.42 | MAP: $126.32

Usually ships in 5-7 business days

  • Unbalanced Audio Outputs from a Balanced Line
  • Balanced to Unbalanced Conversion
  • Mono Input to Stereo Output
  • +4 dBu Input Level to -10 dBV Output Level
  • Studio-Quality Transformer Isolation
  • Passive Converter with Output Jacks
Log in or register for YOUR best price

The TX-A2 is ideal for installations requiring passive isolation and level attenuation between a pro balanced line-level mono source and consumer equipment unbalanced inputs.

The TX-A2 is a complete unbalanced line-level audio output module. The front panel provides a detachable terminal block for connection of a balanced +4 dBu audio source. The input signal is coupled to two front-panel gold plated RCA jacks through a studio-quality isolation transformer. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Both output jacks may be used to feed two mono equipment inputs or one stereo input. A single output jack may be used for mono. Shielding is provided by the TX-A2's heavy duty aluminum enclosure.

Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D (sold separately) are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.

View full details
  • Input connector 1Detachable terminal block
  • Input level+4 dBu nominal; +22 dBu max
  • Output connectors (2)Gold plated phono jacks
  • Output level-10 dBV nominal
  • Frequency response (line level)20 Hz to 20 kHz (±0.5 dB)
  • Total Harmonic Distortion<0.05% (20 Hz to 20 kHz, +4 dBu input); <0.01% (1 kHz)
  • Dimensions3.17" (8.05 cm) W; 1.76" (4.47 cm) H; 2.06" (5.23 cm) D 3.17 x 1.76 x 2.06 in
  • Package Dimensions3.625x4.625x2.125"
  • Shipping Weight0.72 lbs
  • WEEE weight0.57 lbs
  • Ambient Operating Environment0°C to 55°C
