RDL TX-TPS3A Active Three-Pair Sender - Twisted Pair Format-A - Balanced line inputs

RDL TX-TPS3A Active Three-Pair Sender - Twisted Pair Format-A - Balanced line inputs

SoundPro Item: 77541 | Part Number: TX-TPS3A

$210.95
$281.26 $210.95
Your Price Sold out
MSRP: $281.26 | MAP: $210.95

Usually ships in 5-7 business days

  • Three -10 dBV Unbalanced or +4 dBu Balanced Inputs
  • Phono Jack and Detachable Terminal Block Inputs
  • Audio Inputs to Feed Pairs A, B and C
  • Utilizes All Three Format-A Pairs
  • Powered Locally or Remotely through RJ45 Jack
  • Local Power Feeds all Modules Connected to OUTPUT
  • Wiring Fault Protection by Automatic Resetting Fuse
  • Local Power Input on Terminal Block or dc Power Jack
  • Blue LED Indicates Module is Powered
  • Studio-Quality Precision Active Balanced Circuitry
Log in or register for YOUR best price

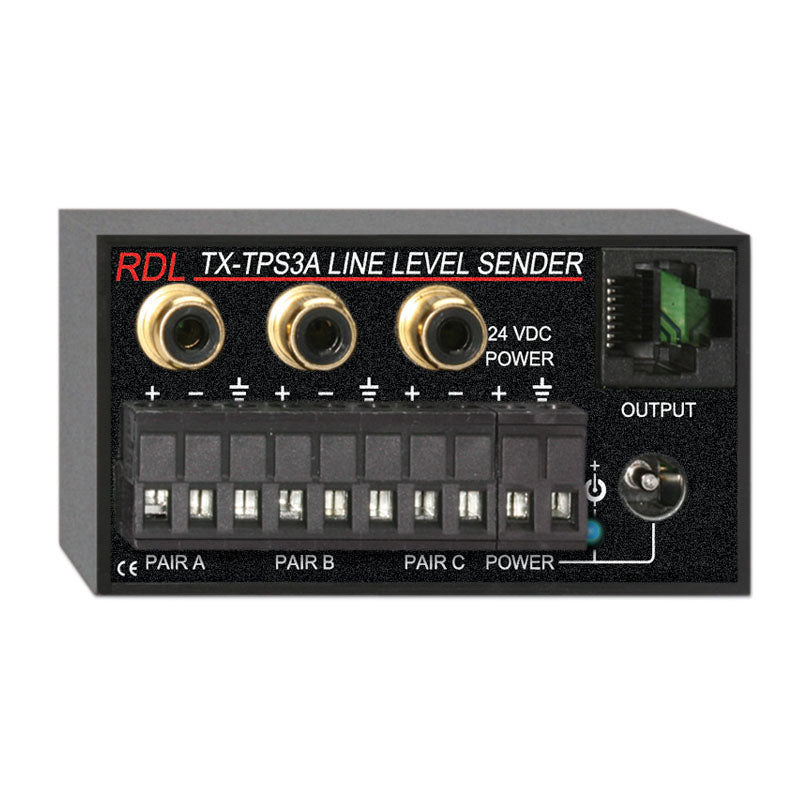

The TX-TPS3A is a three-pair audio sending module compatible with RDL Format-A twisted pair products. Three line-level sources may be connected to the module, each using either the -10 dBV unbalanced RCA phono jack or the +4 dBu balanced detachable terminal block. Studio-quality buffer amplifiers feed the RJ45 OUTPUT at the correct operating level. The TX-TPS3A feeds all three signal pairs in the twisted pair cable. No other sending modules may be connected on the same cable with this module. The TX-TPS3A may be powered directly from a 24 Vdc power supply using either the power jack or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the OUTPUT RJ45 jack. The TX-TPS3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.

View full details

Specifications

Inputs (6):
20 kΩ balanced (3); 10 kΩ unbalanced (3)
Input Connection:
Terminal Block (Bal.); Phono Jack (Unbal.)
Input Level:
+4 dBu Bal.; -10 dBV Unbal.; +22 dBu Max
Format-A Signal Pairs Used (3):
A, B, C
Output:
RDL TP Format-A
Output Connection:
RJ45
Frequency Response:
10 Hz to 50 kHz (± 0.1 dB)
THD+N:
< 0.005%
Noise below +4 dBu:
< 90 dB
Crosstalk:
< 85 dB (1 kHz); < 70 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 60 dB (50 Hz to 150 Hz)
Indicator:
Power In
Power Connections (3)
Power Jack; Detachable Terminal Block; RJ45
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 65 mA plus connected loads
Dimensions:
3.17" (8.05 cm) W; 1.76" (4.47 cm) H; 2.06" (5.23 cm) D
3.17 x 1.76 x 2.06 in
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.435 lbs.
Shipping Weight:
0.49 lbs.
Package Dimensions:
2 x 2 x 4 in.
