RF Venue Diversity Fin® IPX Antenna with DISTRO9 System

RF Venue Diversity Fin® IPX Antenna with DISTRO9 System

SoundPro Item: 203364 | Part Number: DFIN-IPXD9

$3,189.00
$3,189.00 $3,189.00
Your Price Sold out
MSRP: $3,189.00 | MAP: $3,189.00

Usually ships in 5-7 business days

  • Includes extended D9 accessory package
  • Hybrid LPDA and dipole antenna design
  • Captures both vertical and horizontal polarization
  • Reduces multipath interference and dropouts
  • Replaces two traditional directional antennas
  • Compatible with any brand wireless microphone system
  • Improves RF and audio performance in difficult environments
  • Compact, portable, and easy to deploy
  • Works with antenna distribution systems for multi-channel setups
  • Designed for larger system setups
Log in or register for YOUR best price

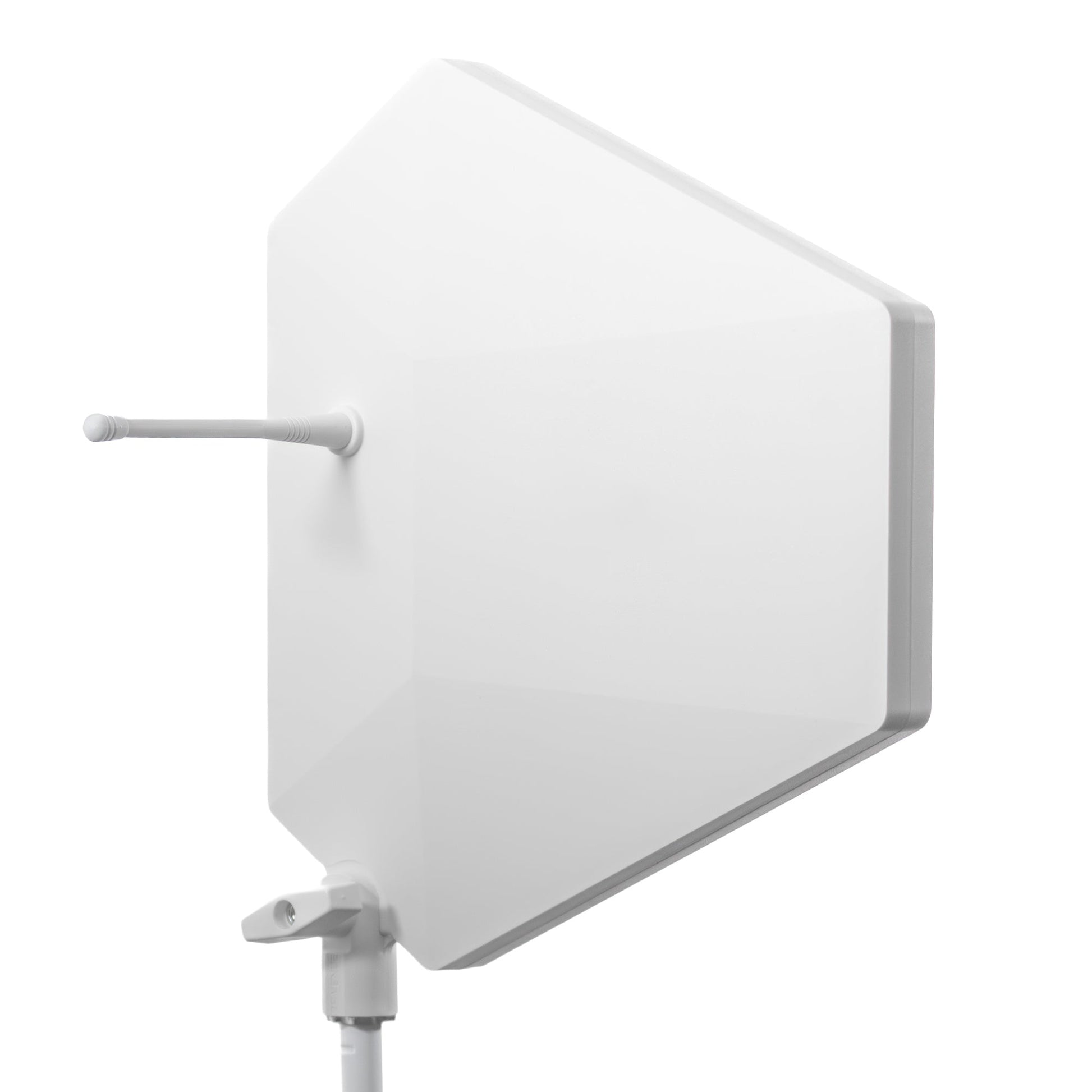

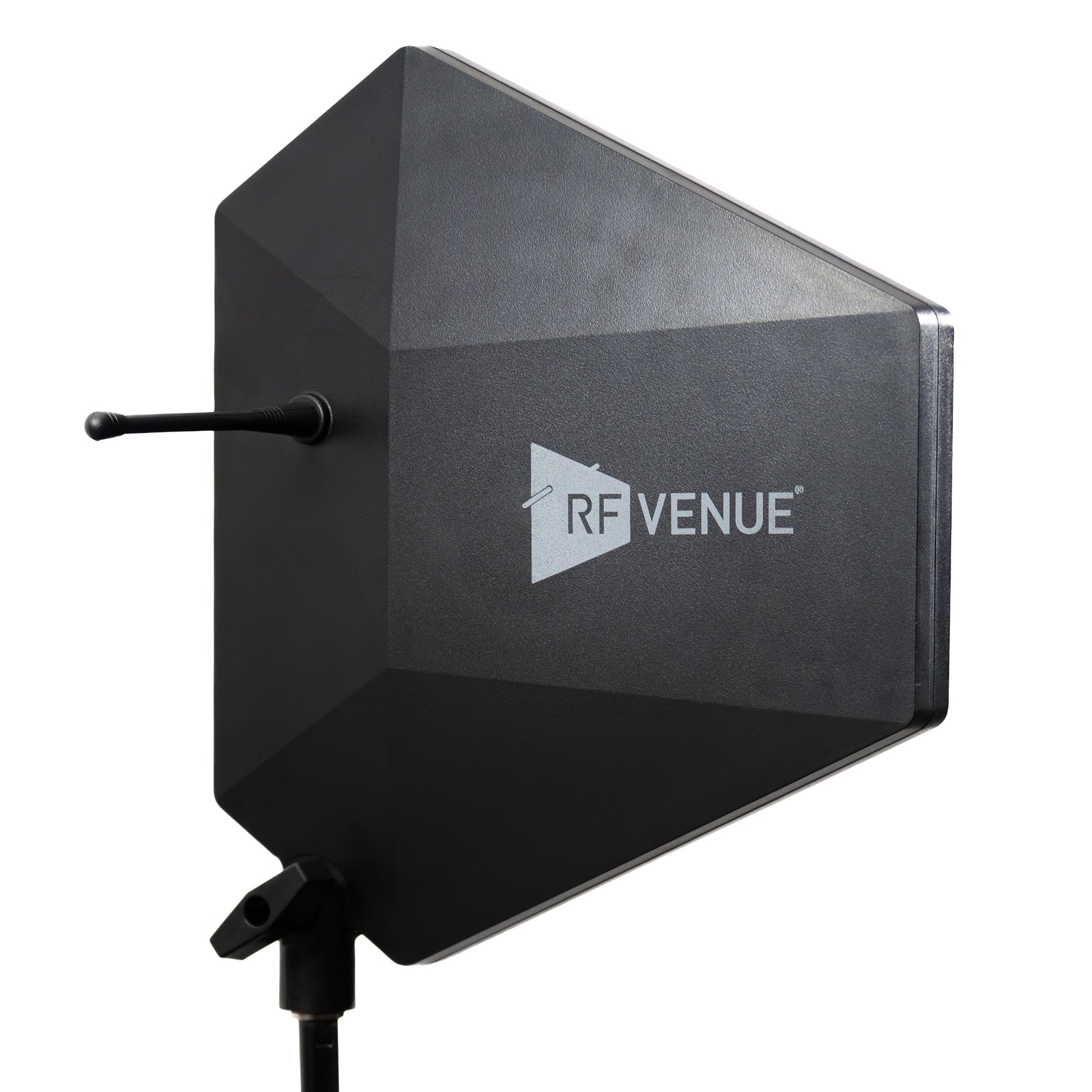

The RF Venue Diversity Fin IPX is a multi-purpose antenna designed for wireless microphone systems and other UHF receivers using diversity reception. It combines a directional log-periodic dipole array (LPDA) with a bidirectional dipole element to reduce multipath interference and improve signal reliability.

The antenna captures both vertically and horizontally polarized RF signals, delivering consistent performance in reflective indoor environments and challenging RF conditions. Its compact, integrated design replaces two traditional paddle antennas while saving space and setup time.

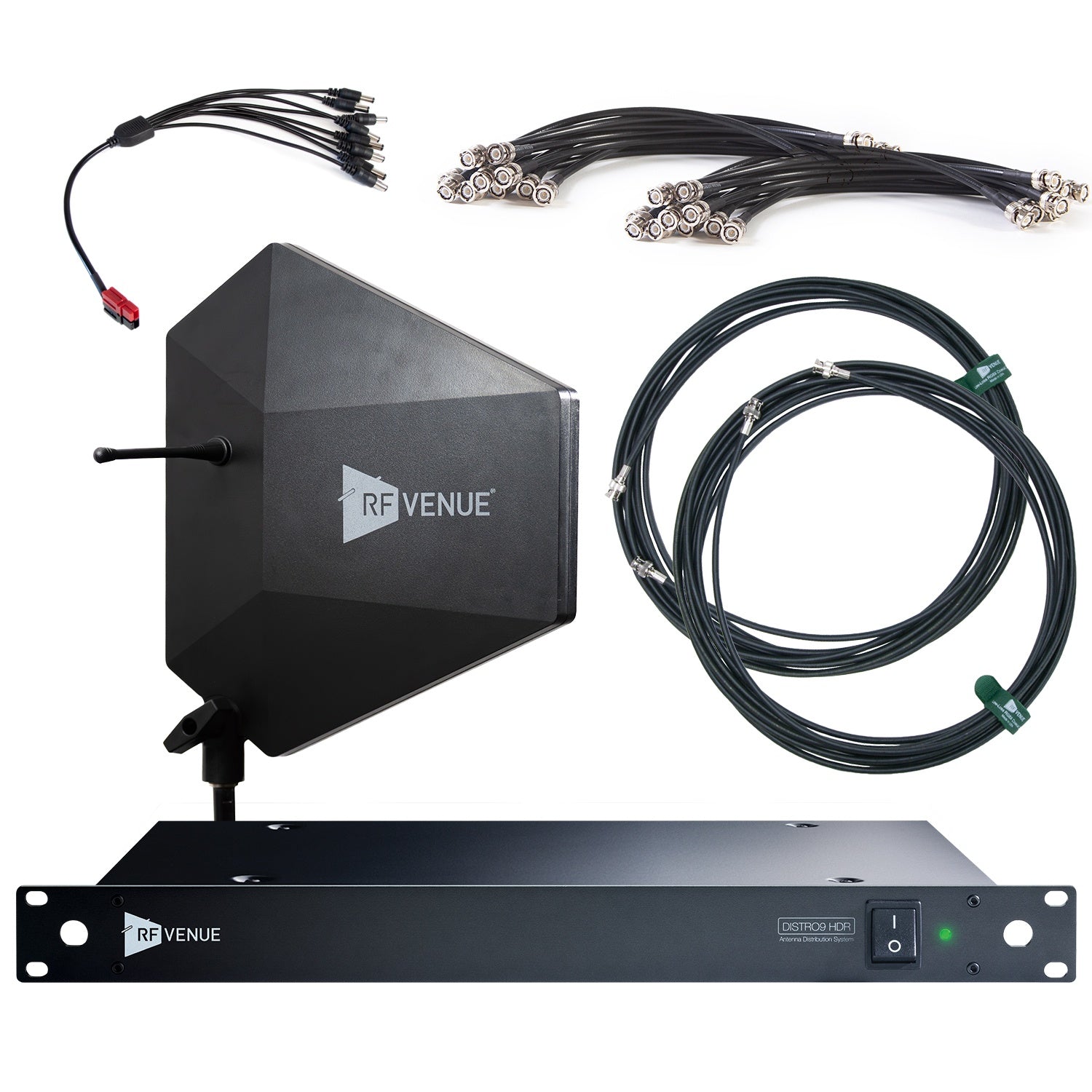

The 9 Channel Wireless Microphone Upgrade Pack with Diversity Fin IPX Antenna
combines the rugged, IP-rated weather-resistant Diversity Fin IPX Antenna with the high-performance DISTRO9 HDR Antenna Distribution System and premium RG8X cabling.

View full details

Specifications

Operating Frequency
470–698 MHz
Bandwidth
228 MHz
Impedance
50 Ω
Average Return Loss
-9.4 dB
Gain
LPDA 5 dBd / Dipole 1.8 dBd
Beamwidth
LPDA 140° / Dipole 100°
Connector

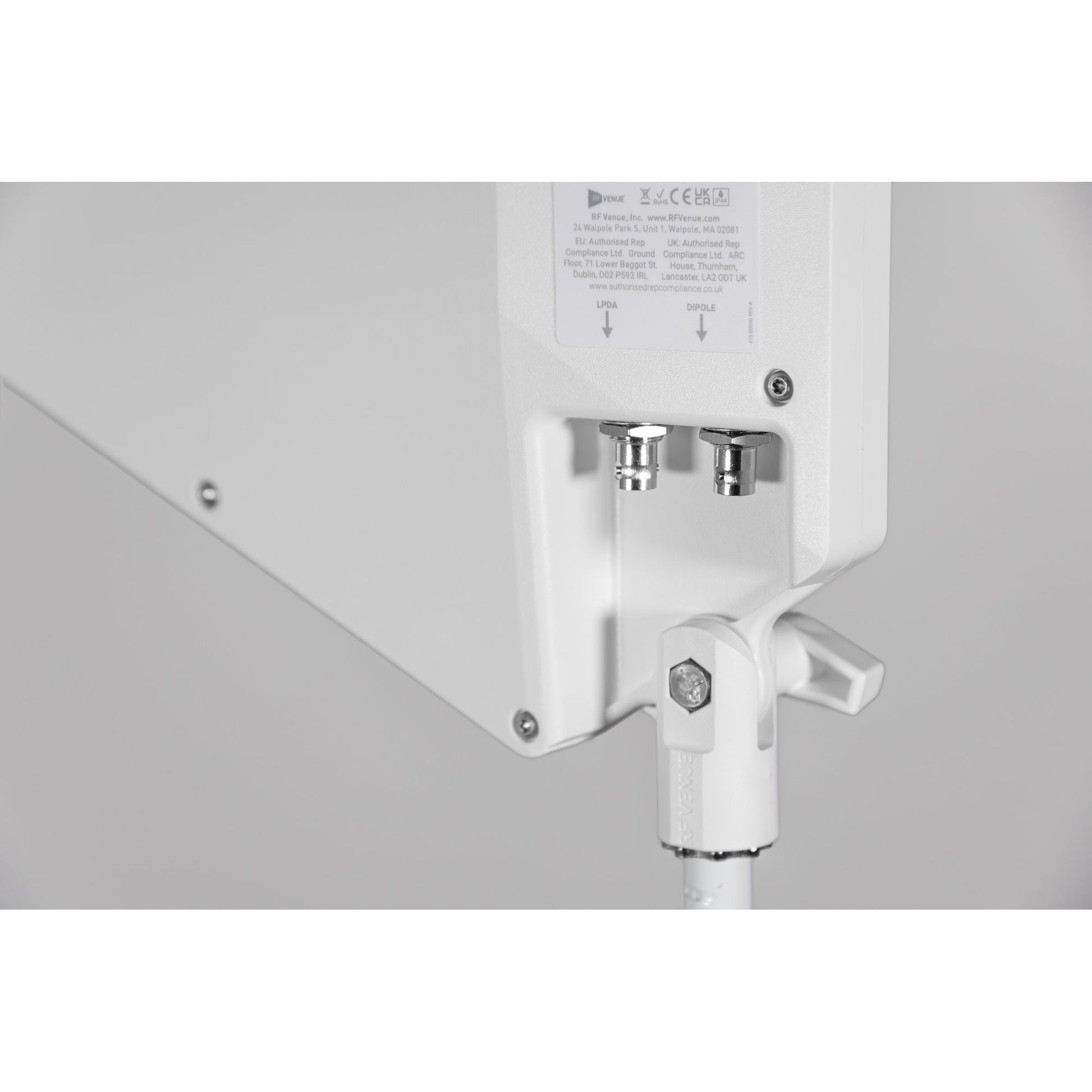

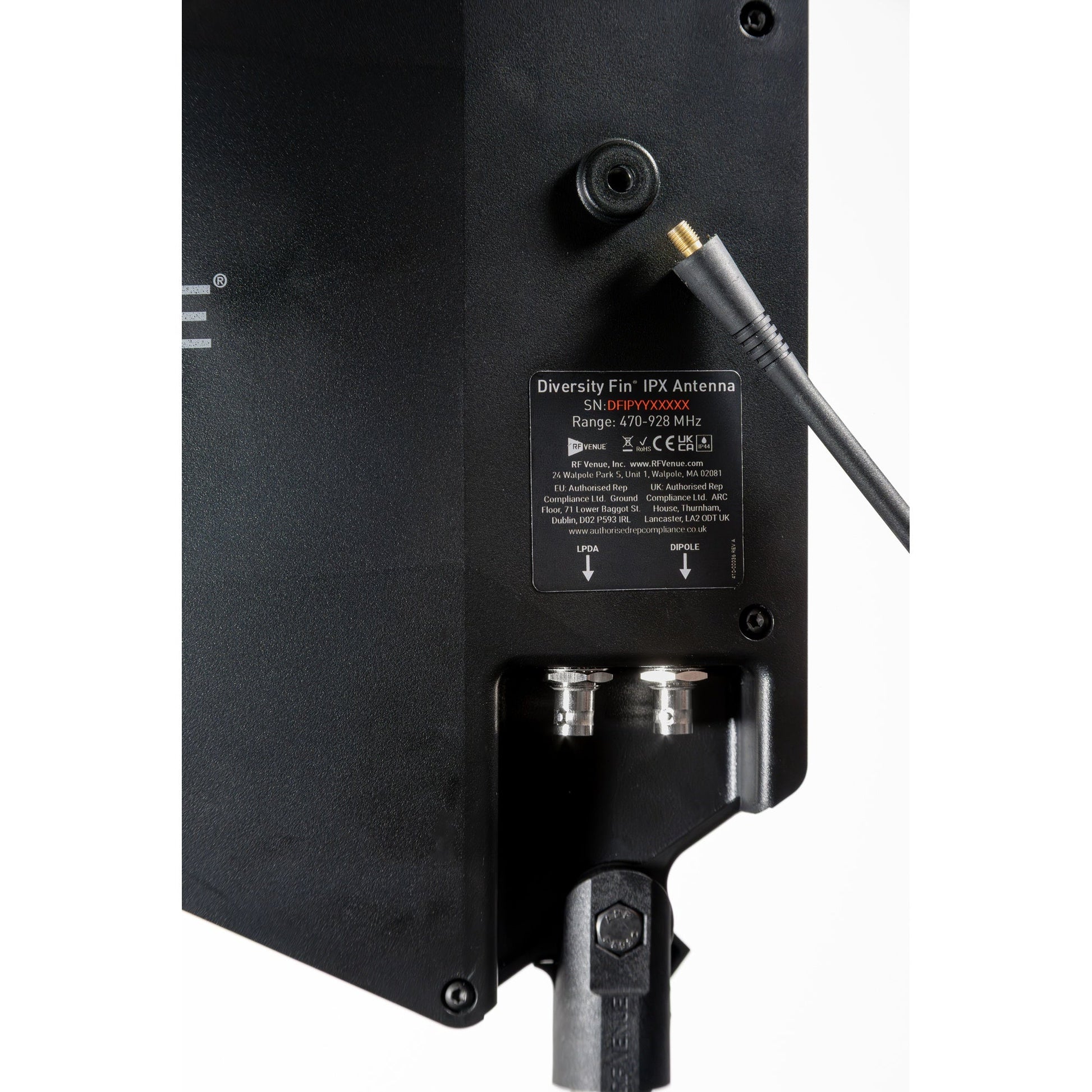

2 × BNC (dual outputs)
Dimensions
300 mm × 370 mm
Weight
454 g
Mounting Threads
1/4"-20, 3/8"-16, 5/8"-27
Operating Temperature
-23°C to 54°C
Included
Diversity Fin IPX antenna; DISTRO9 HDR 9-channel antenna distribution system; (2) 25 ft RG8X coaxial cables; (10) 2 ft BNC interconnect cables; (10) 1.5 ft BNC interconnect cables; DC power distribution cable kit (D9 kit)
