RF Venue D-ARCBD9 9-Channel Wireless Antenna Bundle
RF Venue D-ARCBD9 9-Channel Wireless Antenna Bundle
SoundPro Item: 141224 | Part Number: D-ARCBD9
Usually ships in 5-7 business days
- Patent-Pending Dual-Feed Diversity Design Eliminates Signal Dropouts From RF Angle Changes
- Slim Profile Architectural Enclosure Mounts Flush On Walls Or Ceilings With Custom Paint Options
- Nine-Channel Distribution In Single Rack Space Covers Two Antenna Zones For Large Area Coverage
- Internal Power Supply Feeds Antenna System And Up To Eight Wireless Receivers Simultaneously
- Premium Low-Loss RG8X Coaxial Cables With Double-Shielded Construction For Reliable RF Transmission

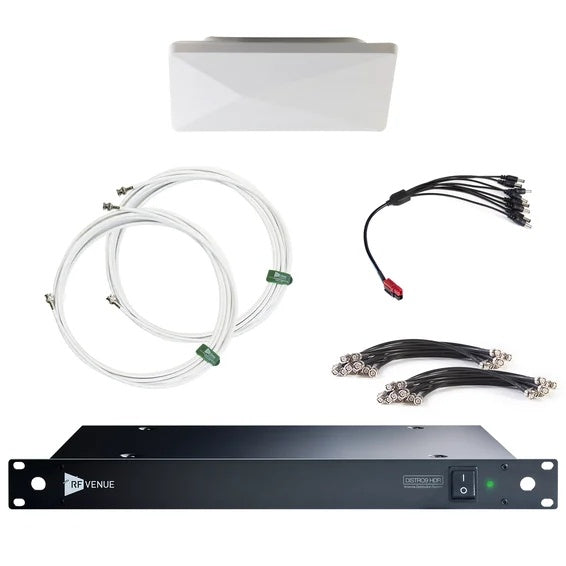

The RF Venue D-ARCBD9 bundles a complete antenna and distribution solution for wireless microphone systems in installed audio applications. The Diversity Architectural Antenna uses patent-pending dual-feed design to eliminate the need for two separately spaced antennas while maintaining A and B diversity connections. Its slim profile installs flush on walls or ceilings and can be painted to match interior design, making it ideal for conference rooms, multipurpose meeting spaces, training facilities, and houses of worship.
The DISTRO9 HDR 9-channel distribution amplifier fits in a single rack space and handles two antenna zones, enabling coverage of large areas or multiple rooms. Low noise figure amplifiers and superior gain structure deliver clean RF distribution across the spectrum. Built-in DC power supplies the antenna system and up to eight wireless receivers simultaneously via the included DC-OCTOPUS cable, eliminating wall warts and saving rack space.
Two 25-foot premium RG8X coaxial cables with BNC connectors complete the package. Manufactured in the USA with double-shielded braid-over-foil construction, these cables deliver the low-loss performance critical for reliable wireless audio in larger installations and distributed antenna applications.
Specifications
