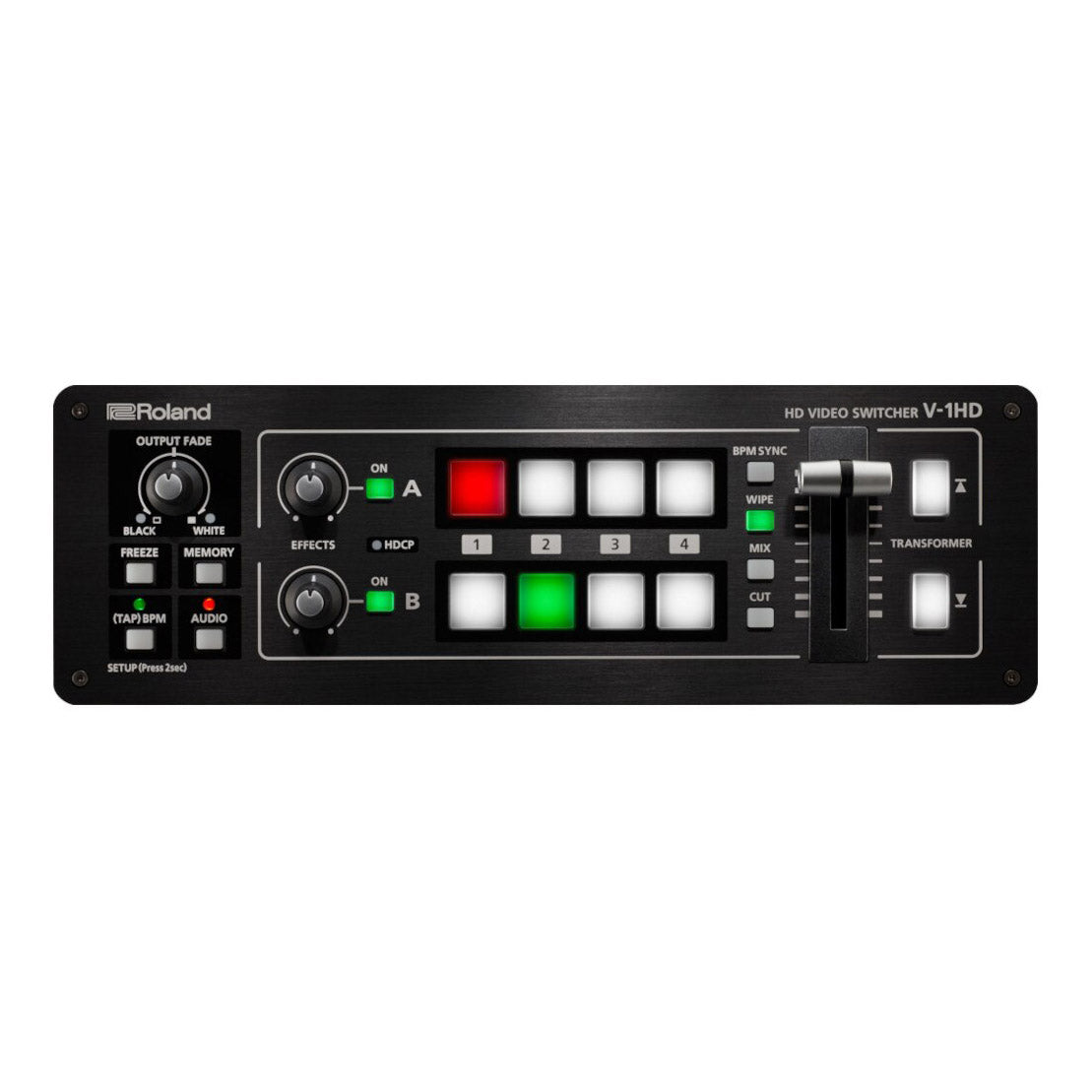

Roland V-1HD HD Video Switcher
Roland V-1HD HD Video Switcher
SoundPro Item: 12711 | Part Number: V-1HD
Usually ships in 5-7 business days
- Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy to Use Interface
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Full 12 Channel Audio Mixer Included
- Easy to Operate with Hardware Controls
- Two HDMI Outputs
- Remote Control via USB or MIDI Connection
- Software Control using V-1HD RCS Application for Mac, PC and iPad
Get the most out of your live video with the V-1HD HD Video Switcher from Roland. Connect and switch between video or action cameras, PC/Macs, or mobile devices to Blu-ray players, gaming consoles, and other HDMI sources, up to 1080p HD. This groundbreaking video switcher sets the standard for 4-channel HDMI video switching, making it a powerful and intuitive tool for a wide range of live broadcast applications, such as streams, presentations, worship services, and much more!
Connect an HDMI monitor to the multi-viewer preview output, then use the large, backlit buttons and T-Fader for basic operation. An output fade dial enables smooth, fast fades to black or white. Control your video sources at the touch of a button or use the T-Fader to transition your shots.
Add a professional polish to your video using the V-1HD’s 3-layer effects engine. Create picture-in-picture composition and split-screen function, as well as Chroma/Luminance keying for silhouette, colorpass, and negative.
Despite its compact build, the V-1HD boasts a powerful 12-channel digital audio mixer to meet the demands of any live production environment. Mix embedded audio from all 4 HDMI channels with a stereo line-level or mic level input. Each input channel features delay, EQ, reverb, and mastering effects on all outputs, including both HDMIs and stereo RCA connection.
The V-1HD also includes 2 technology-assisted automatic switching modes: Input Scan switches sources in a range of 1–120 seconds in sequence, while Beats Per Minute (BPM) Sync automatically switches Preview and Program at a specified song tempo.
This video switcher also has 2 independent HDMI outputs. One may be used to display one of three different video busses, such as a projector/monitor, recorder, or live stream. Use the other output to split the main program output, turn any HD video monitor into an “up-next” input preview display, or show a 4-way multiviewer preview screen.
Control the V-1HD remotely using the dedicated app to turn your iPad into a touch interface. Alternatively, change your setup from afar using the PC/Mac Remote Control Software to run switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes.
- Video
- Video Processing: 4:2:2(Y/Pb/Pr), 8-bit
- Input Connectors: HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
- Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
- Input Formats
- HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
- HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p(FORMAT switch = 1080i or 1080p)
- *The input interlaced video signal is converted to progressive video signal by internal processing
- *The video signal frame rate is selected by SETUP parameters (59.94 or 50)
- Output Formats
- HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
- HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
- HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
- *The video signal frame rate is selected by SETUP parameters (59.94 or 50)
- Video Effects
- Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), TRANSFORMER(11 types)
- EFFECTS
- NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
- MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
- GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@,
- SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@, SPLIT(V-CENTER)@
- @ marked Effects are effected common to A-BUS and B-BUS
- Audio
- Audio Processing Sampling Rate: 24bit/48kHz
- Input Connectors
- Digital: HDMI INPUT 1–4 (19 pins) x 4
- Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
- Output Connectors
- Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
- Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
- Input Level: AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
- Input Impedance: AUDIO IN: 15 k ohms, MIC:10 k ohms
- Output Level: AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
- Output Impedance: AUDIO OUT: 1k ohms, PHONES: 10 ohms
- Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
- Other ConnectorsUSB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
- Other Functions
- Memory (8 types)
- Freeze (input video captured)
- BPM Sync (auto transition synchronized to tempo)
- Output Fade (White/Black/Audio)
- Power SupplyAC adaptor
- Current Draw1.5A
- Power Consumption18W
- Dimensions (WxDxH)12.33" x 4" x 2.33"
- Weight2.63 pounds
