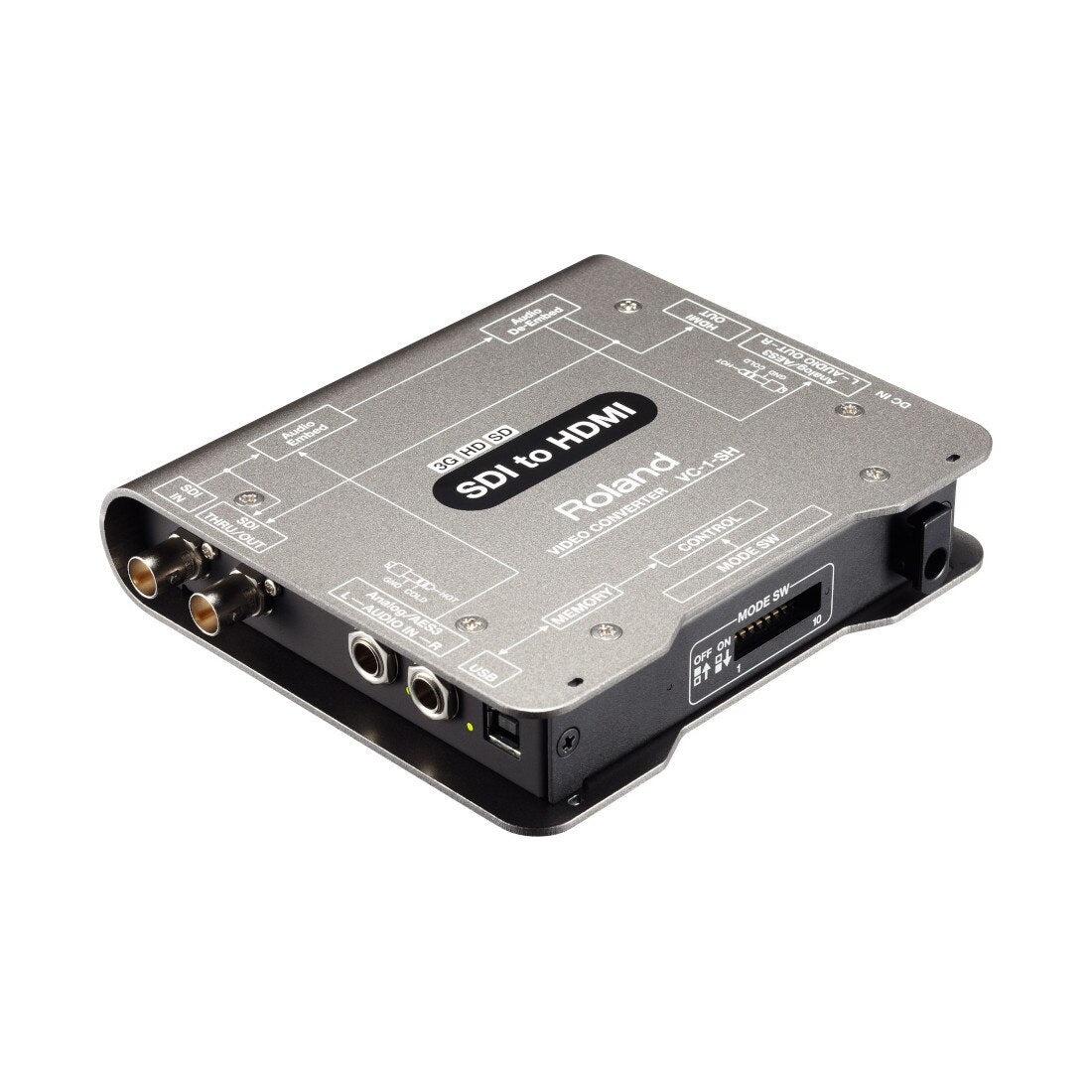

Roland VC-1-SH SDI to HDMI Video Converter
Roland VC-1-SH SDI to HDMI Video Converter
SoundPro Item: 37829 | Part Number: VC-1-SH
Usually ships in 5-7 business days
- SDI to HDMI Conversion
- Lossless Image Conversion
- 3G (Level A&B) /HD/ SD SDI
- HDCP Support
- VC-1 RCS, PC/MAC Control Application
- Selectable Channel for Embedded/De-Embedded Audio
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.
- INPUT
- SDI Connector: BNC type x 1
- Analog Audio Connector: 1/4" TRS phone type (balanced) x 1 pair (L/R)
- Digital Audio Connector: 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector)
- PROCESSING Audio embedding Audio de-embedding
- OUTPUT
- SDI Connector: BNC type x 1 (Thru/Out )
- HDMI Connector: Type A (19 pins) x 1
- Analog Audio Connector: 1/4" TRS phone type (balanced) x 1 pair (L/R)
- Digital Audio Connector: 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector)
- INPUT / OUTPUT FORMAT
- SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
- SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
- AUDIO INPUT / OUTPUT
- Analog Audio Input Level: +4dBu
- Analog Audio Maximum Input Level: +24dBu
- Analog Audio Input Impedance: 110 ohms
- Analog Audio Output Level: +4dBu
- Analog Audio Output Impedance: 600 ohms
- Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
- Digital Audio Output Impedance: 110 ohms
- USB Connector USB Type B (Hi-Speed USB) x 1
- Power Supply DC 9V
- Power Consumption 8W
- Operation Temperature +0 to + 40 degrees Celsius
- Dimensions (WxDxH)5-15/16x5-1/8x1-3/16” (150x130x30mm)
- Weight1 lbs. 2 oz.(500g)
- Note(0dBu=0.775Vrms )
