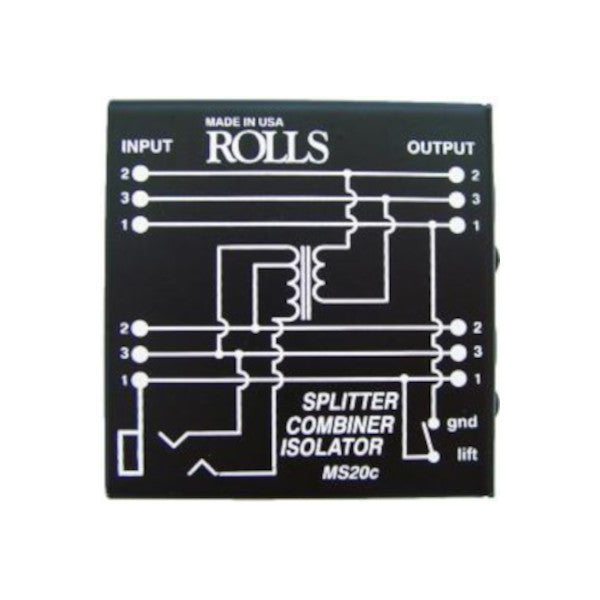

Rolls MS20c Microphone Splitter/Combiner/Isolator
Rolls MS20c Microphone Splitter/Combiner/Isolator
SoundPro Item: 36844 | Part Number: MS20C
Usually ships in 5-7 business days
- Splits balanced XLR input, or 1/8" input to two balanced XLR
- Combines two balanced XLR signals to one XLR output. NOTE: Will only pass phantom power to one microphone.
- One signal is transformer isolated from the other.
- Ground Lift switch for noise elimination
The MS20c splits a single balanced XLR signal into 2 isolated signals, combines 2 balanced XLR signals, or isolates a balanced line for buzz or hum elimination. Please note that when combining two condenser microphones, phantom power voltage is passed to only one of the microphones due to the internal isolation transformer.
- Input ImpedanceXLR: 600 Ohms, 1/8" (3.5mm): 10K Ohms
- Output Impedance600 Ohms
- Frequency Response35 Hz - 20 kHz
- Max Level+26 dBm
- Dimensions3x2.25x1.2"
- Weight10 oz
