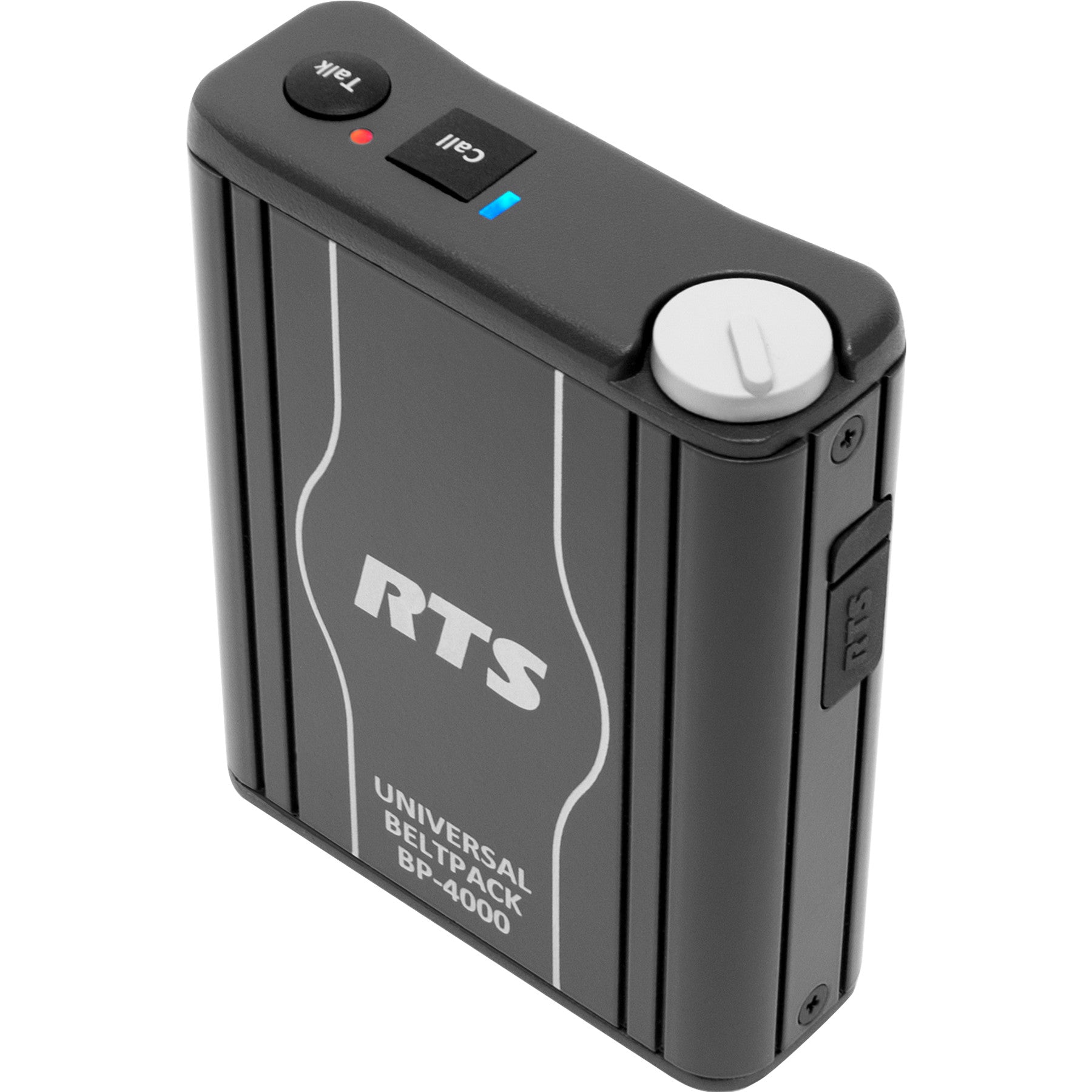

• RTS BP-4000 Single-Channel Universal Beltpack Headset Station
1 1

RTS BP-4000 1-Channel Universal Beltpack Headset Station | Connector: A4F

RTS BP-4000 1-Channel Universal Beltpack Headset Station | Connector: A4F

SoundPro Item: 36436 | Part Number: BP4000A4F

$438.00
$438.00 $438.00
Your Price Sold out
MSRP: $438.00 | MAP: $438.00

Usually ships in 5-7 business days

  • Voice prompts for simplified configuration
  • Remote Mic Kill turns off all active microphones, reducing background noise.
  • Programmable TALK Button, (Always) On, (Always) Off, Switched, or Momentary.
  • Mode-sensing System Configuration
  • Updated design for modern, sleek appearance
  • Reduced current draw allows for more beltpacks being powered by the power supply
  • Auto-sensing headset inputs, electret or dynamic
Log in or register for YOUR best price

The BP-4000 can be ordered with either a 4-pin male, 4-pin female, or a 5-pin female XLR connector providing, a wide-range of headset options. Dynamic and electret headset microphones are supported.

The Universal Beltpacks are portable user stations compatible with RTS, Audiocom, and Clear-Com party line systems. They are available in 1-channel and 2-channel versions. Both have the mode-sensing system configuration, meaning the beltpacks can determine what type of system they are installed into and configure themselves according to that system.

Multiple programming options are available. To simplify programming, voice prompts guide the user through the menus.

View full details
  • Power Requirements
    • Max. Operating Current (unbalanced): 45 mA
    • Max. Operating Current (balanced): 52 mA
    • Channel Supplied: 18-33 VDC
    • Local Power: 18 -33 VDC
  • Interface Requirements
    • Headset: 50 to 200 Ω (dynamic; 1k to 13k Ω (electret)
    • Headphones: 50 to 600 Ω
  • Balanced Intercom Channel
    • Output Level: 0.0 dBu nominal
    • Noise Contribution: <-60 dBu
    • THD: <1.0%
  • Terminating Impedance
    • Balanced: 300 Ω
    • Bridging Impedance: > 10 kΩ
  • Call Signaling
    • Send: 20 kHz
    • Receive: 20 kHz
  • Mic Off Frequency
    • Send: 24 kHz
    • Receive: 24 kHz
  • Unbalanced Intercom Channel
    • Output Level: 0.0 dBu nominal
    • Terminating Impedance: 200 Ω
    • Noise Contribution: <- 60 dBu
    • THD: < 1.0%
  • Bridging Impedance
    • Unbalanced: > 10k Ω
  • Call Signaling
    • Send: 20 kHz/DC
    • Receive: 20 kHz/DC
    • THD: <1.0%
  • Headphone Amplifier
    • Max. Output: >140 mW into 150 Ω load
    • Frequency Response: 200 - 8 kHz ±2 dB
    • Audible Alert: 1 kHz
    • THD: <1.0%
    • Sidetone: > 20 dB dynamic range
  • Operating Temperature32º F to 131º F (0º C to 55º C)
  • Operating Humidity5% to 95%, non-condensing
  • Storage Temperature-4º F to 158º F (-20º C to 70º C)
  • Storage Humidity15% to 90%, non-condensing
  • Dimensions (WxDxH)3.75" x 1.35" x 4.69"
  • Weight0.811 pounds
