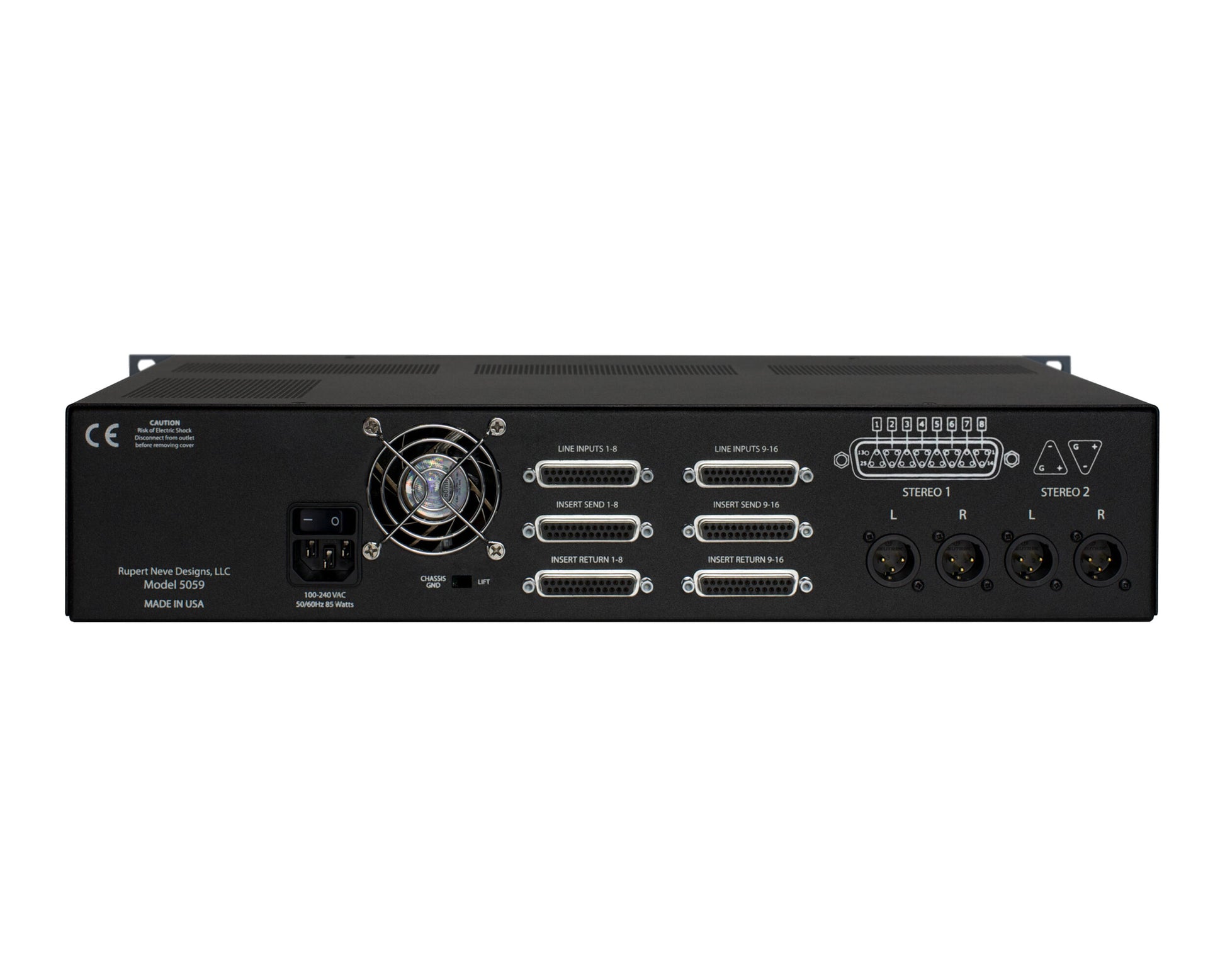

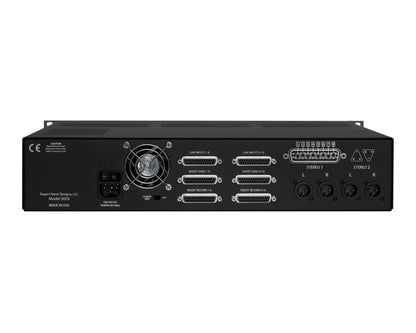

  • Rupert Neve 5059 5059 Satellite 16 x 2+2 Summing Mixer back
1 2

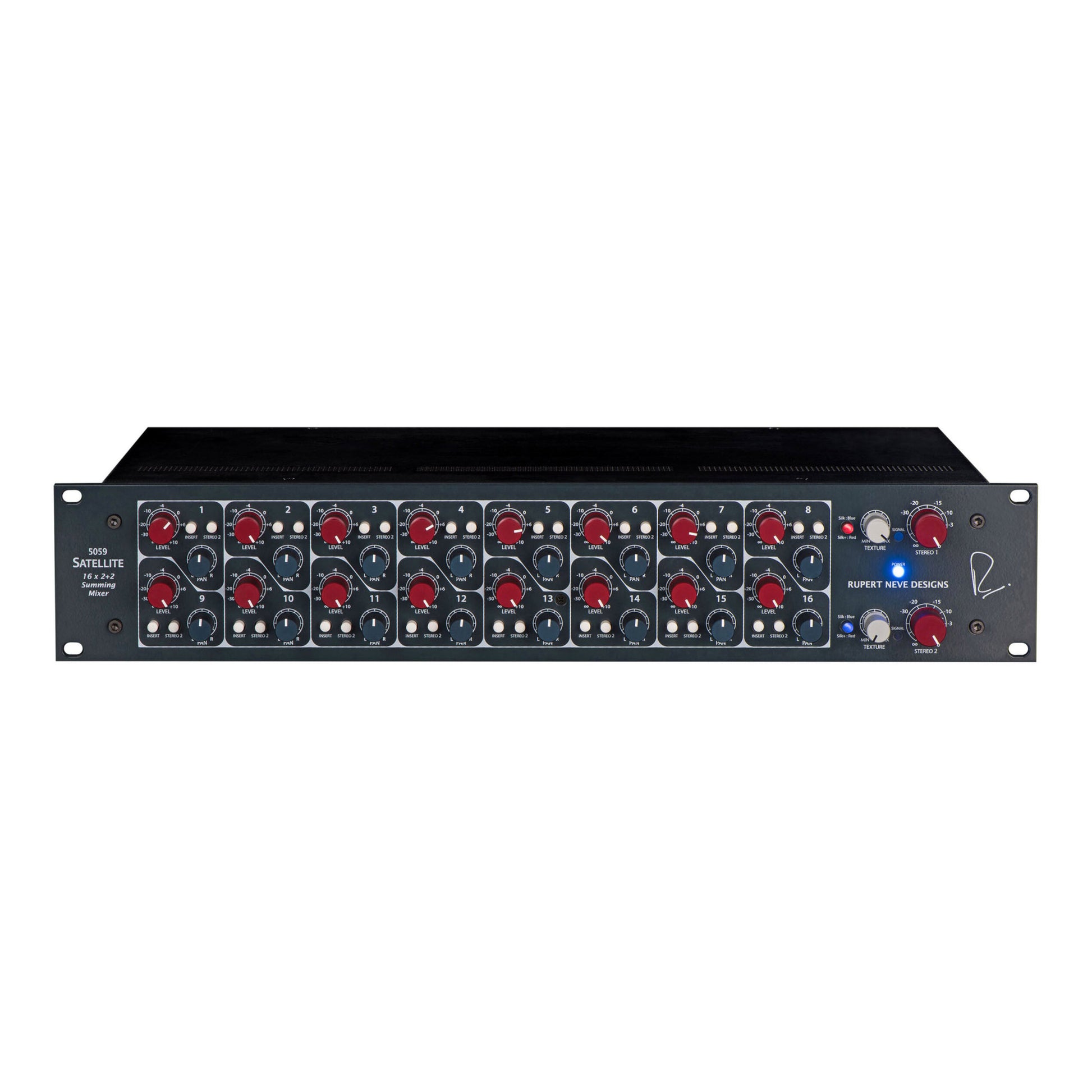

Rupert Neve 5059 5059 Satellite 16x2+2 Summing Mixer

Rupert Neve 5059 5059 Satellite 16x2+2 Summing Mixer

SoundPro Item: 111354 | Part Number: 5059

$3,499.00
$3,499.00 $3,499.00
Your Price Sold out
MSRP: $3,499.00 | MAP: $3,499.00

Usually ships in 5-7 business days

  • Silk / Texture
  • New Class-A Topologies
  • Custom Transformers
  • Stereo 2 Send
  • Channel Level
  • Channel Pan
  • Channel Insert
  • Level controls are provided for each of the stereo outputs -∞ to 0dB
Log in or register for YOUR best price

Rupert Neve's 5059 Satellite 16 x 2+2 Summing Mixer delivers the ultimate out-of-the-box sonics and control in a 2U, rack-mountable chassis.

Built around many of the topologies and custom transformers made famous with the 5088 mixer, the 5059 features 16 channels with individual level, pan, inserts, stereo-2 sends, and master texture controls, providing easy integration with outboard equipment, complete control for two separate stem mixes, and the ability to dial in analog mojo in two modes. With the same sonic heritage as mixers used to create countless hit records, the 5059 Satellite imbues your tracks with the legendary warmth and presence of a Rupert Neve design.

View full details
  • Frequency Response
    • 100K Ohm Load
    • +/- 0.1 dB from 20 Hz to 20 kHz
    • -3 dB @ 3.5 Hz / 185 kHz
  • Noise
    • IEC-A-weighted
    • Buss Outputs: -106 dBV
    • Single Channel assigned @ -∞: -104 dBV
    • Single Channel assigned @ Unity: 103 dBV
  • Noise
    • Un-weighted, 22 Hz - 22 kHz
    • Single Channel assigned @ +10 dB - 100 dBV
  • Buss Outputs
    • Single Channel assigned @ -∞: -101 dBV
    • Single Channel assigned @ Unity: -100 dBV
    • Single Channel assigned @ +10 dB -97 dBV
  • Signal to Noise
    • +20 dBu output un-weighted, 22 Hz - 22kHz: 116 dB
    • +20 dBu output, IEC A weighted: 119 dB
    • +4 dBu output unweighted, 22 Hz - 22 kHz: 100 dB
    • +4 dBu output, IEC A weighted: 103dB
  • Output Level
    • Summing Busses to XLR outputs, Maximum Output Level, 20 Hz to 40 kHz: +26 dBu
    • Single Channel to Buss, Maximum Output Level, 20 Hz to 40 kHz: +24.5 dBu
  • THD and Noise
    • 1 kHz @ +20 dBu output: Better than 0.003%
    • 20 Hz @ +20 dBu output: Better than 0.005%
  • THD, Silk Engaged
    • Blue Silk
      • 100 Hz @ +20 dBu output, texture control 12 o’clock: 0.2% typical
      • 100 Hz @ +20 dBu output, texture control fully CW: 0.65% typical
    • Red Silk
      • 100 Hz @ +20 dBu output, texture control 12 o’clock: 0.1% typical
      • 100 Hz @ +20 dBu output, texture control fully CW: 0.35% typical
  • Slew Rate4V/uS
  • Crosstalk
    • From Buss 1 to Buss 2
    • 1 kHz: Better than -90 dB
    • 10 kHz: Better than -70 dB
  • Power Consumption
    • AC Mains, 100VAC to 240VAC, 50/60 Hz: 45 Watts
    • Fuses – not user accessible, internal on power supplies
  • Dimensions (HxWxD)3.5" x 19" x 8"
  • Weight23 pounds
