Soundcraft LX7ii Live Sound Analog Mixer | Channels: 32

Combining the essential features for live mixing with basic recording functionalities, the LX7-II from Soundcraft is a live sound analog mixer that’s easy to configure and use. Packing tons of tools into a compact console, the LX7-II is ideal for smaller, multi-purpose installations such as theatrical venues, houses of worship, performance PA, and community centers. This mixer is also a great choice for gigging bands that need both a live desk and a studio mixing solution.

Live mixing quality inherited from a legend. The LX7-II is the next generation of the reliable LX7 mixer, while also drawing classic design elements—such as its 4-band EQ on each input—from Soundcraft’s MH3 and MH4 touring consoles. The LX7-II also includes Soundcraft’s GB30 Series padless mic-preamp, which offers 60dB of gain and 22 dBu of headroom.

The EQ In/Out switch and steep 18dB/Octave High Pass Filter allow effective audio control, while the six auxiliary sends are pre-post switchable in pairs from each channel, providing a maximum of 4 pre-faders and 6 post-faders. This makes LX7-II ideal for foldback-heavy performance or in situations where more effects are required.

Standard features include frame sizes of up to 32 mono inputs and 4 stereo inputs/returns with 4 groups, a main stereo output, and a dedicated mono output for center clusters. Direct outputs on the first 16 inputs are ideal for multitrack recording, while 6 aux busses are good for effects and foldback. All inputs and outputs are balanced.

Housed in a choice of 16, 24, or 32 channel frames, LX7-II provides 24, 32, or 40 inputs - with no less than 13 separate bus outputs. Mix to 7 outputs—4 subgroups, plus the main Left, Right, and Center (Mono) mix outputs. All 4 groups are routable to mix and include 12-segment bar graph metering for accurate monitoring and inserts. There are also 8, 16, or 24 direct-outs, depending on the frame size of your console. Two further stereo inputs are in the mixer’s groups section with EQ, auxiliaries for keyboards, or stereo recording devices as well as 2 FX returns. The rotary controls feature 6 auxiliary masters with AFL soloing.

The LX7-II’s master section provides talkback to all pre-fade auxiliaries and the mix and organizes Phantom power in banks of 4. Additionally, you can play CDs over the main PA with the “two-track” switch. The mix is also routable to the separate mono bus if mono PAs are required.

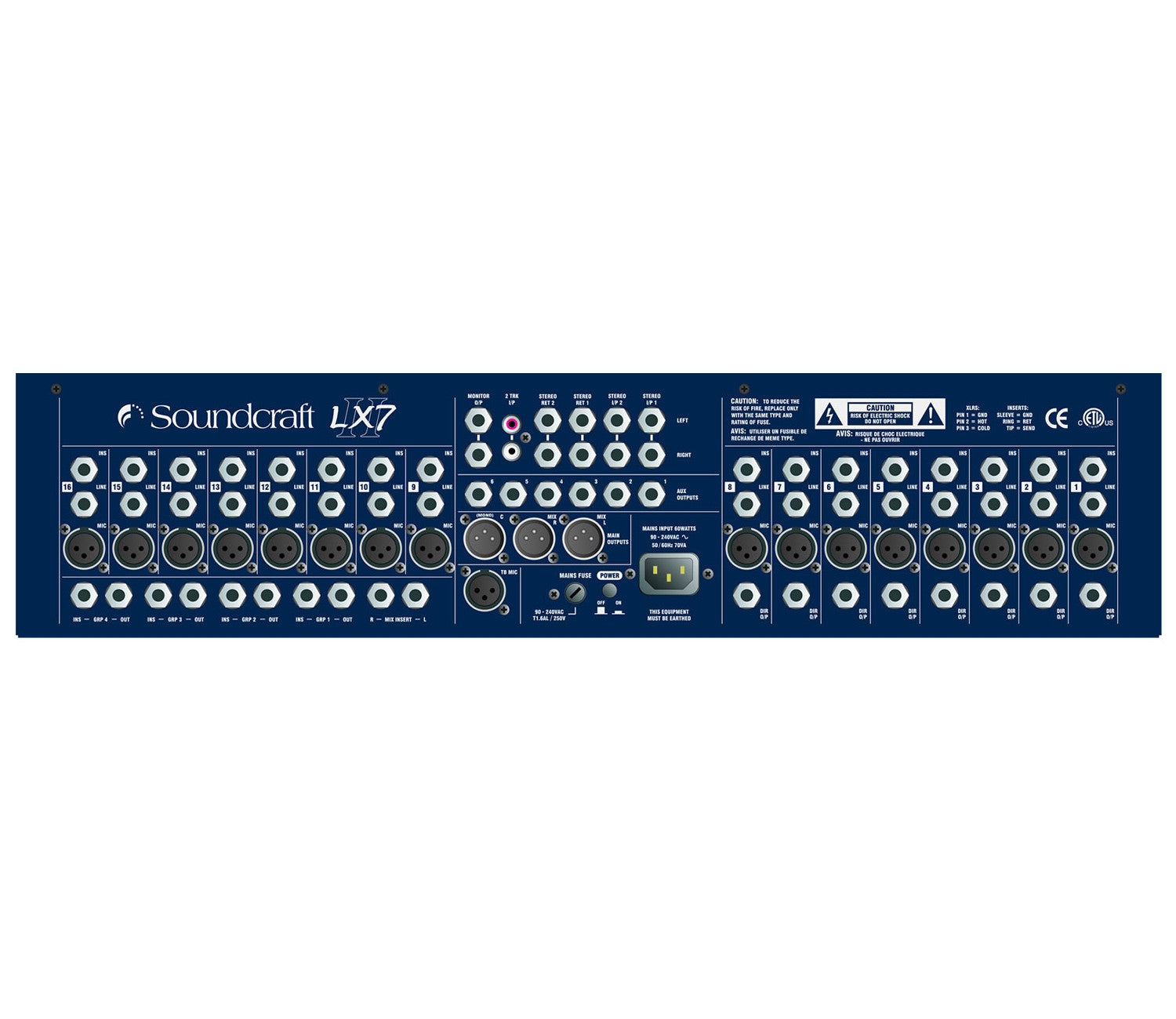

This mixer sports a rugged wedge-shaped steel chassis that includes an internal power supply, while an all-metal jackfield and connectors are located on the console’s back panel. Despite its durable build, the compact frame of the LX7-II is also light enough for a single person to carry.
