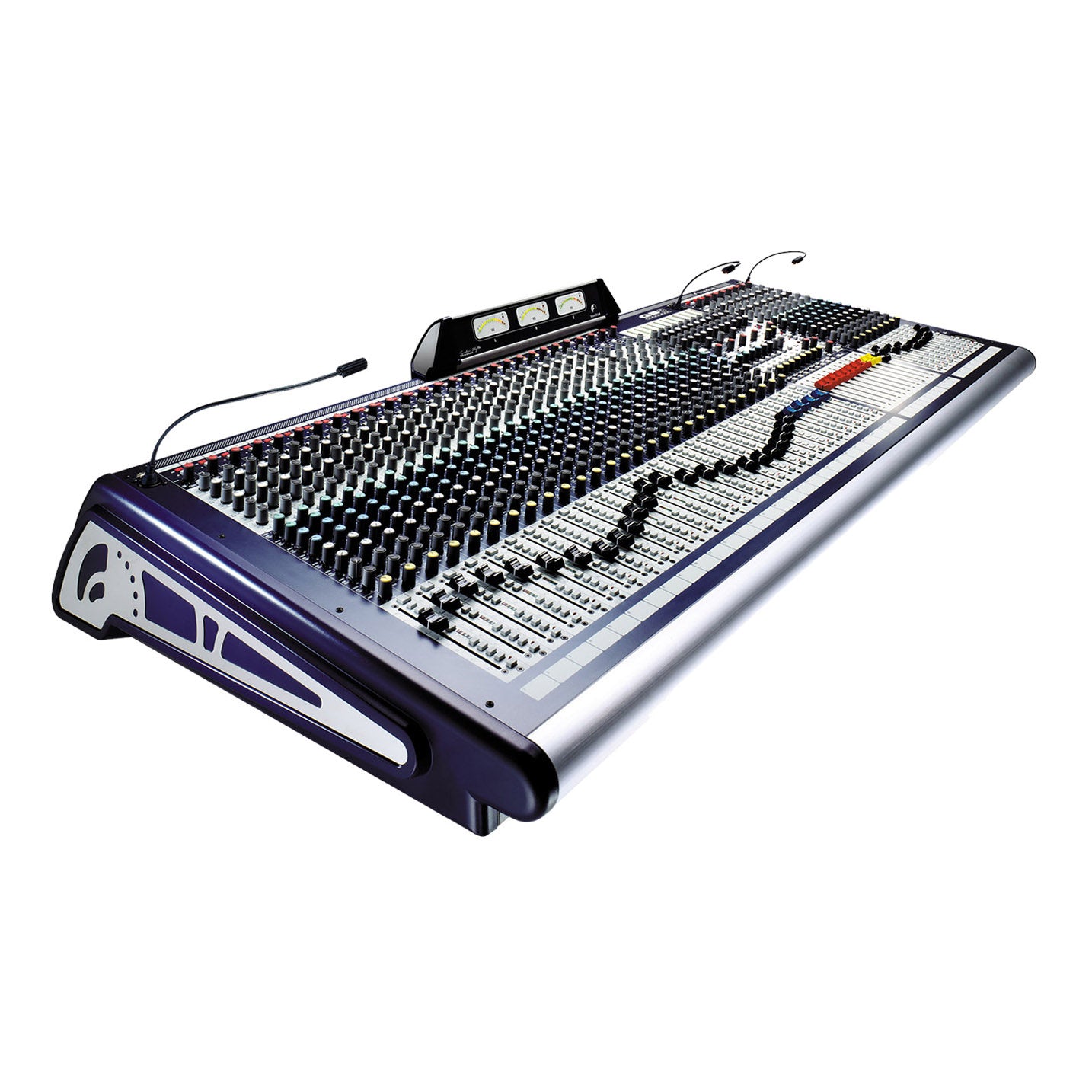

Soundcraft GB8 High Performance Analog Mixer | Channels: 32
Soundcraft GB8 High Performance Analog Mixer | Channels: 32
SoundPro Item: 63333 | Part Number: RW5696SM
Usually ships in 5-7 business days
- Dual purpose console
- 24, 32, 40 and 48 channel frame sizes
- Individually switched 48V phantom power on every mono input module
- 4 full-feature Stereo channels
- 8 Aux sends (all switchable between pre/post fader operation)
- 8 Group sends (SWAP with all 8 Auxes)
- 4 Stereo returns
- 4 Mute groups
- 11x4 Output Matrix
- Limiter on Record Output and Alternative Stereo Output
- GB30 mic pre-amp
- 4-band GB30 EQ
- 1kHz oscillator
- Meter Bridge with accurate VU meters for left, right, and center outputs
- Integral power supply, with an external power supply link option
- All metal TRS jacks and Neutrik XLRs
- Direct outputs on all mono input channels
Fitting a comprehensive set of functions into a compact, cost-effective build, the GB8 from Soundcraft is a high-performance analog mixer. It’s ideal for medium-sized installations such as houses of worship or performance venues, but it’s also a great choice for small touring sound systems. In addition, GB8 boasts dual-mode topology equips you for fader control of group or aux outputs, so you can also use this mixer for FOH or monitor duties.
Some of GB8’s features include a rugged steel chassis with a sloping rear connector panel, allowing it to be easily configured from the front of the desk, along with an integrated power supply with a link option for external PSU backup. Four mute groups allow you to mute several channels at the same time. A limiter on both the Record and Alternate stereo outputs lets you create a stereo recording of your mix using a selected set of record outputs. An output matrix contains 11 feeds to 4 outputs, being fed from the group busses and main L, R, and C (mono) outputs. A 1kHz oscillator and a meter bridge with 3 LED meters that emulate the ballistics of VU meters.
- Noise (measured RMS, 22Hz to 22kHz bandwidth)
- Mic EIN @ Unity Gain, 150W Source Impedance: -128dBu
- Mix Output, 40 Inputs Routed to Mix: <-82dBu
- Group Outputs: <-83dBu
- Aux Outputs: <-80dBu
- Matrix Outputs: <-89dBu
- Crosstalk (@ 1kHz typical)
- Input Channel Mute: <-97dB
- Input Fader Cut-Off: <-95dB
- Pan Isolation: <-77dB
- Mix Route Isolation: <-97dB
- Group Route Isolation: <-97dB
- Adjacent Channel Crosstalk: <-99dB
- Group to Mix: <-89dB
- Aux Send Pots Offness (typical): <-84dB
- Matrix Send Pots Offness (typical): <-84dB
- Frequency Response (mic/line input to any output, 20Hz - 20kHz)<1 dB
- THD+N (mic sens. -30dBu, +20dBu at all outputs @ 1kHz)<0.006%
- CMRR (typical @ 1kHz)80dB
- Input & Output Max. Levels
- Mono & Stereo Mic Inputs: +15dBu
- Mono & Stereo Line Inputs: +30dBu
- Stereo Returns & Insert Returns: +20dBu
- Any Output: +20dBu
- Nominal Operating Level: 0dBu
- Headphone Power: 2x250mW into 200Ω
- Input & Output Impedances
- Mic Inputs: 2kΩ
- Line Inputs & Stereo Returns: 10kΩ
- Mix, Group, Aux, Matrix & Direct Outputs: 150Ω
- Insert Sends: 75Ω
- Insert Returns: 5kΩ
- Recommended Headphone Impedance: 50-600Ω
