- System
- Operating Frequency
- K Band: 477.525 – 492.425 MHz
- E Band: 863.125 – 864.875 MHz
- Number of Channels
- K Band: 6
- E Band: 4
- Working Range: 300’ (100m) line of sight
- Audio Frequency Response: 100Hz – 15kHz
- T.H.D. (Overall) :< 1% (@AF 1kHz, RF 46dBu)
- Operating Temperature: -18°C (0°F) to +40°C (+104°F)
- Storage Temperature: -5°C (23°F) to +35°C (+95°F)
- Operating Frequency

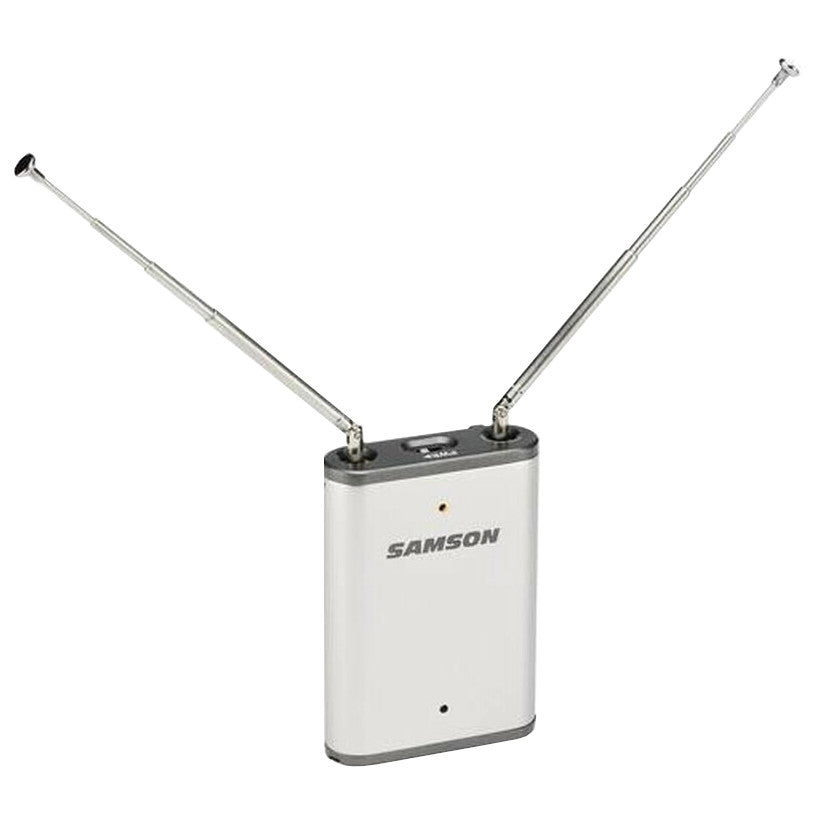

- AR2 Receiver
- Audio Output Connector: 1/8” Unbalanced
- Audio Output Level (Typical): -30dBv (Mic), -10dBv (Line)
- Audio Output Impedance: Unbalanced 600 Ohms
- AF Frequency Response: 50Hz – 15kHz
- Antennas: Two 1/4 Wavelength Rod
- Selectivity: ±150kHz (AF Out Ratio -60dB)
- S/N Ratio (Overall): 90dB (w/IHF-A Filter)
- Sensitivity: 18dBu (@ THD 2%)
- Power Requirements: Internal lithium ion rechargeable battery or AC adaptor
- Battery Life: ~6 hours
- Indicators
- Power On, Tone Key,
- Transmitter Mute, Transmitter
- Peak, Battery Low, Recharging
- Dimensions (LxWxH): 1.7x0.51x2.4” (43x13x60 mm)
- Weight: 1.5oz (42g)

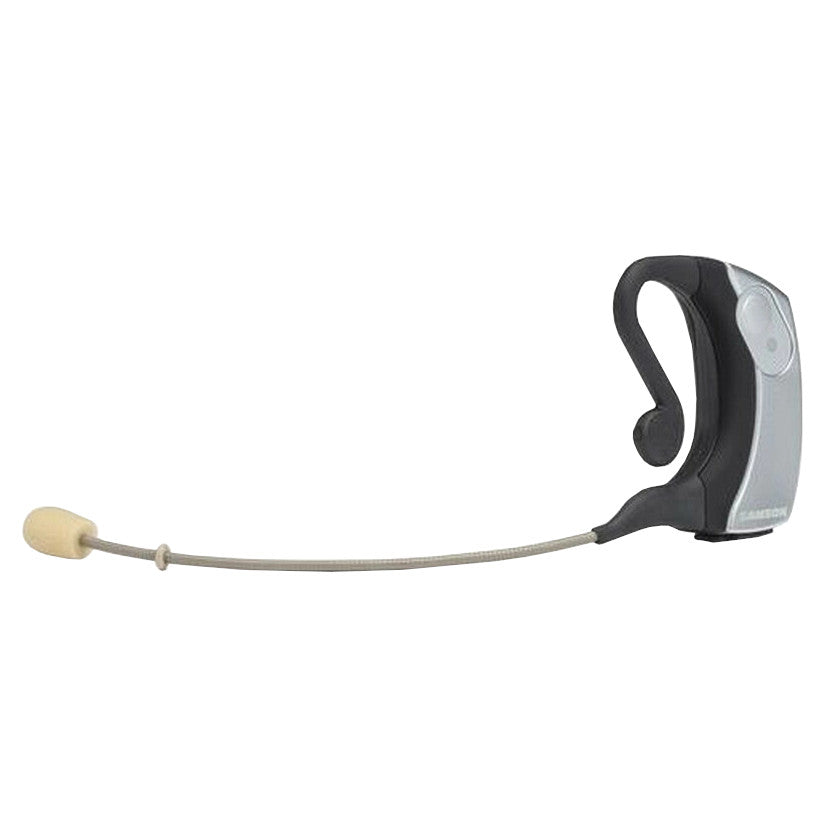

- AH2 Transmitter
- Audio Input Level: -110dBv ~ 0dBv
- Volume Adjustment Steps: 5
- RF Transmitter Output: 10mW ERP
- Power Requirements: Internal lithium ion rechargeable battery
- Battery Life: ~10 hours
- Dimensions (LxWxH): 6.7x0.6x2.3” (171x14x58mm)
- Weight: 0.8oz (22g)
