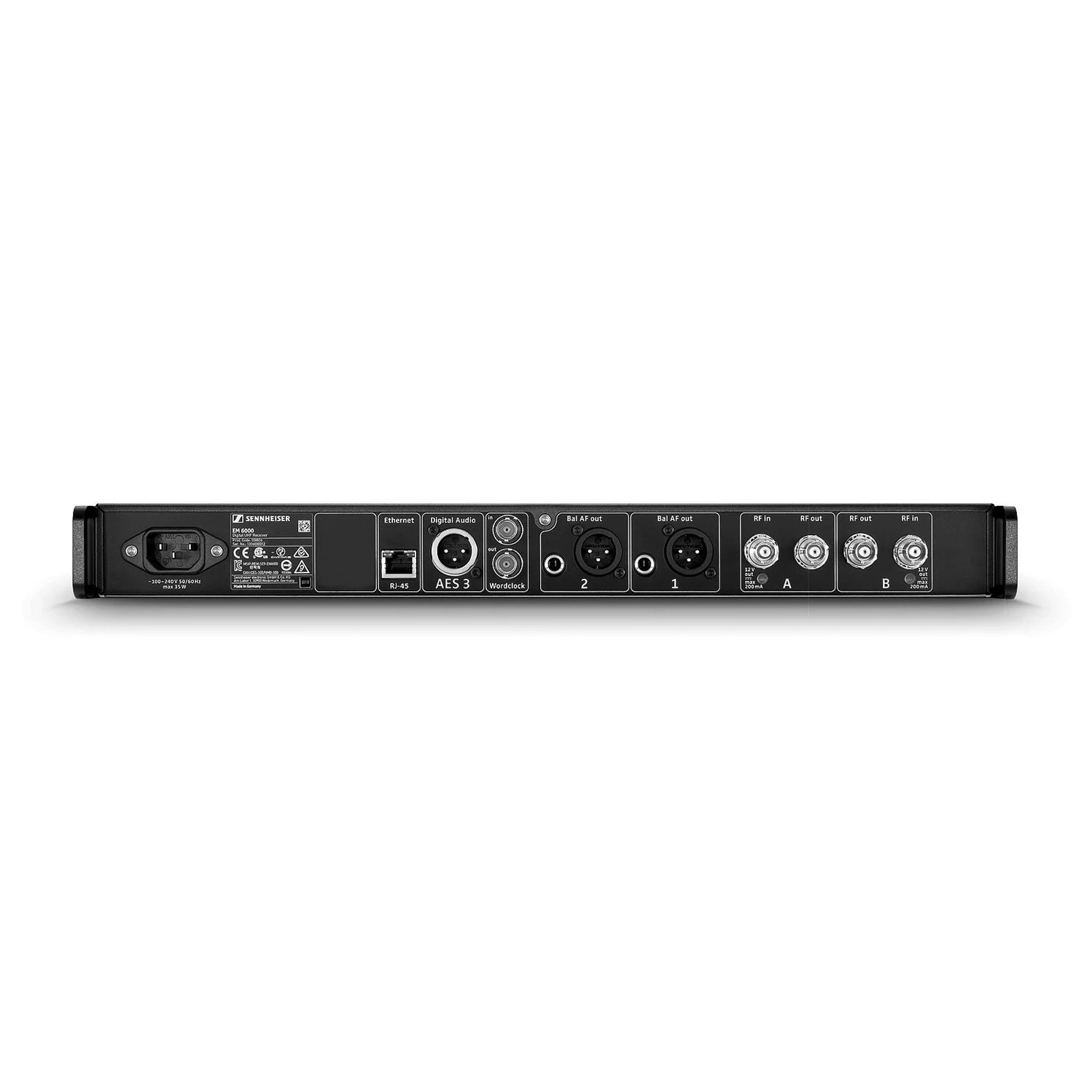

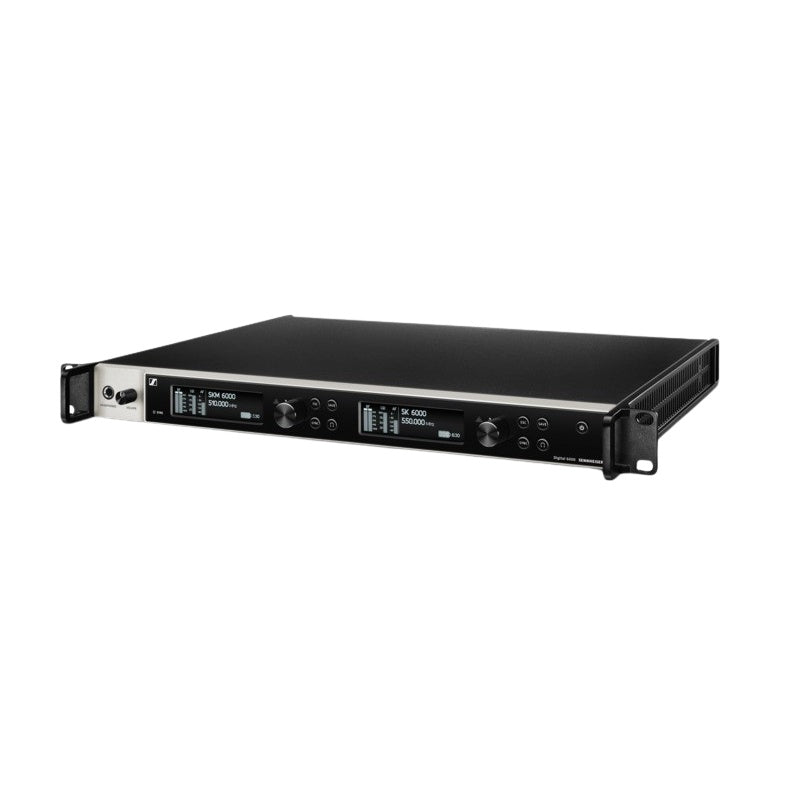

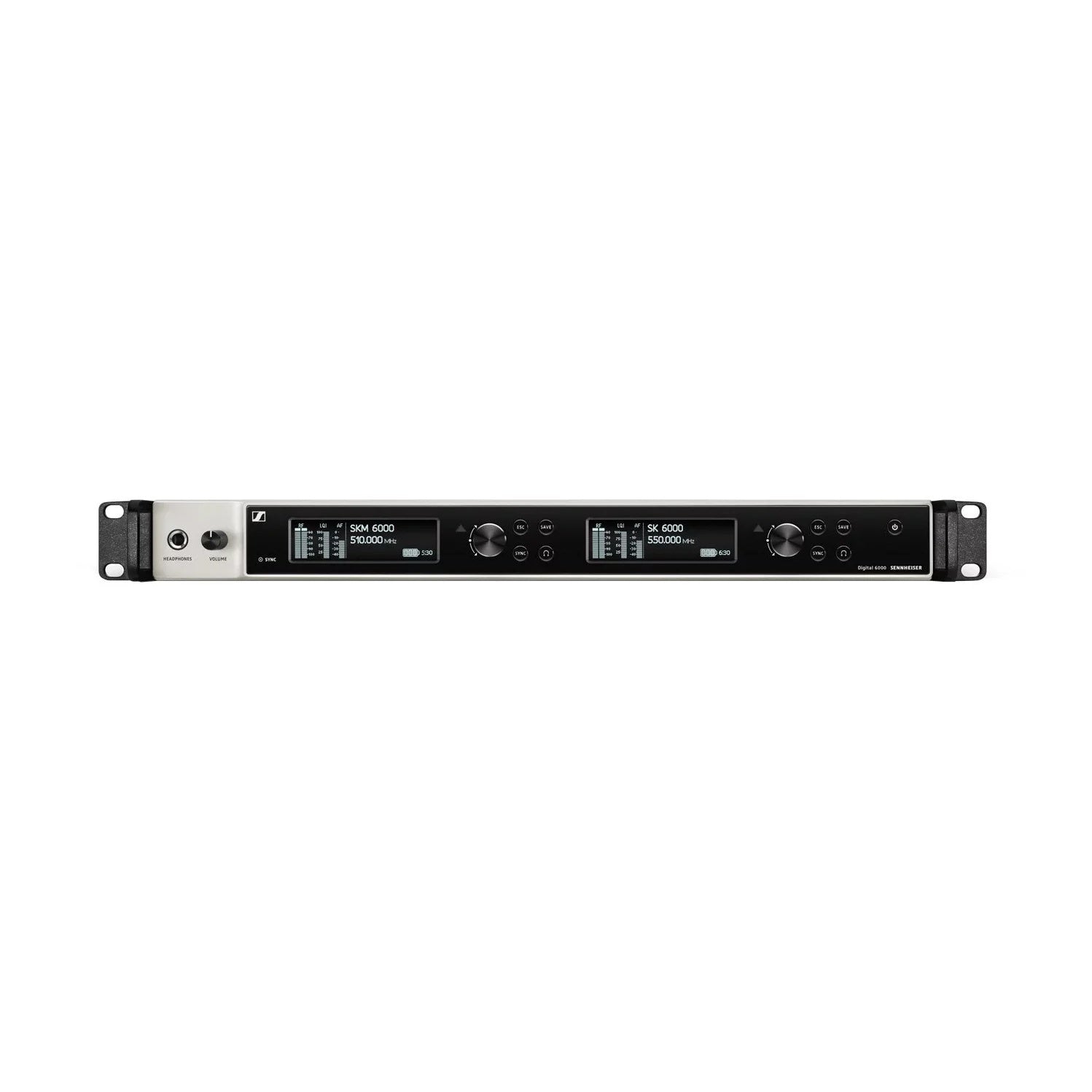

Sennheiser EM 6000 DANTE 2-Channel Digital Receiver With True Bit Diversity

Sennheiser EM 6000 DANTE 2-Channel Digital Receiver With True Bit Diversity

SoundPro Item: 18542 | Part Number: 508475

$3,999.00
$4,699.00 $3,999.00
Your Price Sold out
MSRP: $4,699.00 | MAP: $3,999.00

Usually ships in 5-7 business days

  • 244 MHz Switching Bandwidth Accommodates Flexible Frequency Coordination
  • Long Range Mode With SeDAC Audio Codec Extends Operating Distance
  • Link Density Mode Achieves Five Channels Per MHz Bandwidth
  • Equidistant Frequency Grid Eliminates Intermodulation Products
  • Integrated Antenna Splitter Cascades Eight Systems From Single Input
  • AES-256 Encryption Secures Transmission Paths Against Eavesdropping
  • Transformer Balanced Outputs Reject Common Mode Interference
Log in or register for YOUR best price

Designed for live production engineers and broadcast technicians who require uncompromising RF performance in congested spectrum. The equidistant frequency grid eliminates intermodulation products, enabling tighter channel spacing than traditional wireless systems. True bit diversity architecture with two independent RF paths ensures dropout-free reception even during antenna nulls or shadowing. Error correction algorithms and audio error masking maintain clean output before problems become audible.

The Dante-enabled version integrates directly into networked audio infrastructures using Audinate Brooklyn II hardware and redundant RJ-45 connections for mission-critical installations. Transformer-balanced analog XLR and jack outputs provide compatibility with legacy console inputs. The integrated antenna splitter supports cascading up to eight receiver units from a single antenna pair, reducing rack space and cabling in multi-channel deployments. OLED displays per channel show Link Quality Indicators for immediate RF health assessment.

Long Range mode with SeDAC codec delivers extended operating distance for arena and stadium applications. Link Density mode with SePAC codec maximizes spectral efficiency, achieving up to five channels per MHz bandwidth. Thirty-two RF pre-selection filters actively suppress out-of-band interference at the antenna input. Automatic frequency setup distributes clean channels across connected devices without manual coordination. WSM software compatibility enables centralized monitoring and control across entire wireless networks.

Downloads

View full details

Specifications

Certifications
Encryption
AES 256
Dimensions
Product Height
44 mm
Product Width
483 mm
Product Length
373 mm
Weight
Product Weight
5200 g
Electrical
Power Consumption
85 W
Charging Voltage
BA 60/BA 61: 4.2 V BA 62: 4.35 V BA 70: 4.35 V
Audio
Frequency Range
470.000 - 714.000 MHz
Audio Frequency Response
LR Mode: 30 Hz - 20 kHz (1.5 dB)
Dynamic Range
>111 dB(A)
Total Harmonic Distortion
<0.03 % (@ 1 kHz)
Latency
Analog audio out: 3 ms (LR) / 3.2 ms (LD)
Audio Output Level
XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
Sensitivity
-100 dBm typ.
Connectivity
Network Protocol
IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection
Audio Input
2x BNC (50 Ω)
Audio Output
Analog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
Connection
Wireless
Performance
Receiver Principle
Double superheterodyne
Codecs
SePAC (Sennheiser Performance Audio Codec)
Transmission Method
Digital modulation, Long Range Mode (LR): Min. frequency spacing for equidistant grid: 400 kHz
Environmental
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Operating Relative Humidity
Max. 85% at 40°C (non-condensing)
Identifiers
Warranty
2 years
