Sennheiser SL CM FB 506846 Ceiling Surface Mounting Bracket

Sennheiser SL CM FB 506846 Ceiling Surface Mounting Bracket

SoundPro Item: 89817 | Part Number: SL CM FB

$209.00
$209.00 $209.00
Your Price Sold out
MSRP: $209.00 | MAP: $209.00

Usually ships in 5-7 business days

  • Ceiling array microphone with patented automatic
  • speaker position detection and dynamic beamforming
  • for best speech intelligibility
  • Analog and digital (Dante™) audio outputs for easy
  • connectivity to video and audio conference systems
  • Configuration and monitoring via Sennheiser´s unique
  • Control Cockpit software
  • Open API for media and camera control applications
  • Several installation options via suspension kit, flushmount or surface bracketArticle No. 506846
Log in or register for YOUR best price

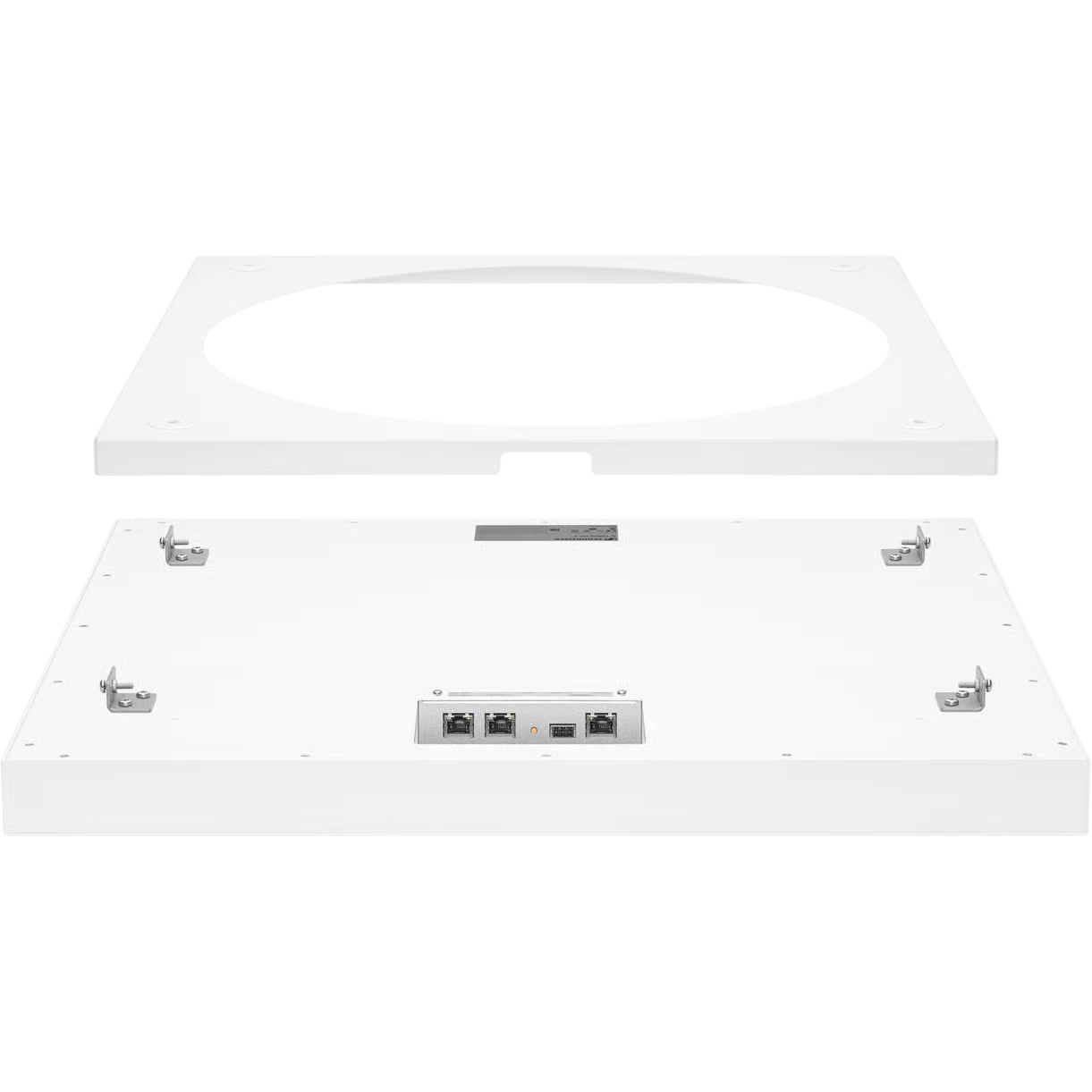

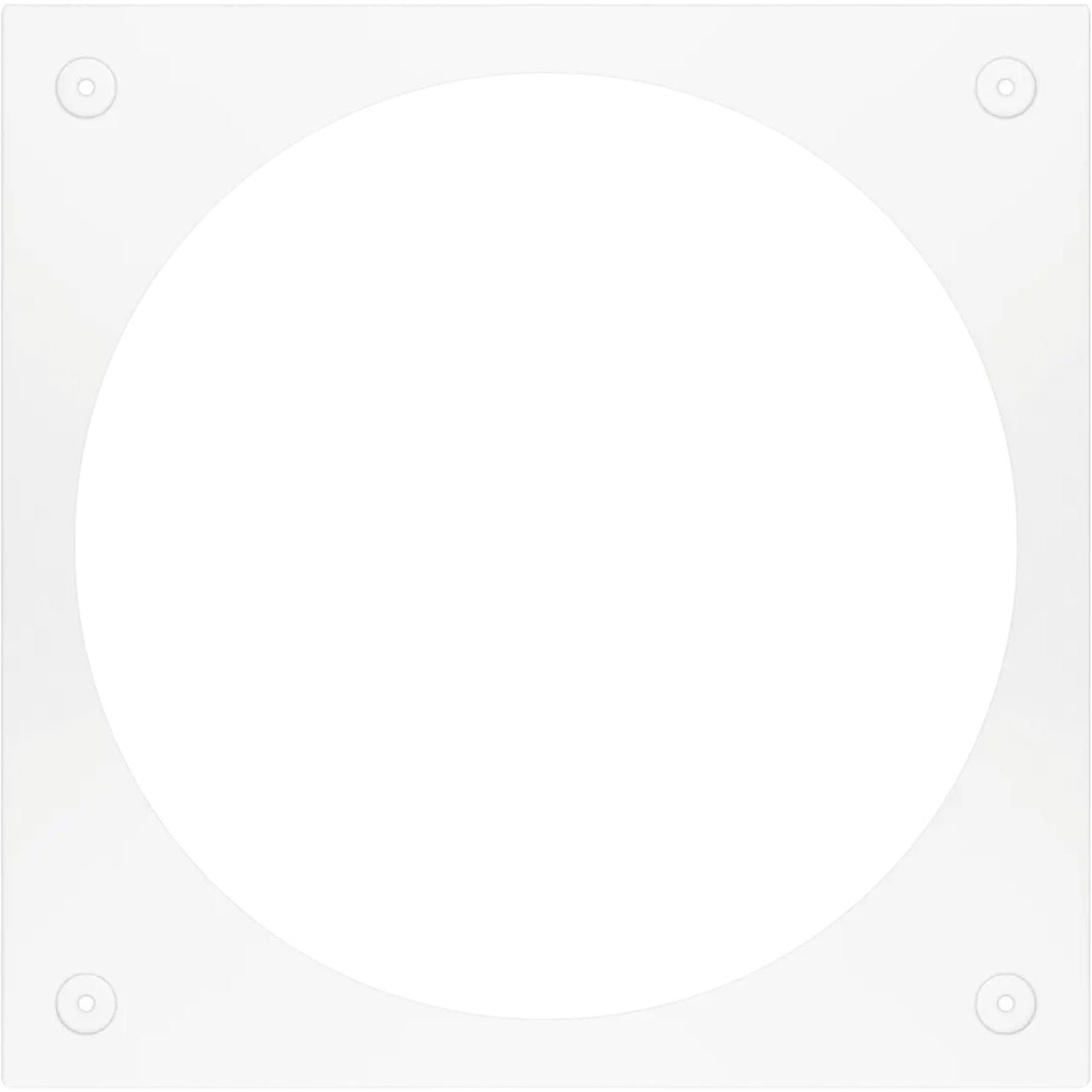

SL CM FB is a ceiling surface mounting bracket to install the TeamConnect Ceiling 2 microphone array on closed ceilings.

View full details

Specifications

Dimensions (L x B x H)
590 x 590 x 43 mm
(23.2" x 23.2" x 1.7")
Weight
6 kg (13.2 lbs)
Audio Output
1 x 3-pin terminals (fits Phoenix contact MCVW 1.5-3-ST-3.81)
2 x Digital Dante Network Audio
(RJ45)
Ethernet / Control
1 x RJ45 Ethernet Port for PoE power supply and data / control communication
Supply voltage
44 – 57 V DC (via PoE)
Temperature Operation
0 – 40 °C (32 - 104 °F)
Storage: -10 – 60 °C (14 - 140 °F)
Relative humidity
20 – 95 %, non condensing
Microphone type
pre-polarized condenser microphone
Sensitivity
-1 dBV/Pa (930 mV/Pa)
Number of KE 10-237
microphone capsules
28
Pick-up pattern
Beam pattern
Max. sound pressure
level
119 dB SPL
Dynamic range
99 dB(A)
