Sennheiser 509162 Spectera Base Station
Sennheiser 509162 Spectera Base Station
SoundPro Item: 151163 | Part Number: 509162
Usually ships in 5-7 business days
- 19" 1 U Base Station with redundant power supplies
- Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF channels in UHF or 1G4 (6 or 8 MHz) - country specific per region license
- 4 RJ45 antenna ports for redundancy, extended zone coverage, and additional spectrum usage
- Redundant Dante audio interface
- Two expansion slots for redundant MADI (Expansion Card OM or BNC)
- Sample rates of 48 kHz and 96 kHz
- Individual sample rate converters for all audio interfaces
- Wordclock I/O BNC
- Synchronized clock for all audio over RF allows 3D recordings and playback
- Adjustable RF power from 10 - 100 mW (country specific)
- RJ45 ethernet network interface for full remote control with secured interface
- 11 Audio link modes with selectable audio codecs (OPUS, SeDAC or PCM)
- Secure transmission of confidential content using AES 256 encryption
- Future expansion via cascade port
- Selectable headphone output with volume control on front panel

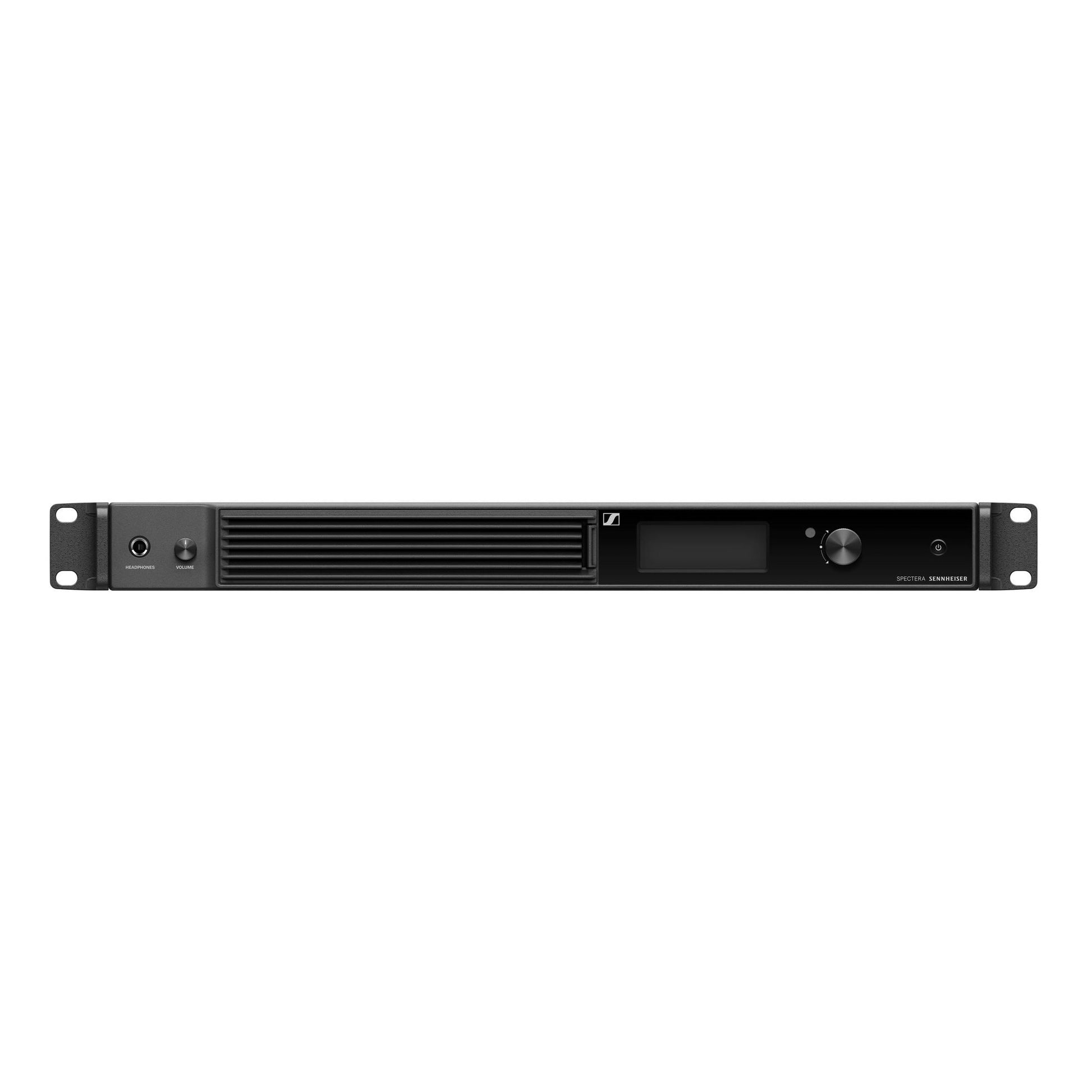

- OLED display, jog wheel navigation, and rugged metal housing
- Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)
The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit's wireless transmission.
It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity.
The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.
- ColorBlack
- Latency (ms)tbd per ALM
- Min. channel spacing (kHz)matches to used bandwidth mode
- Warranty AMER (years)2
- Audio frequency response20 Hz - 20 kHz (±1 dB)
- Audio output level2 x 50mW RMS (32 Ω, -40dB THD, 1kHz)
- Sampling rates48 kHz | 96 kHz

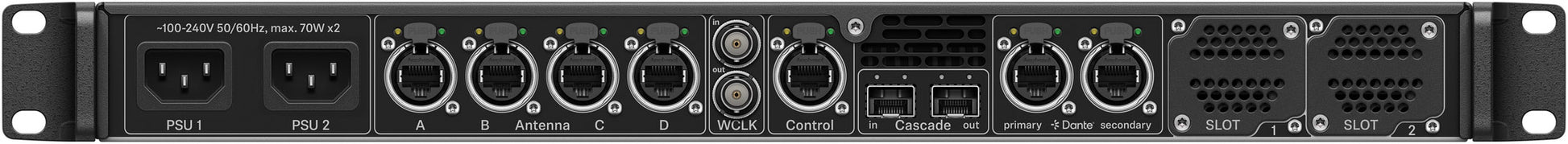

- Connection ports(2) Dante RJ 45 (Primary and Secondary) 32 In, 32 Out, 48 kHz, 96 kHz, 16/24/32 bit | (2) MADI (AES10) Expansion Slot 32 In, 32 Out, 48 kHz, 96 kHz, 16/24 bit | Individual sample rate for each interface | 6.3 mm headphone jack, 2 x 50 mW at 32 Ω -40 dB THD (1%) at 1 kHz
- Connectors6.3mm TRS, BNC 75 OHM, RJ45 1Gbps PoE, RJ45 Dante, RJ45 (for Ethernet), SFP
- Dante™IEEE 802.3 (1000 Mbit/s), 2 x ruggedized RJ-45 connection
- Antenna outputRJ45 1Gbps PoE
- Storage relative humidity25 - 95% (non-condensing)
- Storage temperature range-25 °C - +70 °C (-13 °F - 158 °F)
- Operating relative humidity (≤ %)25 - 95% (non-condensing)
- Operating temperature (C)-10 °C - +50 °C (14 °F - 122 °F)
- Battery includedN
- Power consumption (Amp)70 W x 2
- Input voltage2 x internal redundant 100 to 240 V AC, 50/60 Hz
- EncryptionAES 256 CTR Mode exp. >10k years
- CodecsOPUS, PCM, SeDAC (Sennheiser Digital Audio Codec)
- Transmission methodMulticarrier, TDMA, TDD
- Product height175
- Product length550
- Product weight (g)8200
- Product width435
