Specifications
Audio
Transducer Type
Pre-polarised condenser
Frequency Response
100 Hz - 16,000 Hz
Equivalent Noise Level
15 dB(A)
Dynamic Range
> 83 dB(A)
Signal-to-Noise Ratio
79 dB(A)
Max. Sound Pressure Level
98 dB SPL
Sensitivity
0 dBV/Pa (1020 mV/Pa)
Coverage
Microphone Pickup Range
Up to 4.3 m (14 ft)
Coverage Area
Up to 60 m² (646 ft²)
Capsules
15
Electrical
Power Consumption
Approx. 8 W
Battery Included
No
Connectivity
Connection
Wired
Audio Output
1x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
Environmental
Operating Relative Humidity
20-95%, non-condensing
Dimensions
Product Length
23.88"
Product Width
23.88"
Product Height
1.80"
Weight
Product Weight
9.47 lbs
Package Weight
9.47 lbs
Construction
Color
White
Warranty
Americas
2 years
Global
5 years
Included Items
Contents

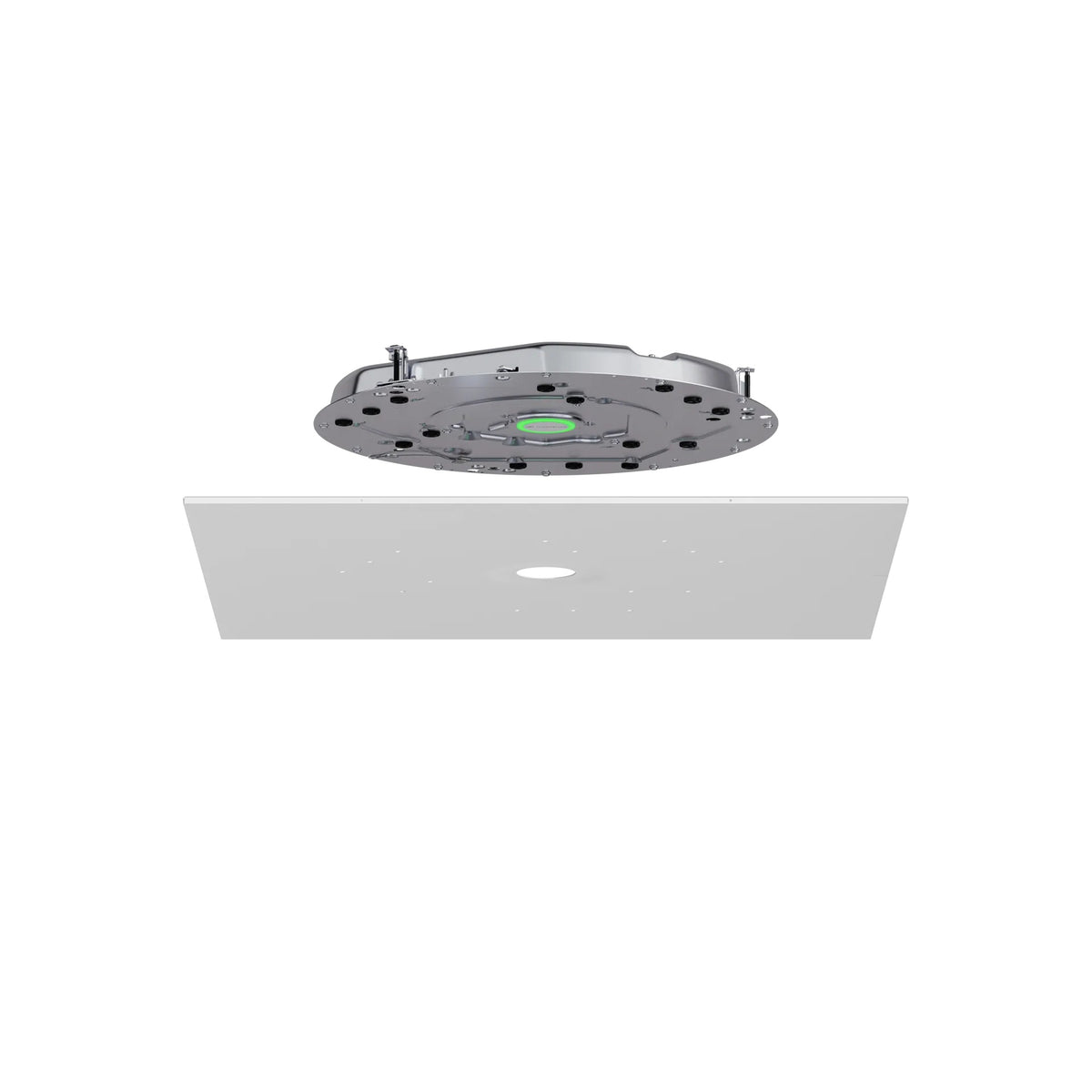

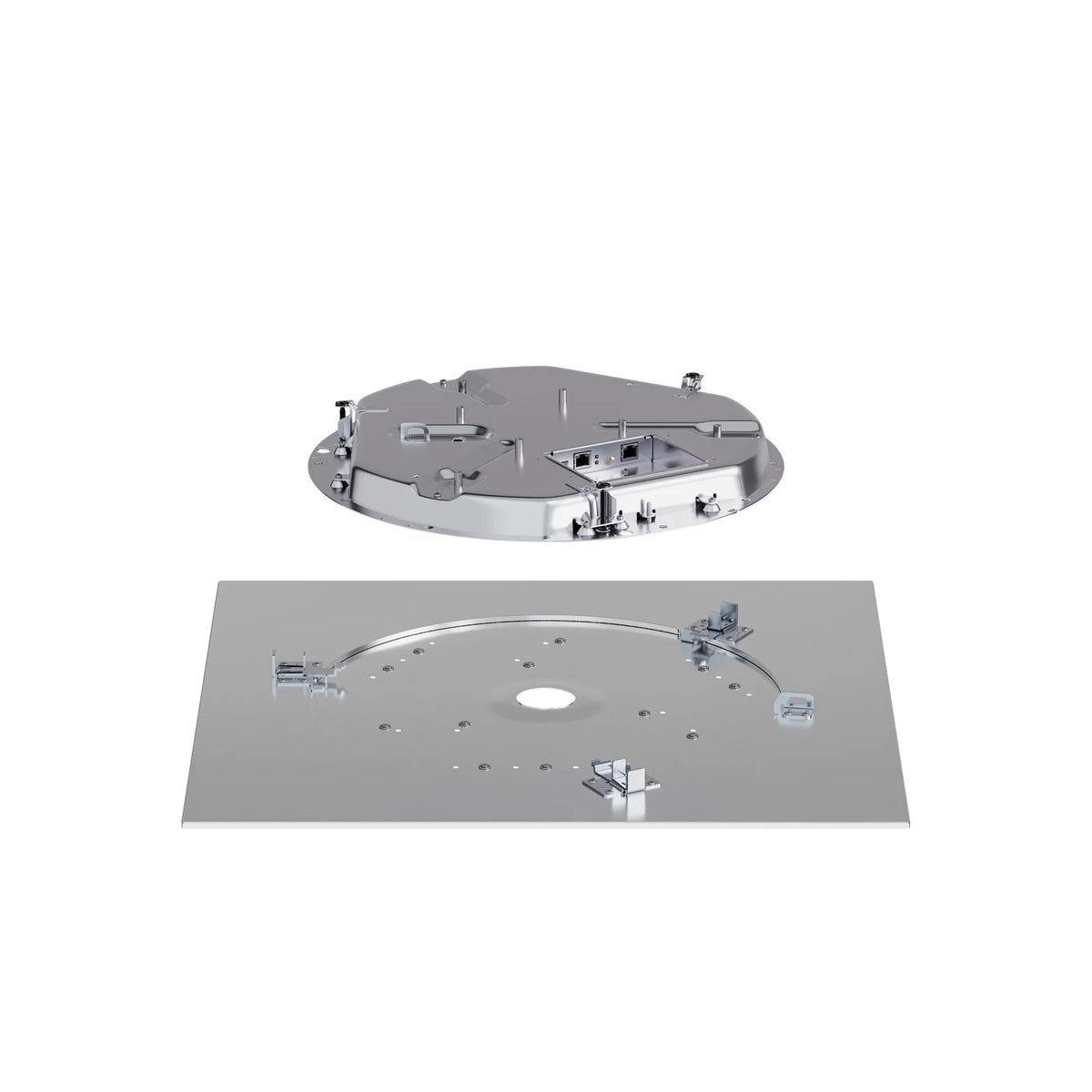

1x TeamConnect Ceiling M Plus unit, 1x TCCM CTFP-W 2FT square ceiling tile plate (approx. 23.88 x 23.88 in, white), 1x Phoenix connector, 1x Safety rope, 1x Suspension kit
