Specifications
RF Performance
Frequency Range
470-558 MHz (A1-A4)
Switching Bandwidth
88 MHz
Frequency Stability
< 5 ppm
Tuneability
25 kHz steps
RF Output Power (LR Mode)
25 mW rms
RF Output Power (LD Mode)
1 mW rms
Modulation Scheme
Digital modulation: Long Range Mode (LR), Link Density Mode (LD)
Audio
Audio Codec (LR Mode)
SeDAC (Sennheiser Digital Audio Codec)
Audio Codec (LD Mode)
SePAC (Sennheiser Performance Audio Codec)
Audio Frequency Response (LR Mode)
30 Hz to 20 kHz (3 dB)
Audio Frequency Response (LD Mode)
30 Hz to 14 kHz (3 dB)
Audio Gain
0 dB to +62 dB, adjustable in 3 dB steps per capsule
Lower Cut-Off Frequency (-3 dB)
Adjustable: 60 Hz, 80 Hz, 100 Hz, 120 Hz
Security
Encryption
AES 256 and Digital 9000 encryption
Dimensions
Height
270 mm
Diameter
40 mm
Product Height
10.629927"
Product Width
1.574804"
Weight
Weight (with BA 60 and ME 9005)
Approx. 350 g
Product Weight
0.771618 lbs
Power
Operating Time
5.5 h (with BA 60 battery pack)
Shipping
Package Weight
1.9 lbs
Package Width
2.7"
Package Length
5.4"
Package Height
13.8"
Included Items
Contents

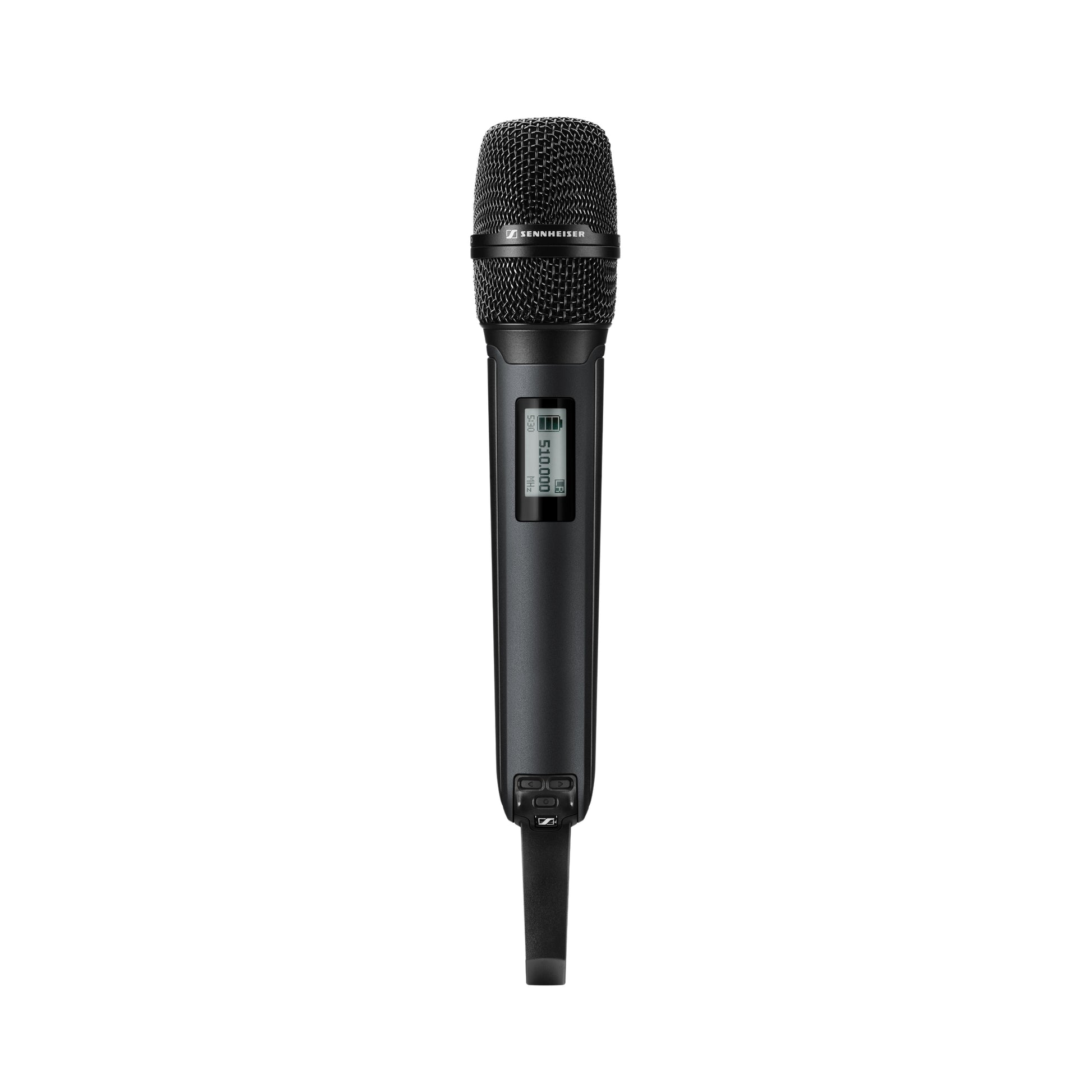

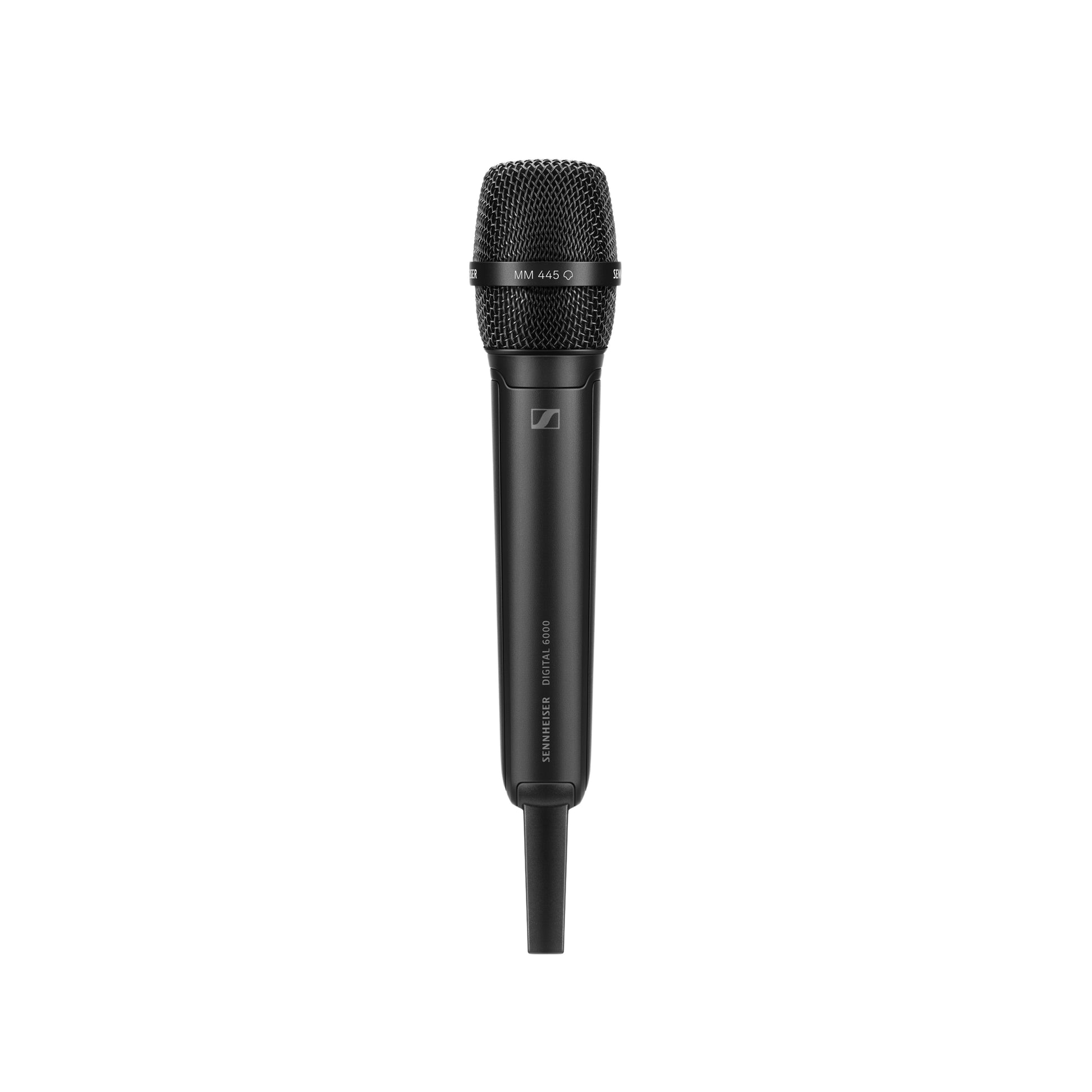

SKM 6000 handheld transmitter, MZQ 9000 microphone clamp, quick guide, safety guide
Identifiers
MPN
701049
