Specifications
RF Performance
Frequency Range
550-638 MHz (A5-A8)
Overall Frequency Coverage
470-718 MHz (subdivided into 3 ranges)
Modulation Scheme
Digital modulation: Long Range Mode (LR), Link Density Mode (LD)
Switching Bandwidth
88 MHz
Frequency Stability
< 5 ppm
Tuneability
25 kHz steps
RF Output Power
LR: 25 mW rms; LD: 1 mW rms
Audio
Audio Codec
LR mode: SeDAC (Sennheiser Digital Audio Codec); LD mode: SePAC (Sennheiser Performance Audio Codec)
Audio Frequency Response
LR: 30 Hz to 20 kHz (3 dB); LD: 30 Hz to 14 kHz (3 dB)
Audio Gain
Adjustable in 3 dB steps from 0 dB to +62 dB (per capsule)
Lower Cut-Off Frequency (-3 dB)
Adjustable: 60 Hz, 80 Hz, 100 Hz, 120 Hz
Security
Encryption
AES 256 and Digital 9000 encryption
Power
Operating Time
5.5 h (with BA 60 battery pack)
Dimensions
Height x Diameter
270 x 40 mm
Weight
Product Weight
Approx. 350 g (with BA 60 battery pack and ME 9005 microphone module)
Product Weight (lb)
0.771618 lbs
Shipping
Package Weight
1.9 lbs
Package Width
2.7"
Package Length
5.4"
Package Height
13.8"
Included Items
In The Box

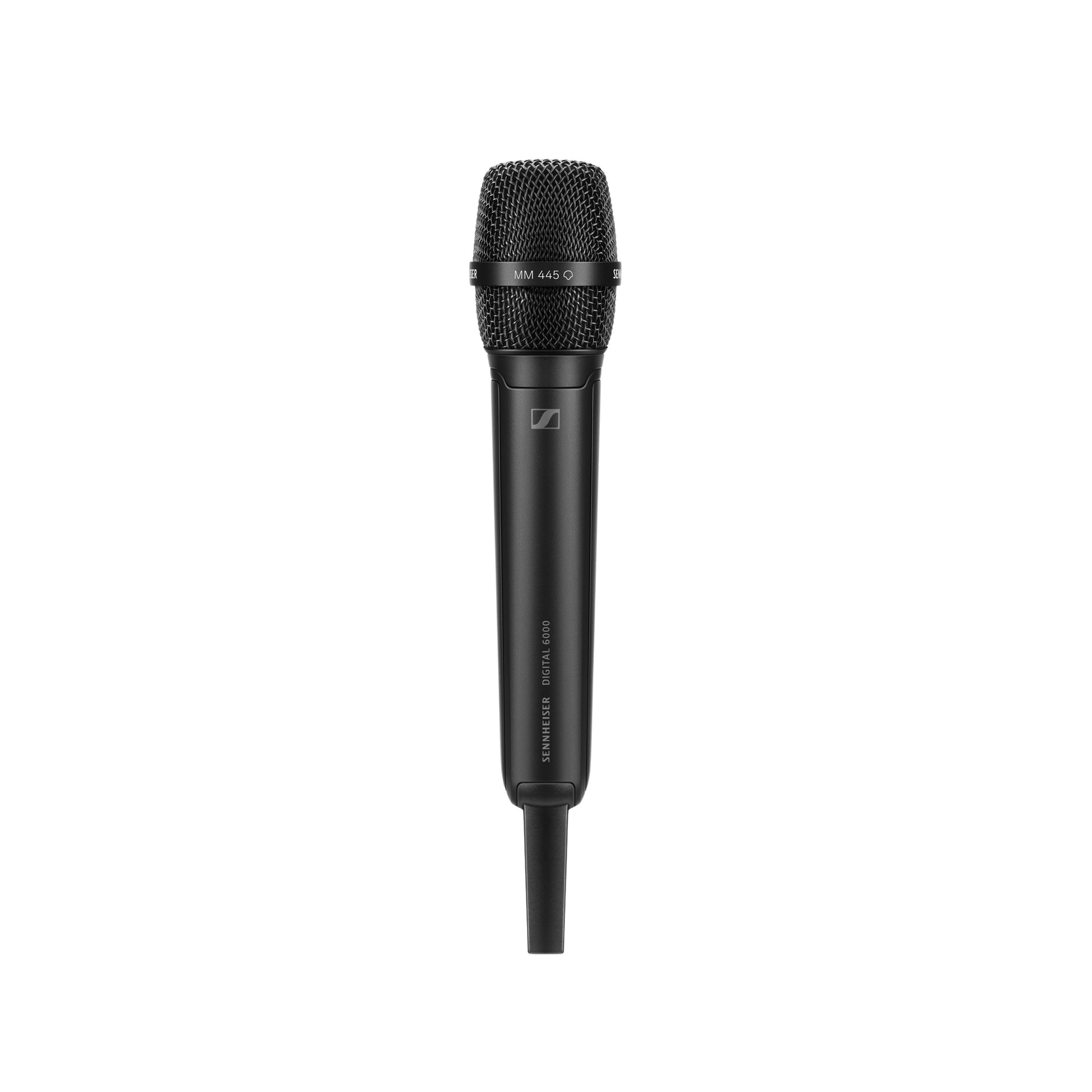

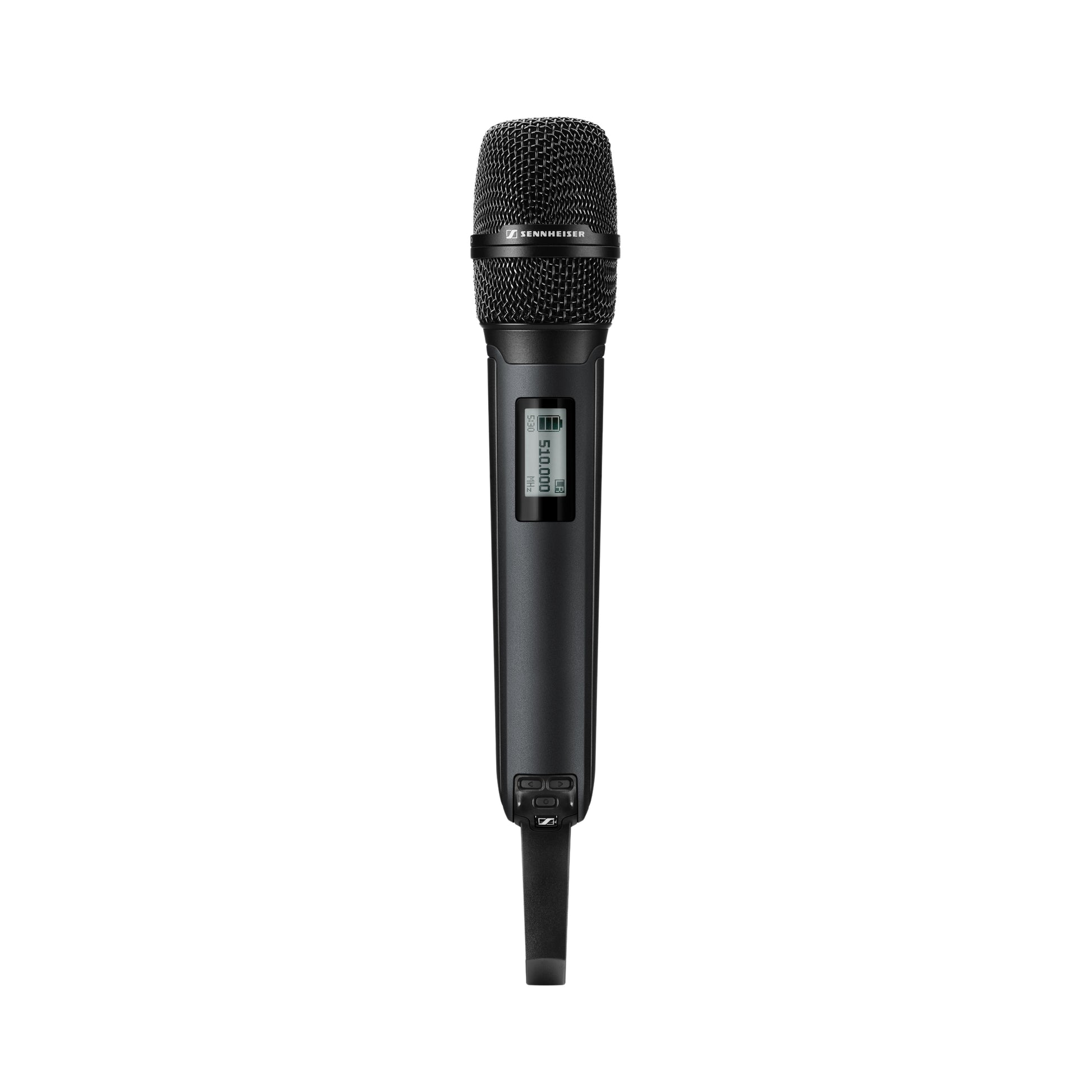

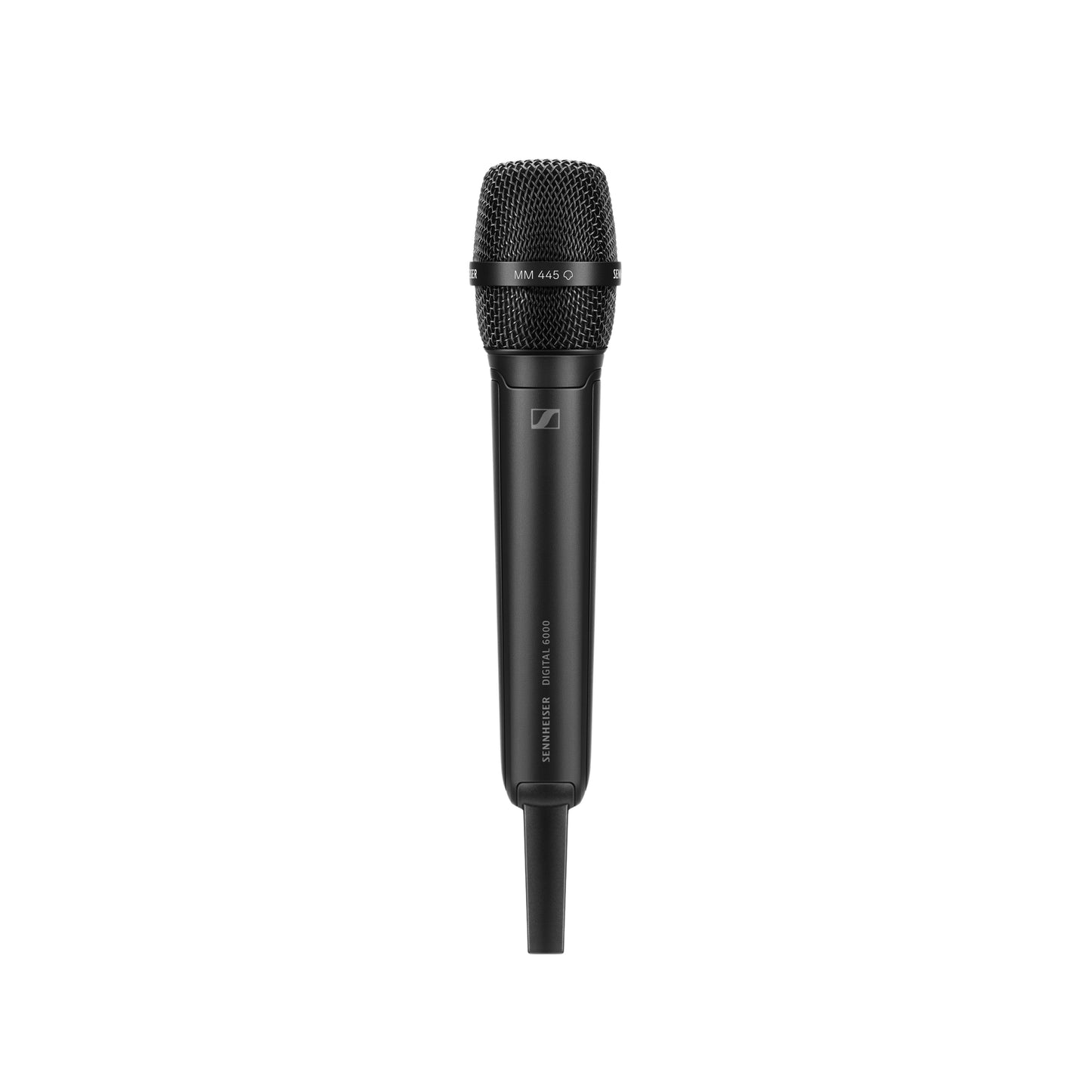

SKM 6000 handheld transmitter, MZQ 9000 microphone clamp, quick guide, safety guide
Identifiers
MPN
701051
