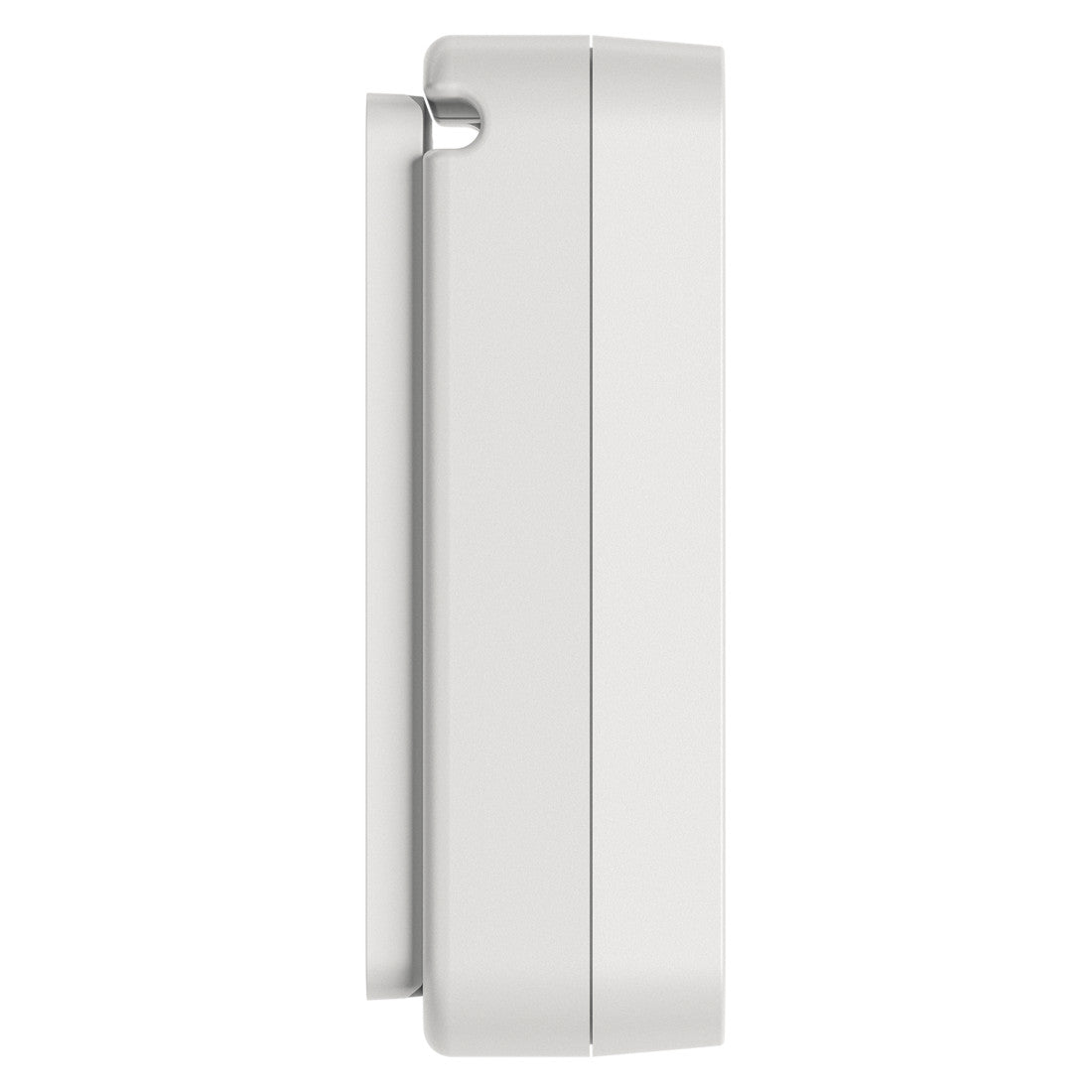

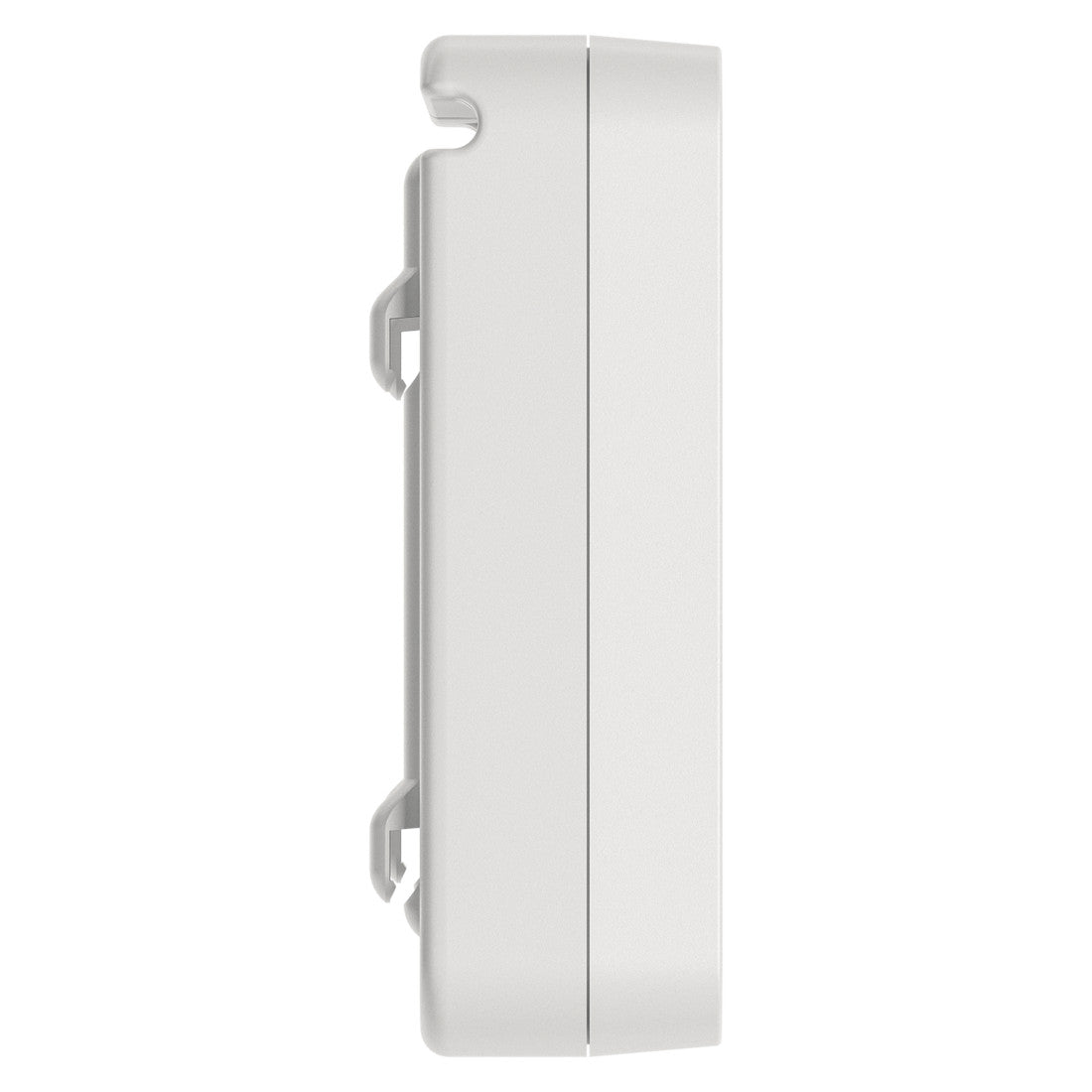

Sennheiser AWM UHF Active Directional Antenna | Frequency: 470-694 MHz
Sennheiser AWM UHF Active Directional Antenna | Frequency: 470-694 MHz
SoundPro Item: 141781 | Part Number: AWM UHF (470-694 MHz)
Usually ships in 5-7 business days
- Active directional antenna

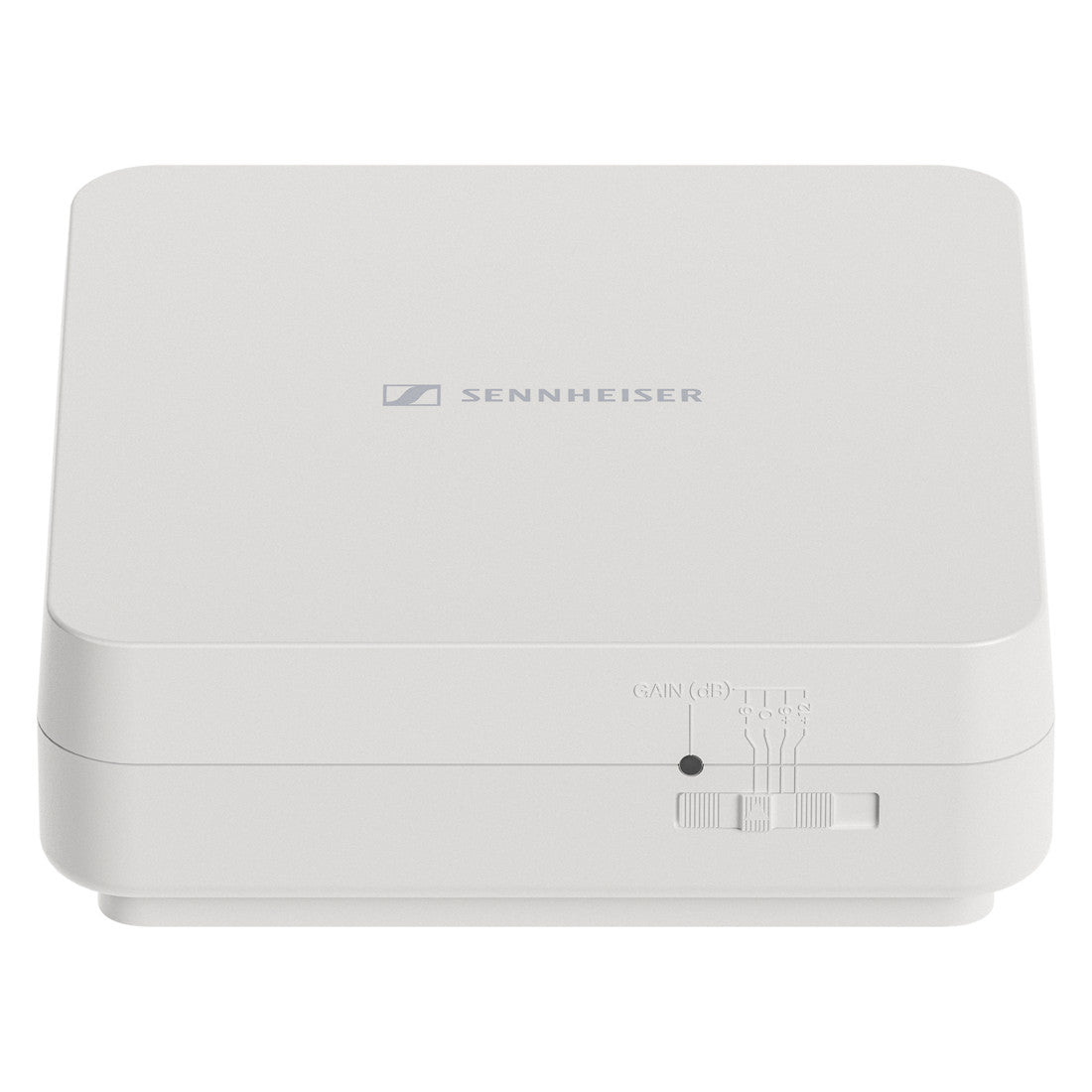

- Adjustable gain settings for different cable length
- Wall, ceiling or mic stand mounting options
- Power supply either via BNC or DC Jack
AWM Antenna is an active directional antenna for use with Evolution Wireless Digital microphone systems. The AWM antenna is designed to enhance the wireless performance of your Evolution Wireless Digital system and can be installed quickly and easily in any room, on a vertical (wall) or horizontal (ceiling) surfaces. The AWM UHF can be connected to any stationary Evolution Wireless Digital receiver or EW-D ASA antenna splitter. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
- Frequency ranges
- UHF I - 470 - 694 MHz
- UHF II - 823 - 1075 MHz
- 1 G8 - 1785 - 1805 MHz
- Apex angle (horizontal, -3 dB)
- UHF I - NA
- UHF II - Approx. 80°
- 1 G8 - Approx. 110°
- Front-to-back ratio
- UHF I - NA
- UHF II - Approx. 10 dB
- 1 G8 - Approx. 10 dB
- Antenna gain
- UHF I
- ≥ +3.0 dBi (480 MHz)
- ≥ +3.5 dBi (582 MHz)
- ≥ +4.5 dBi (694 MHz)
- UHF II - ≥ +6.0 dBi
- 1 G8 - ≥ +6.0 dBi
- UHF I
- Antenna polarizationLinear
- Amplification (signal booster, low noise, band selective, +/-1 dB w/o line break)
- Setting: +12 dB = Max. gain [dB] 12
- Setting: +6 dB = Max. gain [dB] 6
- Setting: 0 dB(1) = UHF I, UHF II: -0.5; 1G8: -1.5
- Setting: -6 dB = Max. gain [dB] -6
- Note: (1) At 0 dB, band selective booster is bypassed. This mode also needs DC power supply.
- OIP3 (@ +12 dB)≥ 35 dBm
- Max. RF output
- UHF I/UHF II: approx. +22 dBm
- 1 G8: approx. +18 dBm

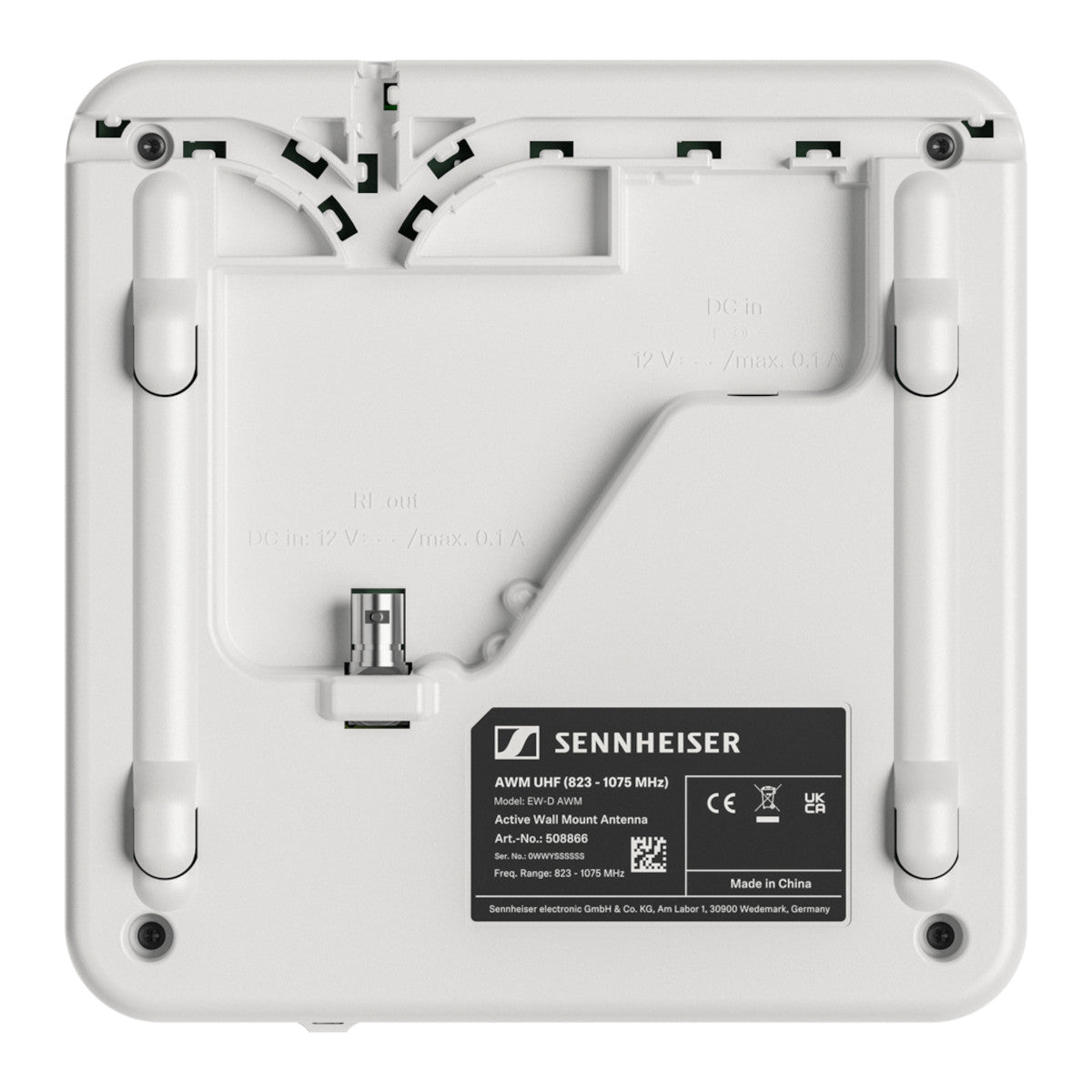

- RF connection BNC female, DC coupled
- Impedance 50Ω
- DC connection 5.5 x 1.6 mm DC jack, center contact +
- Power supply (via BNC or DC jack)12V DC (9 - 18V DC) /max. 100 mA @ 12V
- LED signalization
- ON (white= „+12 dB“; blue= „+6 dB“; green= „0 dB“; orange= „-6 dB“)
- OFF (no or insufficient DC supply)
- Mounting connection for tripod or mic stand3/8" internal thread
- Mounting holes standardVESA 100 x 100
- Color Traffic white (RAL: 9016)
- Housing material Halogen-free flame-retardant PC/ABS
- Dimensions
- (excl. mounting plate) - 7.08x7.08x2.08" (180x180x53mm)
- (incl. mounting plate) - 7.08x7.08x2.48" (180x180x63mm)
- Weight Approx. 1.54 lbs (*700g)
- Operating temperature14°F to 131°F (-10°C to +55°C)
- Storage temperature-4°F to 158°F (-20°C to +70°C)
- Relative air humidity 5 to 95%
