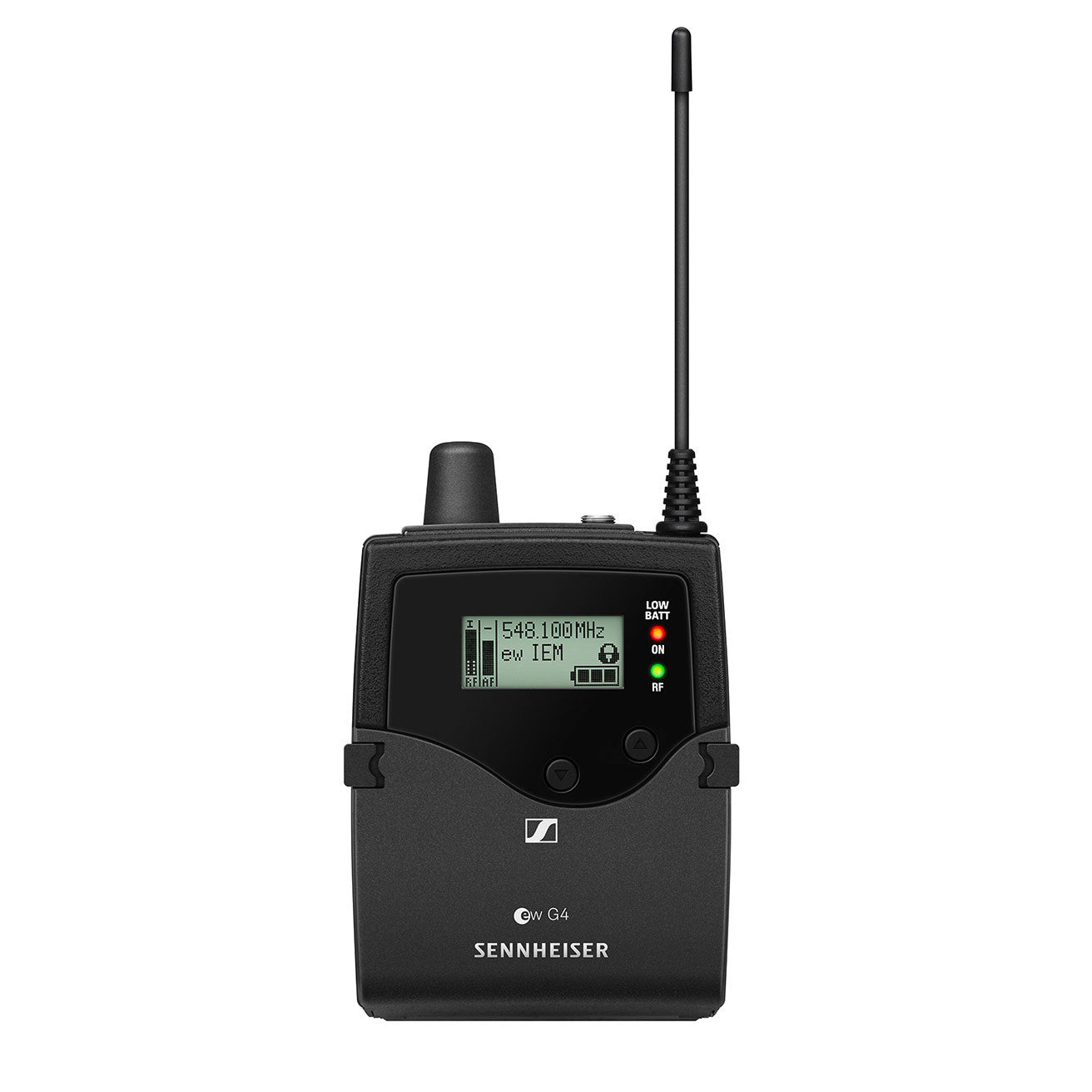

• Sennheiser EK IEM G4 Stereo Bodypack Receiver

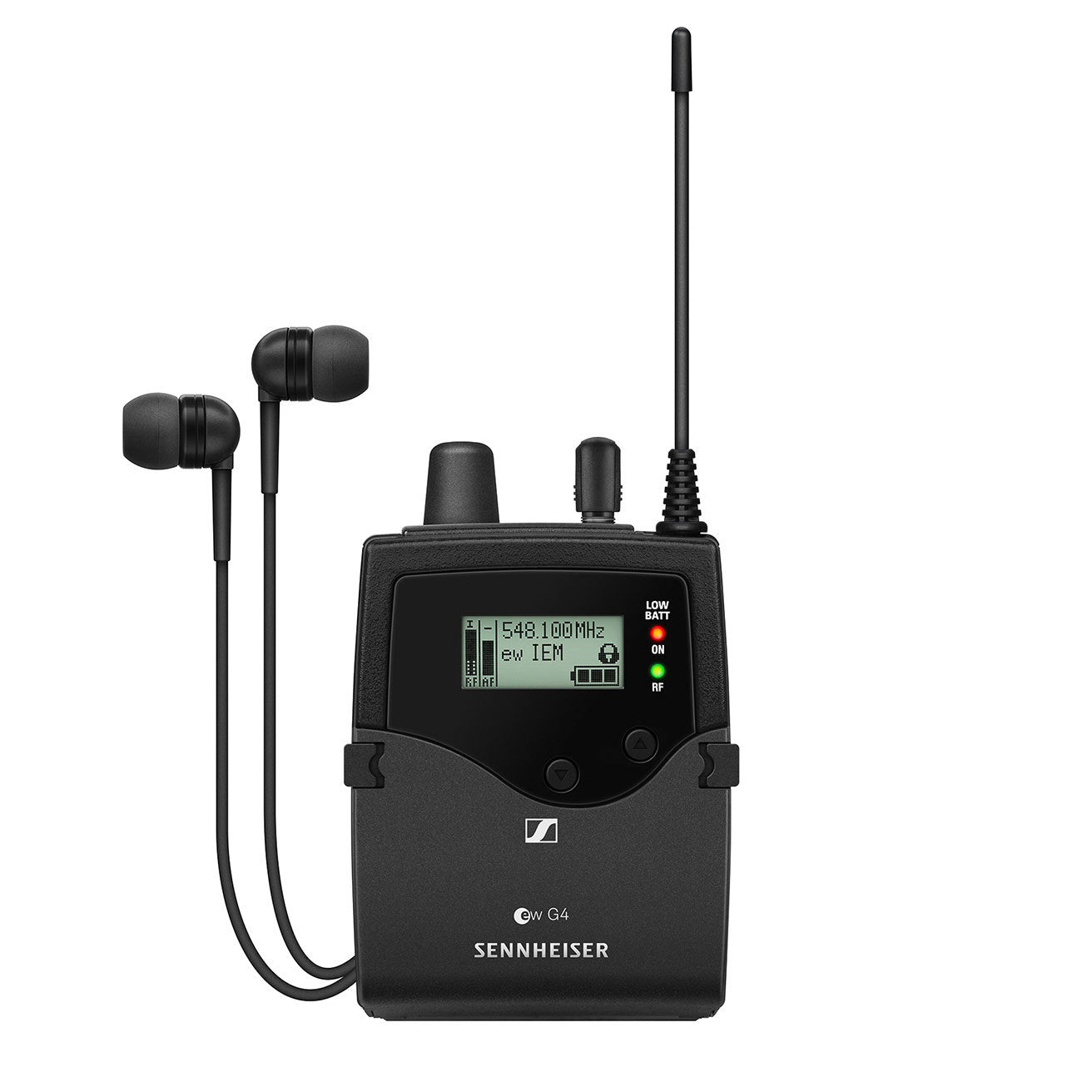

  • Sennheiser EK IEM G4 Stereo Bodypack Receiver with earbuds

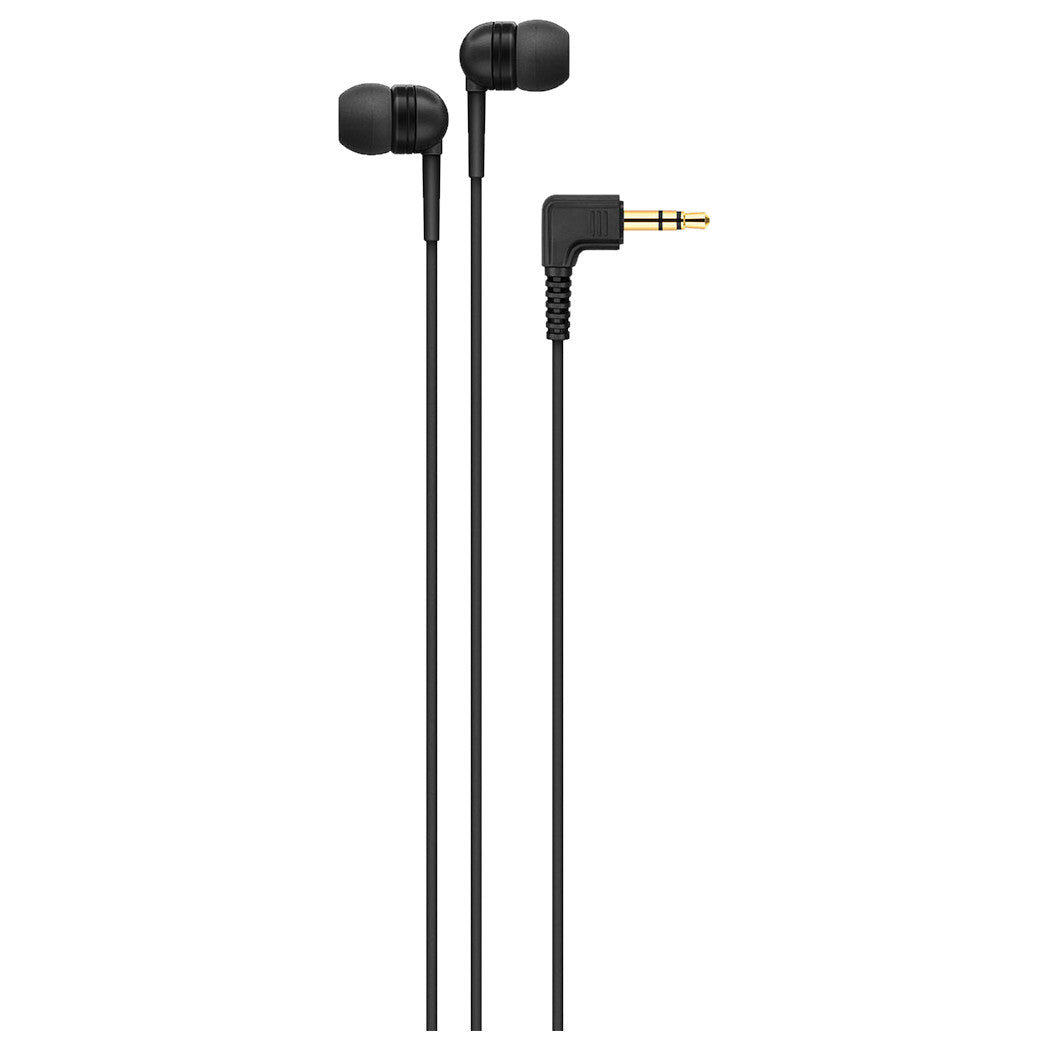

  • Sennheiser EK IEM G4 Stereo Bodypack Receiver earbud cable
1 3

Sennheiser EK IEM G4 Stereo Bodypack Receiver | Frequency: G (566-608 MHz)

Sennheiser EK IEM G4 Stereo Bodypack Receiver | Frequency: G (566-608 MHz)

SoundPro Item: 118333 | Part Number: EK IEM G4-G

$579.00
$679.00 $579.00
Your Price Sold out
MSRP: $679.00 | MAP: $579.00

In stock and ready to ship

  • One Pair of IE 4 Earphones
  • Up to 16 Compatible Channels
  • 42 MHz Bandwidth
  • 1680 Selectable Frequencies in UHF Range
  • 300' Transmission Range
Log in or register for YOUR best price

Take control of your sound on-stage with the EK IEM G4 Stereo Bodypack Receiver from Sennheiser. This bodypack receiver is specifically designed to reliably provide audio clarity across the entire frequency spectrum, while its durable build makes it perfect for handling the rigors of daily use.

Whether you’re live on stage or in the broadcasting studio, you can enjoy outstanding In Ear Monitoring with the EK IEM G4! It’s packed with features and functionality that give you all the tools you need to be confident that you sound your best. Because this receiver offers an accurate, authentic picture of your live sound, you can exercise perfect control over your performance.

Included in the box with the EK IEM G4 stereo receiver are 2 AA batteries and a set of IE 4 earphones, as well as a quick guide, safety guide, and a manufacturer declaration sheet.

View full details

Specifications

Dimensions
Dimensions
Approx. 82x64x24mm
Weight
Weight (incl. batteries)
approx. 125 g
Electrical
THD, Total Harmonic Distortion
≤ 0.9 %
At Nominal Voltage
approx. 140 mA
Audio
Signal-to-noise Ratio
approx. 90 dBA
Audio-Output-Power
2 x 100 mW at 32 Ω
RF Sensitivity
< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Environmental
Temperature Range
-10 °C to +55 °C
General
A1
470 - 516 MHz
A
516 - 558 MHz
AS
520 - 558 MHz
B
626 - 668 MHz
C
734 - 776 MHz
D
780 - 822 MHz
E
823 - 865 MHz
G
566 - 608 MHz
GB
606 - 648 MHz
Compander
Sennheiser HDX
Switching Bandwidth
up to 42 MHz
Peak Deviation
±48 kHz
Nominal Deviation
±24 kHz
Operating Time
approx. 4 to 6 hours (depending on volume level)
Power Supply
2 AA batteries, 1.5 V or BA 2015 accupack
With Transmitter Switched Off
≤ 25 µA
Adjacent Channel Rejection
Typically ≥ 65 dB
Intermodulation Attenuation
Typically ≥ 70 dB
Limiter
–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Powering
3 V battery / 2.4 V rechargeable battery
Receiving Frequency
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
Bass Boost
+8 dB at 8 kHz
Receiver Principle
Adaptive diversity
Blocking
≥ 80 dB
RF
Frequency Range
748.3 MHz - 757.7 MHz
Squelch
5 to 25 dBµV, adjustable in steps of 2 dB
Radio
Modulation
Wideband FM
